MTA automatic gearbox controller 55246930 CFC319F.03 – Fiat 500L 1.3 Multijet
55246930 CFC319F.03 is an original MTA / Dualogic Magneti Marelli automatic gearbox controller used in selected versions of Fiat 500L 1.3 Multijet.
The offered controller has been fully tested, prepared for installation and covered by warranty. It is the right choice in case of gearbox module failure, gear selection problems or no communication with the MTA controller.

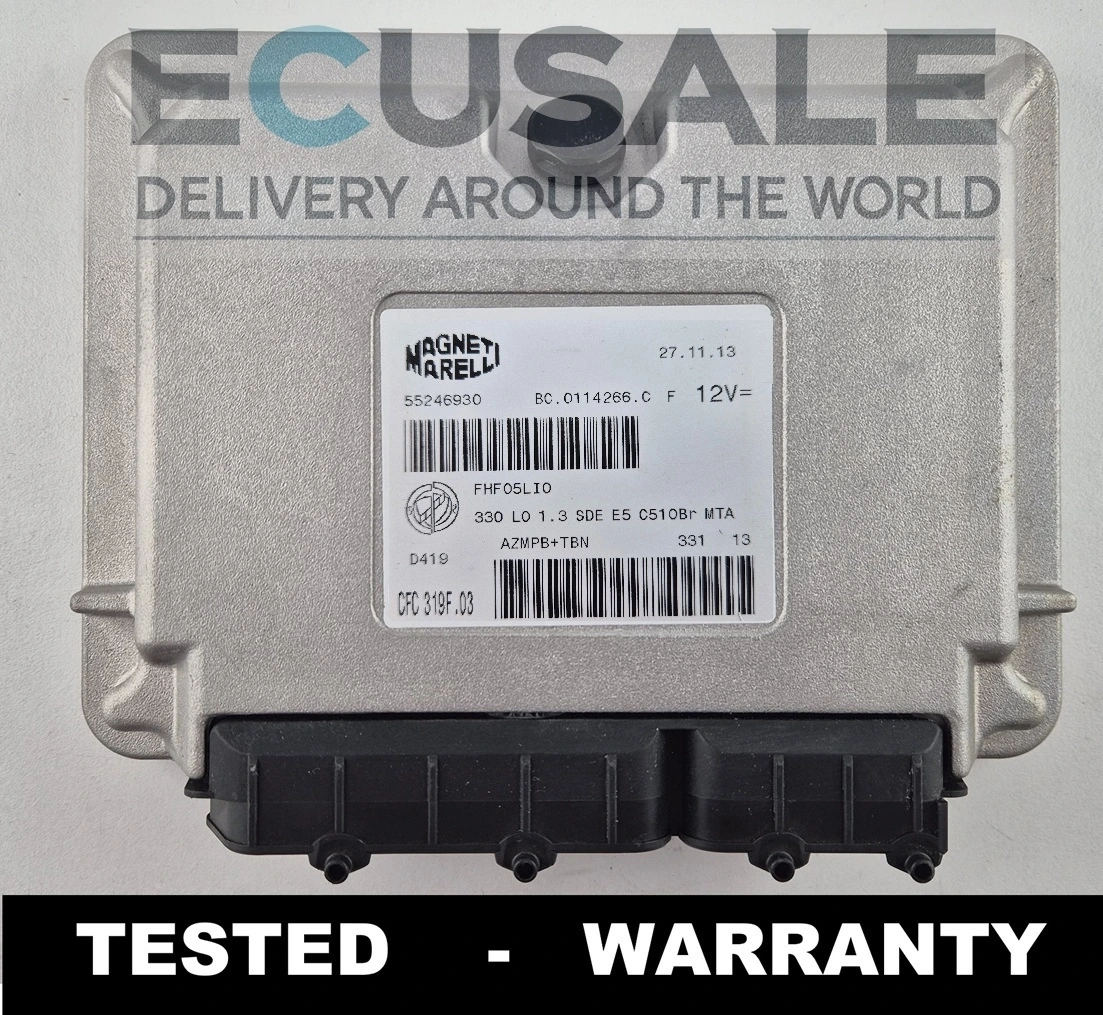

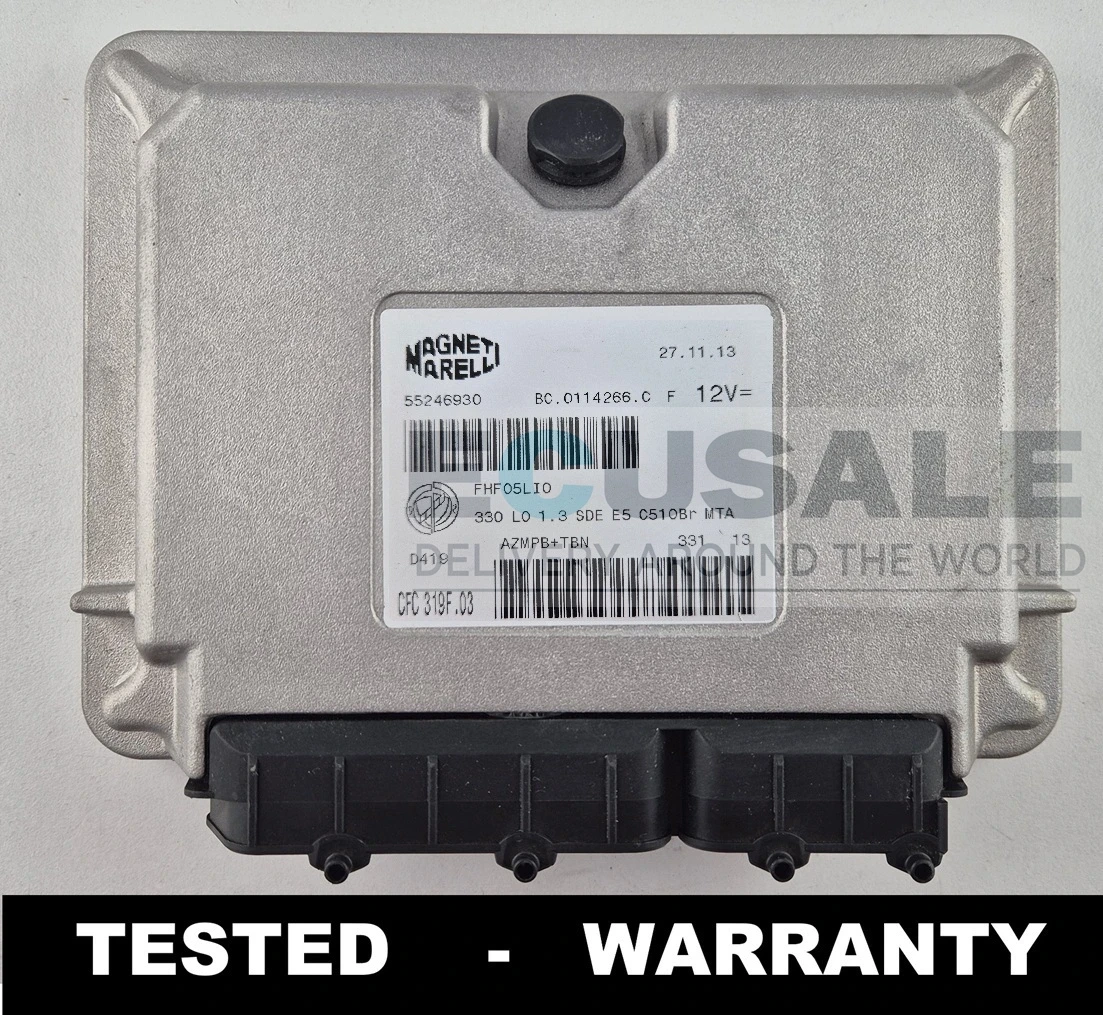

Part numbers and label markings
- 55246930
- CFC319F.03 / CFC319F03
- BC.0114266.C
- FHF05LIO
- 330 LO 1.3 SDE E5 C510BR MTA
- A2MPB+TBN
- D419
Application – compatibility by part number
The 55246930 CFC319F.03 gearbox controller is mainly suitable for Fiat 500L 1.3 Multijet MTA vehicles equipped with an automated Dualogic / MTA gearbox. Most common applications:
- Fiat 500L 351 / 352 – from 2012
- Fiat 500L Trekking 351 / 352 – selected versions from 2014
- 1.3 D Multijet engine – 62 kW / 84 hp
- 1.3 D Multijet engine – 70 kW / 95 hp
- Engine code: 199B4000
- Gearbox: C510BR MTA / Dualogic
Before purchase, it is best to compare the number from the label of the old controller. The key references for verification are 55246930, CFC319F.03, BC.0114266.C and the gearbox information C510BR MTA.
Possible symptoms of MTA controller failure
- unable to engage a gear,
- gearbox remains in N position,
- gearbox fault message,
- no communication with the gearbox controller,
- jerking or incorrect gear changes,
- problems with Dualogic / MTA gearbox adaptation,
- gearbox controller faults stored in diagnostics.
FAQ – 55246930 CFC319F.03 Fiat 500L MTA
Does the 55246930 CFC319F.03 controller fit Fiat 500L 1.3 Multijet?
Yes, the 55246930 CFC319F.03 controller is used in selected versions of Fiat 500L 1.3 Multijet with MTA / Dualogic gearbox. Before purchase, the number of the old module should be compared with the number on the label.
Does the CFC319F.03 module fit Fiat 500L 1.3 M-Jet 95 hp?
This controller is found in Fiat 500L 1.3 D Multijet 70 kW / 95 hp versions with MTA automatic gearbox. The most important references are 55246930, CFC319F.03 and BC.0114266.C.
Does the 55246930 gearbox controller require programming after installation?
The MTA gearbox controller may require adaptation or coding according to the vehicle configuration. Installation and start-up using a suitable diagnostic tool for Fiat / Magneti Marelli Dualogic is recommended.
How can I check if CFC319F03 is suitable for my vehicle?
The safest method is to compare the label of the old controller. If it shows 55246930, CFC319F.03, BC.0114266.C or the description 330 LO 1.3 SDE E5 C510BR MTA, the module should be compatible.
Can a faulty MTA controller cause no gears in Fiat 500L?
Yes, failure of the Magneti Marelli CFC319F.03 controller can cause no gear selection, the gearbox remaining in N position, MTA faults and no communication with the gearbox controller.
