Bosch 0281013774 P05187296AD engine control unit for Jeep 3.0 CRD

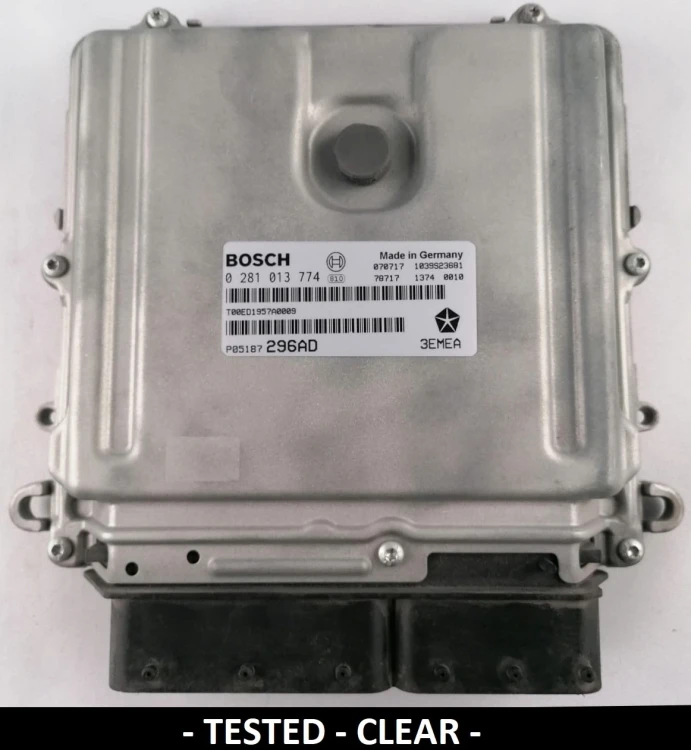

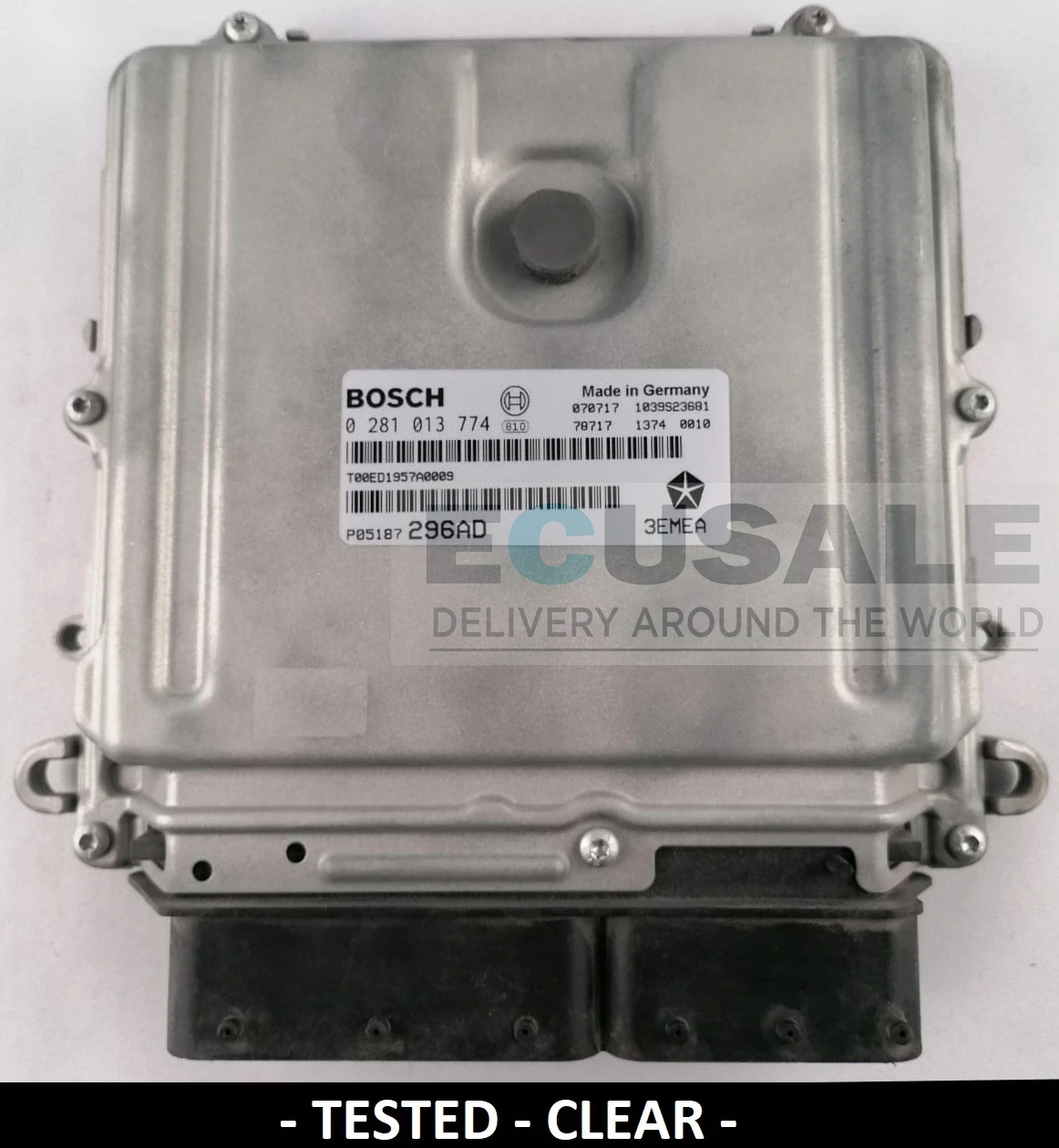

Refurbished Bosch EDC16CP31 engine control unit with part number 0281013774, also identified by the OEM references P05187296AD and 05187296AD. The module has been reset to Virgin status, allowing it to be programmed and matched to a specific vehicle.
Applications of the 0281013774 control unit
This ECU was fitted to selected Jeep vehicles equipped with the 3.0 CRD engine from the OM642 family, designated by Jeep under the engine code EXL. Confirmed applications include:
- Jeep Grand Cherokee III WH/WK – selected 3.0 CRD SUV versions produced approximately between 2005 and 2010,
- Jeep Commander XH – selected 3.0 CRD SUV versions produced approximately between 2006 and 2010.
Different ECU hardware and software versions were used within the same models and production years. Before ordering, compare the Bosch number 0281013774 and the OEM reference P05187296AD with the unit removed from the vehicle. The additional reference 1039S23681 may also appear on the label of this ECU version.
Common symptoms of engine control unit failure
ECU faults can cause a variety of symptoms. Problems commonly associated with this family of control units include:
- the engine failing to start or intermittent starting problems,
- faults that occur depending on the temperature of the control unit,
- no diagnostic communication with the ECU,
- internal control unit faults or limited ECU operation, for example fault code P0607,
- fault codes relating to injector circuits or airflow signals despite the external components operating correctly.
Before replacing the ECU, the vehicle’s wiring, power supplies, ground connections and related components should be fully diagnosed, as similar symptoms may also be caused by other faults.
ECU programming, cloning and preparation
The offered module is supplied in Virgin condition and must be programmed to the specific vehicle after installation. Depending on the vehicle configuration, the procedure may include writing the vehicle data, synchronising the ECU with the immobiliser system and applying the correct coding.
If the original ECU can still be read, cloning may also be possible by transferring the required data from the old control unit to the replacement module. This allows the configuration assigned to the vehicle to be retained.
Before cloning or preparing the replacement module, the references on the original ECU must be checked. The vehicle model and engine capacity alone are not sufficient to confirm compatibility.
Frequently asked questions
Is the 0281013774 ECU compatible with a Jeep Grand Cherokee 3.0 CRD?
The 0281013774 control unit was fitted to selected Jeep Grand Cherokee III WH/WK models with the 3.0 CRD engine. Before ordering, compare the Bosch and OEM references with the original ECU, as several control unit versions were used in this vehicle.
Is the P05187296AD ECU compatible with a Jeep Commander 3.0 CRD?
Yes, the P05187296AD control unit was used in selected Jeep Commander models equipped with the 3.0 CRD engine. Compatibility must still be confirmed using the references shown on the original module.
Can the Bosch 0281013774 ECU be installed without programming?
No. The module is supplied in Virgin condition, meaning that its vehicle-specific data has been cleared and it is ready to be programmed to a particular vehicle. Programming or immobiliser synchronisation must be carried out after installation.
Can the EDC16CP31 05187296AD control unit be cloned?
Yes, provided that the data stored in the damaged ECU can still be read correctly. The required information can then be transferred from the original ECU to the replacement unit.
How can I check whether P05187296AD is suitable for my Jeep 3.0 CRD?
The safest method is to compare the references on the label of the original module. The key numbers are 0281013774 and P05187296AD. The vehicle model, production year and engine capacity alone do not guarantee compatibility.
