Land Rover Hybrid System Modules – 48 V MHEV Electronics

Modern Land Rover and Jaguar vehicles use advanced electrical and electronic systems, including 48 V mild hybrid MHEV installations. One of their important components is the DC/DC converter, which enables cooperation between the 48 V system and the conventional 12 V onboard electrical network.

In this category, we offer used and tested hybrid modules and DC/DC converters for selected Land Rover vehicles. When choosing a replacement part, the most important step is to compare the full manufacturer part number and OEM references with the module removed from the vehicle.

Jaguar Land Rover 48V–12V DC/DC Converters

The DC/DC converter is one of the key components of the MHEV electrical system. Its task is to convert voltage from the 48 V system into the voltage used by the 12 V onboard network, electronic control units and other electrical components installed in the vehicle.

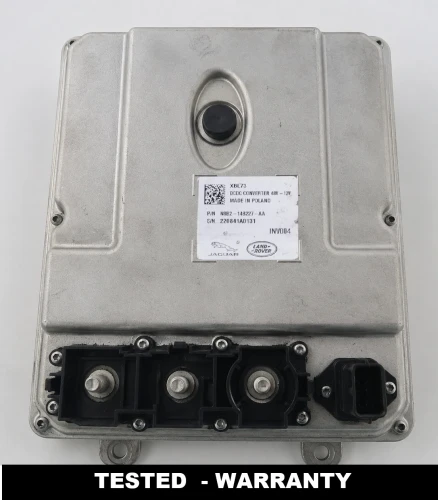

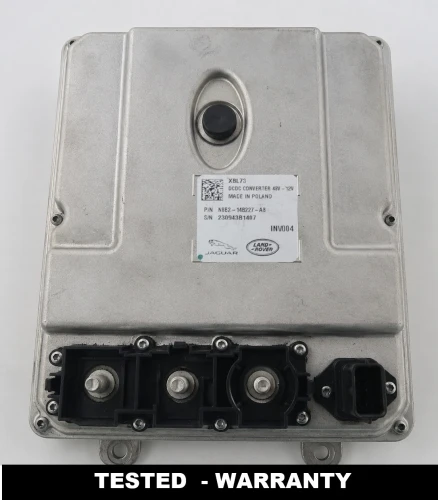

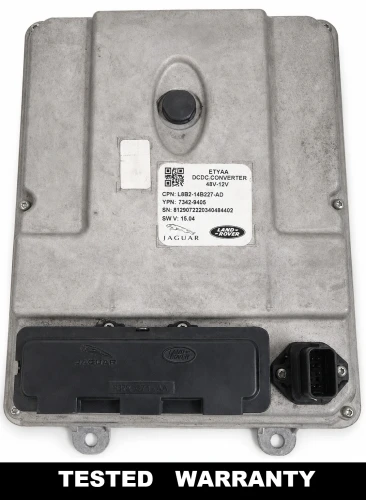

An example of such a module is the L8B2-14B227-AD Jaguar Land Rover 48V–12V DC/DC converter. Other module variants from the K8B2, L8B2 and N8B2 families are also available. Before purchasing, always compare the part number with the original module fitted to the vehicle.

Symptoms of a Faulty Land Rover DC/DC Converter or MHEV Module

A faulty DC/DC converter or another component of the 48 V system may cause a variety of symptoms. The exact behaviour depends on the vehicle model, system version and type of fault. Possible symptoms may include:

• MHEV hybrid system or 48 V system fault warning,
• electrical system warning message on the dashboard,
• incorrect charging of the 12 V battery,
• rapid or repeated discharge of the 12 V battery,
• voltage drops in the onboard electrical system,
• difficulty starting the vehicle or a complete no-start condition,
• temporary shutdown of selected electrical consumers,
• incorrect or unavailable Start-Stop operation,
• MHEV functions being disabled or limited,
• communication faults between vehicle control modules,
• low-voltage or overvoltage fault codes,
• multiple faults appearing simultaneously in different vehicle modules,
• selected vehicle systems entering emergency or reduced-function mode.

These symptoms do not always mean that the DC/DC converter itself is faulty. Similar problems may also be caused by the 12 V battery, 48 V battery, fuses, power supply cables, electrical wiring, connectors or another MHEV system module. For this reason, we recommend performing a complete diagnostic scan and checking the electrical system voltages before replacing the module.

Common Causes of Land Rover MHEV Electronics Failure

Modules operating in a 48 V electrical system are exposed to significant electrical loads and changing operating conditions. Possible causes of failure include:

• internal failure of the DC/DC converter electronics,
• voltage surges or incorrect system voltage,
• short circuits in the 12 V or 48 V electrical system,
• problems with the 48 V battery,
• a weak or faulty 12 V battery,
• corrosion of electrical connectors,
• damage to power supply cables or CAN communication wiring,
• moisture or water ingress into the module or connectors,
• damage caused by an accident or previous work on the electrical system,
• incorrectly performed previous electrical repairs.

How to Choose the Correct Hybrid Module for a Land Rover

As with engine ECUs, ABS modules and body control modules, the appearance of the housing alone is not sufficient to identify the correct replacement part. Two visually identical modules may have different part numbers, hardware versions, software or configurations intended for different vehicle variants.

Before ordering, we recommend:

• reading the full part number from the original module label,
• comparing all manufacturer and OEM reference numbers,
• checking the type of electrical system, especially whether the vehicle uses a 48 V MHEV system,
• comparing the hardware references and module version,
• sending us a photo of the original module label or the VIN if you are unsure about compatibility.

Matching the replacement part by its complete OEM reference is particularly important because the same Land Rover model may use several different electronic module versions depending on production year, engine and vehicle equipment.

Jaguar Land Rover Electronics at ECUSALE

The hybrid system is only one of the many electronic systems used in these vehicles. You can also view our other Jaguar Land Rover JLR electronic modules and components available from ECUSALE.

Older Land Rover models may also use control units manufactured by other suppliers. One example is the Bosch 0281010300 / NNN100720 engine ECU for Land Rover Freelander 2.0 TD4. More products from this manufacturer can be found in our Bosch automotive electronics section.

ABS Pumps for Land Rover and Range Rover

If the vehicle problem concerns the braking system, stability control system or communication with the ABS/ESP module, you can also visit our Land Rover ABS pump category. The modules available there are selected according to manufacturer and OEM part numbers.

One example is the Range Rover ABS pump 0265950056 / 0265225059. For automotive electronics, we always recommend selecting the replacement part according to the numbers found on the original component.
