N8B214B227AA DC/DC 48V–12V converter for Jaguar Land Rover

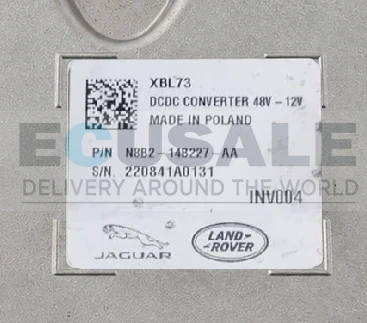

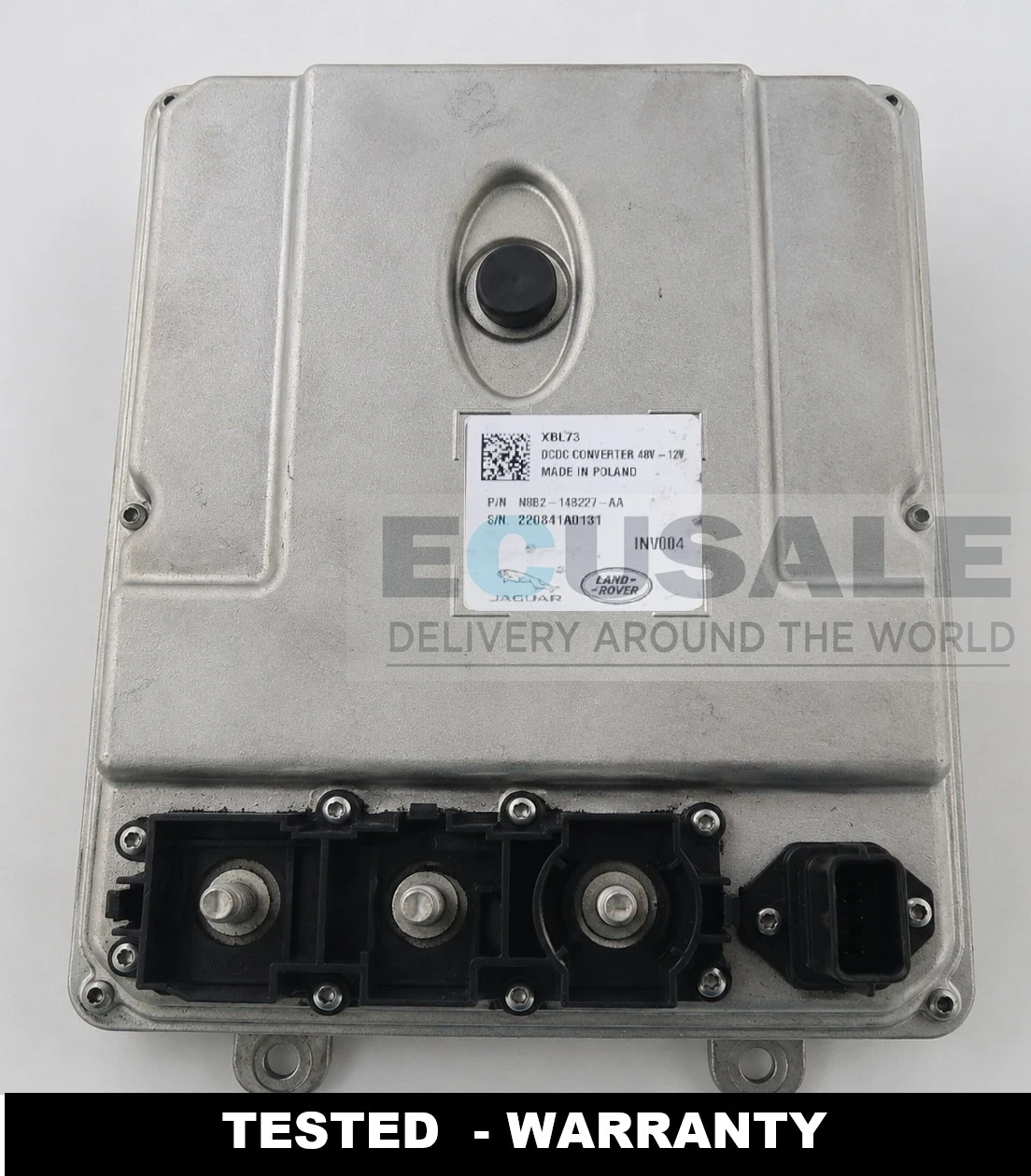

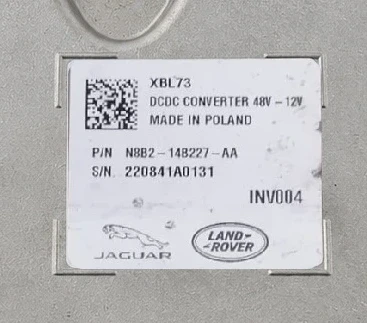

The N8B2-14B227-AA DC/DC converter is a module used in the MHEV electrical system of selected Jaguar Land Rover vehicles. It manages the interaction between the 48 V electrical system and the conventional 12 V network of the vehicle. The offered module carries the XBL73 and INV004 markings and is checked before dispatch.
Applications of the N8B2-14B227-AA converter
The N8B2-14B227-AA reference is used in selected MHEV versions of the following vehicles:
- Land Rover Discovery V – SUV body style, selected versions with MHEV electrical system, listed from approximately 2017,
- Land Rover Defender – SUV body style, selected MHEV versions, listed from approximately 2020,
- Range Rover Velar – SUV body style, selected versions with mild hybrid system, listed from approximately 2017.
This converter is not fitted to every engine version of the models listed above. Before purchasing, the N8B2-14B227-AA reference should be compared with the number on the module removed from the vehicle. If the suffix is different, for example AB, AC or AD, compatibility should be confirmed before ordering.
Common symptoms of a faulty DC/DC converter
A failure of the voltage converter in a vehicle equipped with an MHEV electrical system can cause various electrical problems. Possible symptoms include:
- MHEV or hybrid system fault message,
- battery warning light or charging system faults,
- voltage drops or unstable voltage in the 12 V electrical system,
- 12 V battery discharging despite the battery itself being in good condition,
- multiple communication and power supply faults stored in different vehicle control modules,
- limited or completely disabled mild hybrid functions,
- in severe cases, incorrect power supply to some electrical equipment.
Similar symptoms may also be caused by the wiring, 12 V battery, 48 V system or starter-generator, so a complete vehicle diagnosis is recommended before replacing the module.
Programming, cloning and module preparation
Replacement of the DC/DC converter in Jaguar Land Rover vehicles should only be carried out after confirming part number compatibility. Depending on the vehicle version and electronic configuration, diagnostic procedures, configuration or module programming may be required after installation.
- module compatibility can be checked using the reference from the original part,
- if data transfer is required, the replacement module may be prepared using the original unit,
- if a particular configuration requires cloning, the relevant data can be transferred from the old module to the replacement unit,
- after installation, stored fault codes should be cleared and the 12 V and 48 V systems checked,
- vehicles requiring configuration should be serviced using suitable Jaguar Land Rover diagnostic software.
It should not be assumed that every used N8B2-14B227-AA converter will operate as Plug & Play in every vehicle. Before purchasing, it is best to send a photo of the original module label or provide the VIN so that the correct version can be confirmed.
Frequently asked questions – N8B2-14B227-AA Jaguar Land Rover
Does the N8B2-14B227-AA converter fit the Range Rover Velar?
Yes, the N8B2-14B227-AA reference is used in selected MHEV versions of the Range Rover Velar. As not all engine versions use the same converter, the complete reference on the original module should be checked before purchase.
|
Can the N8B214B227AA be installed in a Land Rover Defender?
The N8B214B227AA reference is used in selected MHEV versions of the Land Rover Defender. The safest method is to compare the number on the original DC/DC converter, as the vehicle model and production year alone are not sufficient to confirm compatibility.
|
Does the N8B2-14B227-AA DC/DC converter require programming?
This depends on the configuration of the specific vehicle. After replacement, coding, configuration or synchronisation with the vehicle electronics may be required. For this reason, the preparation method should ideally be determined from the original module before dispatch.
|
Can the N8B2 14B227 AA converter be cloned from the original module?
If the specific module version stores data required for correct operation with the vehicle and the data can be read successfully, the replacement unit can be prepared using the original converter. The scope of this service should be confirmed before dispatch.
|
Does the N8B2-14B227-AA fit the Land Rover Discovery V?
Yes, this converter reference is used in selected MHEV versions of the Land Rover Discovery V. Before ordering, however, the complete part number on the module originally fitted to the vehicle should be checked.
|
