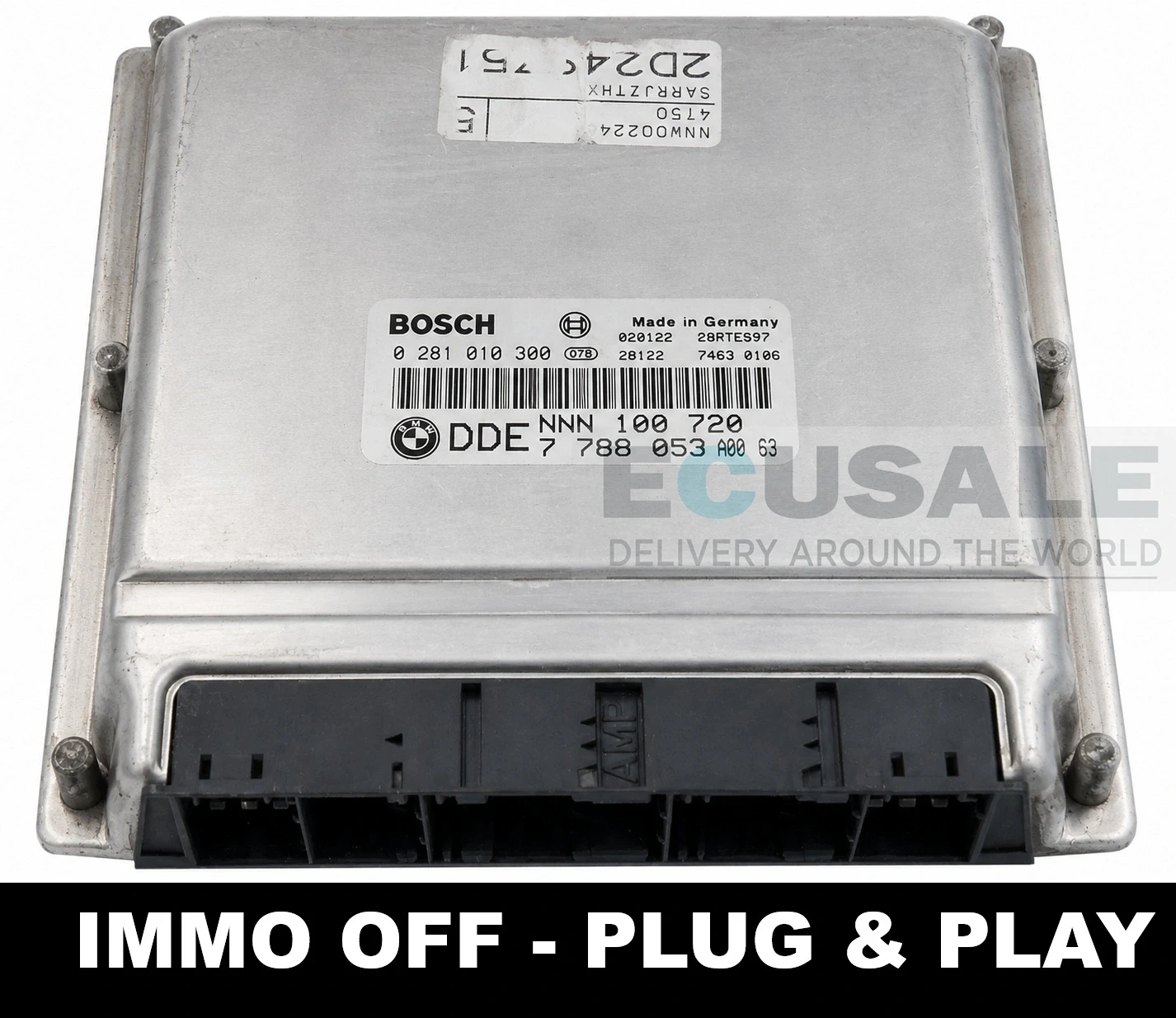

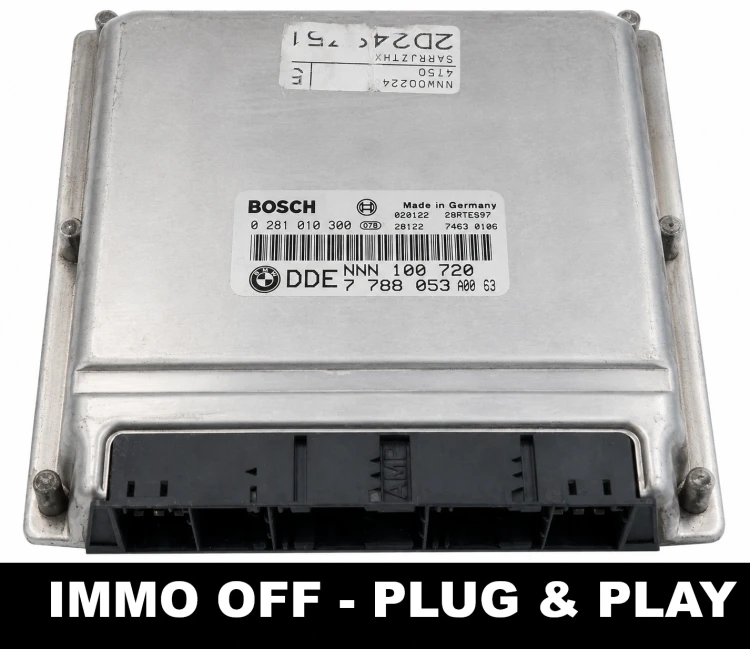

Engine control unit 0281010300 NNN100720 for Land Rover Freelander 2.0 TD4
Original Bosch engine control unit intended for selected versions of the Land Rover Freelander I with the 2.0 TD4 engine. The module is prepared in an IMMO OFF version, allowing installation without the standard immobiliser synchronisation procedure.
Applications of the Bosch 0281010300 engine control unit
Confirmed applications include selected first-generation Land Rover Freelander vehicles equipped with the 2.0 TD4 diesel engine.
- Land Rover Freelander I (L314) – 3-door SUV – 2.0 TD4
- Land Rover Freelander I (L314) – 5-door SUV – 2.0 TD4
- Approximate application period: early 2000s.
Before purchasing, compare the references shown on the vehicle’s original engine control unit. Different electronic variants were used within the same model and engine version, so the make, model, production year or engine capacity alone are not sufficient to confirm ECU compatibility.
Common symptoms of an engine control unit fault
A faulty ECU can cause various problems with vehicle operation. Depending on the type of failure, possible symptoms may include:
- engine will not start,
- problems with diagnostic communication with the ECU,
- intermittent engine stalling or difficulty restarting,
- incorrect control of selected fuel injection system components,
- recurring fault codes despite correctly functioning sensors and wiring,
- engine entering limp mode.
The presence of one of these symptoms does not automatically mean that the ECU is faulty. Before replacing the control unit, diagnosis of the wiring, power supply, grounds and components communicating with the module is recommended.
IMMO OFF, cloning and ECU preparation
The offered engine control unit is prepared as IMMO OFF – Plug & Play. Modification of the immobiliser data allows the module to be used without the standard procedure of pairing the ECU with the vehicle’s factory immobiliser system.
For other requirements, the available preparation methods depend on the specific ECU version. Cloning involves transferring the required data from the original module to a working replacement control unit. In this case, the original ECU must be supplied so that its data can be read and transferred.
If the module has not been prepared as IMMO OFF or cloned, ECU replacement may require coding, synchronisation or pairing with the vehicle. The exact procedure depends on the immobiliser and electronic system fitted to the vehicle.
Frequently asked questions
Does the Bosch 0281010300 ECU fit the Land Rover Freelander 2.0 TD4?
Yes. This ECU is used in selected versions of the Land Rover Freelander I 2.0 TD4. Before purchasing, however, the references on the original ECU should be compared because several different control unit versions were used in this model.
Does the NNN100720 ECU for Freelander TD4 require coding after installation?
The offered unit is prepared as IMMO OFF Plug & Play, so standard synchronisation of the engine control unit with the factory immobiliser is not required.
Can the Land Rover Freelander 2.0 TD4 engine control unit be cloned?
For compatible ECU versions, the module can be prepared by transferring data from the original engine control unit. A complete clone requires the original ECU to be available and its stored data to be readable correctly.

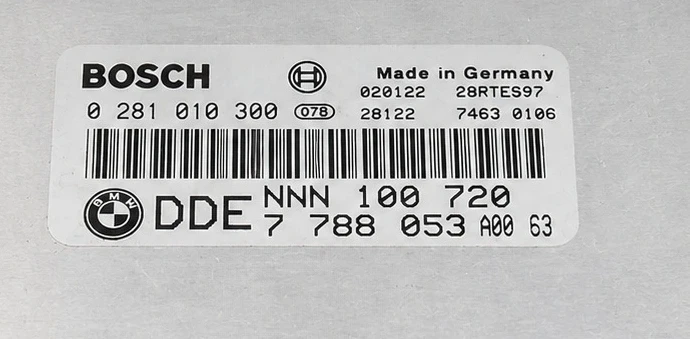

Do the numbers 0 281 010 300 and NNN 100 720 refer to the same ECU version?
These references appear together on the label of this control unit. The first is the Bosch part number, while the second is the module reference. For correct part selection, it is best to compare the complete set of numbers with the label on the original ECU.
Is the 0281010300 IMMO OFF ECU ready for installation?
Yes. The offered version has been prepared as IMMO OFF Plug & Play. Before installation, however, make sure that the references on the original control unit match those of the offered module.
