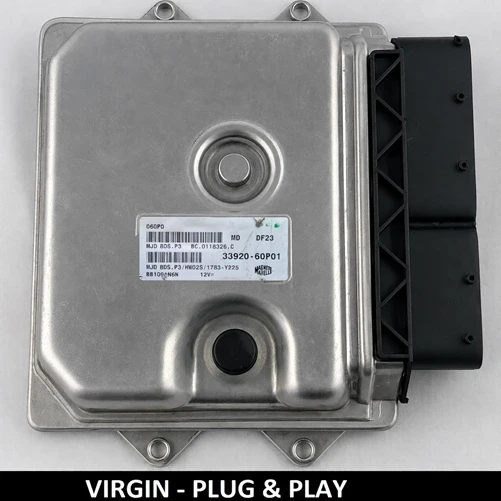

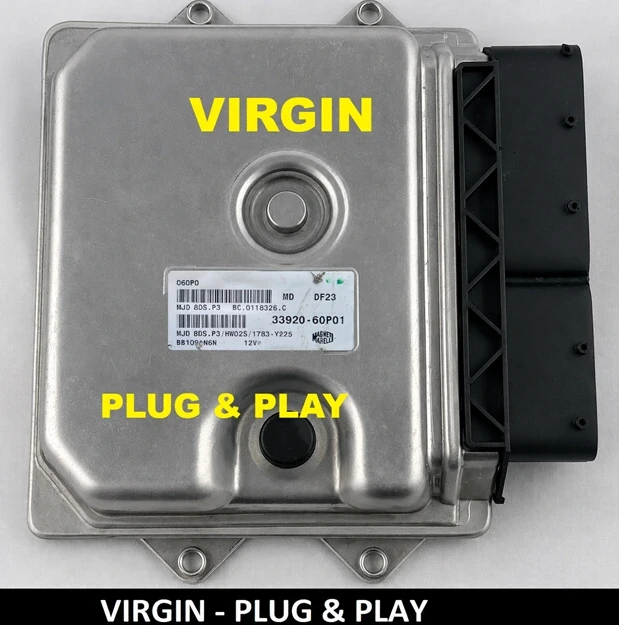

33920-60P01 – Engine ECU for Suzuki Swift 1.3 DDiS
Original Magneti Marelli engine control unit intended for selected versions of the Suzuki Swift with the 1.3 DDiS 75 HP diesel engine. The module is prepared as VIRGIN Plug & Play and automatically stores the required vehicle data after correct installation.
Applications of the 33920-60P01 ECU
- Suzuki Swift – hatchback body;
- 1.3 DDiS diesel engine producing 75 HP;
- engine code D13A;
- selected versions produced approximately between 2013 and 2016.
Different ECU hardware and software versions were used in the Suzuki Swift 1.3 DDiS. Before purchasing, compare part number 33920-60P01, designation MJD 8DS.P3 and number BC.0118326.C with the label on the original ECU. If any details differ, compatibility should be confirmed using the vehicle VIN.
Common symptoms of a faulty engine ECU
- engine does not start despite the starter motor operating;
- intermittent engine stalling while driving;
- no diagnostic communication with the ECU;
- reduced engine power and limp mode activation;
- incorrect control of the injectors or fuel pressure;
- recurring faults in circuits controlled by the module.
Similar symptoms may also be caused by faults in the electrical system, power supply, grounds, fuel system or other vehicle components. Before replacing the ECU, we recommend carrying out a complete vehicle diagnosis.
Programming and preparation of the MJD 8DS.P3 ECU
The supplied module is prepared as VIRGIN Plug & Play. Data from the previous vehicle have been cleared, allowing the ECU to automatically store the information required to operate with the vehicle after installation.
- the original ECU does not need to be sent to us to prepare the VIRGIN version;
- the ECU should be installed with a fully functional and sufficiently charged battery;
- the automatic synchronization process should not be interrupted during the first start;
- after the engine starts, we recommend reading and clearing any previously stored fault codes;
- 1:1 cloning can be carried out after the original module is sent to us, provided its memory can be read correctly.
If there are differences in vehicle equipment or software version, additional diagnostic configuration may be required. Correct part selection should always be based on matching the complete numbers with the original ECU.
Frequently Asked Questions
Does the 33920-60P01 ECU fit the Suzuki Swift 1.3 DDiS?
This ECU is intended for selected Suzuki Swift 1.3 DDiS 75 HP versions with the D13A engine. Before purchasing, all designations should be compared with the original ECU.
|
Does the MJD 8DS.P3 VIRGIN ECU program itself after installation?
Yes. Data from the previous vehicle have been cleared, so the ECU automatically stores the required information during the first start of the vehicle.
|
Do I need to send the old Suzuki Swift 1.3 diesel ECU?
No. The original ECU is not required to prepare the VIRGIN Plug & Play version. The old module only needs to be sent if a 1:1 cloning service is ordered.
|
How can I check compatibility of numbers 3392060P01 and BC.0118326.C?

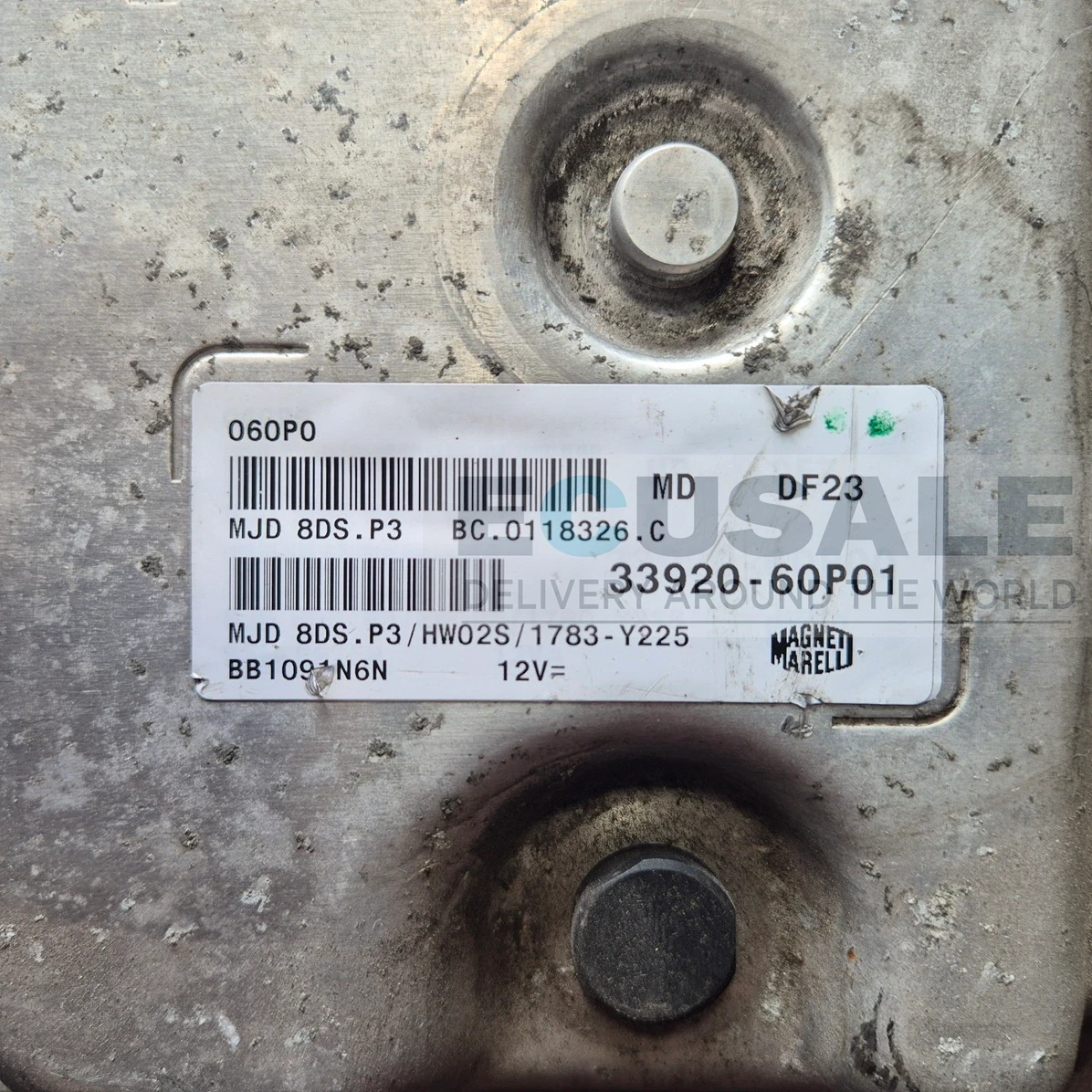

Compare Suzuki number 33920-60P01, its compact form 3392060P01, type MJD 8DS.P3 and designation BC.0118326.C with the label on the factory-installed ECU.
|
What warranty is provided for the Suzuki Swift 1.3 DDiS 75 HP ECU?
The prepared engine ECU comes with a 6-month warranty. Before installation, make sure that the module numbers match those on the original ECU.
|
