Magneti Marelli IAW 5NF.S8 engine control unit 51788362 for Fiat Panda 1.2 8V 4x4
We offer an original and fully tested Magneti Marelli 51788362 engine control unit in Virgin plug & play condition. Once installed in the vehicle, the module automatically pairs with the immobiliser system. It does not require cloning data from the original ECU or manually entering an immobiliser code.
Applications of the 51788362 IAW 5NF.S8 engine control unit
The 51788362 61600.619.04 engine control unit is mainly used in the Fiat Panda 169 1.2 8V petrol, particularly in versions with four-wheel drive. It is most commonly found in vehicles from the early production years of the second-generation Panda.
- Fiat Panda II 169
- Fiat Panda 1.2 8V 4x4
- FIRE petrol engine: 1242 cm³
- power output: 44 kW / 60 hp
- engine code: 188A4.000
- approximate years of application: 2004–2010
Depending on the vehicle configuration, control units from the IAW 5NF.S8 family may also be used in other Fiat Panda 1.2 versions. The vehicle model, engine capacity and year of manufacture alone do not guarantee compatibility. Before purchasing, compare all part numbers shown on the label of the original ECU.

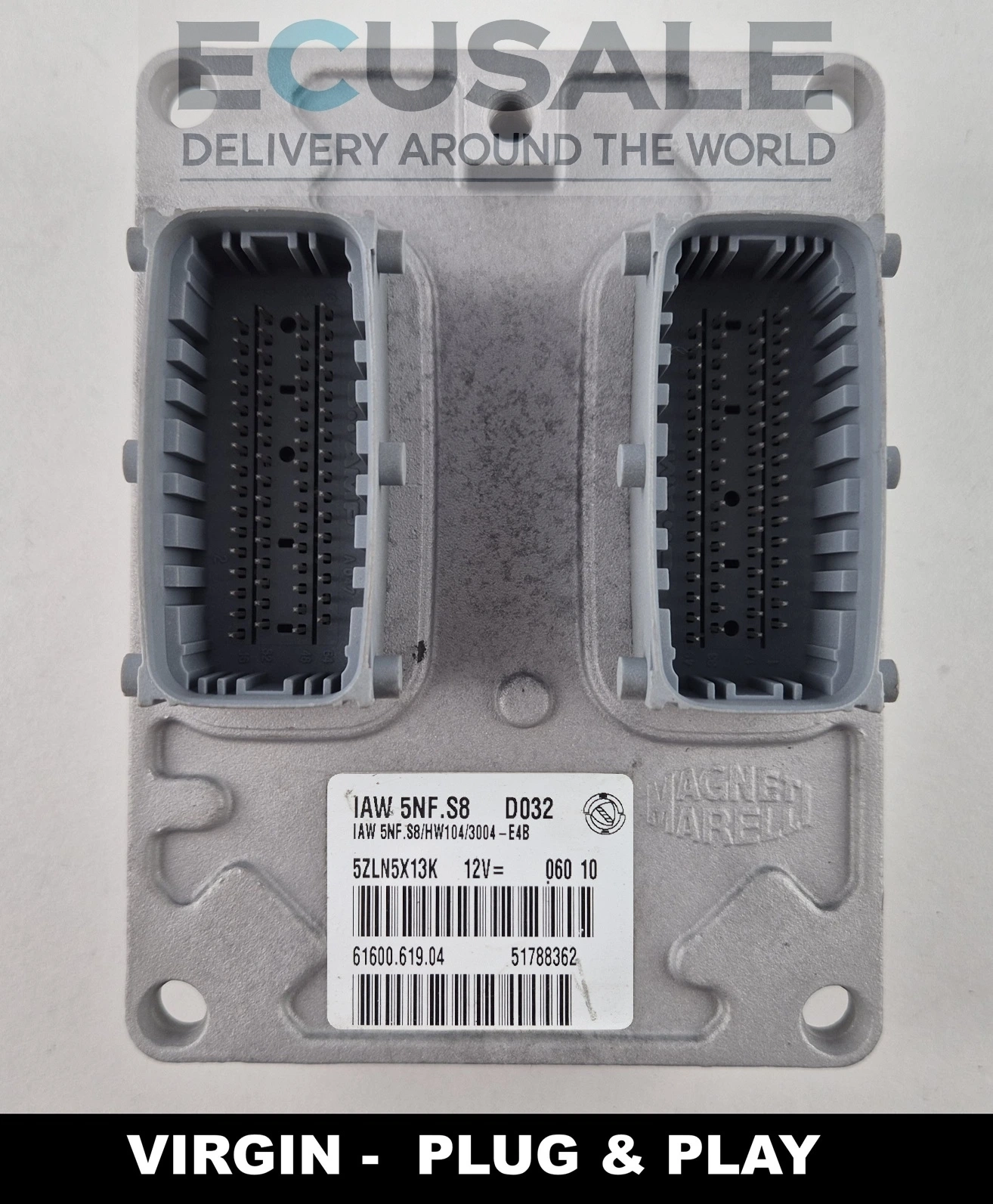

Identification numbers of the Fiat Panda ECU
- 51788362 – Fiat part number
- 61600.619.04 – Magneti Marelli control unit number
- IAW 5NF.S8 – engine control unit family
- IAW 5NF.S8/HW104/3004-E4B – hardware and software version
- HW104 – hardware version
- 3004-E4B – software identification
- D032 – module variant designation
The safest way to select the correct part is to match both the 51788362 and 61600.619.04 numbers. Control units with different numbers, even if they belong to the IAW 5NF.S8 family, should not be considered automatically interchangeable without checking the software version and vehicle equipment.
Virgin plug & play with automatic pairing
The offered Fiat Panda 51788362 engine control unit has been cleared of data from the previous vehicle and restored to Virgin condition. After correct installation and the first ignition cycle, the ECU automatically retrieves the necessary immobiliser data and pairs with the vehicle.
- Disconnect the battery and remove the faulty control unit.
- Install the IAW 5NF.S8 61600.619.04 ECU.
- Reconnect the plugs and the battery.
- Switch on the ignition and wait a few seconds.
- Start the engine and check for stored diagnostic fault codes.
After the first pairing procedure, the module stores the data of the vehicle and is no longer in Virgin condition.
Common symptoms of a faulty IAW 5NF.S8 engine control unit
- the engine does not start even though the starter motor operates correctly,
- the vehicle stalls after the engine or ECU has warmed up,
- there is no diagnostic communication with the ECU,
- the ignition coils or fuel injectors are not being controlled,
- the engine runs unevenly or suffers from misfires,
- intermittent starting problems occur,
- the engine warning light or immobiliser warning light comes on,
- internal memory, processor or control circuit faults are stored.
Similar symptoms may also be caused by damaged wiring, insufficient power supply, poor ground connections, faulty ignition coils, sensors or the body computer. Before replacing the ECU, carry out a full vehicle diagnosis and inspect the electrical system.
FAQ about the Fiat Panda ECU 51788362 61600.619.04
Is the 51788362 ECU suitable for a Fiat Panda 1.2 8V 4x4?
Yes. The 51788362 ECU is used in selected Fiat Panda II 169 1.2 8V 4x4 vehicles with the 188A4.000 engine. Before purchasing, also compare the 61600.619.04, IAW 5NF.S8 and HW104/3004-E4B references.
Does the 61600.619.04 ECU require immobiliser coding?
No. The offered 61600.619.04 engine control unit is prepared in Virgin plug & play condition and automatically pairs with the vehicle immobiliser system after the first installation.
Is the IAW 5NF.S8 HW104 ECU compatible with the Fiat 188A4.000 engine?
The IAW 5NF.S8 HW104 module is used in the Fiat Panda 1.2 8V with the 1242 cm³ FIRE 188A4.000 engine. Final compatibility must always be confirmed using the complete numbers shown on the original control unit.
Does the Fiat Panda 51788362 ECU work without cloning?
Yes. The 51788362 Virgin version does not require data to be read or transferred from the original ECU. After installation, it automatically pairs with the vehicle and immobiliser system.
Are the 51788362 and 51758235 interchangeable Fiat Panda 1.2 control units?
Both numbers are used within the Magneti Marelli IAW 5NF.S8 family, but they should not be installed interchangeably without checking the hardware version, software, drivetrain and vehicle configuration. The safest solution is to use a control unit with the same numbers as the original part.
The 51788362 IAW 5NF.S8 61600.619.04 HW104/3004-E4B engine control unit has been tested, is covered by a warranty and is prepared in Virgin plug & play condition, ready for automatic pairing after installation.
