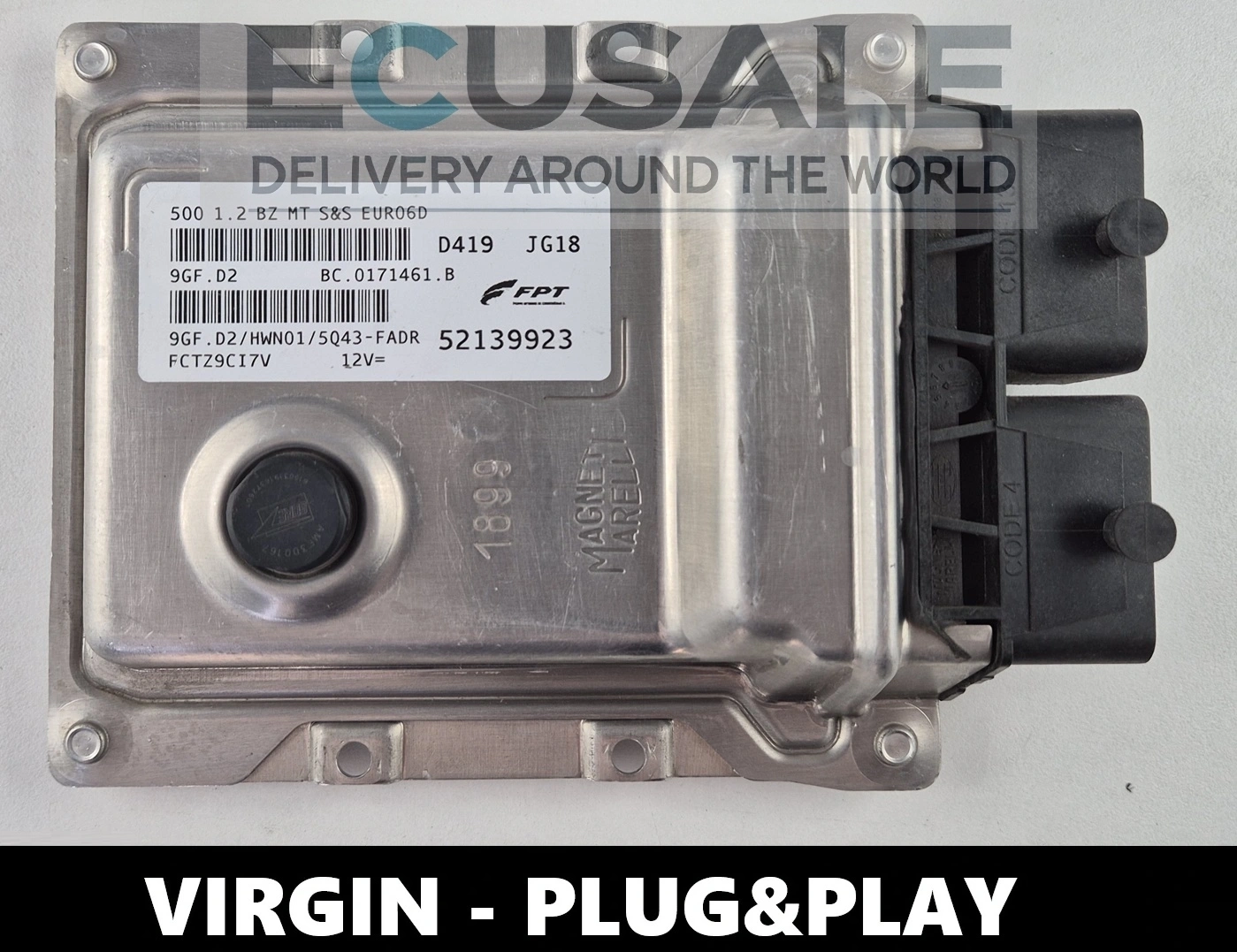

ECU ENGINE CONTROLLER FIAT 500 1.2 8V 52139923 9GF.D2 BC0171461B – VIRGIN Plug & Play
ECU ENGINE CONTROLLER 52139923 / 9GF.D2 / BC0171461B designed for FIAT 500 1.2 8V petrol is a fully tested module prepared in VIRGIN Plug & Play condition. This means that after installation the ECU automatically adapts to the vehicle and immobilizer, without any coding or programming required.
The offered ECU ENGINE CONTROLLER has been professionally tested and prepared for smooth installation. In Magneti Marelli 9GF.D2 units, correct memory preparation is crucial, which is why this module is ready to operate immediately after installation.
VIRGIN = Plug & Play
The VIRGIN version means that the ECU memory has been reset and prepared for a new vehicle. After installation, the module performs automatic adaptation, working like an original factory-installed ECU. This Plug & Play solution eliminates the need for costly coding.
Compatibility
- Part number: 52139923
- Model: 9GF.D2 / 9GFD2
- Hardware number: BC0171461B
- Manufacturer: Magneti Marelli
- Application: FIAT 500 1.2 8V petrol
- Engine capacity: 1242cc
- Engine code: 169A4000
- Power: 69 HP
- Production years: approx. 2007–2019
Fits FIAT 500 1.2 8V vehicles equipped with the same ECU number. In engine electronics, part number matching is essential – model and year are only secondary factors.
Choosing the correct ECU
When selecting ECU 52139923 9GF.D2, always rely on the full label. Even within the same model such as FIAT 500 1.2, different ECU versions may exist. Full number compatibility ensures proper operation.
Common failure symptoms
- engine does not start or stalls after starting,
- no communication via OBD diagnostics,
- irregular engine operation, jerking,
- injection or ignition errors,
- internal ECU fault codes,
- inability to adapt a damaged ECU,
- random engine shutdown while driving.
Tested ECU ENGINE CONTROLLER for FIAT 500 1.2
The offered ECU ENGINE CONTROLLER 52139923 is fully tested, prepared for use and covered by warranty. It is a safe solution for those looking for a compatible module for FIAT 500 1.2 8V 169A4000.
FAQ – Frequently Asked Questions
Is ECU ENGINE CONTROLLER 52139923 9GF.D2 BC0171461B compatible with FIAT 500 1.2 8V 69HP?
Yes, this ECU ENGINE CONTROLLER 52139923 9GF.D2 is compatible with FIAT 500 1.2 8V petrol engines when the part number matches exactly. It is strongly recommended to verify all markings, including the hardware number BC0171461B, to ensure full compatibility. Even small differences in ECU references may result in software mismatch or communication issues with the vehicle.
Does ECU 52139923 require programming after installation?
No, this unit is prepared in VIRGIN Plug & Play condition. After installation, the ECU automatically adapts to the immobilizer system and vehicle configuration. In most cases, no additional coding is required, but performing a diagnostic scan after installation is recommended to confirm correct operation.
Why does FIAT 500 1.2 not start after replacing ECU 52139923 9GF.D2?
If the vehicle does not start after ECU replacement, the issue is usually not the ECU itself. Common causes include lack of power supply, damaged wiring, CAN bus communication problems, or immobilizer system faults. Since the ECU is VIRGIN, it should adapt automatically, so it is important to check the vehicle’s electrical system and diagnostic communication.
ECU 9GF.D2 has no communication via OBD – what should be checked?
In this situation, it is necessary to verify the OBD line, power supply, ground connections and CAN network. If the ECU communicates correctly on a test bench but not in the vehicle, the problem is typically related to the car installation rather than the module itself.
What does VIRGIN mean for ECU 52139923 in FIAT 500?
VIRGIN means the ECU memory has been reset and cleared of previous vehicle data. This allows the module to behave like a new unit and automatically pair with the immobilizer system after installation. It is the most convenient solution when cloning is not possible.
Is proxy alignment required after installing ECU 52139923?
In most cases, no. The VIRGIN ECU performs automatic synchronization with the immobilizer system. However, in rare cases where other modules are involved, a diagnostic check may be required.
What are common failure symptoms of ECU 52139923 9GF.D2?
Typical symptoms include no engine start, engine stalling, irregular running, misfires, internal ECU fault codes, and loss of communication via diagnostic tools. These issues often indicate internal ECU damage or software corruption.
Can ECU 52139923 be used in different FIAT 500 models?
Only if the part number matches exactly. Even within FIAT 500 1.2 models, different ECU versions exist depending on equipment and software configuration. Always match the full reference.
Can ECU 52139923 9GF.D2 be installed without diagnostic tools?
Yes, the installation is usually straightforward thanks to the Plug & Play configuration. However, it is strongly recommended to perform a diagnostic scan after installation to ensure correct communication and system functionality.
Which production years use ECU 52139923 in FIAT 500?
This ECU is typically found in models produced between 2007 and 2019. However, the most important factor is always the part number, not the production year.
Does hardware number BC0171461B need to match?
Yes, for maximum compatibility it is recommended to match all identifiers: 52139923 + 9GF.D2 + BC0171461B. This ensures correct communication and proper engine operation.
Is ECU 52139923 suitable for manual and automatic transmission?
This ECU is typically used in manual transmission vehicles. Configuration differences may exist, so always verify compatibility based on the original ECU label.
Is ECU 52139923 a reliable replacement solution?
Yes, when properly tested and prepared, this ECU provides a reliable and stable replacement for a faulty module. The VIRGIN configuration ensures correct adaptation and long-term operation.
