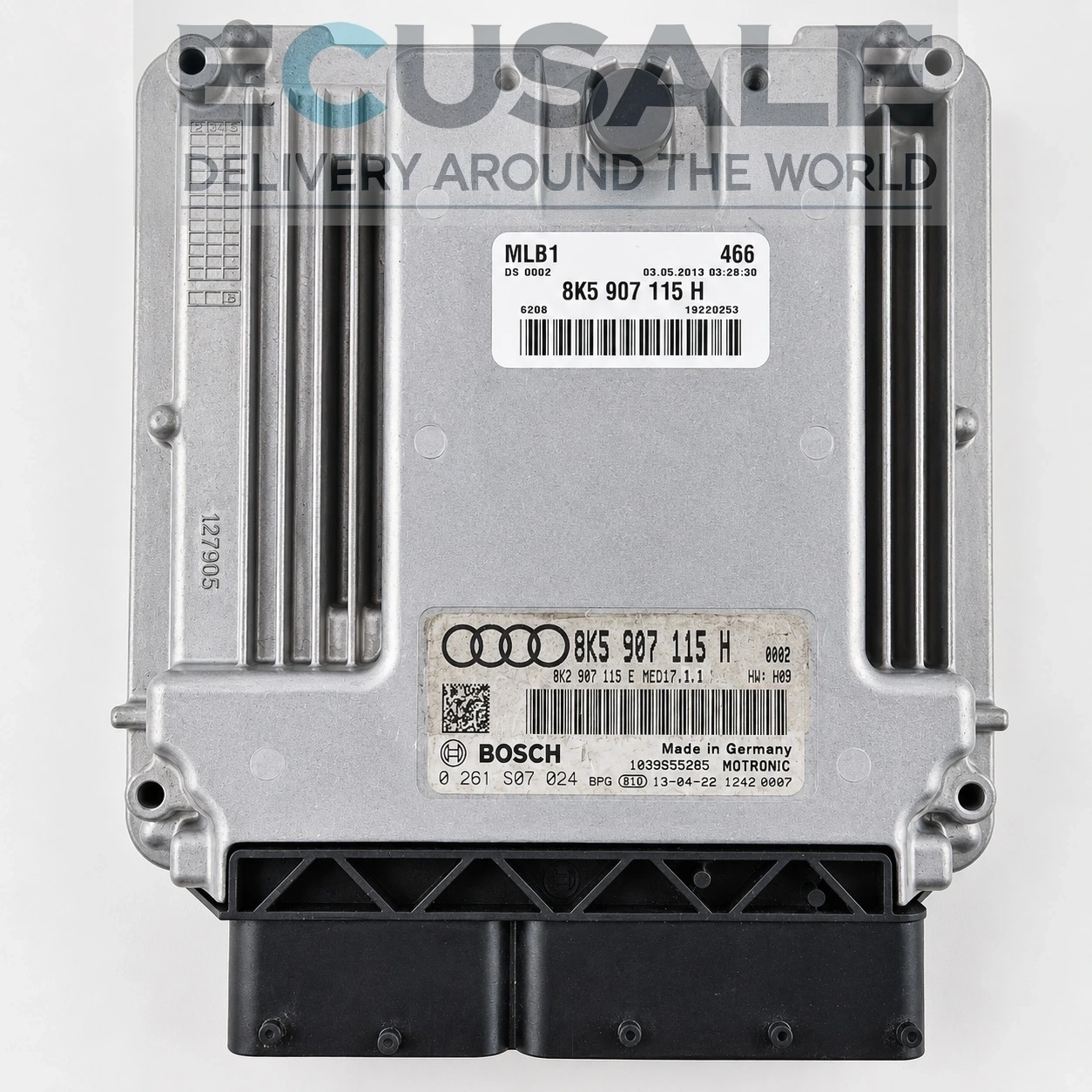

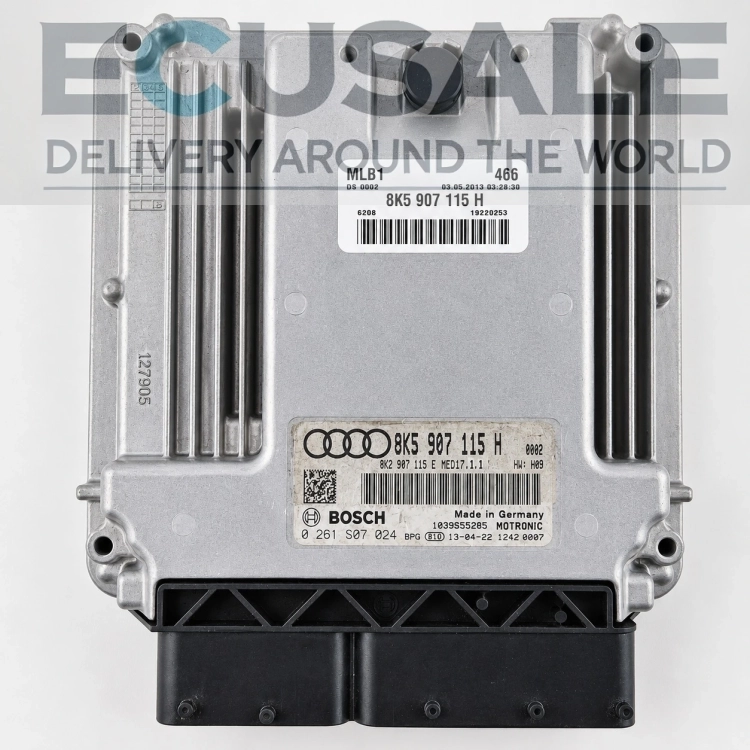

8K5907115H 0261S07024 ECU engine controller Audi A4 B8 2.0 TFSI Bosch

BOSCH

Bosch 0261S07024 ECU for Audi 2.0 TFSI – Ready for Programming

Engine ECU 8K5907115H / Bosch 0261S07024 for the Audi A4 B8 2.0 TFSI. Fully tested module covered by warranty. Programming is required, or the unit can be cloned after sending the original damaged ECU or EEPROM + FLASH files.

Go to full description
Fast delivery of ECU engine unit – within 1–2 working days
English / €
with VAT without VAT
Price €188.89
incl. 23% VAT

Shipping costs are not included in the price.

Shipping from €42.50 - UPS express delivery around world (Afghanistan)

express delivery 3-6 days
pcs
Availability:
available
Ask about the product

info

Information

  • CAR MODEL Audi A4 B8
  • ENGINE 2.0 TFSI
  • OEM: 8K5907115H
  • PART NUMBER 0261S07024
  • WARRANTY 6 MONTH
  • TESTED Second hand product
  • PAYMENT: Credit Card , Bank Transfer , PayPal
  • EXPRESS DELIVERY – in EU Countries: European Union 2-3 working days
  • INTERNATIONAL DELIVERY – Outside EU Countries: Worldwide 4-7 working days

description

8K5907115H 0261S07024 Audi A4 B8 2.0 TFSI Bosch Engine ECU

Original Audi engine ECU 8K5907115H / Bosch 0261S07024 used in Audi vehicles equipped with the 2.0 TFSI engine. The module has been fully checked, bench tested, and prepared for further programming and adaptation in the vehicle.

The ECU is used in models such as:

  • Audi A4 B8 2.0 TFSI
  • Audi A5 2.0 TFSI
  • Audi Q5 2.0 TFSI

Possible compatibility with engine codes:

  • CDNC
  • CAEB
  • CDNB
  • CPMA

Typical production years: 2008 – 2013.

The most important compatibility numbers are:

  • 8K5907115H
  • 0261S07024

Common symptoms of a faulty Audi 2.0 TFSI ECU:

  • no diagnostic communication,
  • engine will not start,
  • immobilizer errors,
  • CAN BUS faults,
  • rough engine operation,
  • no ignition or injector control,
  • damage caused by short circuits or water ingress.

The offered ECU is covered by warranty and supplied as a fully tested used module. The unit requires programming and adaptation to the vehicle.

Programming is possible using ODIS, VCDS, Autel, Flex, KTAG, PCMFlash, or tools operating in bench / boot mode. Depending on the ECU version, programming may be possible via OBD or directly on the bench.

Full engine ECU cloning is available after sending the damaged ECU or memory readouts from EEPROM + FLASH. After cloning, the ECU retains immobilizer data and vehicle configuration, operating exactly like the original module.

FAQ – 8K5907115H 0261S07024 Audi 2.0 TFSI

Is ECU 8K5907115H compatible with Audi A4 B8 2.0 TFSI?

Yes, the Bosch 0261S07024 ECU is used in selected Audi A4 B8 2.0 TFSI models. Compatibility should always be confirmed using the part number.

Does Bosch 0261S07024 require programming after installation?

Yes, the ECU requires immobilizer adaptation and programming using diagnostic tools such as ODIS or VCDS.

What are the symptoms of a faulty Audi ECU 8K5907115H?

The most common symptoms include no ECU communication, engine starting problems, CAN BUS faults, and lack of ignition or injector control.

Can ECU 0261S07024 be cloned from a damaged unit?

Yes, full cloning is possible after supplying the damaged ECU or EEPROM and FLASH files.

Which models use Audi ECU 8K5907115H Bosch 0261S07024?

This ECU is used in selected Audi A4 B8, Audi A5, and Audi Q5 models equipped with 2.0 TFSI petrol engines.

Electronic Car Parts FAQ – ECUSALE

1. Are the electronic modules tested before shipping?

Yes. Every electronic module, including ECU ENGINE CONTROLLERS, ABS pumps, BSI, BCM, comfort modules, transmission controllers and other automotive electronics, is electronically tested before shipping. We verify communication, power supply and basic operation to ensure the product is working correctly before delivery. This allows you to receive a tested and ready-to-install unit.

2. Does the module require programming or coding after installation?

It depends on the product version and the type of module. We offer VIRGIN, IMMO OFF and Plug & Play solutions. Information about programming or coding requirements is always included in the product description. In many cases, installation is possible without additional coding, while some modules may require adaptation using diagnostic equipment.

3. How can I choose the correct module for my vehicle?

The most important step is comparing the part numbers from your original module. Please check the Bosch, Siemens, Magneti Marelli, Continental or OEM manufacturer numbers on the label. If you are unsure, you can send us a photo of your original module or your vehicle VIN number and we will help verify compatibility.

4. Are the products covered by warranty?

Yes. All electronic automotive modules sold in our store are covered by warranty. Every product is checked and prepared before shipping. If any problem occurs, we also provide technical support and product diagnostics assistance.

5. Which payment methods are available in your store?

We offer secure online payments through Stripe and PayPal. Customers can pay using credit or debit cards, Apple Pay, Google Pay, Klarna, online bank transfers and other secure payment methods. After placing an order, you will receive a secure online payment link.
