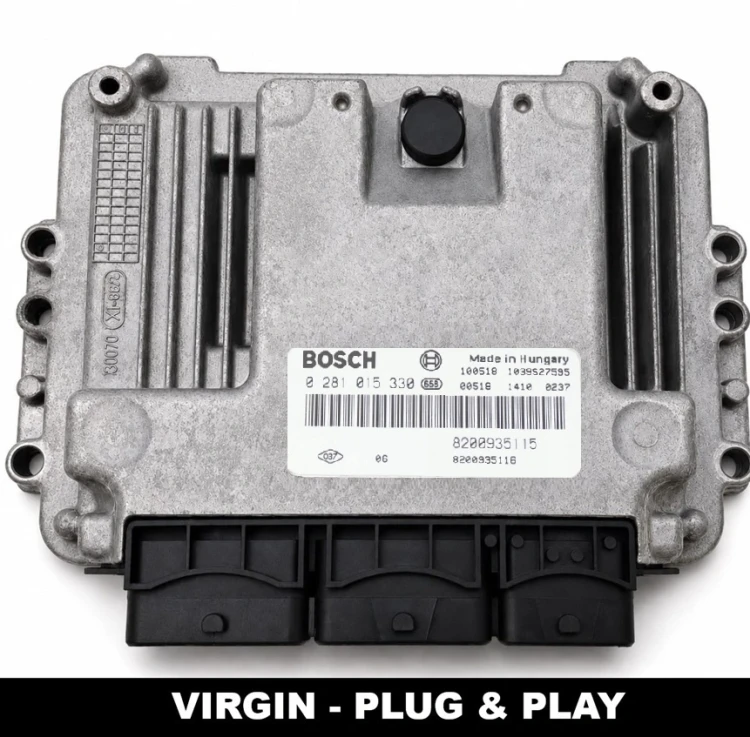

Plug & Play engine ECU Bosch 0281015330 – Renault Trafic II 2.0 dCi VIRGIN

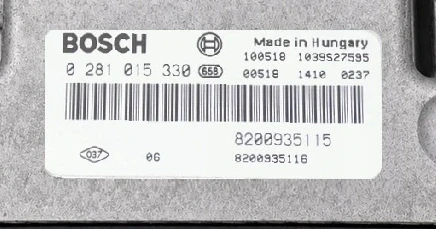

The Bosch EDC16C36 engine control unit offered here, part number 0281015330, is intended for selected versions of the Renault Trafic II 2.0 dCi. The module label also carries references 8200935115, 8200935116 and 1039S27595. The ECU is prepared as VIRGIN Plug & Play, allowing it to adapt automatically to the vehicle and synchronise with the immobiliser system after correct installation.
Applications of Bosch ECU 0281015330
This module is used in selected Renault configurations equipped with the 2.0 dCi engine. Due to different equipment and software versions, compatibility should always be confirmed using the references on the original ECU.
- Renault Trafic II 2.0 dCi – selected vehicle versions equipped with a Bosch EDC16C36 engine control unit.
Before ordering, the Bosch number 0281015330 and the Renault references on the original ECU should be compared carefully. This version carries the numbers 8200935115 and 8200935116. The exact model year, engine code and body variant should be checked individually if the references on the original module differ from the unit shown here.
Common symptoms of a faulty EDC16C36 ECU
Problems with the engine control unit can appear in different ways. Typical symptoms associated with this type of ECU may include:
- no diagnostic communication with the engine control unit,
- communication problems between the ECU and other modules on the CAN bus,
- P0100 fault related to the mass air flow measurement circuit,
- P0110 fault related to the intake air temperature circuit,
- P0685 fault related to the ECU main relay control circuit,
- P062F fault related to the ECU EEPROM memory.
The presence of one of these faults does not automatically mean that the engine control unit itself is defective. Before replacing the ECU, the power supplies, ground connections, wiring harness, fuses, relays and components connected to the control unit should also be checked.
Programming and preparation of the VIRGIN Plug & Play ECU
The offered module is prepared as VIRGIN Plug & Play. This means that the data from the previous vehicle has been cleared and the ECU is ready to be assigned automatically to the vehicle.
Once installed in the vehicle, the ECU automatically adapts to the vehicle and synchronises with the immobiliser system. There is no need to copy immobiliser data from the old control unit or perform standard cloning solely to start the vehicle.
During the first successful start, the ECU obtains the required information from the vehicle electronics and becomes assigned to the vehicle. Once this procedure is complete, the ECU operates together with the vehicle’s immobiliser system.
If the customer has an original ECU that can still be read correctly and requires a different preparation method, cloning may also be possible in selected cases. This service involves transferring the relevant data from the original ECU and must be agreed in advance.
Every ECU is tested before dispatch. The product is covered by a 6-month warranty.
Frequently asked questions – Renault Trafic 2.0 dCi ECU
Does ECU 0281015330 fit the Renault Trafic II 2.0 dCi?
Bosch ECU 0281015330 is used in selected versions of the Renault Trafic II 2.0 dCi. Before ordering, compare the references on the original ECU, especially the Bosch number and the Renault numbers shown on the label.
|
Does Renault Trafic ECU 8200935116 require programming after installation?
The VIRGIN Plug & Play version offered here is prepared for automatic adaptation. After correct installation, the ECU assigns itself to the vehicle and synchronises with the immobiliser system.
|
What does VIRGIN Plug & Play mean for a Bosch EDC16C36 ECU?
VIRGIN means that the module is prepared without data from the previous vehicle. After installation, the ECU obtains the required information from the vehicle, becomes assigned to it and works with the factory immobiliser system.
|
Does ECU 8200935115 need to be cloned from the original control unit?
Not with the VIRGIN Plug & Play version offered here. Cloning the old ECU is not required for standard installation because the module is prepared to assign itself automatically to the vehicle.
|
How can I check whether Bosch 0 281 015 330 is suitable for my Renault Trafic 2.0 dCi?
Compare Bosch number 0281015330 and the Renault references with the ECU removed from the vehicle. If the numbers differ, compatibility should be confirmed before placing the order.
|
