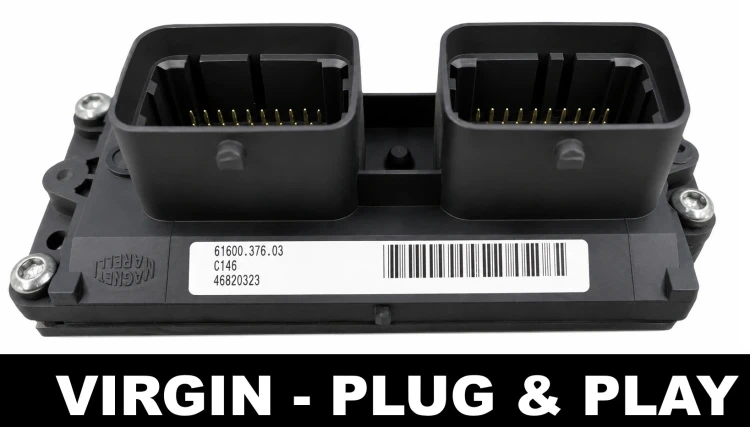

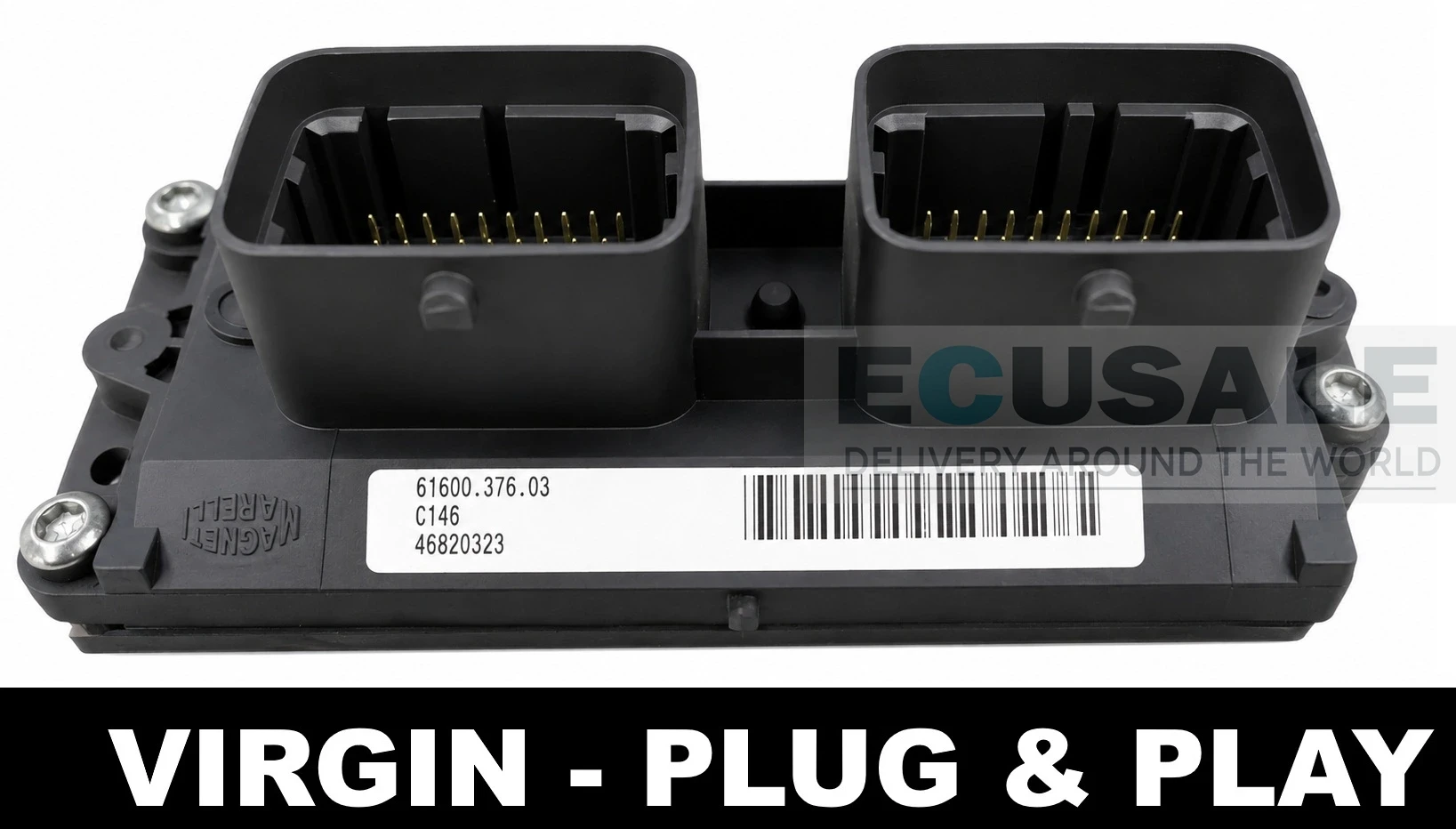

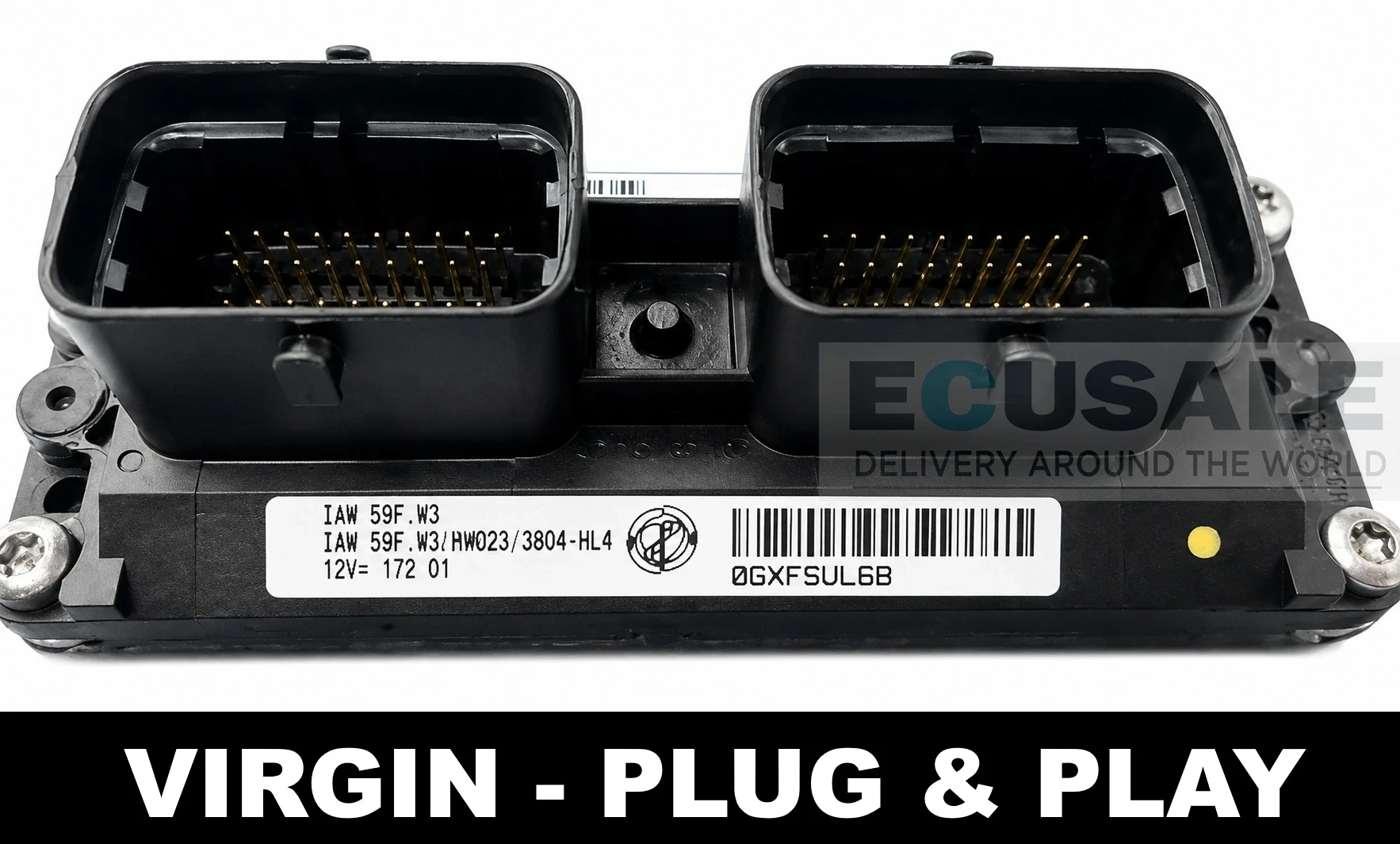

IAW 59F.M3 engine control unit for Fiat Punto II 1.2 46820323
Original Magneti Marelli engine control unit used in selected versions of the Fiat Punto II type 188 with the 1.2 8V petrol engine. The module corresponds to the following references: 46820323, IAW 59F.M3, HW023, 3804-ML4 and 61600.376.03. This unit is supplied as VIRGIN Plug & Play – after correct installation, the ECU automatically pairs with the vehicle’s immobiliser system.
Applications of the 46820323 IAW 59F.M3 engine control unit
This ECU version has been confirmed for selected Fiat Punto II vehicles from the 188 series.
- Fiat Punto II / Punto 188 – 3-door hatchback
- Fiat Punto II / Punto 188 – 5-door hatchback
- 1.2 8V petrol engine
- engine code 188A4000
- selected versions produced approximately between 1999 and 2005
Several versions of the IAW 59F engine control unit were fitted to the Punto 188, with differences in hardware and software configuration. Before ordering, compare the references printed on the original ECU, especially 46820323, IAW 59F.M3, HW023, 3804-ML4 and 61600.376.03.
Common symptoms of an IAW 59F.M3 ECU fault
Magneti Marelli ECUs from the IAW 59F family may develop faults affecting the ignition control circuits. Similar symptoms can also be caused by other components, so the wiring, spark plugs and ignition coils should be checked before replacing the ECU.
- engine running on only two cylinders,
- rough engine operation and noticeable loss of power,
- misfires despite correctly functioning spark plugs and ignition coils,
- Check Engine warning light illuminated,
- ignition coil circuit fault codes such as P0351 or P0352,
- starting difficulties or irregular engine operation.
VIRGIN Plug & Play – automatic pairing
This unit has been prepared in VIRGIN condition. This means that the immobiliser data from the previous vehicle has been removed, leaving the ECU ready for its first pairing with another compatible car.
Once installed in a compatible Fiat Punto and the vehicle is started correctly, the ECU automatically retrieves the required immobiliser data and pairs itself with the vehicle. With this version, conventional cloning of the data from the original ECU is not required.
Cloning is an alternative method of preparing a replacement ECU and involves transferring data from the original control unit to another module. It is mainly used when the vehicle-specific data must be retained or when a particular ECU type does not support the VIRGIN procedure. The offered IAW 59F.M3 ECU is supplied as VIRGIN Plug & Play and is designed to pair automatically after correct installation.
Frequently asked questions – Fiat Punto 46820323 IAW 59F.M3
Does the 46820323 IAW 59F.M3 ECU fit the Fiat Punto II 1.2?
|
This ECU was fitted to selected Fiat Punto II 188 versions with the 1.2 8V petrol engine. Before ordering, compare the references with the original ECU, as several Magneti Marelli IAW 59F variants were used in this model. |
Does the IAW 59F.M3 HW023 ECU require programming after installation?
|
The offered ECU is supplied as VIRGIN Plug & Play. When correctly matched to the vehicle, the module automatically pairs with the immobiliser system after installation, so standard manual immobiliser programming is not required. |
Is the Fiat Punto 1.2 ECU 61600.376.03 ready for installation?
|
Yes. The ECU is prepared as VIRGIN Plug & Play. Before connecting it, make sure that the references on the original control unit correspond to those of the offered ECU. |
Can the Magneti Marelli 46820323 ECU be cloned instead of prepared as VIRGIN?
|
Yes. In suitable cases, the data from the original ECU can be transferred to a replacement unit. This product, however, is supplied as VIRGIN Plug & Play, so cloning the original control unit is normally unnecessary. |
Does the IAW 59F.M3 fit every Fiat Punto 188 with a 1.2 engine?
|
No. Different IAW 59F versions with different hardware and software configurations were fitted to the Fiat Punto 188. The safest way to confirm compatibility is to compare the references 46820323, IAW 59F.M3, HW023, 3804-ML4 and 61600.376.03 with the original ECU in the vehicle. |
