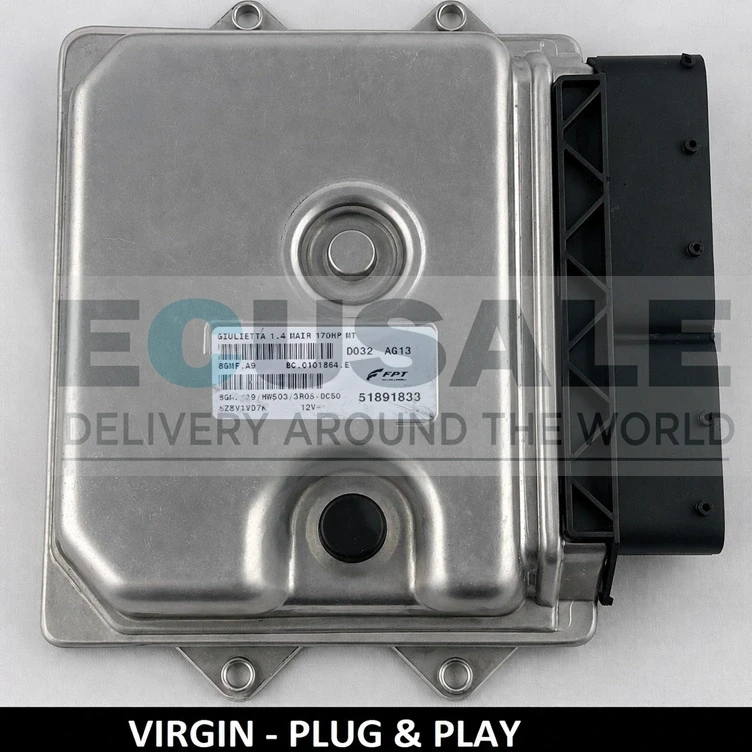

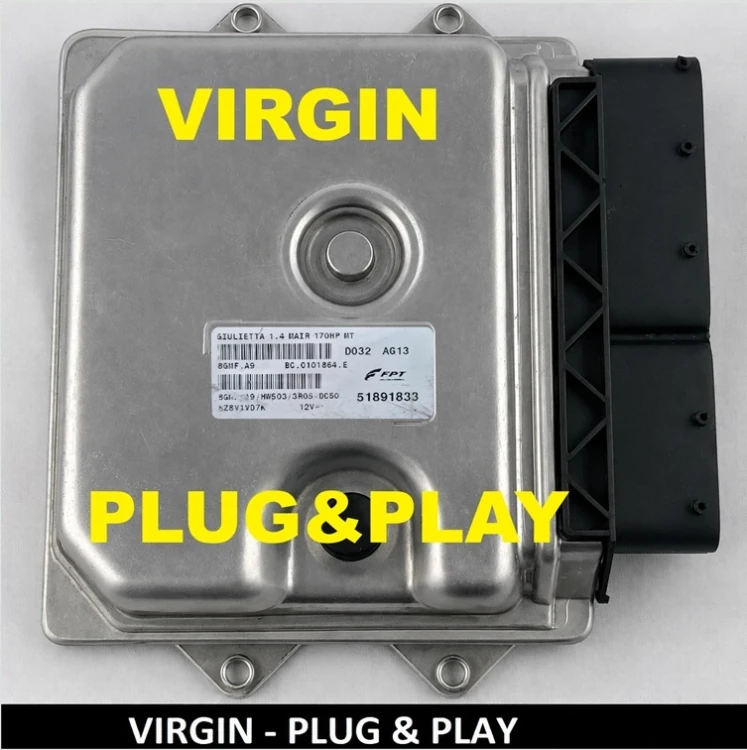

51891833 8GMF.A9 – Engine ECU for Alfa Romeo Giulietta 1.4 MultiAir 170 HP
Original FPT engine control unit for selected versions of the Alfa Romeo Giulietta with the 1.4 MultiAir petrol engine producing 170 HP and a manual gearbox. The module is supplied in VIRGIN condition and, after correct installation, automatically stores the required vehicle data.
Applications of the 51891833 engine ECU
- Alfa Romeo Giulietta – five-door hatchback;
- selected versions with the 1.4 MultiAir 170 HP petrol engine;
- versions equipped with a manual transmission;
- selected vehicles produced from approximately 2010 onwards.

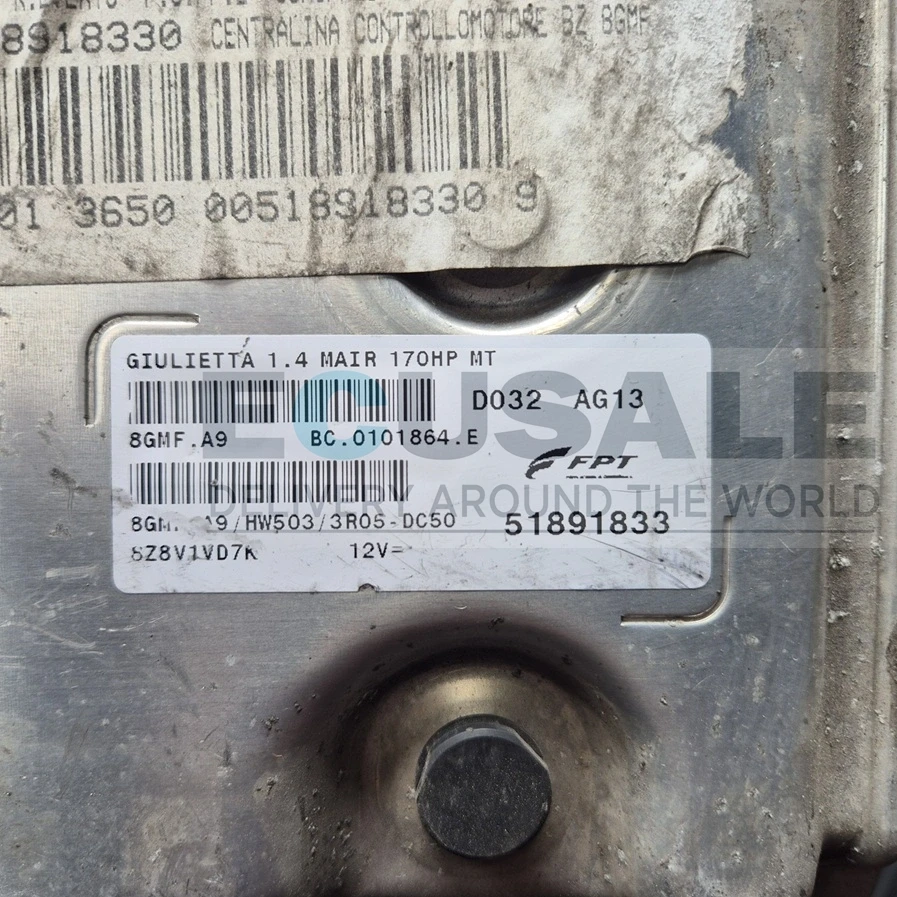

Different ECU variants were used in the Giulietta depending on the engine, gearbox and software version. Before purchasing, compare part number 51891833, designation 8GMF.A9 and number BC.0101864.E with the label on the original ECU. If any of these details differ, compatibility should be confirmed using the vehicle VIN.
Common symptoms of a faulty engine ECU
- engine does not start;
- engine stalls while driving or after warming up;
- no diagnostic communication with the ECU;
- rough engine operation and reduced power;
- incorrect control of the ignition or fuel injection system;
- engine warning light and recurring faults in circuits controlled by the module.
Similar symptoms may also be caused by faults in the electrical system, power supply, grounds, engine wiring harness or MultiAir system. Before replacing the ECU, we recommend carrying out a complete vehicle diagnosis.
Programming and preparation of the 8GMF.A9 ECU
The supplied ECU is prepared in VIRGIN condition. Data from the previous vehicle have been cleared, allowing the module to automatically store the information required to operate with the vehicle after installation.
- the original ECU does not need to be sent to us to prepare the VIRGIN version;
- the module should be installed with a fully functional and sufficiently charged battery;
- during the first start, the power supply should not be disconnected and the synchronization process should not be interrupted;
- after the engine starts, we recommend checking the configuration and clearing any previously stored fault codes;
- 1:1 cloning can be carried out after the original ECU is sent to us, provided its memory can be read correctly.
If the part numbers or software version differ from the original module, additional diagnostic coding may be required. Correct part selection should always be based on the designations shown on the original ECU label.
Frequently Asked Questions
Does the 51891833 ECU fit the Alfa Romeo Giulietta 1.4 MultiAir 170 HP?
Yes, this ECU is used in selected Giulietta 1.4 MultiAir 170 HP versions with a manual gearbox. Before purchasing, all designations should be compared with the original ECU.
|
Does the 8GMF.A9 ECU program itself automatically after installation?
Yes. The supplied VIRGIN version has the previous vehicle data cleared and automatically stores the required information after correct installation in the car.
|
Do I need to send the old Alfa Romeo Giulietta 1.4 ECU?
No. The original ECU is not required to prepare the VIRGIN version. The old module only needs to be sent if a 1:1 cloning service is ordered.
|
How can I check compatibility of the 51891833 BC.0101864.E ECU?
Compare part number 51891833, designation 8GMF.A9 and number BC.0101864.E with the label on the factory-installed module. If in doubt, compatibility should be confirmed using the vehicle VIN.
|
What warranty is provided for the Giulietta 1.4 MultiAir engine ECU?
The prepared engine ECU comes with a 6-month warranty. Before installation, make sure that the part numbers match the original ECU.
|
