6R0614117K / 6R0907379AB – what the set includes

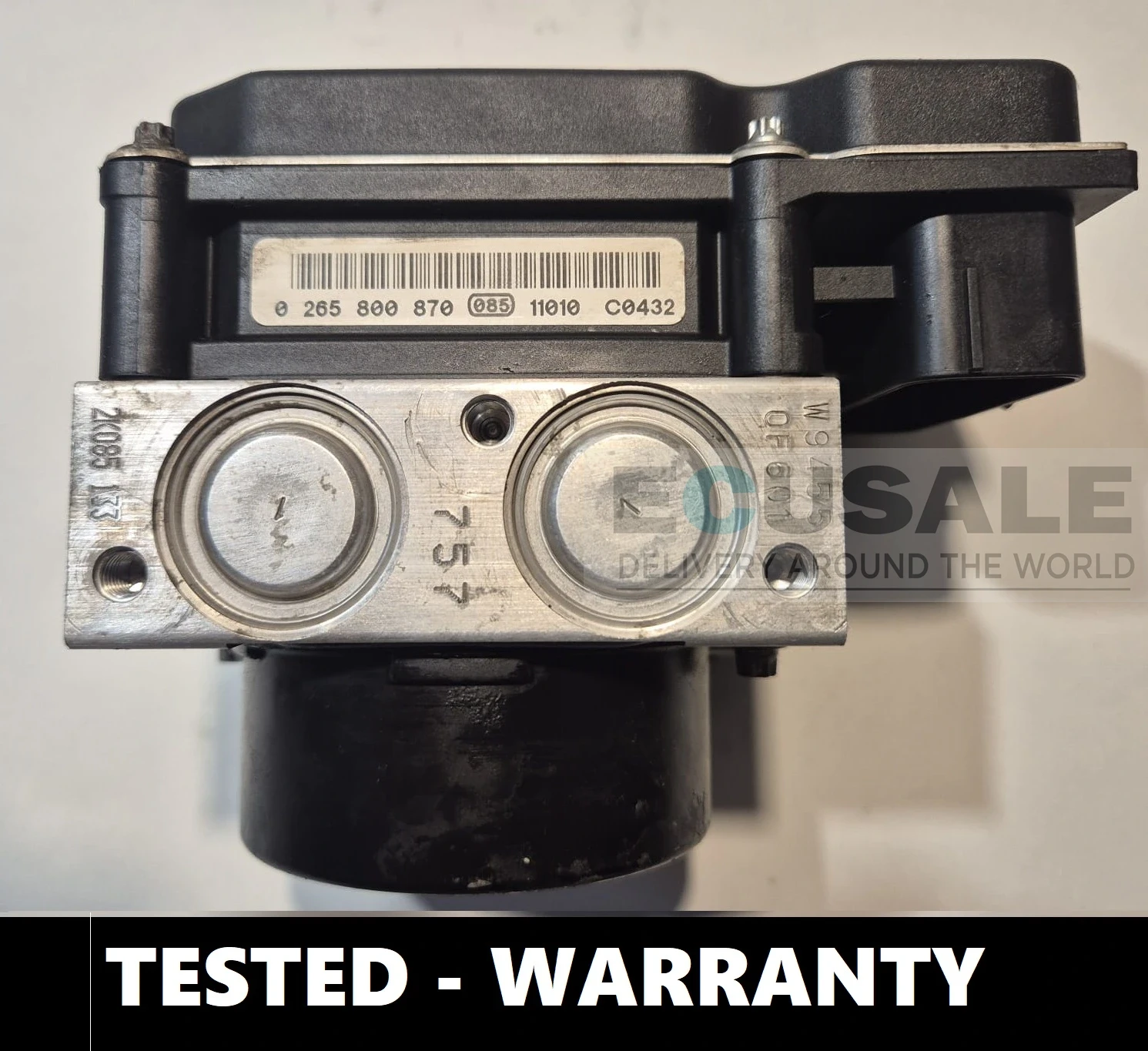

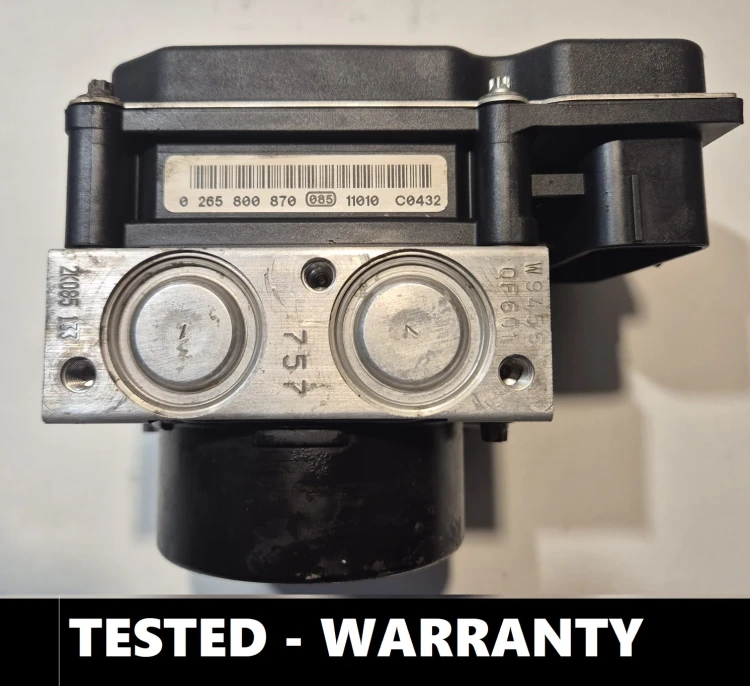

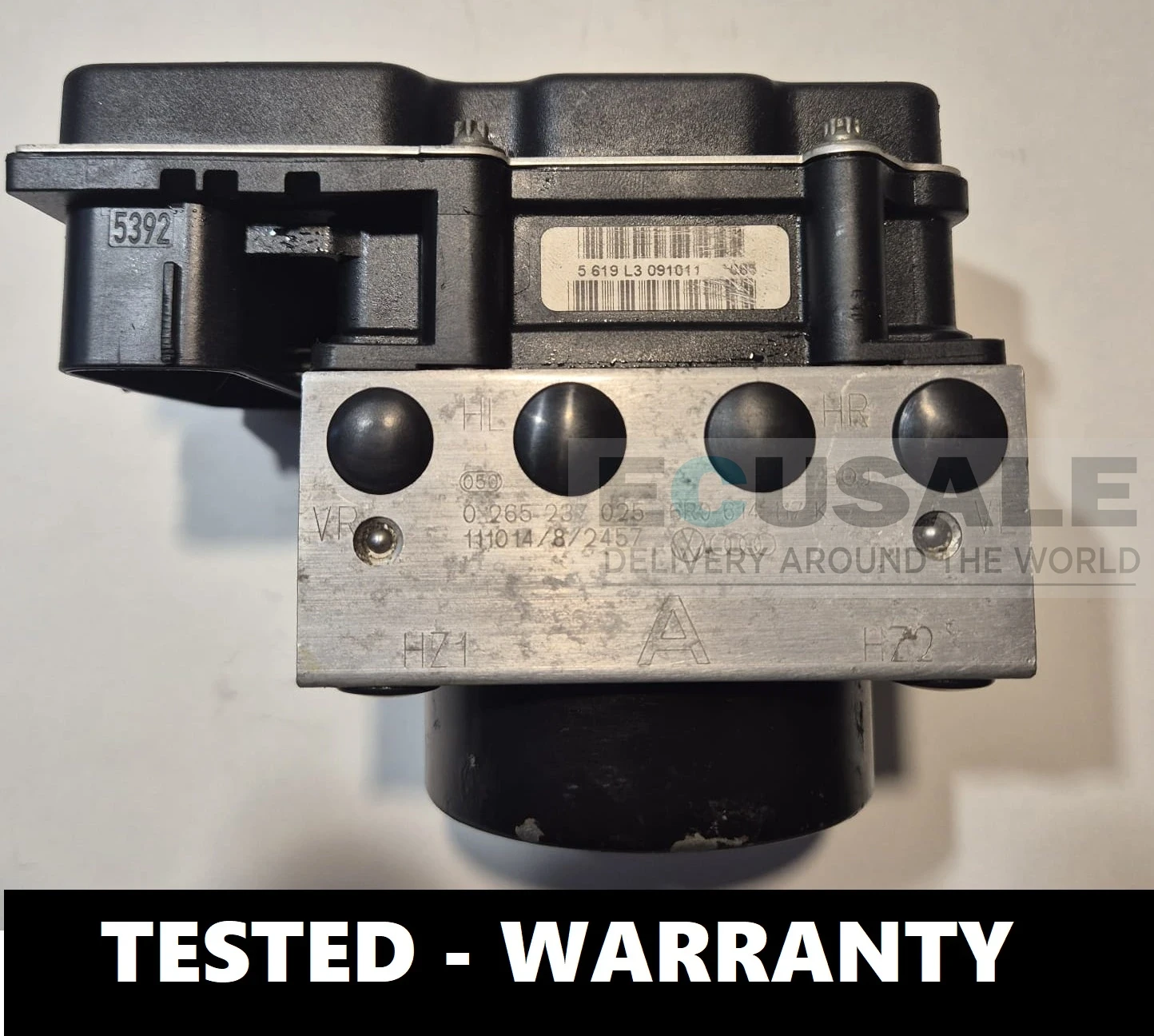

We sell the whole Bosch ABS module for Škoda / Seat Fabia II / Ibiza IV (6J), not just the pump: the hydraulic block and the ABS control unit form one unit. The label numbers are 6R0614117K (pump) and 6R0907379AB (control unit).
Condition: used. Before sale the pump is tested on a machine – we check the electronics and hydraulics, including a pressure test.
Application
Confirmed application: Škoda / Seat Fabia II / Ibiza IV (6J). The pump is always matched by the number – compare the pump and control unit numbers with the label of your module.

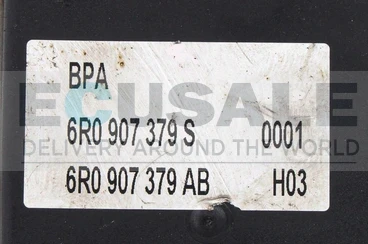

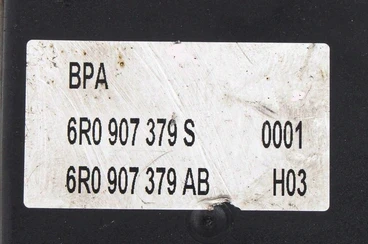

Label – pump and control unit numbers
| Marking | Number (different formats) |
|---|
| Pump number (OEM) | 6R0614117K / 6R0 614 117 K |
| ABS control unit (OEM) | 6R0907379S / 6R0 907 379 S / 6R0907379AB / 6R0 907 379 AB |
| Hydraulic block / pump – manufacturer number | 0265237025 / 0 265 237 025 |
| ABS control unit – manufacturer number | 0265800870 / 0 265 800 870 |
VCDS coding after replacement
- bleed the brake system,
- carry out short and long coding with VCDS,
- add the sensors, e.g. the steering angle sensor,
- finally run short coding again – it saves the whole configuration.
Failure symptoms
- ABS and/or ESP light is on,
- pump motor, valve or control unit supply faults,
- no communication with the ABS control unit,
- one wheel brakes less or locks.
The same symptoms can come from a faulty wheel speed sensor, ABS ring or wiring, so run diagnostics before buying. More information: ABS pump failure – symptoms and refurbishment.
Warranty and other pumps
The warranty is 6 months. Other ABS pumps are in the Volkswagen VW ABS Pumps / Škoda ABS Pumps category. If you are unsure about compatibility, send a photo of the label – we will compare the numbers.
FAQ – 6R0614117K
| Question |
Answer |
| How do you check the pump before dispatch? |
We test the electronics and hydraulics on a test machine, including a pressure test. |
| How do I code pump 6R0614117K after replacement? |
With VCDS: short and long coding, adding the sensors and short coding again. Bleed the brake system beforehand. |
| Can you check compatibility for me? |
Yes. Send a photo of your pump label – we will compare the numbers. |
| Is the ABS control unit 6R0907379AB included? |
Yes. This is a complete pump: hydraulic block and ABS control unit 6R0907379AB – hydraulics and electronics. |
| Will pump 6R0614117K fit my car? |
Compare the numbers on the label: pump 6R0614117K and control unit 6R0907379AB. Application: Škoda / Seat Fabia II / Ibiza IV (6J). Matching numbers are decisive. |
