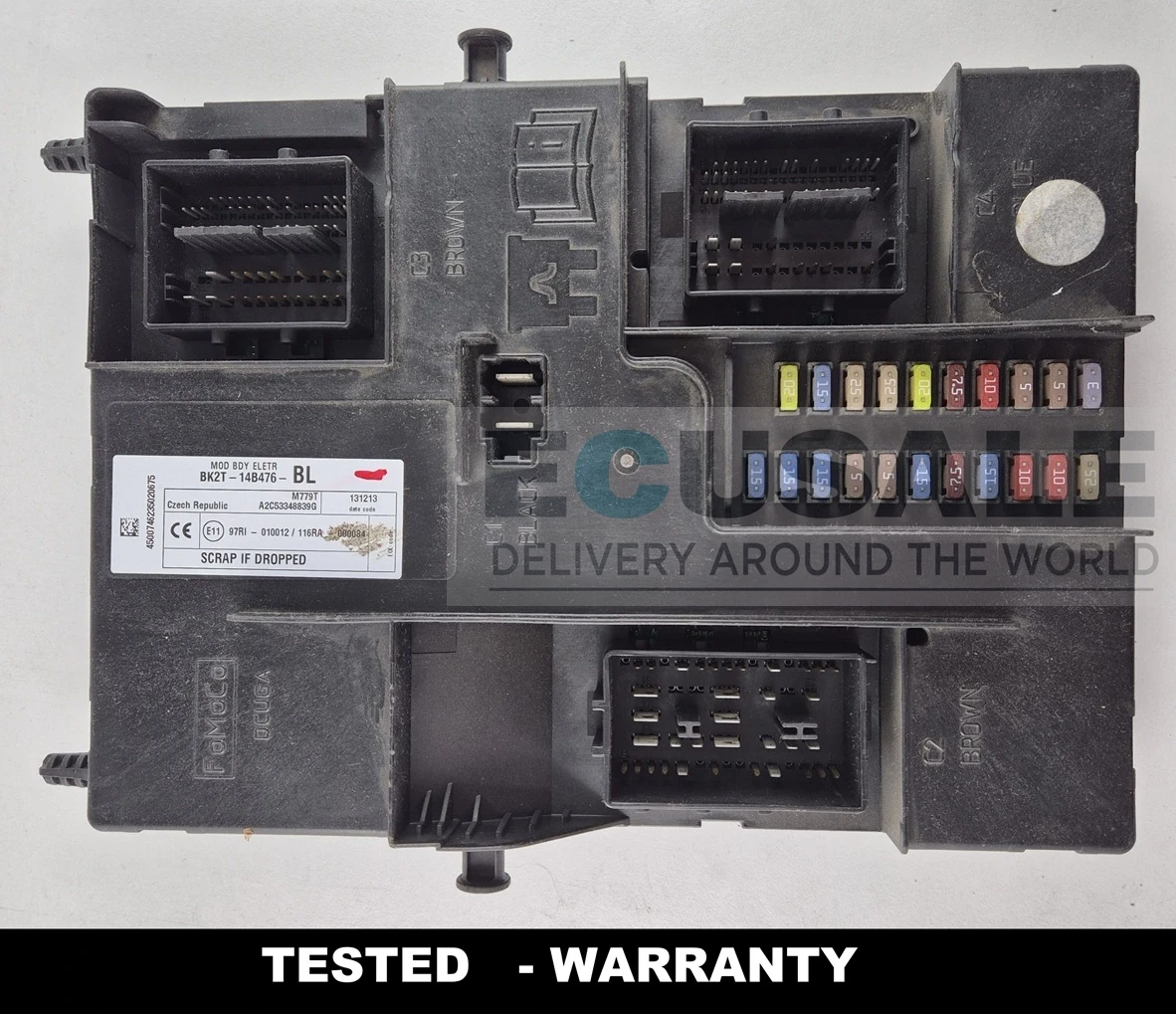

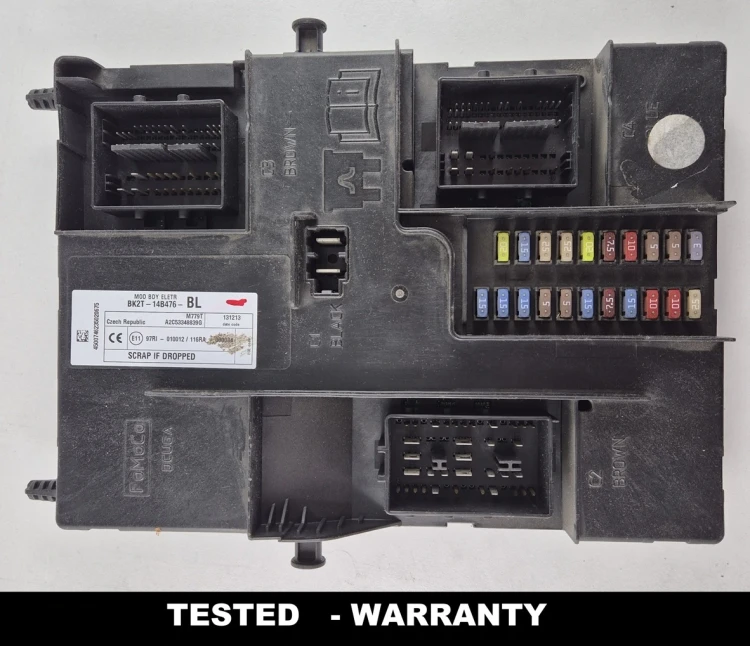

Original BCM body control module BK2T-14B476-BL / A2C53348839G for selected Ford Transit Custom V362 2.2 TDCi versions, tested before sale.

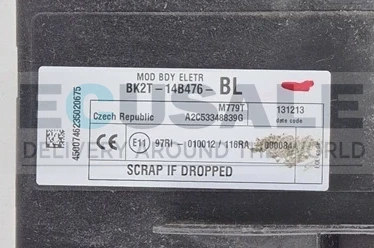

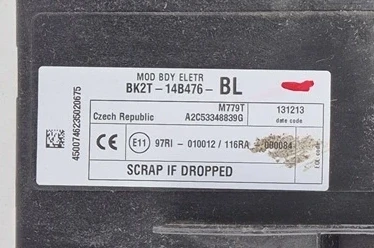

Original body control module used in selected versions of the Ford Transit Custom. The part number BK2T-14B476-BL may also be written as BK2T14B476BL, and the module label also carries the reference A2C53348839G. The BCM controls many of the vehicle’s electrical functions and must be correctly matched to the vehicle configuration before installation.
This module variant has been confirmed for selected first-generation Ford Transit Custom vehicles.
Many different BCM versions with very similar part numbers were used in the Transit Custom. Before ordering, compare the reference on the original unit, especially BK2T-14B476-BL / BK2T14B476BL and A2C53348839G. Matching the vehicle model and engine alone is not sufficient to confirm compatibility.
A faulty body control module can cause a wide range of electrical problems. Similar symptoms may also be caused by wiring faults, power supply issues or other control modules, so proper diagnosis is recommended before replacing the BCM.
A used BCM should not be treated as a Plug & Play part simply because the part number matches. The module stores vehicle configuration data and communicates with other electronic systems in the vehicle.
After replacement, configuration programming, vehicle data writing and security system synchronisation may be required. The exact procedure depends on the condition of the module and the equipment fitted to the specific Ford Transit Custom.
Cloning involves transferring the required data from the original BCM to a replacement module. If the original unit can still be read correctly, this method may allow the replacement BCM to be prepared with the vehicle’s existing configuration. Both modules should be checked before this service is carried out.
Does the BK2T-14B476-BL module fit the Ford Transit Custom 2.2 TDCi? |
Yes. The BK2T-14B476-BL part number is used in selected Ford Transit Custom V362 2.2 TDCi versions. However, the reference must still be compared with the original BCM because several different module variants were fitted to this model. |
|---|---|
Is the A2C53348839G BCM ready to install without programming? |
A used BCM should not be assumed to work without configuration. After installation, the module may require programming, vehicle configuration data to be written and synchronisation with the other electronic systems. |
Can the Ford Transit Custom BK2T14B476BL BCM be cloned? |
Yes. Modules of this type can be prepared by cloning data from the original BCM. Whether a complete clone can be created depends on the condition of the original unit and whether its stored data can be read correctly. |
How can I identify a faulty BCM in a Ford Transit Custom? |
Possible symptoms include problems with the central locking, lighting, windows, wipers, power supply to individual circuits or diagnostic communication. Wiring faults and power supply problems should be ruled out before replacing the module. |
Does every BK2T BCM fit the Ford Transit Custom V362? |
No. The final letters of the part number identify a specific module variant and may be important for compatibility. The safest option is to match the complete BK2T-14B476-BL reference and compare the remaining markings with the original unit. |
