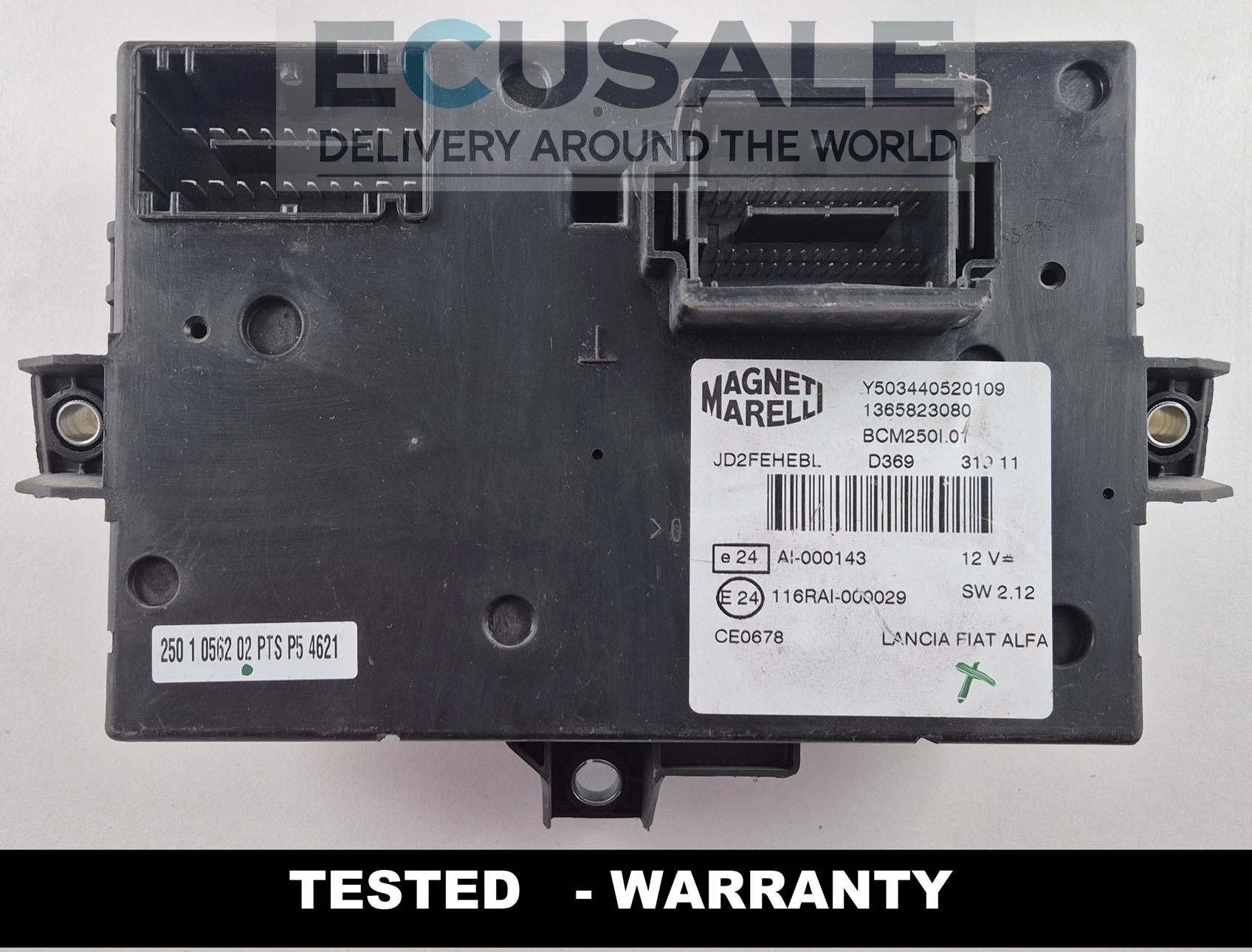

Fiat Ducato body computer module 1365823080 Y503440520109
This BCM module manages the vehicle’s central body electronics and communication between selected systems. Before installation in another vehicle, it must be properly prepared through cloning or programming.
Applications of the BCM250I.01 module
- Fiat Ducato III, type 250, MY 2011 – selected versions produced approximately between 2011 and 2014,
- various commercial body versions – the exact body type should be confirmed using the VIN and the references shown on the original module,
- various engine versions – engine code and capacity are not the main criteria when selecting a Body Computer module.
Before purchasing, compare the OEM number 1365823080, the Magneti Marelli reference Y503440520109 and the version BCM250I.01 with the label on the module removed from the vehicle. Matching the vehicle model and production year alone does not guarantee correct operation with the vehicle’s equipment.
Common symptoms of a faulty 1365823080 Body Computer module
- no diagnostic communication with the body control module,
- problems with the central locking system or key recognition,
- incorrect operation of the lights, indicators or windscreen wipers,
- random warning lights and messages on the instrument cluster,
- selected cabin equipment not working,
- starting problems caused by a lack of synchronisation between vehicle systems,
- intermittent battery drain caused by the module failing to enter sleep mode correctly.
Similar symptoms may also be caused by damaged wiring, fuses, connectors, ground points or CAN communication faults. Before replacing the BCM, check the vehicle’s electrical system and the module’s power supply.
Cloning, coding and preparation of the 1365823080 Y503440520109 module
A used Y503440520109 module is not normally ready for direct installation in another vehicle. The safest solution is to clone the data from the original Body Computer.
- both the original and purchased modules are required for a complete cloning service,
- reading and writing are performed on the bench using a professional programmer compatible with the Magneti Marelli BCM250 family,
- identification data and equipment configuration are transferred,
- a complete clone may also retain the data required for the immobiliser and keys to operate correctly,
- the specific programmer and reading method are selected by the electronics specialist after identifying the circuit board version and installed memory,
- if the original module cannot be read, coding based on the VIN, equipment configuration and key registration may be required.
After installing the module in a Fiat Ducato, the network configuration can be checked and the PROXI Alignment procedure can be performed using MultiECUScan and a suitable ELM interface. However, this diagnostic procedure does not replace a complete clone of the used BCM memory.
Frequently asked questions about Y503440520109 / 1365823080
Does the 1365823080 module fit every Fiat Ducato 250?
No. Different Body Computer versions were used in the Ducato 250 depending on the production year and equipment. Compare the complete set of part numbers with the original module and, where necessary, confirm compatibility using the VIN.
Is the Y503440520109 BCM ready for installation?
Not without prior preparation. A used module contains data from the previous vehicle and must therefore be cloned from the original BCM or individually programmed.
Which tool can be used to clone the Magneti Marelli BCM250I.01?
A professional bench programmer compatible with BCM250 modules and the memory fitted to the specific unit is required. The correct equipment and adapter should be selected by an automotive electronics specialist.
Do the keys need to be programmed again after cloning the 1365823080 module?
With a complete and correctly performed clone, the data required for the immobiliser and keys to operate can be transferred from the original module. Registering the keys again is therefore not normally required.
Can MultiECUScan program a used Body Computer for a Fiat Ducato?
MultiECUScan supports module diagnostics, changes to supported settings and the PROXI Alignment procedure. However, it does not replace the programmer required to perform a complete clone of the used BCM memory.
