BSI BCM Body Computer 503440270103 1361993080 for Ducato Boxer Jumper

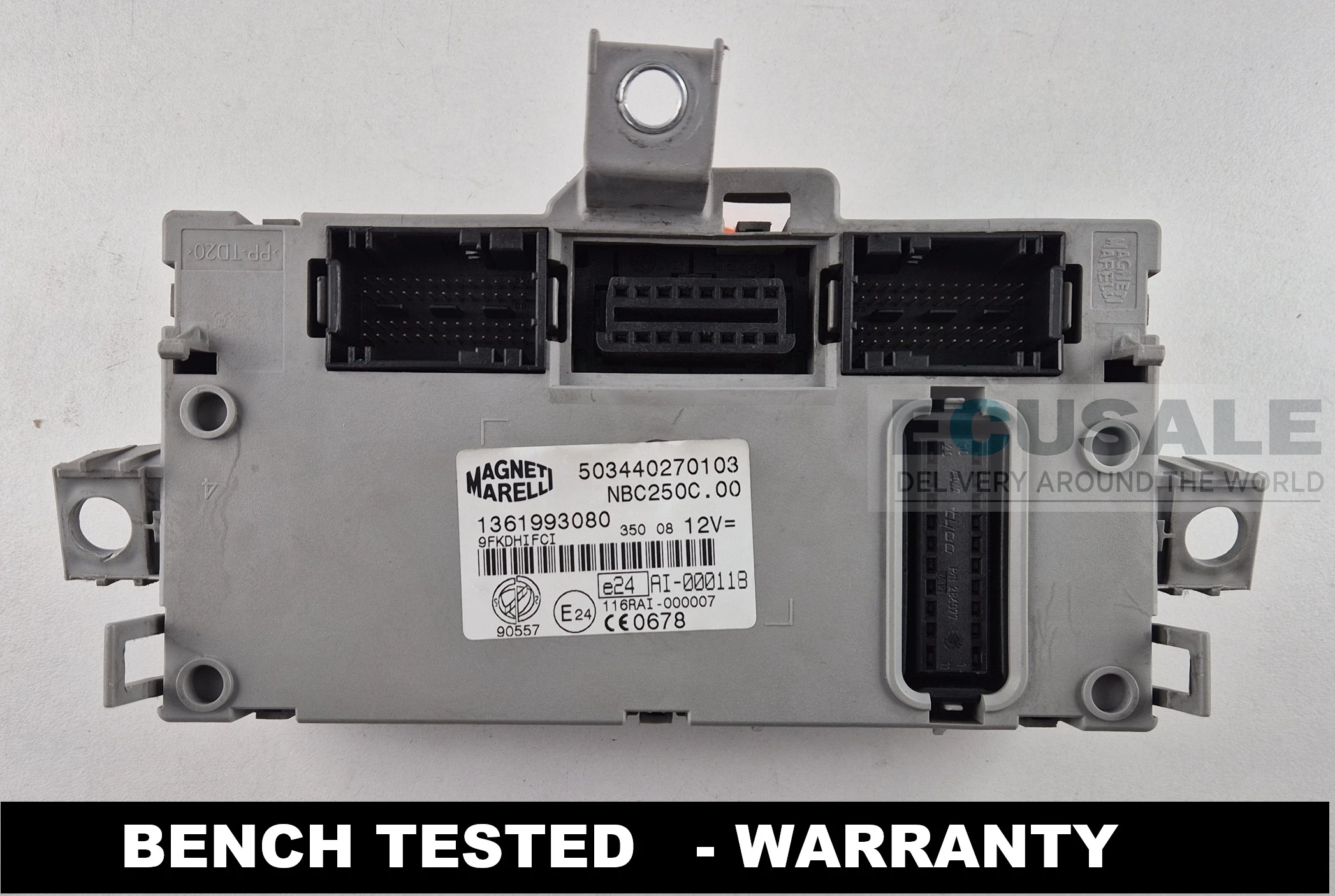

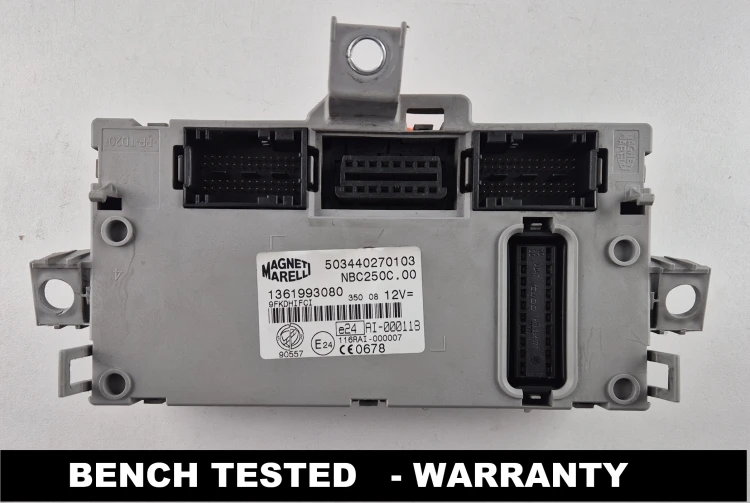

Original Magneti Marelli Body Computer / BSI / BCM body module with part numbers 1361993080, 503440270103 and marking NBC250C.00. This control unit is used in Fiat / PSA commercial vehicles such as Fiat Ducato, Peugeot Boxer and Citroen Jumper. The product is fully bench tested, prepared as a replacement part for body electrical system repairs and covered by warranty.
Application and compatibility
The 1361993080 NBC250C.00 module is found in selected versions of vehicles based on the Ducato / Boxer / Jumper platform, most commonly around model years 2006–2014, depending on equipment version, body type and electrical installation.
- Fiat Ducato III / X250 – selected 2.2, 2.3 JTD / MultiJet and 3.0 JTD versions
- Peugeot Boxer II – selected 2.2 HDi and 3.0 HDi versions
- Citroen Jumper II – selected 2.2 HDi and 3.0 HDi versions
- module manufacturer: Magneti Marelli
- system marking: NBC250C.00
Before purchase, the numbers from the old module should be compared. The most important compatibility markings are 1361993080, 503440270103 and NBC250C.00. This module is not a simple relay unit – it controls many body functions, central locking, lights, CAN communication, immobiliser and vehicle equipment configuration.
Programming or cloning
After installation, the BSI BCM 1361993080 module may require programming, adaptation or data cloning from the old Body Computer. Programming is carried out with a diagnostic tool suitable for the vehicle brand, for example Fiat Examiner, WiTECH, MultiECUScan for Fiat Ducato or DiagBox / Lexia for Peugeot Boxer and Citroen Jumper. In many cases, the best solution is cloning the old module, as this preserves immobiliser data, vehicle configuration and equipment coding. We can perform cloning – please contact us before purchase.
Typical symptoms of a faulty 1361993080 module
- no communication with the BSI / BCM module,
- problems with central locking, lights or indicators,
- no start due to an immobiliser issue,
- CAN communication errors in Ducato, Boxer or Jumper,
- electrical consumers switching on by themselves,
- problems after water damage, overvoltage or short circuit in the wiring.
Tested Magneti Marelli module with warranty
The offered 1361993080 503440270103 NBC250C.00 module has been technically checked before sale. It is an original Magneti Marelli Body Computer prepared for repairs in Fiat Ducato, Peugeot Boxer and Citroen Jumper vehicles. The product is sold with warranty, but before installation it is important to confirm whether the vehicle requires programming, adaptation or cloning of the old module.
FAQ – 1361993080 503440270103 NBC250C.00 BSI BCM Ducato Boxer Jumper
Does the 1361993080 module fit Fiat Ducato X250?
Yes, the 1361993080 Magneti Marelli module is used in selected versions of Fiat Ducato III / X250. Before purchase, the number of the old Body Computer should be compared with the markings 1361993080, 503440270103 and NBC250C.00.
Does BSI 503440270103 fit Peugeot Boxer or Citroen Jumper?
The 503440270103 NBC250C.00 module may also be found in selected versions of Peugeot Boxer and Citroen Jumper from the same platform. The most important step is to compare the numbers from the original label and the vehicle configuration.
Does the NBC250C.00 module require programming after installation?
Yes, in many cases NBC250C.00 requires programming or adaptation. Tools such as Fiat Examiner, WiTECH, MultiECUScan or DiagBox / Lexia can be used for configuration, depending on the vehicle brand.
Can the BSI BCM 1361993080 module be cloned?
Yes, the 1361993080 503440270103 module can be prepared by cloning data from the old control unit. Cloning is often the best solution because it preserves the immobiliser, configuration and vehicle data. Please contact us regarding cloning.
What symptoms can a faulty Body Computer in Ducato Boxer Jumper cause?
A faulty Body Computer / BSI / BCM can cause a no-start condition, central locking faults, lighting problems, CAN communication errors, immobiliser issues, wiper faults or other electrical body function problems.
