1369216080 503440770100 – BCM Body Control Module Fiat Ducato Jumper Boxer Magneti Marelli

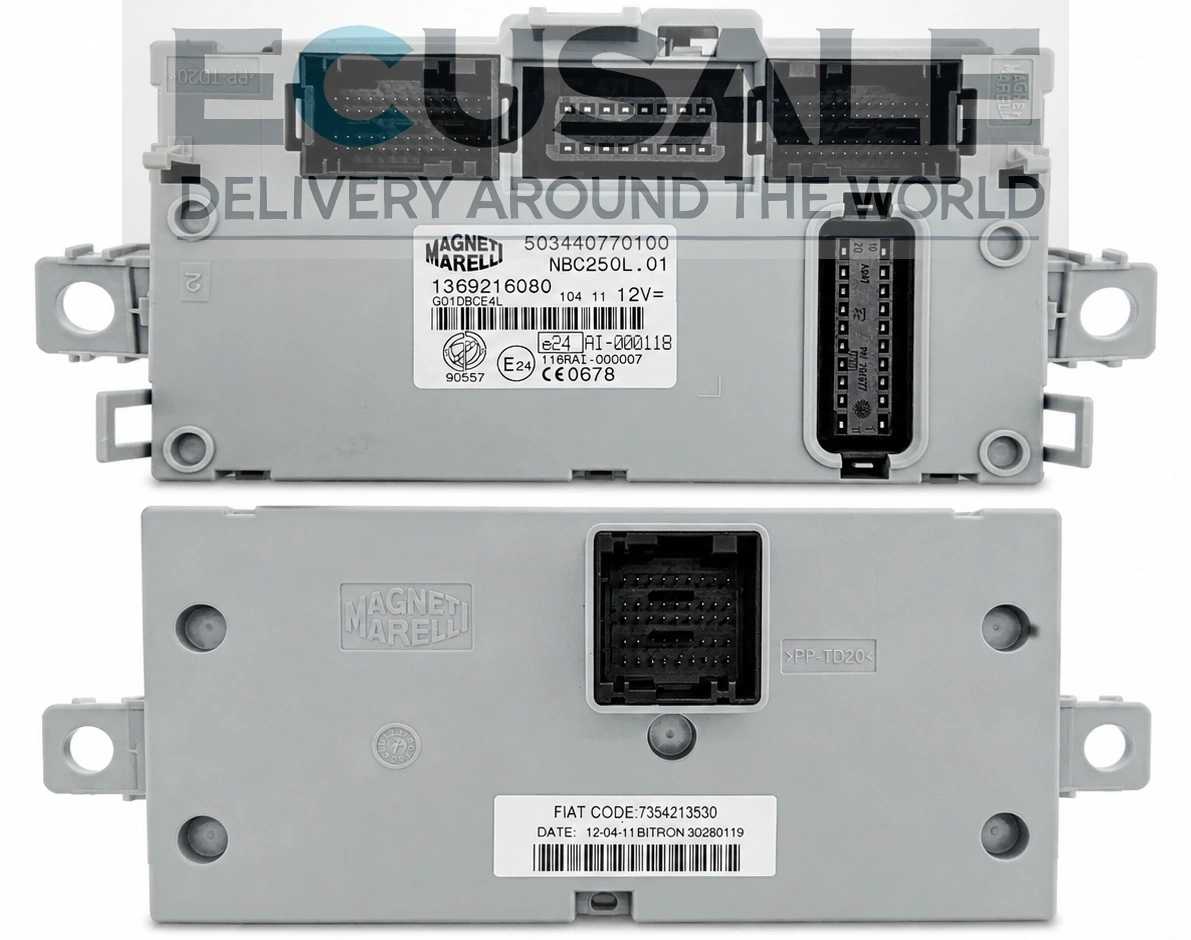

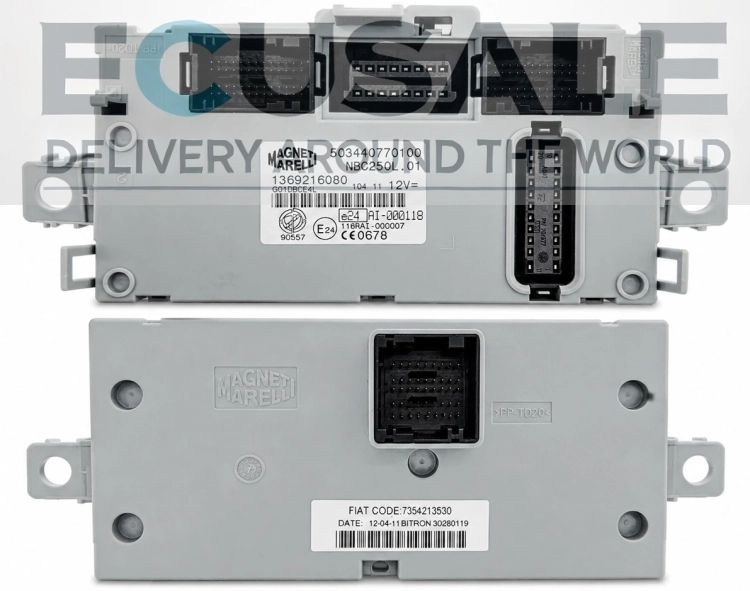

BCM Body Control Module 1369216080 / 503440770100 Magneti Marelli NBC250L.01 designed for Fiat and PSA group commercial vehicles. The module controls various body and comfort functions including central locking, exterior lighting, communication systems and selected electrical equipment.
The unit is fully tested, verified and supplied with warranty. Before installation, compatibility must be confirmed using the numbers 1369216080, 503440770100 or Fiat OEM number 7354213530.
Vehicle compatibility – match by part number
- Fiat Ducato III – approximately 2006–2014
- Citroen Jumper II – approximately 2006–2014
- Peugeot Boxer II – approximately 2006–2014
The BCM may be used in 2.2 HDI, 2.3 JTD / Multijet and 3.0 HDI / JTD versions. Compatibility depends on the exact part number and vehicle equipment configuration, not only on engine type.
Programming and installation
This module requires programming and adaptation to the vehicle. After installation, the BCM must be configured according to vehicle equipment and synchronized with the immobilizer system and other control units.
- Fiat Ducato – Examiner, Witech, Leonardo, Texa or compatible diagnostic equipment
- Citroen Jumper / Peugeot Boxer – DiagBox, Lexia, PP2000 or PSA-compatible diagnostic tools
- vehicle configuration coding may be required
- in some cases a PIN/security code is necessary
This is not a Plug & Play module. Without proper programming the vehicle may display configuration errors, central locking issues, lighting faults or immobilizer-related starting problems.
Typical BCM faults and symptoms
- central locking not working
- lighting or indicator problems
- no communication with BCM module
- random electrical system faults
- immobilizer starting issues
- wipers, windows or cabin equipment malfunction
- damage after water ingress, short circuit or voltage surge
Important: before purchase compare all numbers from the original module. The most important compatibility numbers are 1369216080, 503440770100, NBC250L.01 and 7354213530.
FAQ – questions and answers
Does BCM 1369216080 fit Fiat Ducato?
Yes – BCM 1369216080 is used in Fiat Ducato III models, but compatibility must always be verified using the original BCM number and vehicle equipment.
Is BCM 503440770100 compatible with Citroen Jumper 2.2 HDI?
It may fit Citroen Jumper II 2.2 HDI models if the BCM numbers match. Vehicle model and engine alone are not enough for correct compatibility.
Is BCM module 1369216080 Plug & Play?
No. This BCM requires programming and configuration after installation to work correctly with the vehicle.
How to program BCM 503440770100 in Fiat Ducato?
Fiat Ducato requires diagnostic equipment supporting body configuration coding such as Witech, Examiner, Leonardo, Texa or equivalent tools.
Is 7354213530 the same type of BCM module?

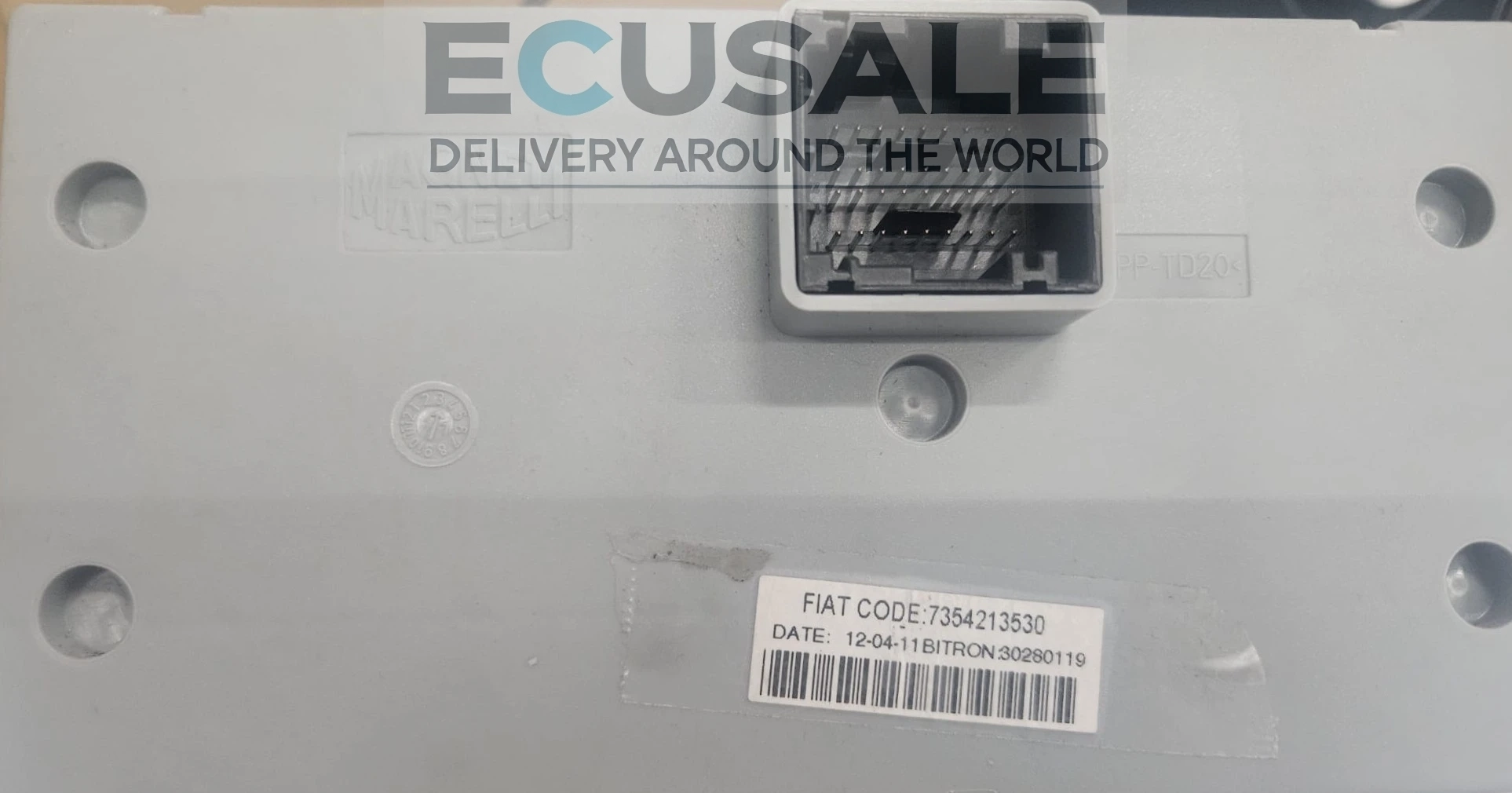

Yes – 7354213530 may appear as the Fiat OEM number for Magneti Marelli NBC250L.01 BCM modules. Always compare all label numbers before installation.
Does BCM 1369216080 fit Peugeot Boxer 2.3 HDI?
Yes – it may be installed in Peugeot Boxer II vehicles, but matching numbers 1369216080 / 503440770100 and proper programming are required.
What happens if BCM is installed without programming?
The vehicle may show configuration errors, non-working central locking, lighting problems, immobilizer faults or communication errors with other control modules.
Does Magneti Marelli NBC250L.01 require a PIN code?
In many cases a PIN/security code is required during adaptation, especially for immobilizer synchronization functions.
What are common failures of Ducato Jumper Boxer BCM modules?
Typical problems include central locking faults, lighting issues, CAN communication problems, starting issues and damage caused by water ingress or electrical short circuits.
