01368890080 tested Delphi BCM BSI module for Fiat Fiorino Qubo Nemo Bipper

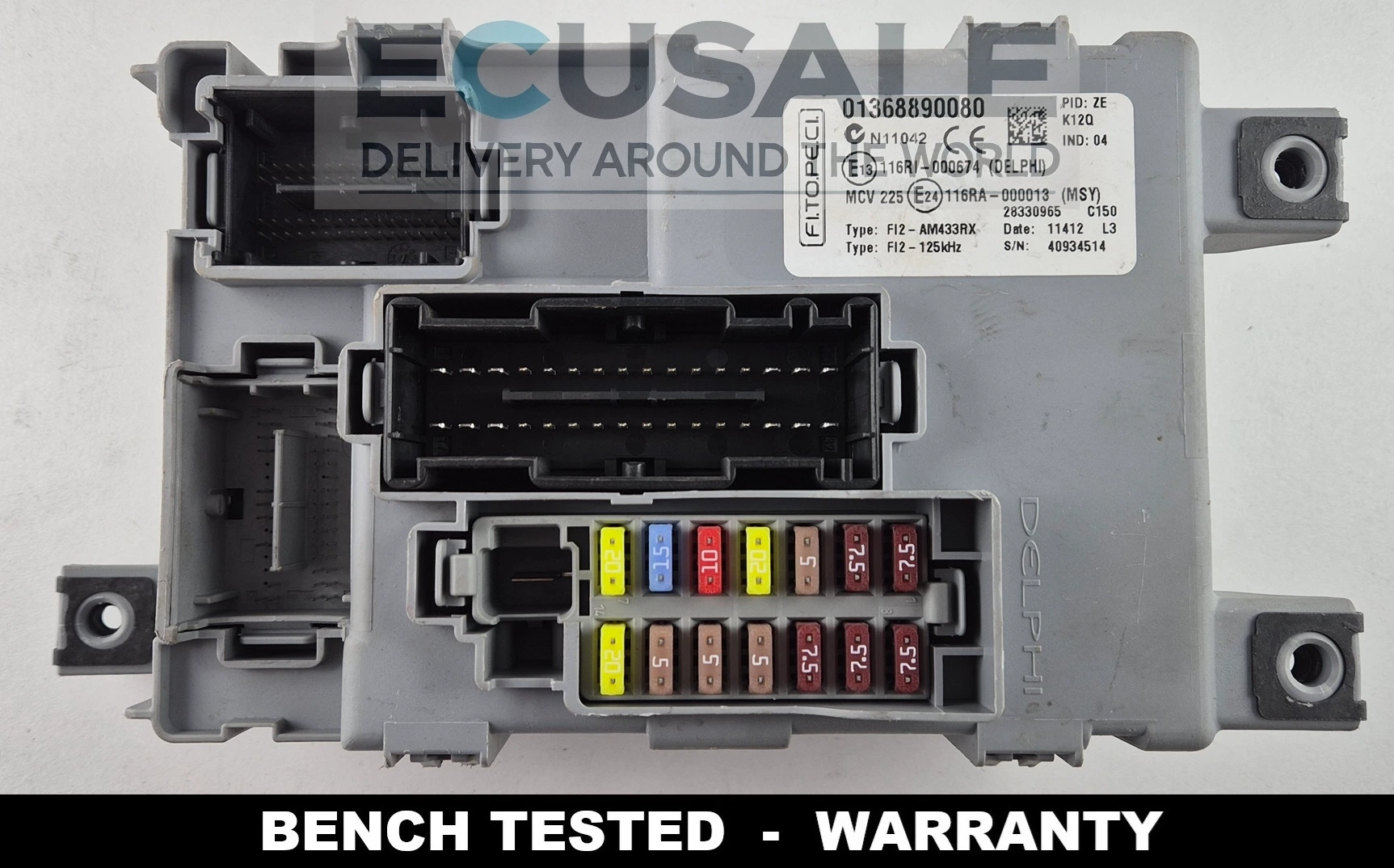

Original BCM / BSI Delphi module with part numbers 01368890080 and 28330965, used in Fiat Fiorino, Fiat Qubo, Citroen Nemo and Peugeot Bipper vehicles.
Compatibility by part number
The most important step when selecting the correct module is to compare the numbers from the old control unit. This module should be checked by the markings on the label:
- 01368890080 – main BCM / BSI module number
- 1368890080 – alternative number format without the first zero
- 28330965 – Delphi number
- FI2-AM433RX – receiver / module version marking
- FI2-125kHz – system marking
- PID ZE K12Q, IND 04, MCV 225 – additional version codes
- 116RI-000674, 116RA-000013, N11042 – auxiliary numbers from the label
Which vehicles use 01368890080?
The 01368890080 28330965 Delphi module is used in vehicles from the Fiat Fiorino / Fiat Qubo / Citroen Nemo / Peugeot Bipper family, produced approximately from 2008. It is most often found in petrol and diesel versions, including 1.4, 1.3 Multijet and 1.4 HDi, depending on the market, equipment and vehicle wiring version.
Several BCM / BSI module versions were used in these models, so the vehicle model, production year or engine capacity alone does not guarantee compatibility. The safest match is confirmed by the numbers 01368890080, 28330965, FI2-AM433RX and FI2-125kHz from the old module.
Possible symptoms of a faulty BCM BSI
- central locking or remote control not working,
- problems with indicators, lights or wipers,
- no power supply to selected fuses and circuits,
- CAN communication errors with other vehicle modules,
- random warning messages on the dashboard,
- comfort functions not working despite a correct electrical installation.
The offered 01368890080 / 28330965 module is fully bench tested, prepared for professional installation, coding or data cloning and sold with warranty. The best way to choose the correct part is to compare the numbers from the label of the old module.
FAQ – BCM BSI 01368890080 Fiat Fiorino Qubo Nemo Bipper
Does the 01368890080 module fit Fiat Fiorino?
Yes, the 01368890080 module may be used in Fiat Fiorino. Before purchase, the Delphi number 28330965 and the markings FI2-AM433RX and FI2-125kHz from the old BCM / BSI should be compared.
Does BCM 28330965 fit Fiat Qubo 1.3 Multijet?
The 28330965 Delphi module may be used in Fiat Qubo 1.3 Multijet, but compatibility must be confirmed by the numbers on the label. The most important references are 01368890080, 28330965 and IND 04.
Do Citroen Nemo and Peugeot Bipper use the same BSI 01368890080 module?
The related models Citroen Nemo and Peugeot Bipper may use Delphi BSI modules with the number 01368890080. Before installation, the number 28330965 and the version codes from the label should also be compared.
Does the BCM 01368890080 module require coding?
In many cases, the BCM / BSI 01368890080 module requires coding, configuration or data cloning from the old control unit. This depends on the equipment version, immobiliser and vehicle electrical system.
Is the offered Delphi 28330965 module tested?
Yes, the offered BCM BSI Delphi 28330965 module is fully bench tested and covered by warranty. The part is prepared for further installation, coding or cloning.
