13 206 746 GS – Hella UEC box from the engine bay

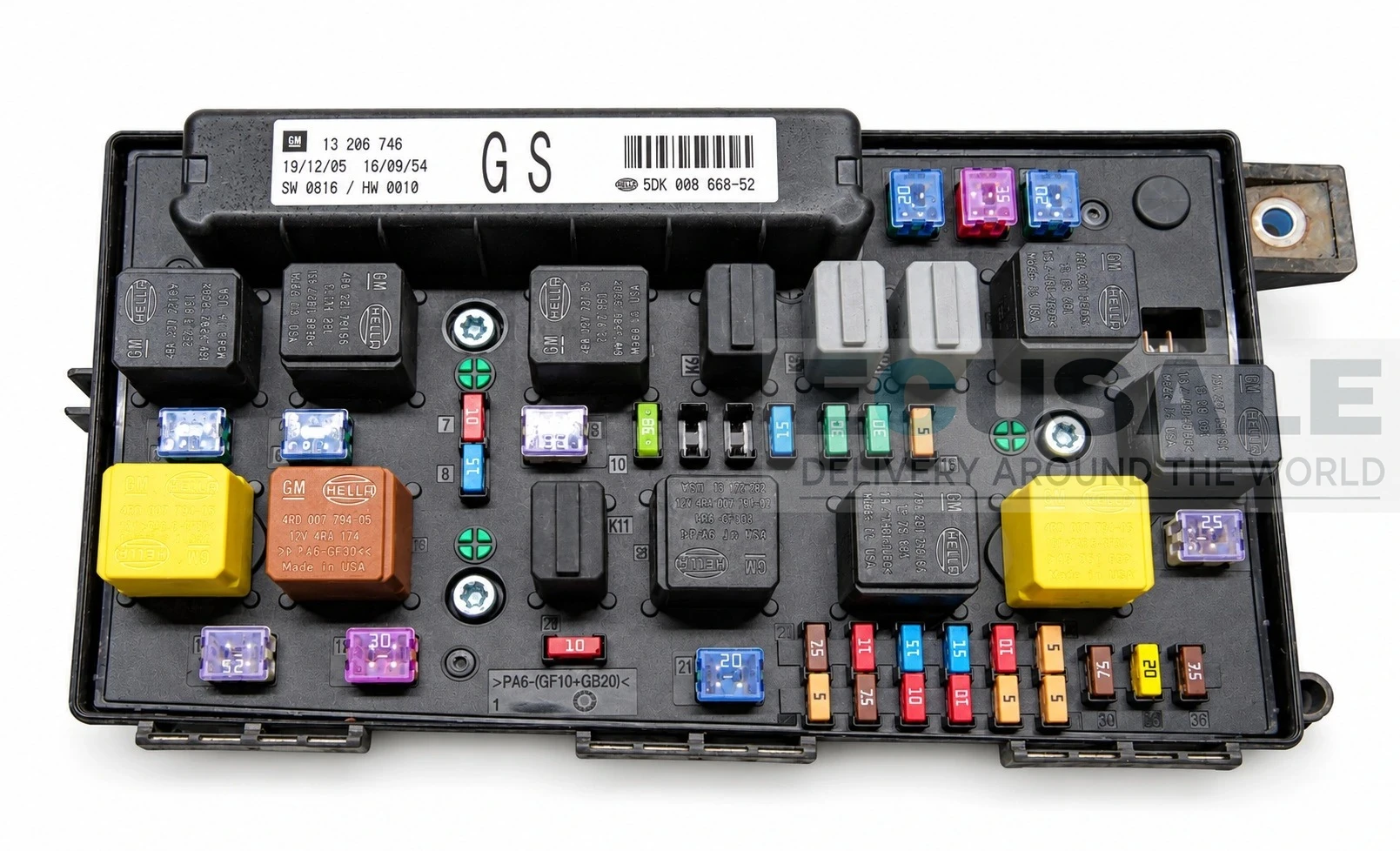

This is the factory fuse and relay module fitted under the bonnet (Underhood Electrical Center). We erase its memory before dispatch, so it reaches you clean, with no data from the donor car, together with the PIN code.

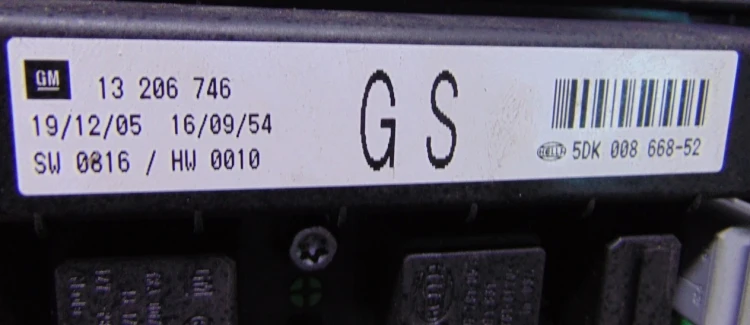

| Label item | Value |
|---|
| GM number and letter code | 13 206 746 GS |
| Hella number | 5DK 008 668-52 |
| Software / hardware version | SW 0816 / HW 0010 |
| Without spaces | 13206746GS / 5DK008668-52 |
Which cars
The box is intended for the Opel Astra H and Opel Zafira B. The model list does not settle the match either way: what counts is whether your unit’s label carries the same number 13 206 746 with the letters GS and Hella number 5DK 008 668-52. Different letters or a different ending after the dash mean another version of the box.
Start-up step by step

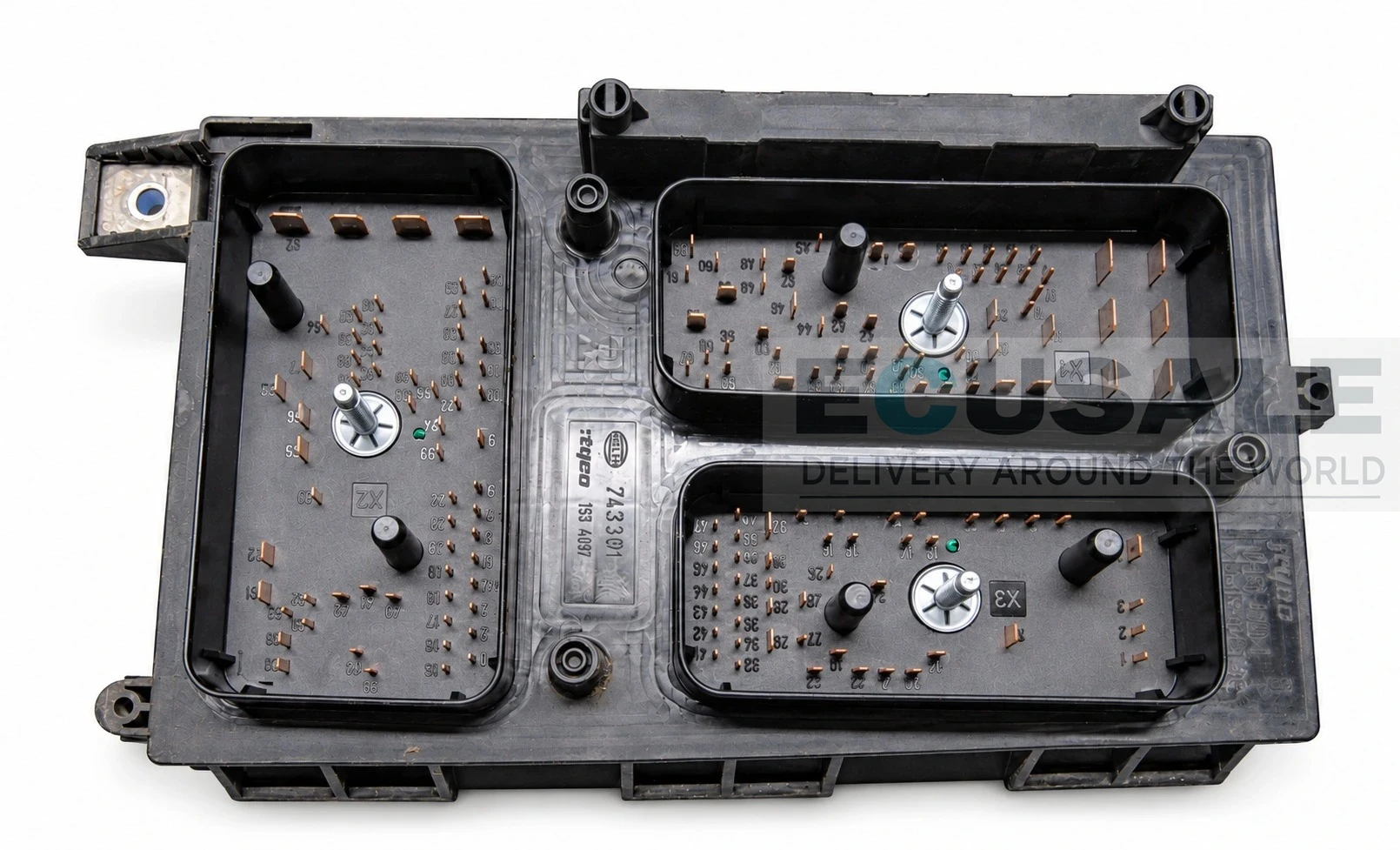

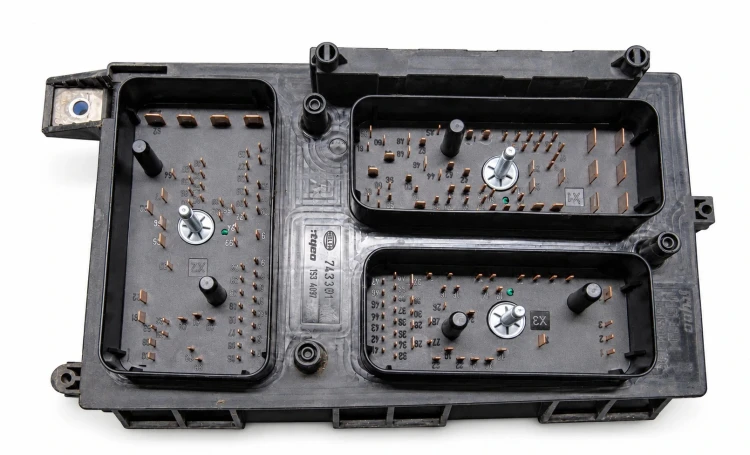

- Fit the box in place of the old one and plug in connectors X1, X2 and X3.
- Connect Tech-2 or OP-COM to the diagnostic socket.
- Program the module to the car, entering the PIN code from your order.
We ship within 2–3 working days across the EU. Similar boxes are in the category Opel UEC fuse boxes.
Questions about the 13 206 746 GS fuse box
Is the PIN code included in the price?
Yes, you receive the PIN code with the 13 206 746 GS box at no extra cost.
|
Do the letters GS have to match?
Yes. Compare the GM number together with the letters GS and Hella number 5DK 008 668-52 – together they identify the exact module version.
|
I have neither Tech-2 nor OP-COM. What should I do?
Without one of these testers the box cannot be programmed – have a workshop do it. Send matching questions to sale@ecusale.com, we reply 24/7.
|
