BCM 13206748 with PIN CODE Opel Astra H Zafira B – UEC Fuse Box Module

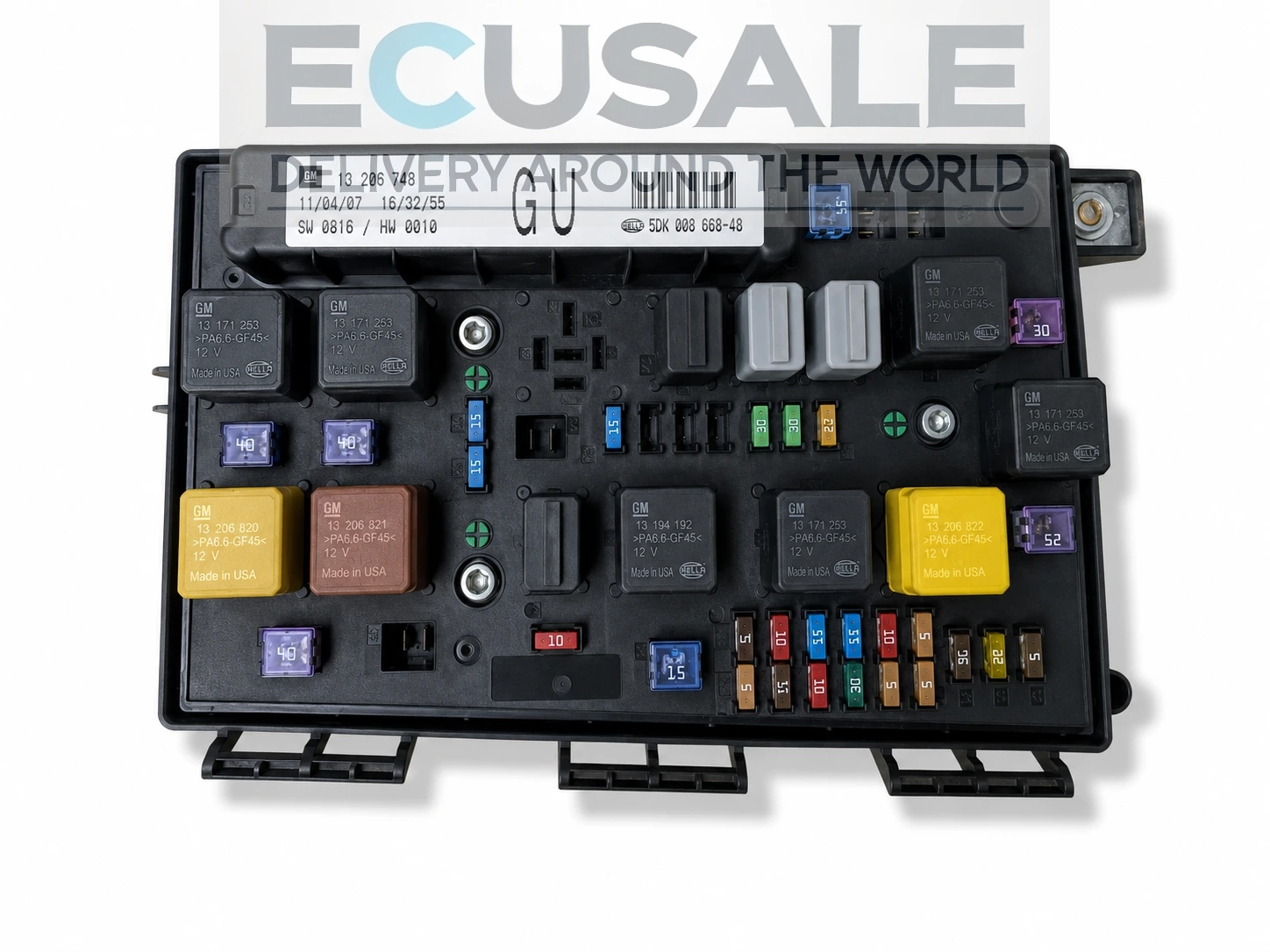

Original BCM / UEC module GM 13206748 Hella 5DK008668-48 used in Opel Astra H and Opel Zafira B vehicles. The module has been fully tested, checked, and prepared in VIRGIN + PIN CODE version, allowing adaptation to the vehicle using Tech-2 or OP-COM.
The module is responsible for power supply and communication of multiple electrical systems in the vehicle, including central locking, lighting, wipers, cooling fans, CAN BUS communication, and body equipment control.
Compatibility by part number
- GM 13206748
- Hella 5DK008668-48
- Opel UEC BCM
Compatible with vehicles such as:
- Opel Astra H – 2004-2010
- Opel Zafira B – 2005-2012
- 1.6 16V
- 1.8 16V
- 2.0 Turbo
- 1.3 CDTI
- 1.7 CDTI
- 1.9 CDTI

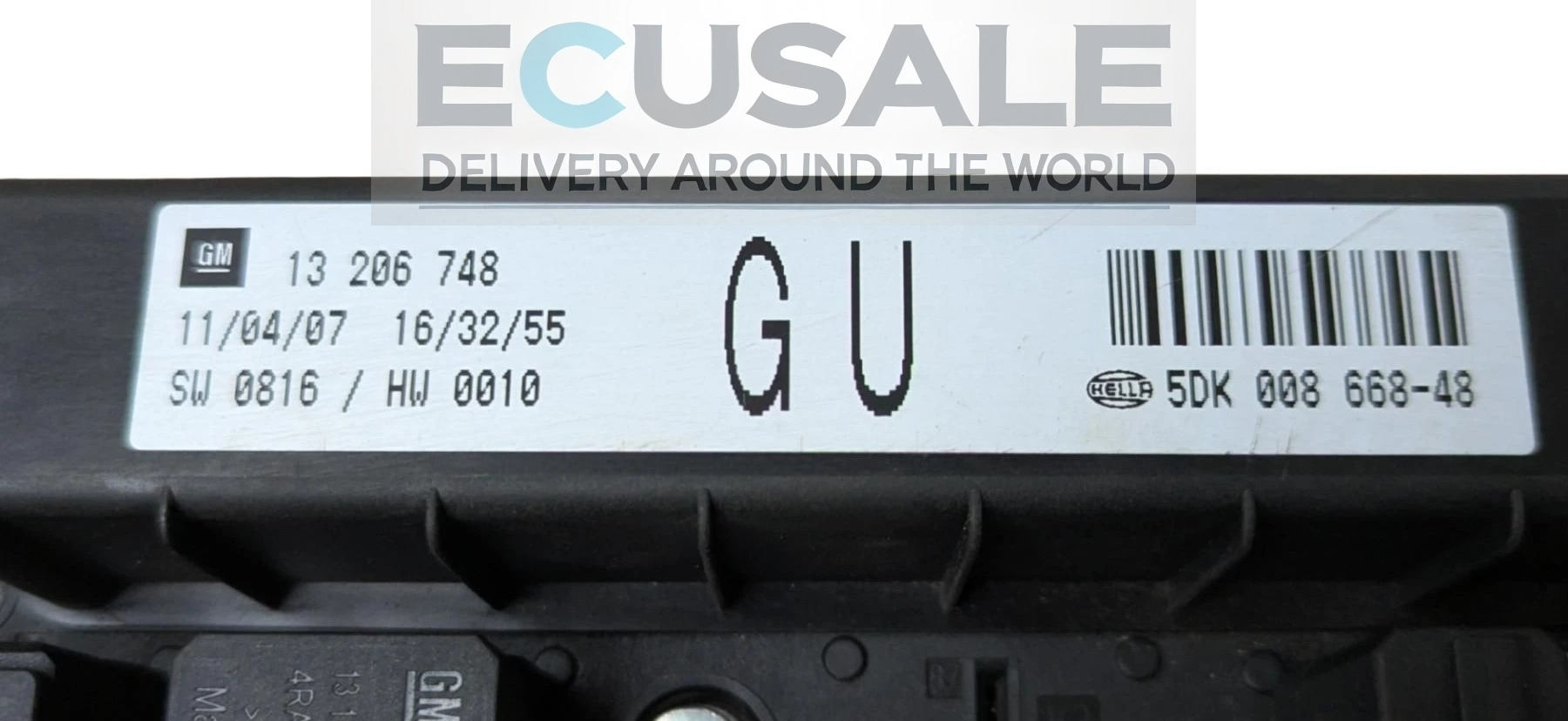

Compatibility should always be confirmed using the part number shown on the module label.
Typical symptoms of a faulty Opel BCM / UEC module
- no communication with the BCM module,
- vehicle starting problems,
- CAN BUS faults,
- lights or wipers not working,
- battery draining by itself,
- loss of power supply to selected circuits,
- problems after water damage or electrical short circuits.
FAQ – frequently asked questions
Is Opel Astra H BCM module 13206748 Plug & Play?
No. The module is prepared in VIRGIN + PIN CODE version and requires adaptation to the vehicle using Tech-2 or OP-COM.
Which models use BCM GM 13206748 5DK008668-48?
The module is used in Opel Astra H and Opel Zafira B models equipped with both petrol and diesel engines. Matching the part number is essential.
Does BCM 13206748 support CAN BUS communication in Opel Zafira B 1.9 CDTI?
Yes, the module is responsible for CAN BUS communication and control of selected vehicle electrical systems.
Which tool is required to program UEC module 13206748?
Tech-2 or OP-COM is required for adaptation. The module is supplied with the PIN CODE needed during configuration.
Can a faulty Opel Astra H 1.7 CDTI BCM module cause a no-start condition?
Yes. Failure of the BCM / UEC module may cause immobilizer communication issues, CAN faults, and prevent the engine from starting.
