How to choose ECU 0281014210 51824237
This is a used engine ECU for the Fiat Ducato 2.3 Multijet, prepared as Virgin Plug & Play. Below: condition, numbers to compare and the available options.
On request
- cloning data from your old ECU (or from files) – free of charge,
- chip tuning, EGR OFF, DPF OFF – for an extra charge,
- warranty: 6 months.
Virgin or IMMO OFF?
- Virgin: after fitting it codes itself to the car and immobiliser, no programming – with matching numbers and a working immobiliser.
- IMMO OFF (on request): the engine runs, but a red immobiliser message stays on the dash and an error in diagnostics; it disappears only after the immobiliser is programmed.

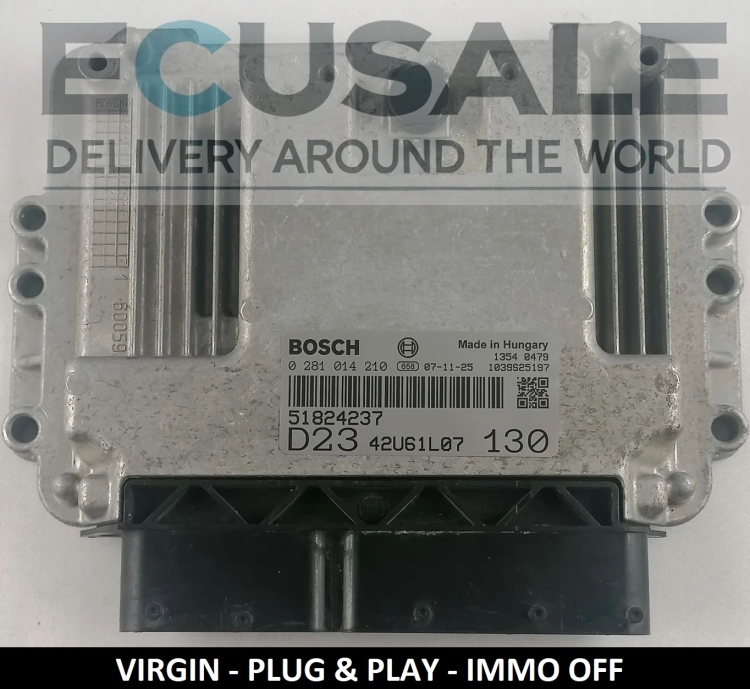

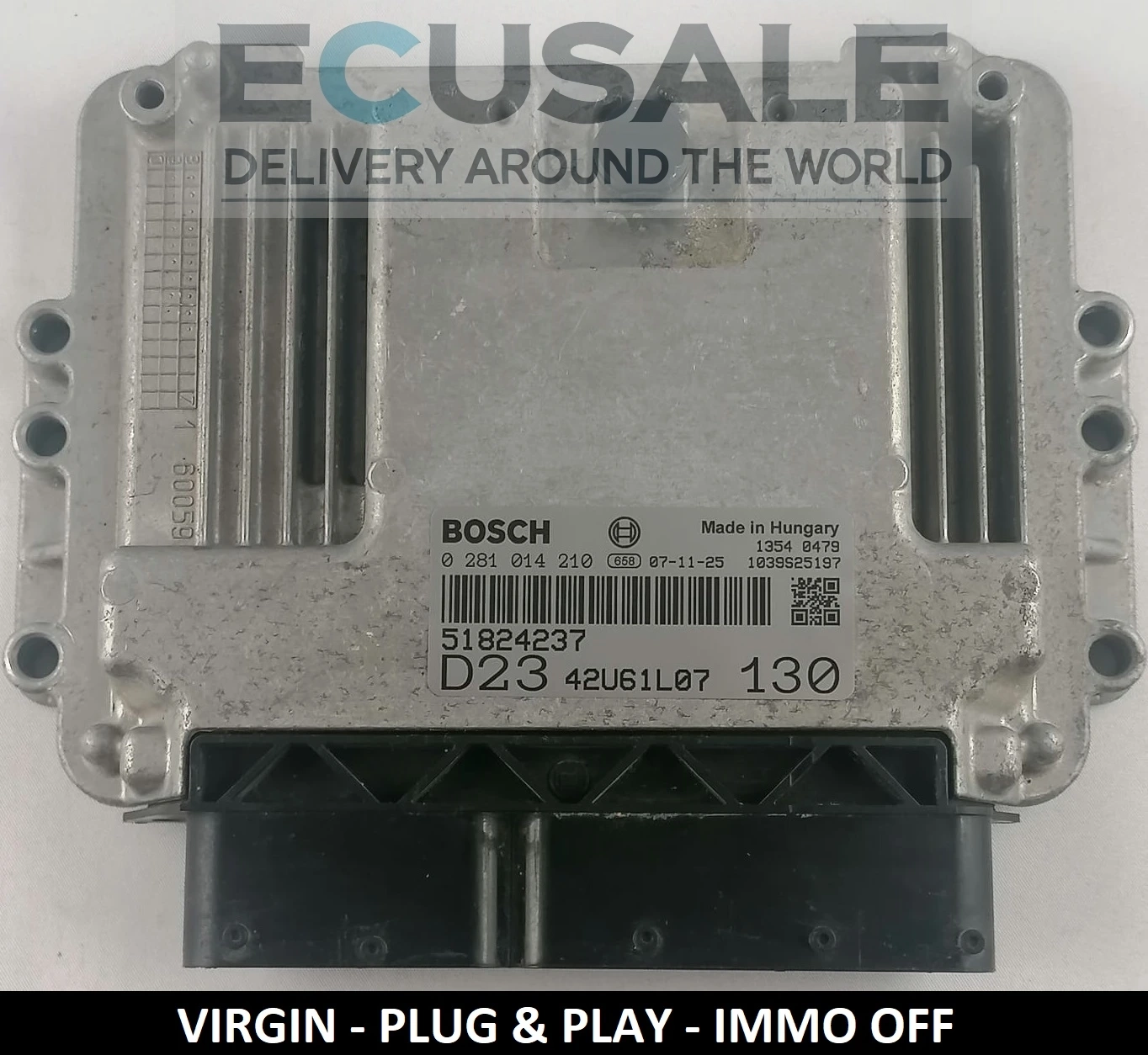

Numbers on the label
Compare with your ECU – both designations must match:
- Bosch number: 0281014210
- OEM number: 51824237
The ECU is intended for the Fiat Ducato 2.3 Multijet. Other numbers in our offer: 0281014210 / 51799351, 0281014210 / 51820663, 0281014210 / 51844043, 0281014211 / 51799353.
Possible symptoms of a faulty ECU
A faulty ECU may be indicated by:
- no communication with the ECU during diagnostics,
- no power supply to the ECU although the fuses are fine,
- failure after water ingress or a short circuit in the wiring,
- the engine does not start, no injector control.
Similar symptoms also come from faults in the wiring, power supply and sensors; run diagnostics before buying. You will find more about faults of Bosch ECUs in the Ducato 2.3 in the article: Fiat Ducato 2.3 JTD Bosch ECU failure – solutions.
Used but tested
Unit 0281014210 has been used, but before dispatch it goes through a bench test and a trial in a test car.
See also the other items in the Fiat Engine Control Units (ECUs) category.
FAQ: Fiat Ducato, ECU 0281014210
How do I check whether 0281014210 fits my car?
The label of your old ECU must show: Bosch number 0281014210 and OEM number 51824237. The label decides compatibility, not the car model.
|
Can I transfer the data from my old ECU?
Yes, cloning on request is free – send the faulty ECU or files from it.
|
What is the difference between IMMO OFF and Virgin?
With IMMO OFF the car runs, but the immobiliser error and a red message on the dash remain – only immobiliser programming removes them. Virgin does not have this error.
|
