Choosing the correct ECU for Fiat Grande Punto

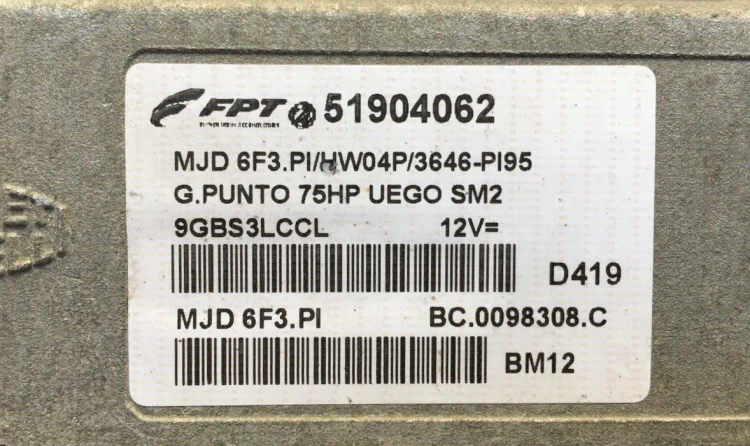

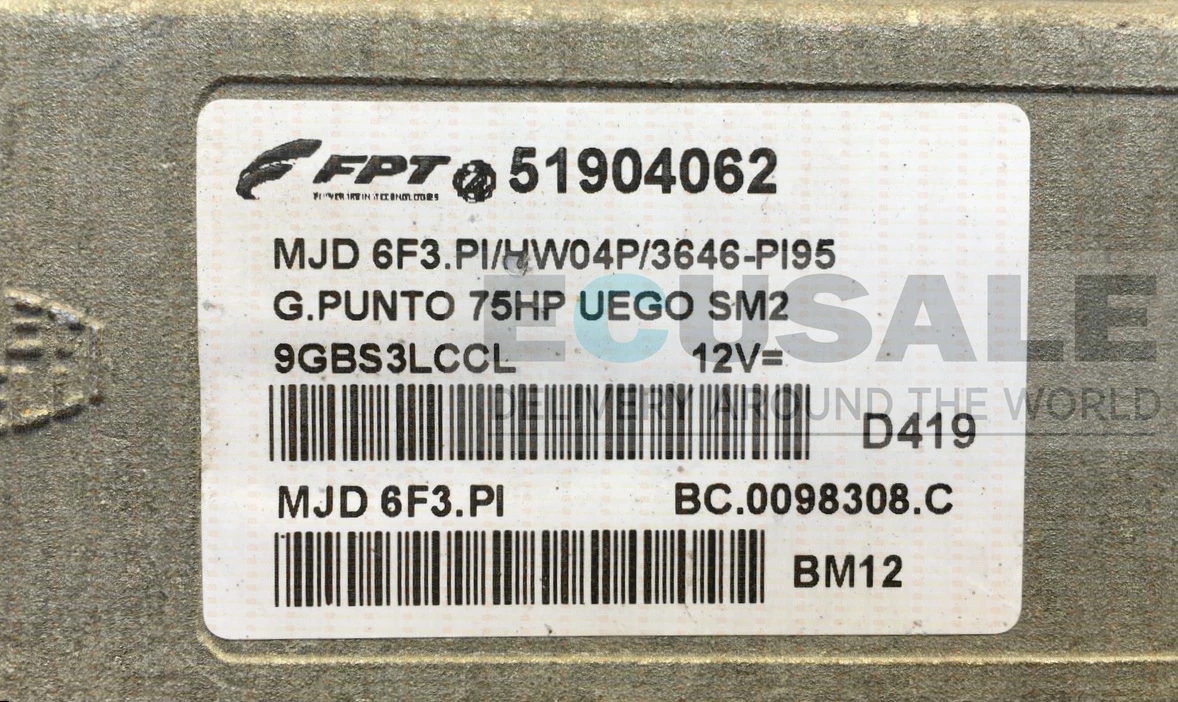

The label on this unit includes the references 51904062, MJD 6F3.PI, HW04P/3646-PI95 and BC.0098308.C. These references help distinguish it from other ECUs in the MJD 6F3 family.
Vehicle compatibility
- Fiat Grande Punto – version identified on the label as G.PUNTO 75HP UEGO SM2.
Before purchasing, compare part number 51904062, ECU type MJD 6F3.PI and reference HW04P/3646-PI95 with your original ECU. Also check BC.0098308.C. The vehicle model and 75 HP engine power alone are not sufficient to confirm compatibility.
ECU preparation and installation

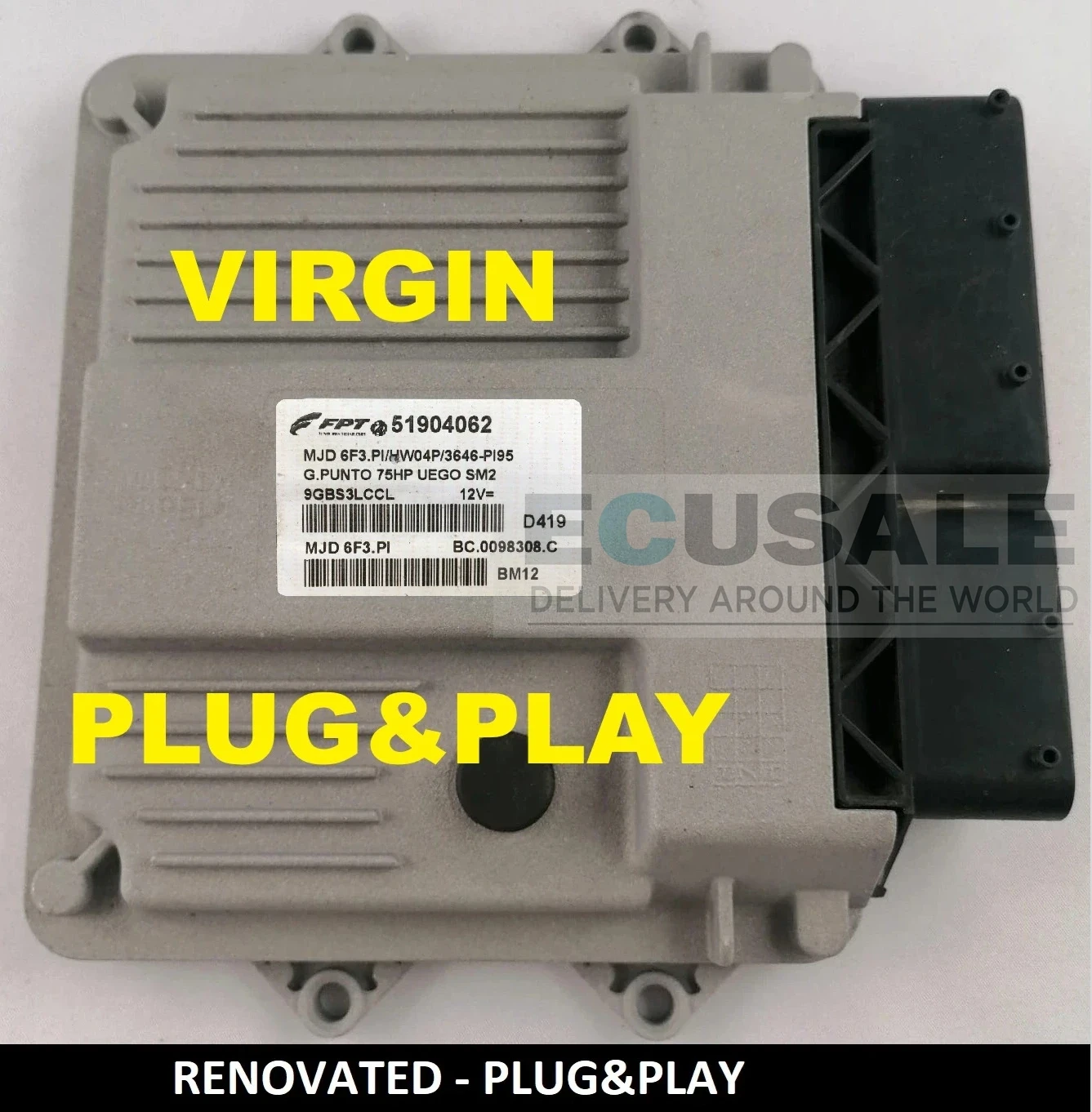

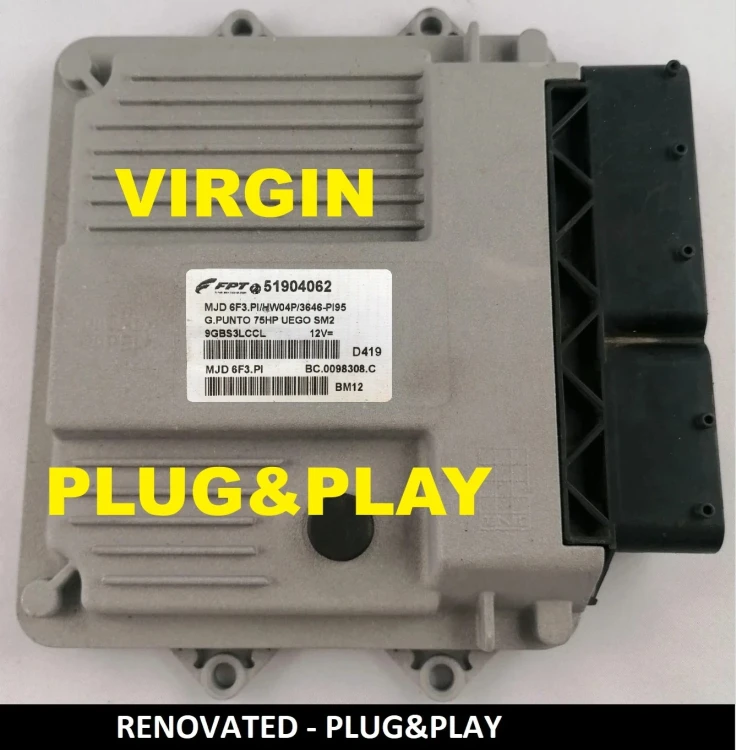

The ECU offered is refurbished and prepared as a Virgin unit. Once a compatible module is installed, the ECU automatically adapts to the vehicle’s immobiliser system, provided that the immobiliser is functioning correctly. In this case, manual immobiliser coding is not required.
Possible symptoms of ECU failure
Reasons to check the ECU may include:
- no communication with the ECU during diagnostics,
- no signal to the injectors,
- water damage to the ECU,
- problems starting the engine,
- intermittent engine stalling.
These symptoms may also have other causes and do not, by themselves, confirm that the ECU is faulty.
Frequently asked questions about the Grande Punto ECU 51904062
Is matching the vehicle model and engine power sufficient?
|
No. Compare the part numbers and ECU variant with the label on your original module. The Grande Punto 75 HP designation alone is not sufficient. |
Which references should I check?
|
Check 51904062, MJD 6F3.PI and HW04P/3646-PI95 in particular. Also compare BC.0098308.C. |
Does the immobiliser need to be coded?
|
With a compatible module and a correctly functioning immobiliser system, the Virgin ECU adapts automatically after installation without manual immobiliser coding. |
Do engine starting problems mean that the ECU is faulty?
|
Not always. This is a possible symptom, but the vehicle should be diagnosed before replacing the ECU. |
