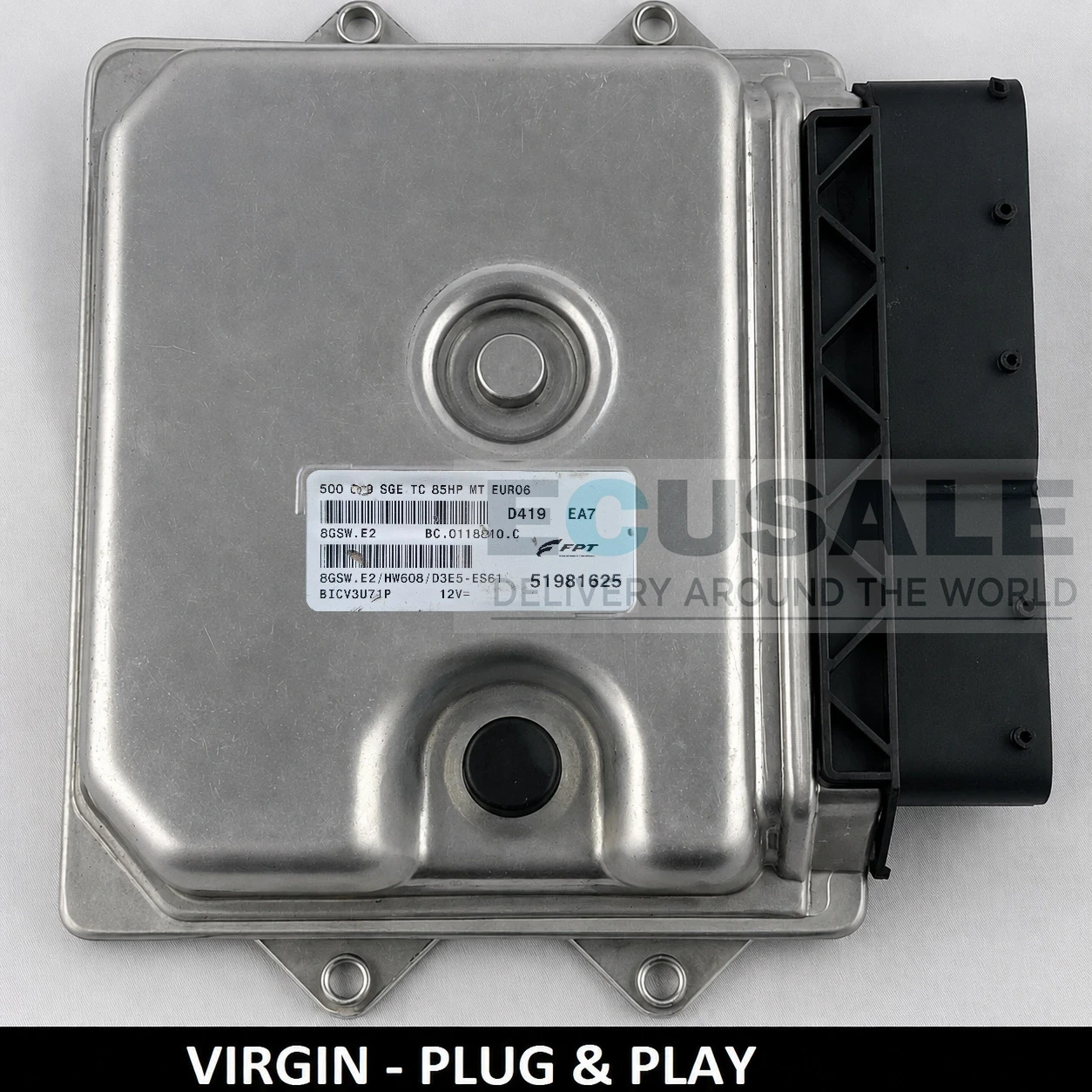

51981625 Engine ECU for Fiat 500 0.9 TwinAir Turbo
Engine control unit designed for selected Fiat 500 models equipped with the turbocharged 0.9 TwinAir 85 HP petrol engine. The unit carries the references 51981625, 8GSW.E2 and BC.0118810.C and is supplied as a Virgin Plug & Play module.
Applications of the 51981625 Engine ECU
- Fiat 500, type 312 – selected versions from approximately 2013–2014
- 0.9 TwinAir Turbo 85 HP petrol engine
- manual transmission
- Euro 6 emissions standard
Engine control units fitted to the Fiat 500 may differ in terms of software and vehicle configuration. Before purchasing, compare the 51981625 part number, the 8GSW.E2 reference and all other information shown on the label of the original ECU. The vehicle model and engine capacity alone are not sufficient to identify the correct unit.
Common Symptoms of a Faulty Engine ECU
- the engine will not start despite a correctly functioning battery and starter motor,
- no diagnostic communication with the ECU,
- irregular engine operation or unexpected stalling,
- problems controlling ignition, fuel injection or the throttle body,
- recurring internal ECU faults or CAN communication errors,
- engine warning light illuminated and the vehicle entering limp mode.
Similar symptoms may also be caused by faults in the wiring, power supply, ground connections, fuses or other vehicle components. A complete vehicle diagnosis is recommended before replacing the ECU.
Virgin Plug & Play ECU Preparation and Programming
The module is supplied in Virgin Plug & Play condition. This means that data belonging to the previous vehicle has been removed, allowing the ECU to synchronise with the vehicle system after correct installation.
- there is no need to send the original ECU for cloning,
- faulty or corrupted data from the old ECU is not copied,
- the module must be installed in a vehicle with a correctly functioning immobiliser system,
- part numbers and software compatibility must be checked before installation,
- if any problems occur after installation, diagnostic testing and module synchronisation should be checked.
Frequently Asked Questions
Does the 51981625 ECU fit every Fiat 500 0.9 TwinAir?
|
|
No. This ECU is fitted only to selected Fiat 500 0.9 TwinAir Turbo 85 HP versions. Before ordering, all references on the original ECU should be compared, especially 51981625 and 8GSW.E2.
|
Is the 8GSW.E2 ECU supplied as Virgin Plug & Play?
|
|
Yes. Data from the previous vehicle has been removed and the ECU is prepared for synchronisation after installation in a compatible vehicle.
|
Do I need to send my original Fiat 500 ECU for cloning?
|
|
No. The Virgin version does not require data to be copied from the original module. Cloning may only be considered in individual cases when the original ECU still allows a complete data read.
|
How can I check whether the BC.0118810.C ECU is compatible with my vehicle?
|
|

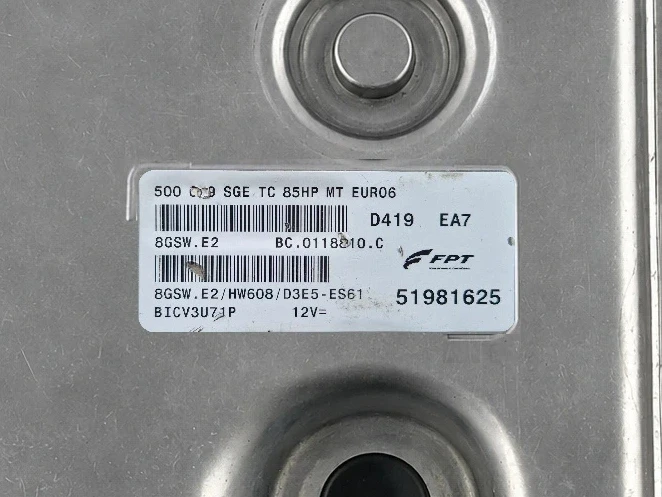

Compare the OEM part number, ECU reference, hardware version and all other information on the label. This unit is marked, among others, with the references 51981625, 8GSW.E2, BC.0118810.C and HW608.
|
Does the Fiat 500 0.9 TwinAir engine ECU come with a warranty?
|
|
Yes. The ECU is tested before sale and comes with a 6-month warranty.
|
