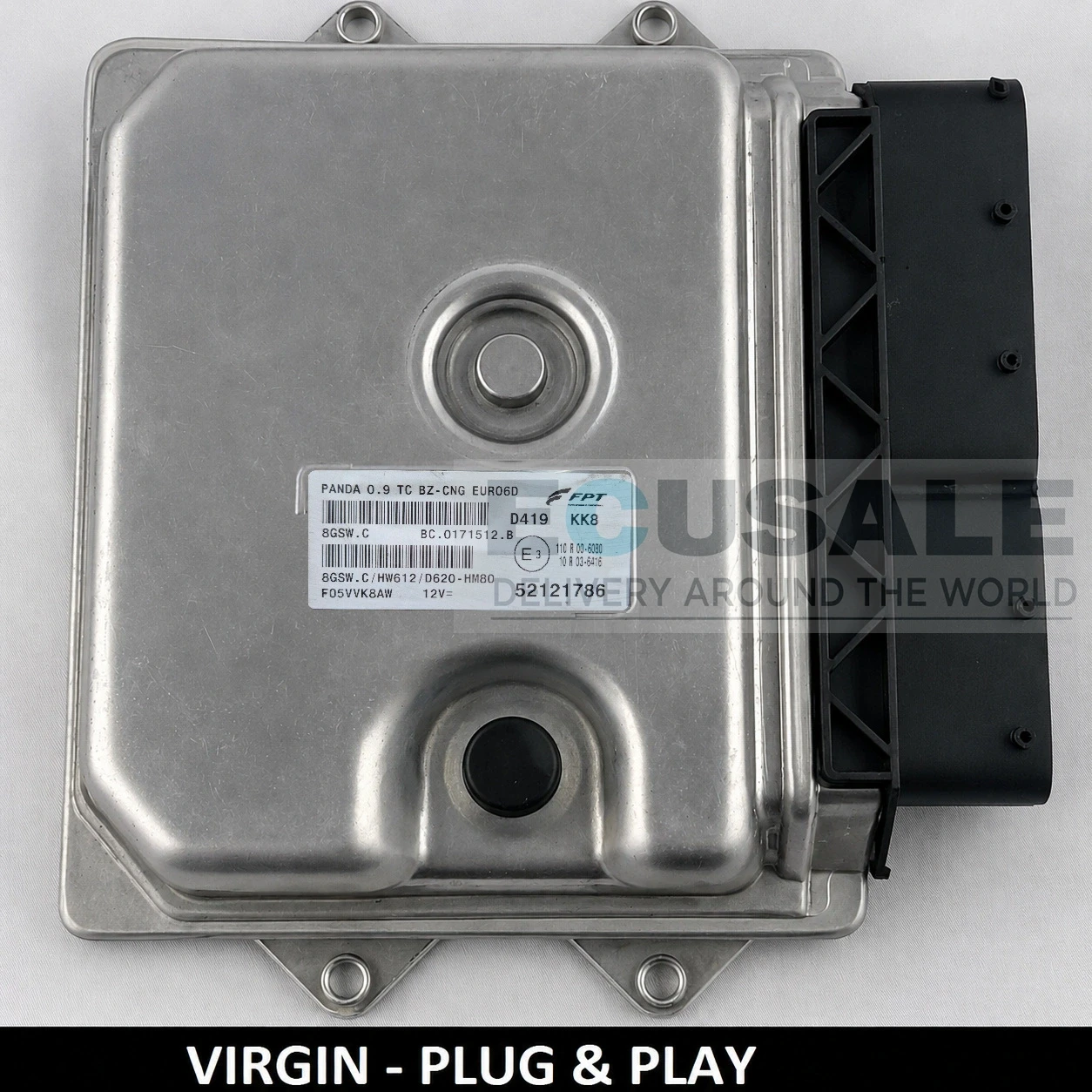

52121786 8GSW.C Engine ECU for Fiat Panda 0.9 TwinAir CNG
Original Magneti Marelli engine control unit designed for selected Fiat Panda III versions equipped with the turbocharged 0.9 TwinAir petrol/CNG engine. The module has been prepared in Virgin – Plug & Play condition and is covered by a 6-month warranty.
Engine ECU Applications
- Fiat Panda III (type 319) – 5-door hatchback,
- selected versions with the 0.9 TwinAir Turbo engine,
- petrol versions equipped with a factory CNG system,
- vehicles meeting the Euro 6D emissions standard.
This ECU was available with different software configurations. Before purchasing, compare OEM number 52121786 and the references 8GSW.C, HW612 and D620-HM80 with the information shown on the original module. Matching only the vehicle model or engine capacity is not sufficient to confirm compatibility.
Common Symptoms of a Faulty ECU
- the engine will not start,
- no diagnostic communication with the ECU,
- the engine stalls while driving or after warming up,
- irregular engine operation and problems switching between petrol and CNG,
- no control of selected ignition or fuel injection components,
- recurring faults despite the wiring, sensors and actuators being in working order.
Before replacing the ECU, check the power supply, grounds, fuses, relays, wiring and CAN communication. Similar symptoms may be caused by a fault elsewhere in the vehicle rather than by the engine control unit itself.
Programming and Module Preparation
The 52121786 module has been prepared in Virgin condition. This means that immobiliser data from the previous vehicle has been removed, allowing the ECU to be synchronised with the vehicle security system during installation.
- Virgin – Plug & Play version,
- no immobiliser data from the previous vehicle,
- can be synchronised with the vehicle body module and keys,
- depending on the vehicle specification, configuration coding or a diagnostic procedure may be required,
- 1:1 cloning is possible if the original ECU can still be read correctly.
Before the first installation, we recommend confirming compatibility using the complete set of ECU references. The module should not be connected to another vehicle for testing, as this may cause that vehicle's data to be written to the ECU.
Frequently Asked Questions
Does the 52121786 ECU fit every Fiat Panda 0.9 TwinAir?
|
|
No. This ECU is fitted only to selected Fiat Panda III 0.9 TwinAir CNG versions. Before purchasing, compare all references on the original module.
|
Is the Fiat Panda 8GSW.C HW612 ECU supplied in Virgin condition?
|
|
Yes. The supplied module has been reset and does not contain immobiliser data from the previous vehicle. It can be synchronised with the vehicle during installation.
|
Is the 52121786 ECU ready for Plug & Play installation?
|
|
The ECU is prepared as a Virgin – Plug & Play unit. Depending on the vehicle configuration, additional equipment coding or a diagnostic synchronisation procedure may still be required.
|
Can the Magneti Marelli 8GSW.C ECU be cloned?
|
|
Yes, provided the data from the original ECU can still be read. Cloning requires the old ECU to be sent to us and is not included as the standard option in this offer.
|
How can I check whether the BC.0171512.B ECU is compatible with my vehicle?
|
|

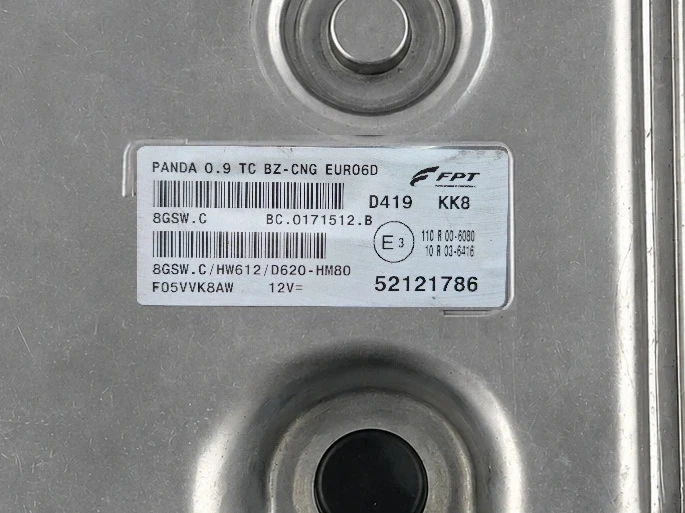

Compare part number 52121786 and the references 8GSW.C, HW612 and D620-HM80. If any of these differ, compatibility should be confirmed using a photo of the original ECU label or the vehicle VIN.
|
