Marelli 9GF.TK for the Ford Ka LPG – programming version

Tested Magneti Marelli 52014008 engine control unit for the Ford Ka 1.2 with LPG and Start&Stop, sold for programming – after installation it must be paired with the PATS immobiliser (FORScan or Ford IDS); covered by a warranty.

Go to full description

💳 Secure Payments

Stripe, PayPal, Google Pay, Apple Pay, BLIK, and all major credit and debit cards.

🚚 UPS Shipping Across Europe

Delivery within the European Union typically takes 1–3 business days.

🌍 Worldwide UPS Shipping

Worldwide delivery usually takes 4–7 business days.

Technical specifications

Vehicle Make and Model Ford Ka
Engine type 1.2 petrol + LPG, Start&Stop
Manufacturer Magneti Marelli
OEM Part Number 52014008
Manufacturer Part Number BC.0137361.A
Part Number 52014008
Module Type Magneti Marelli 9GF.TK engine control unit
Module Version Programming required (PATS)
Condition Used, fully functional and tested
Warranty 6 MONTH
Payment Methods Credit Card , Bank Transfer , PayPal
Express Delivery within the EU European Union 2-3 working days
International Delivery Outside the EU Worldwide 4-7 working days

How to match the 52014008 ECU to your Ford Ka 1.2

This is a Magneti Marelli engine control unit from the 9GF family, version 9GF.TK, with part number 52014008. 9GF units are also fitted to the Fiat 500, Panda and Punto, but with different numbers – this one is described on its label as a control unit for the Ford Ka 1.2 with an LPG system.

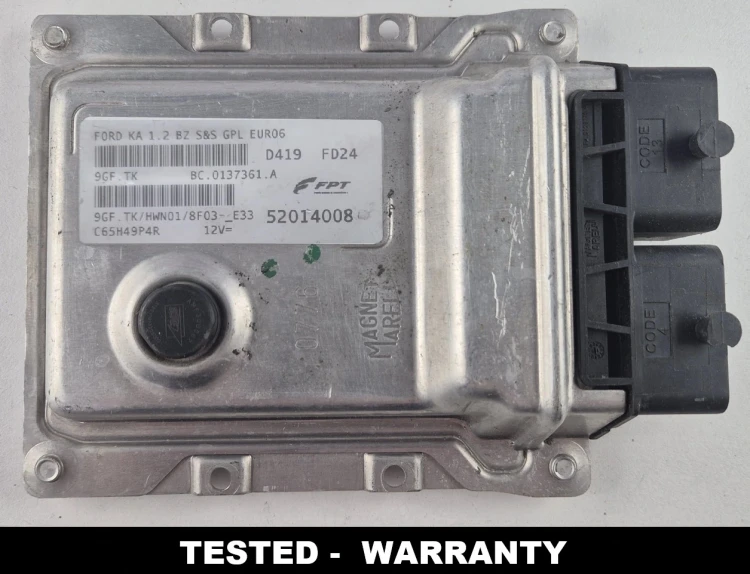

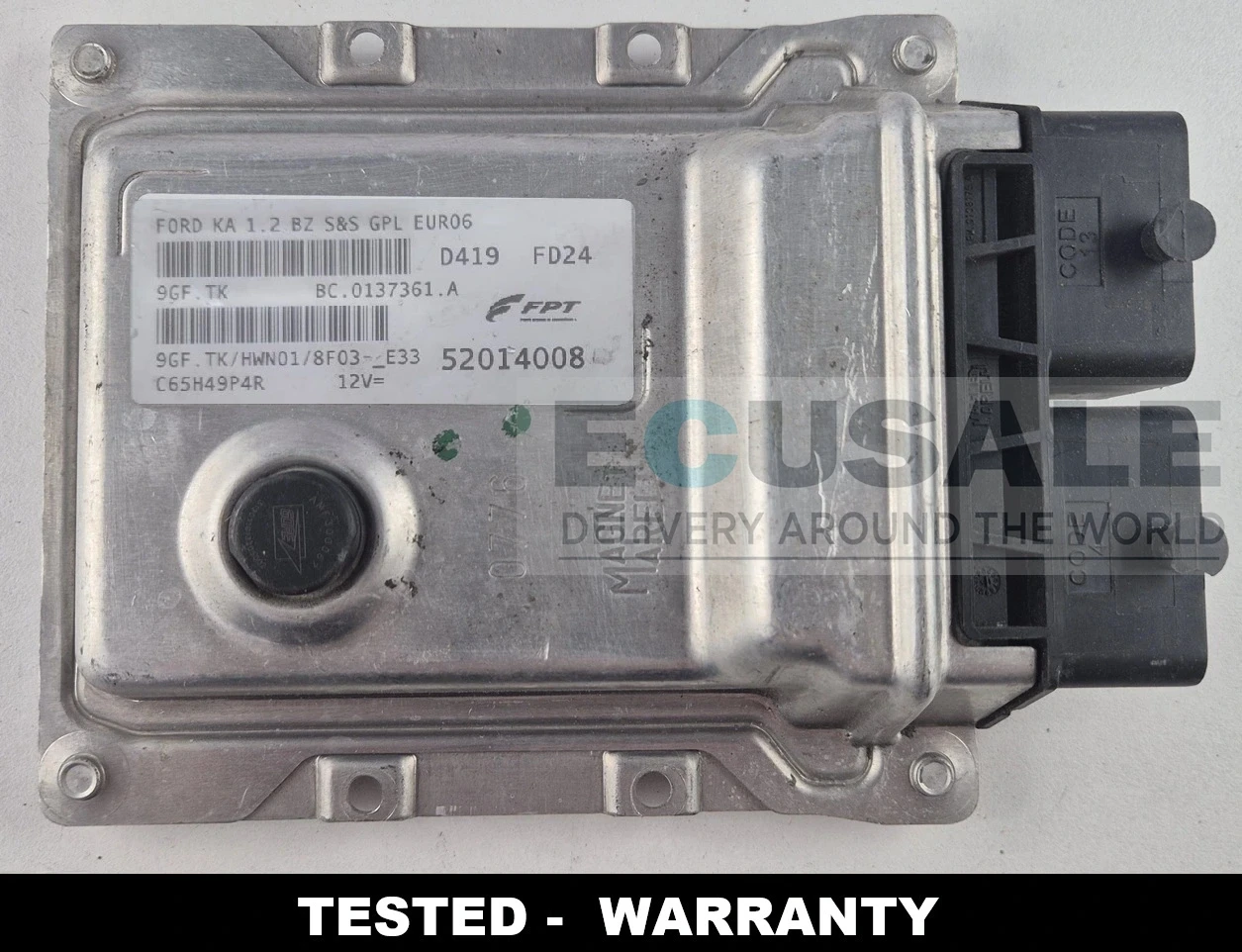

Label markings

Marelli number: BC.0137361.A (BC0137361A)
HW/SW marking: 9GF.TK/HWN01/8F03-_E33
Factory description: FORD KA 1.2 BZ S&S GPL EUR06

Vehicle compatibility

Ford Ka 1.2 petrol, LPG (GPL) version with Start&Stop – according to the label description

The list shows the application confirmed by the label, but it does not limit the match either way. If your Ka is described differently, this unit may still fit – what matters is that the part number 52014008 and the 9GF.TK marking match the label on your control unit. A unit with a different number, e.g. 9GF.T6 from the Fiat 500, is a different version and cannot replace this one.

Preparation and installation

The control unit is sold for programming – after installation it must be paired with the vehicle’s PATS immobiliser, e.g. using FORScan or a Ford IDS tester. Before ordering, make sure that:

the part number 52014008 and the 9GF.TK marking match your original control unit,
you have access to FORScan or Ford IDS, or to a workshop that can carry out the pairing,
the keys and the ECU power supply and wiring in the vehicle are in working order.

Frequently asked questions about the 52014008 ECU for the Ford Ka

Is this a Plug & Play control unit?

No. After installation this unit must be paired with the PATS immobiliser. It is not a self-adapting Virgin version like our 9GF units for Fiat models.

My Ka doesn’t have LPG – will this ECU fit?

Don’t assume so based on the model alone. This unit is described as the LPG version with Start&Stop – compare the part number 52014008 and the 9GF.TK marking on your control unit. If they are identical, it is the same ECU.

Will it fit a Fiat 500 1.2?

Don’t assume so. The Fiat 500 uses 9GF units with different numbers, e.g. 9GF.T6. Choose the control unit by the part number on the label – this one is 52014008, 9GF.TK.
