Does your Iveco Daily crank but fail to start? Is there no communication with the engine ECU during diagnostics, or has your workshop found no control signal to the injectors? A faulty engine control unit is one possible cause. Similar symptoms can also result from problems with the power supply, wiring, sensors or fuel system.
This guide explains what to check before replacing the ECU, how to identify its part numbers and why we need the exact Iveco Daily version to prepare an IMMO OFF unit. It covers two pairs of part numbers found in selected HPI vehicles: Bosch 0281011228 / Iveco 504073032 and Bosch 0281012193 / Iveco 504121602.
Contents
- Possible signs of engine ECU failure
- Water damage and electrical faults
- What to check when an Iveco Daily will not start
- How to identify the correct ECU by its part numbers
- Why the exact Daily version matters
- How an IMMO OFF ECU is prepared
- New or used engine ECU
- Questions and answers
What are the possible signs of ECU failure in an Iveco Daily?
The engine ECU receives signals from sensors and controls the fuel injection system. If the unit or its connections fail, the vehicle may not start or may run inconsistently. The symptoms depend on the fault and the vehicle's configuration.
Problems reported by owners and workshops include:
- the starter turns the engine, but the engine does not start;
- the diagnostic tool cannot communicate with the engine ECU;
- there is no control signal to the injectors;
- diagnostics indicate a problem with a signal or control circuit in the fuel system, including the pump;
- the engine stalls or the fault occurs intermittently;
- there are signs of water ingress or corrosion around the ECU or its connectors.
None of these symptoms proves on its own that the ECU is faulty. For example, a lack of injector control may result from a missing input signal, a power supply problem or damaged wiring. Measurements should therefore be carried out before ordering a replacement unit.
Water damage and electrical faults: what can damage an ECU?
Some of the failed units we receive have been exposed to water. Moisture can damage the ECU circuit board, connector contacts or wires near the plug. Even if the housing looks sound, corrosion may be present inside the unit or beneath a connector seal.
Electrical problems are another possible cause. Short circuits, voltage surges and incorrect supply voltage can damage the ECU. If an electrical fault damaged the original unit, its cause must be found before a replacement is installed. Otherwise, the replacement could fail as well.
If water ingress is suspected, inspect more than the ECU itself. Check the plugs, pins, wire insulation and the route by which water could have reached the electrical system.
Iveco Daily will not start: what should you check before replacing the ECU?
A diagnosis should be based on fault codes and measurements, rather than the fact that the vehicle will not start. The workshop should establish whether the ECU has the correct power supply and receives the signals needed to start the engine.
1. Check diagnostic communication
Find out whether the diagnostic tool can communicate with the engine ECU and whether other modules report communication faults. No communication with the ECU is an important clue, but it can also result from a missing power supply, poor ground, damaged communication wiring or a connector fault.
2. Measure the ECU power supplies and grounds
Check the fuses, relays, supply wires and ground connections. Use the wiring diagram for the exact Daily version. A lack of diagnostic response alone is not enough to confirm that the ECU is damaged.
3. Inspect the wiring and connectors
Look for corrosion, pins pushed back into the connector and mechanical damage. With intermittent faults, pay particular attention to wiring exposed to vibration or water.
4. Identify why the injectors or fuel system receive no control signal
If there is no injector control, or a signal in the fuel system is missing, also check the input signals the ECU needs to start the engine. A test result from one circuit is not sufficient to diagnose ECU failure.
5. Identify the replacement ECU once the fault is confirmed
Read all part numbers from the label on the original unit. A clear photograph of the ECU, the VIN and the exact Daily version make it easier to check compatibility and prepare the correct unit.
Bosch 0281011228 or 0281012193: which ECU should you order?
The part numbers on the original ECU are the starting point for choosing a replacement. The units discussed here have the following pairs of numbers:
| Bosch number | Iveco number | ECU listing |
|---|---|---|
| 0281011228 | 504073032 | View ECU 0281011228 / 504073032 |
| 0281012193 | 504121602 | View ECU 0281012193 / 504121602 |
Photographs of the two ECUs:

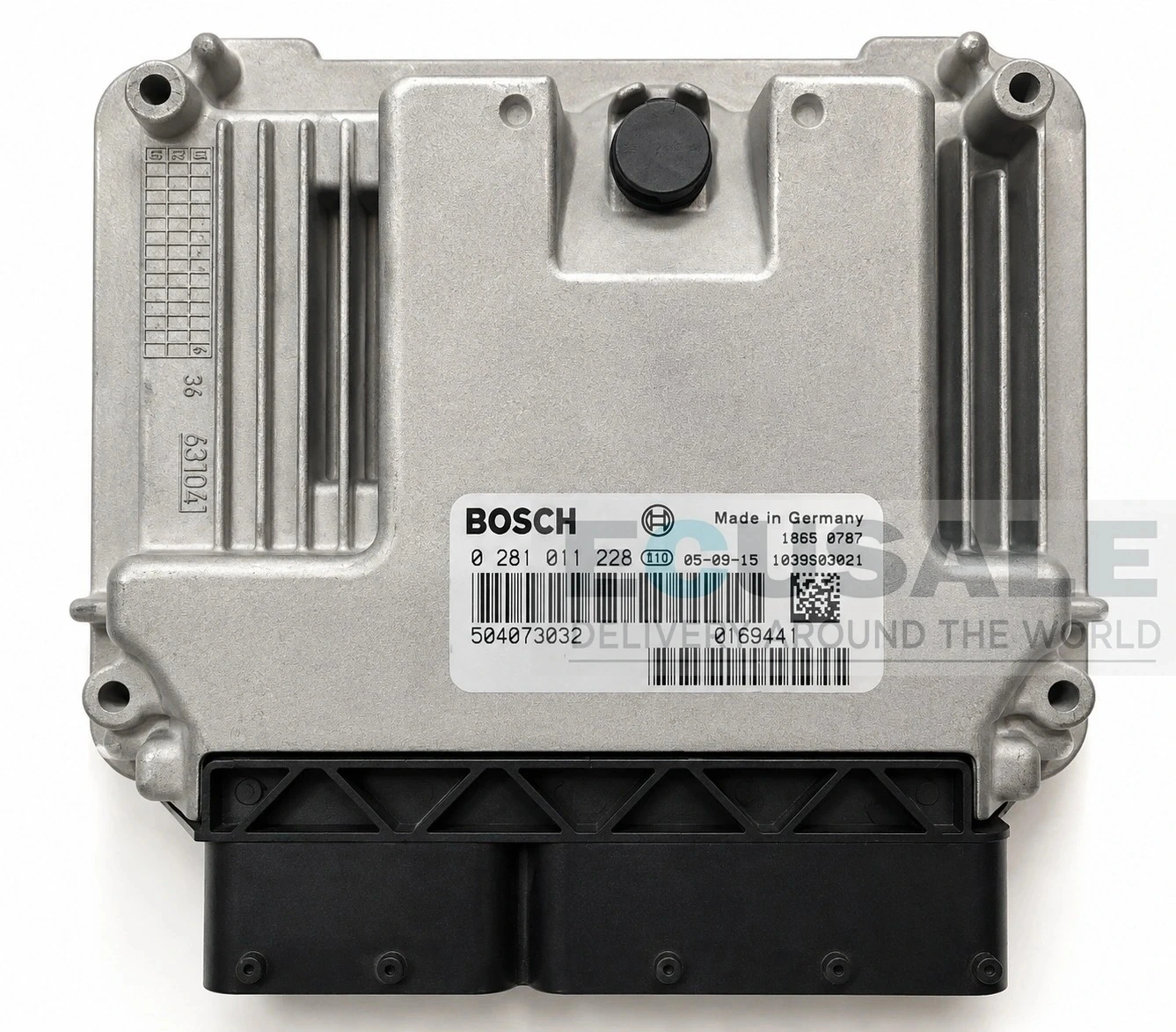

Bosch 0281011228 / Iveco 504073032 engine ECU.

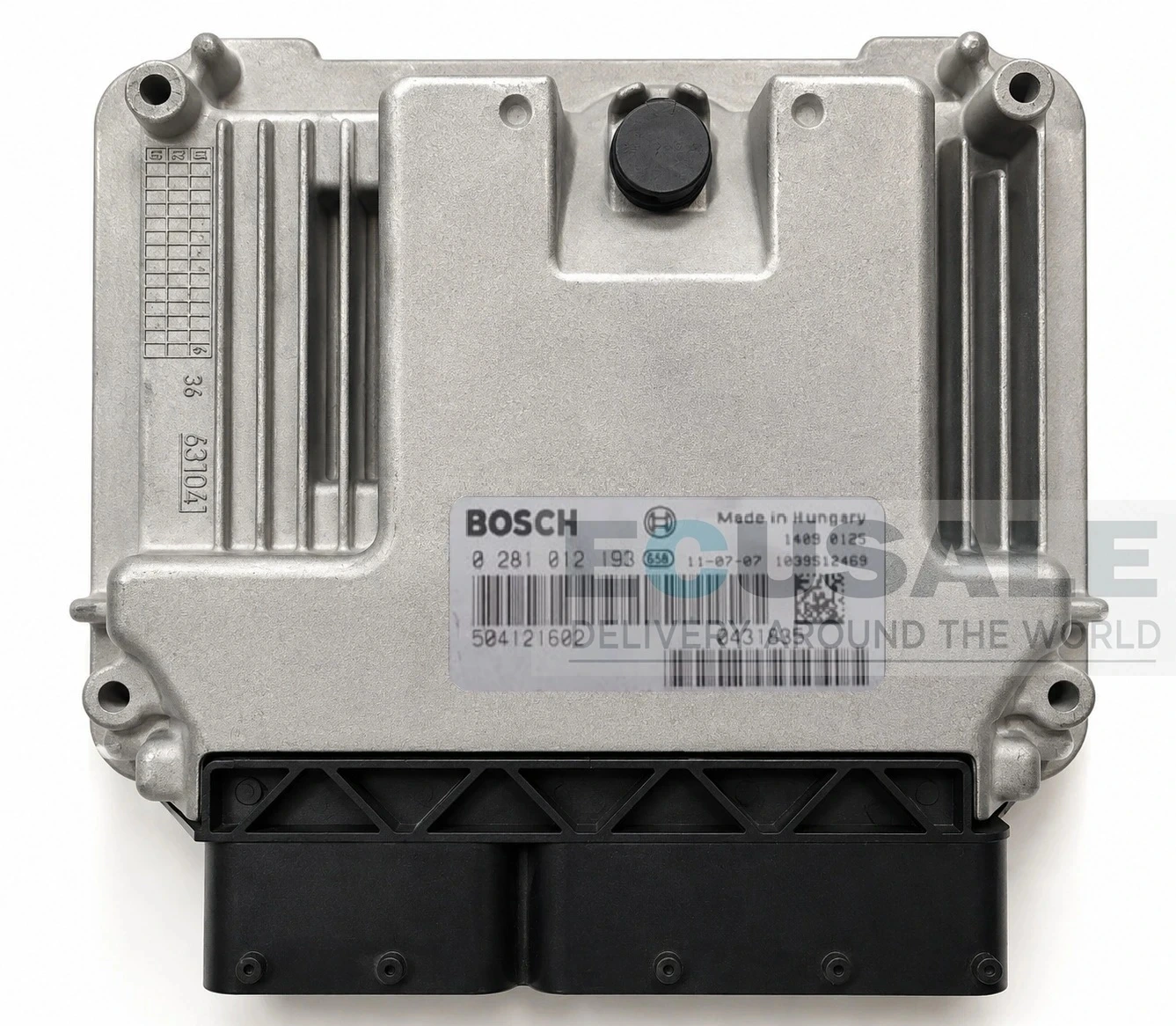

Bosch 0281012193 / Iveco 504121602 engine ECU.
Do not assume that these two ECU numbers are interchangeable. Both are associated with the Iveco Daily range, but that does not establish compatibility between their software, wiring and vehicle configurations. Compare the numbers with the label on your original unit. If a number is unclear or differs from the listing, send us a photograph for verification before ordering.
Different ECUs were used in selected Daily vehicles with 2.3 HPI, 2.8 HPI and 3.0 HPI engines. Engine capacity alone is therefore not enough to choose between the two units above. You can browse more options in our Iveco engine ECU category.
Why do we need to know whether your Daily is a 35C15, 35S or another version?
The ECU part number helps us identify the correct type of unit. To prepare it with IMMO OFF, we also need to know the exact vehicle in which it will be installed. “Iveco Daily” alone does not provide enough information.
Examples of vehicle version designations include 35C15, 35S, 50C15 and 65C15. Other Daily versions include 35C12, 35S12, 40C12, 35C17, 50C17 and 65C18. These are examples of the vehicle information we may ask you to provide. They do not mean that either ECU listed above fits every version mentioned.
Differences in the engine, vehicle configuration and equipment may affect how the ECU needs to be prepared. Please send us:
- a clear photograph of the original ECU label;
- the full vehicle designation, such as Iveco Daily 35C15;
- the VIN and year of manufacture;
- the engine capacity: 2.3, 2.8 or 3.0 HPI;
- details of the transmission and relevant equipment;
- a brief description of the fault and any diagnostic findings.
We can use these details to check the ECU choice and prepare the unit for the vehicle's configuration.
How does an Iveco Daily ECU prepared with IMMO OFF work?
We can prepare a compatible engine ECU with its immobiliser check disabled. Once the correct unit has been selected and prepared for the specified Daily version, it is ready to install without programming the immobiliser in the vehicle. The replacement ECU does not require the usual pairing procedure with the keys.
Preparation for the exact vehicle version is essential. IMMO OFF on an ECU with the correct part number does not remove the need to check the model, engine and configuration. If damaged wiring, a missing power supply or a fuel system fault is preventing the engine from starting, installing another ECU will not repair that fault.
A correctly prepared IMMO OFF unit should allow the engine to run without an immobiliser lockout. Diagnostic faults caused by other problems in the vehicle may still be present and require separate investigation.
Should you choose a new or used Iveco Daily engine ECU?
We offer original new and used ECUs with a warranty. As a guide, a new unit costs €365.92 and a used unit costs €342.86. Please confirm the current price, availability and warranty terms for the specific unit before ordering.
Before choosing between a new and a used ECU, make sure its part numbers match and that it can be prepared for your vehicle. The condition of the unit cannot make an incorrectly selected ECU compatible.
We also offer other Iveco electronic modules. Browse our Iveco BCM and Body Computer modules. The AdBlue SCR pump module 5801918540 / 0444110018 is also available. These are separate parts, and each must be identified by its own numbers. You can find more units in our engine ECU category.
Questions and answers about Iveco Daily engine ECUs
| Question | Answer |
|---|---|
| My Iveco Daily cranks but will not start. Is the engine ECU faulty? | It is one possibility. First check diagnostic communication, the ECU power supplies and grounds, wiring, input signals and fuel system. A no-start condition alone does not confirm ECU failure. |
| There is no control signal to the injectors. Do I need another ECU? | Not necessarily. The cause may be a wiring fault or a missing signal that the ECU needs before it can start the engine. Base the decision to replace the ECU on diagnostic measurements. |
| Can Bosch 0281011228 replace Bosch 0281012193? | Do not assume that the two units are interchangeable. They have different Iveco numbers: 504073032 and 504121602. Compare the numbers on your original ECU and provide your vehicle details before ordering. |
| Is part number 504121602 enough to prepare an IMMO OFF ECU? | The number is a starting point, but we also need the exact Daily version, engine details and preferably the VIN. This allows us to prepare the ECU for the correct vehicle configuration. |
| Will an IMMO OFF ECU for an Iveco Daily 35C15 need programming after installation? | If we have confirmed the ECU number and prepared the unit for that specific vehicle version, immobiliser programming is not required after installation. The vehicle's other systems must be in working order. |
| What should I send if the label on my original ECU is unreadable? | Send clear photographs of the unit and connectors, the VIN, full Daily version, year of manufacture, engine capacity and a description of the fault. We will check whether this information is enough to identify the correct part. |
Need an engine ECU for your Iveco Daily?
Send us a photograph of your original ECU label, the VIN and the full vehicle designation, such as Daily 35C15 3.0 HPI. Tell us whether the vehicle will not start, whether there is no communication with the ECU, or whether your workshop has found no injector control signal. We will check the part numbers, point you to the appropriate listing and confirm whether we can prepare an IMMO OFF unit for your vehicle.
