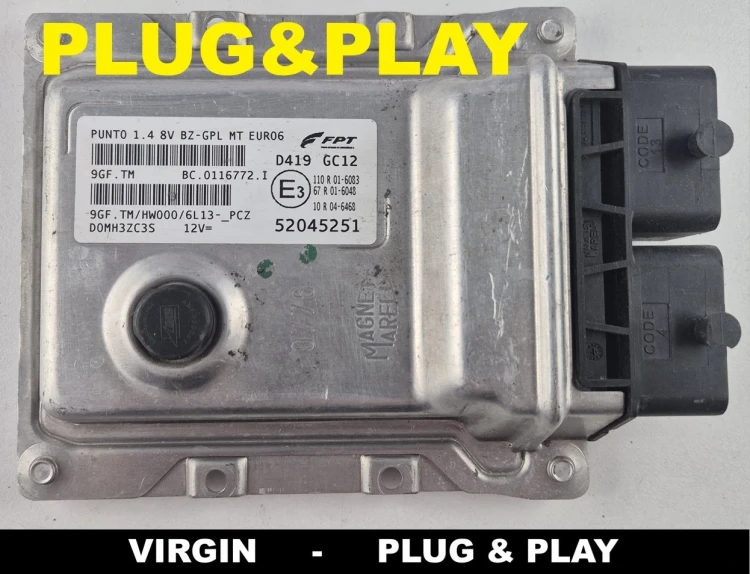

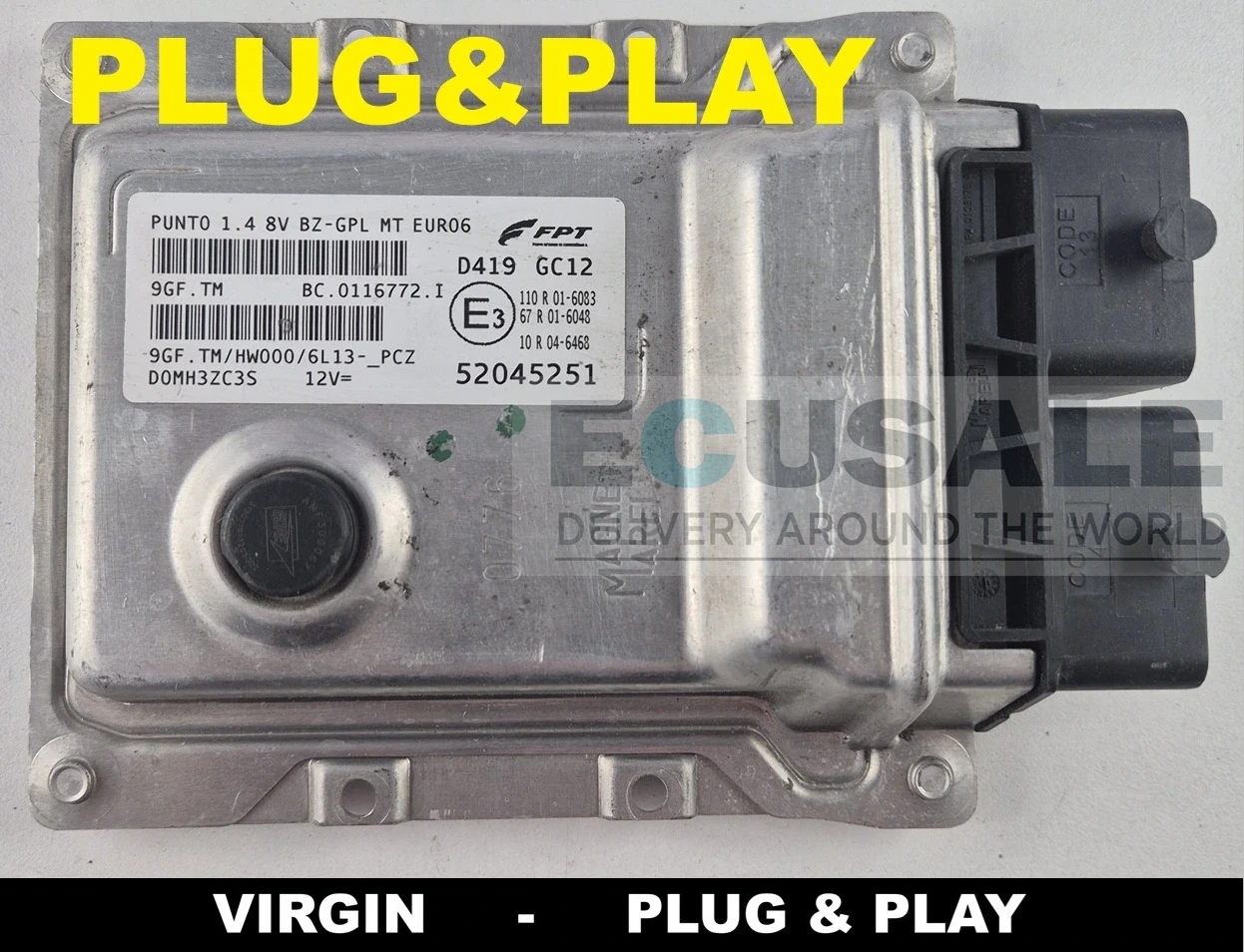

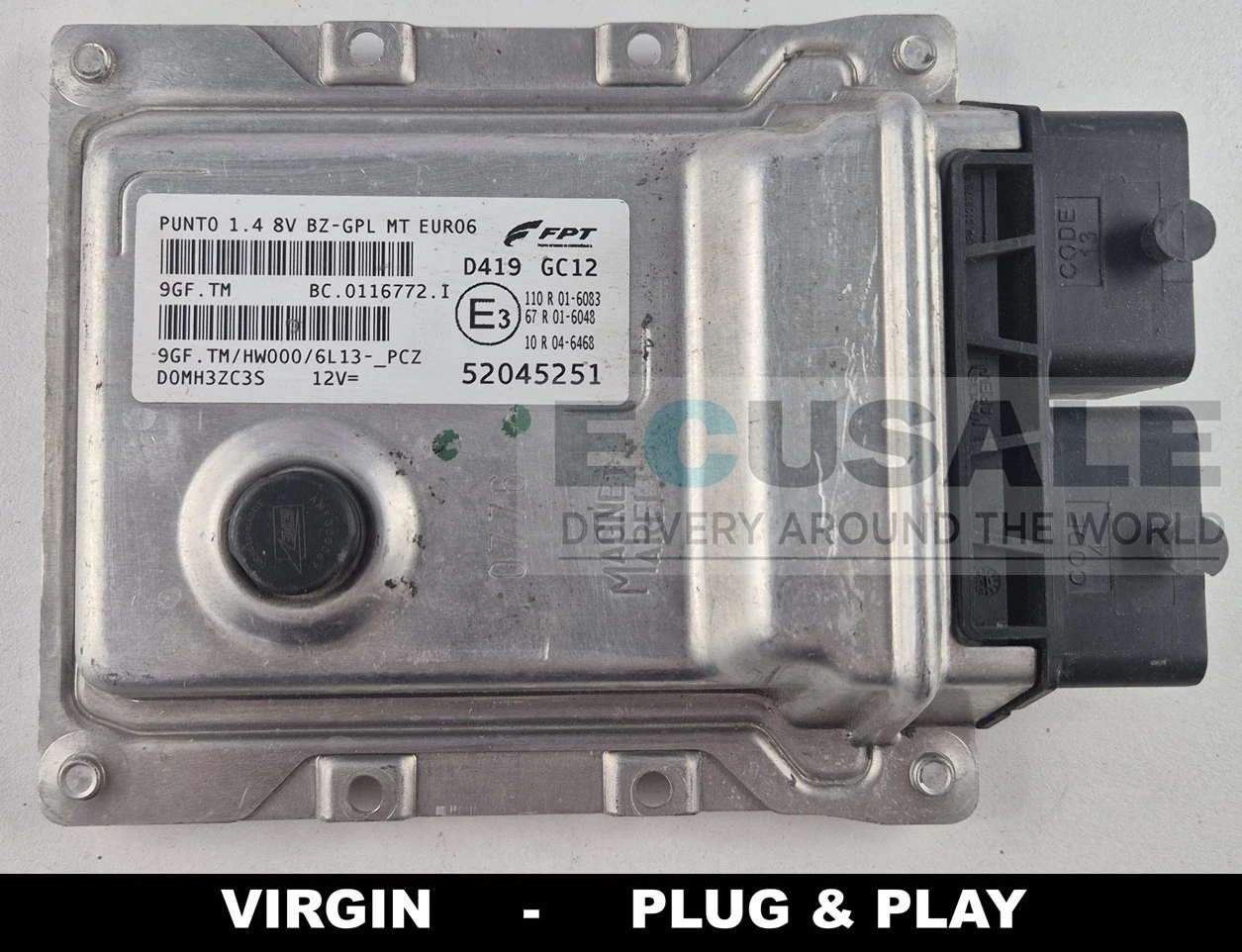

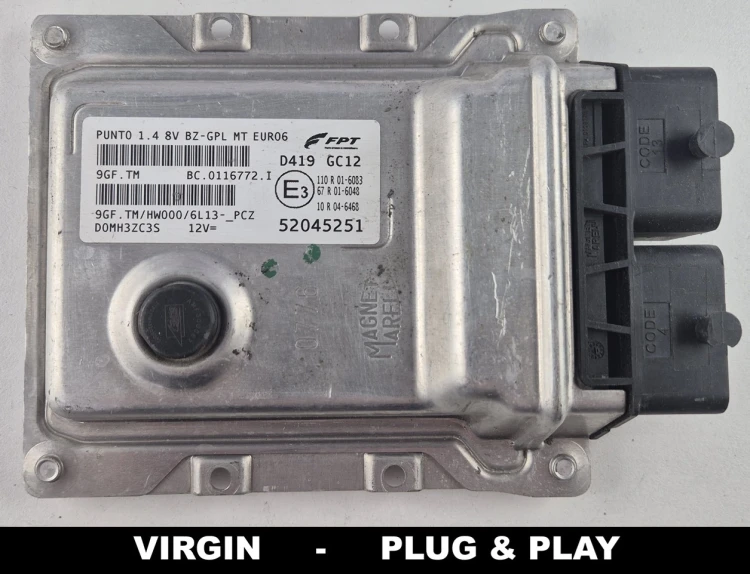

52045251 9GF.TM Engine ECU – Fiat Punto 1.4 LPG
Original FPT/Magneti Marelli engine control unit designed for selected Fiat Punto versions equipped from the factory with a petrol/LPG fuel system. The ECU has been reset and prepared as VIRGIN Plug & Play – once correctly installed, it automatically stores the vehicle immobiliser data.
52045251 ECU applications
- Fiat Punto Type 199 – 3- and 5-door hatchback;
- 1.4 8V petrol/LPG engine;
- engine code 350A1000;
- manual transmission;
- selected Euro 6 versions manufactured approximately between 2012 and 2018.
Before purchasing, compare the OEM number 52045251, references 9GF.TM and BC.0116772.I, hardware version and connectors with your original ECU. Compatibility should not be determined solely by the vehicle model, engine capacity or year of manufacture.
Common symptoms of a faulty engine ECU
- engine will not start;
- engine stalls shortly after starting or while driving;
- rough running on petrol or LPG;
- problems switching between fuel types;
- misfires and cylinder-specific fault codes;
- no diagnostic communication with the ECU;
- check engine light and limp mode.
Similar symptoms may also be caused by faults in the LPG system, ignition coils, spark plugs, sensors, power supply or wiring. We recommend carrying out a full vehicle diagnosis before replacing the ECU.
Programming and VIRGIN ECU preparation
The ECU has been prepared as VIRGIN Plug & Play. Its immobiliser memory has been cleared, allowing the unit to program itself after installation in a correctly matched vehicle during the first successful engine start.
- cloning data from the original ECU is not required;
- the ECU must be installed in a vehicle with a fully functional immobiliser system;
- the battery voltage must remain stable during the first start;
- diagnostic configuration may be required if the vehicle equipment differs;
- all ECU references must be checked for compatibility before installation.
Frequently Asked Questions
Is the 52045251 ECU compatible with the Fiat Punto 1.4 LPG?
Yes. This ECU is used in selected Fiat Punto Type 199 versions equipped with the 1.4 8V petrol/LPG engine. Always compare all references on your original ECU before purchasing.
|
Does the 9GF.TM BC.0116772.I ECU program itself?
Yes. The ECU is supplied in VIRGIN condition and, once correctly installed, automatically stores the immobiliser data during the vehicle's first successful start.
|
Is the Fiat Punto 1.4 petrol/LPG ECU Plug & Play?
Yes, provided that the ECU references, hardware version and vehicle configuration are compatible. The immobiliser and vehicle electrical system must also be functioning correctly.
|
Do I need to send my original FPT 52045251 ECU for cloning?
No. Cloning is not required. The ECU has been reset and prepared as a self-programming VIRGIN unit.
|
Does the Magneti Marelli 9GF.TM ECU come with a warranty?
Yes. The ECU is tested and prepared before sale and is covered by a 6-month warranty.
|
