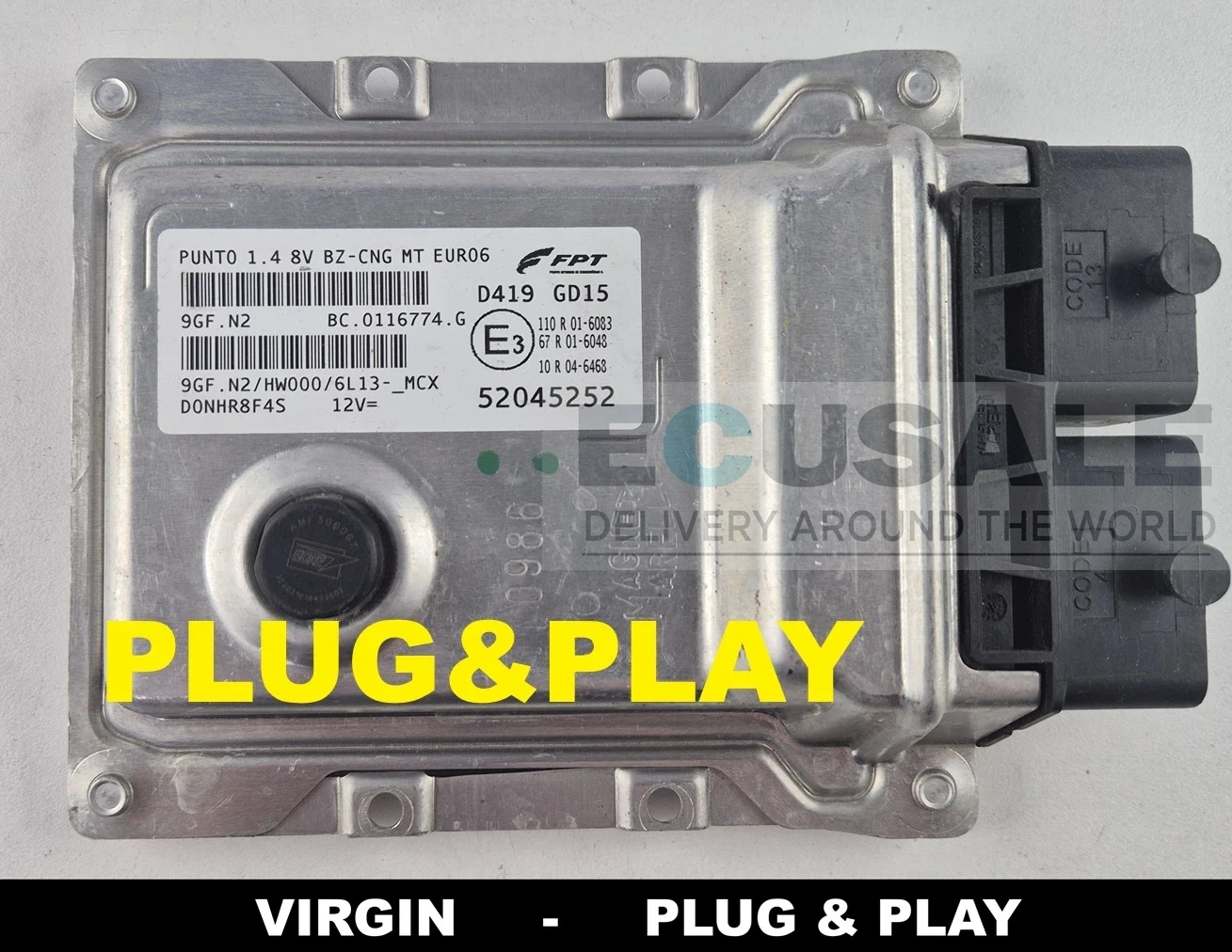

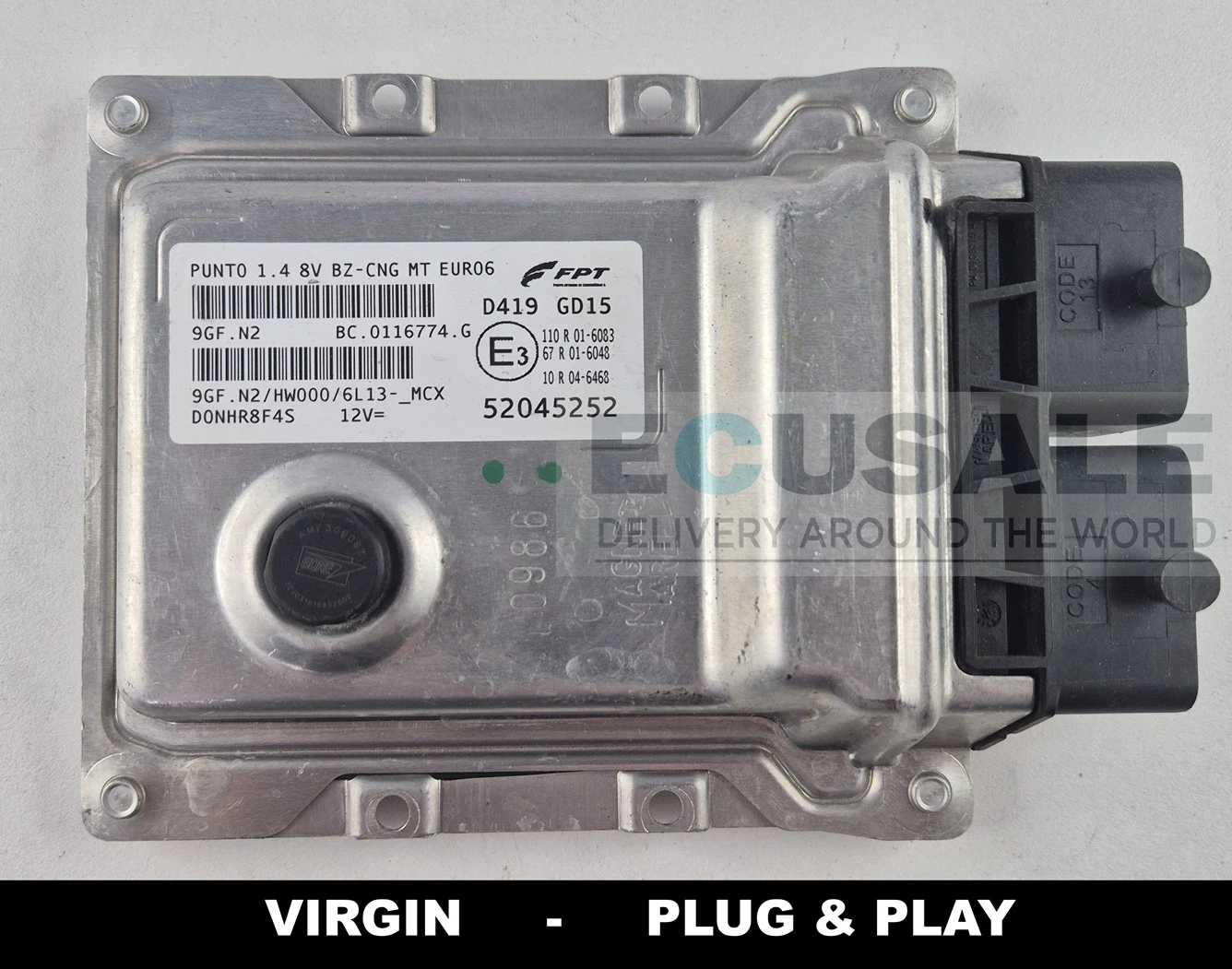

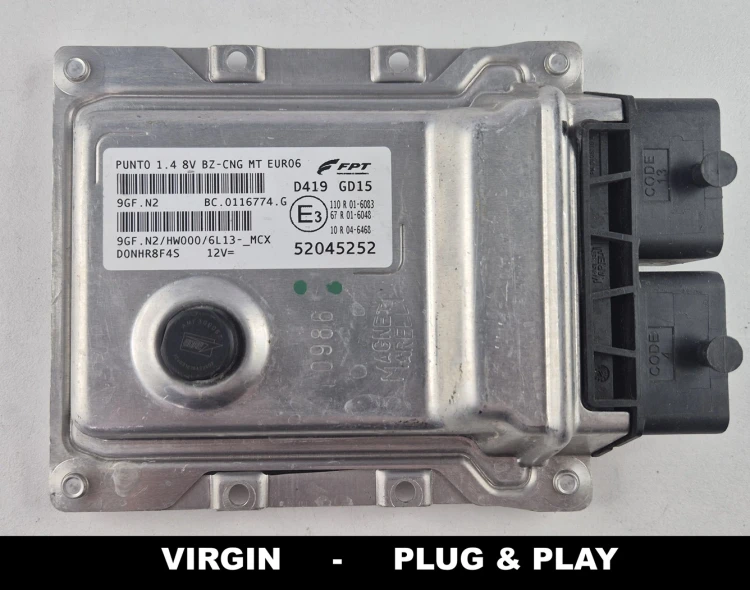

Fiat Punto 1.4 CNG Engine ECU 52045252 9GF.N2
Original FPT/Magneti Marelli engine ECU designed for selected Fiat Punto petrol/CNG versions. The module has been prepared as VIRGIN, allowing it to automatically store the immobilizer data during correct adaptation in the vehicle.
Applications of the 52045252 ECU
- Fiat Punto type 199 – five-door hatchback;
- 1.4 8V petrol/CNG engine – Natural Power;
- engine code 350A1000;
- manual gearbox;
- selected Euro 6 versions produced approximately between 2013 and 2017.
Before purchasing, compare OEM part number 52045252, ECU designation 9GF.N2, number BC.0116774.G, hardware version and connector layout with the module installed in the vehicle. The model, year and engine capacity alone are not sufficient to confirm compatibility.
Common Symptoms of a Faulty Engine ECU
- engine does not start or stalls immediately after starting;
- no diagnostic communication with the ECU;
- uneven engine operation on petrol or CNG;
- problems switching between petrol and natural gas;
- intermittent injection, ignition or throttle control faults;
- engine warning light and limp mode operation.
Similar symptoms may also be caused by faults in the wiring, power supply, ground connections, sensors or CNG system. We recommend carrying out a complete vehicle diagnostic check before replacing the ECU.
Programming and Preparation of the VIRGIN ECU
The ECU is prepared as VIRGIN Plug & Play. The immobilizer memory has been cleared, allowing the module to obtain the required data from the vehicle during the first correct adaptation.
- cloning the original ECU is not required;
- the module must be installed in a vehicle with a correctly functioning immobilizer system;
- the battery voltage should remain stable during adaptation;
- depending on the vehicle equipment, diagnostics or variant configuration may be required;
- all part numbers must be confirmed as compatible before installation.
Frequently Asked Questions
Is the 52045252 ECU compatible with the Fiat Punto 1.4 CNG?
Yes, this ECU is used in selected Fiat Punto type 199 models with the 1.4 8V petrol/CNG engine. Before purchasing, compare all identification numbers with the original module.
|
Does the 9GF.N2 BC.0116774.G ECU require programming?
The module is prepared as VIRGIN and can automatically store the immobilizer data after correct installation. Some vehicles may require additional diagnostics or equipment configuration.
|
Is the Fiat Punto 1.4 Natural Power ECU Plug & Play?
The version offered is prepared as VIRGIN Plug & Play. Correct adaptation requires matching part numbers and a properly functioning immobilizer and vehicle electrical system.
|
Do I need to send my old ECU for cloning?
No, cloning the original ECU is normally not required with the VIRGIN version. Before purchasing, simply send us a photo of the original ECU label so that we can compare the part numbers.
|
Does the FPT 52045252 ECU come with a warranty?
Yes, the ECU has been tested and prepared before sale. The product comes with a 6-month warranty.
|
