ABS module 73K1 – description
This ATE module for Suzuki Swift combines hydraulics and electronics: it consists of the hydraulic block (pump) and ABS control unit 06210952323. The label carries the numbers 73K1 and 06210952323.
Used, after a workshop test: electronics and hydraulics checked on a test machine, together with a pressure test.
Application
Confirmed application: Suzuki Swift. The number is what decides: check that the pump and control unit numbers match the label of your module.
See also
Same car model, different pump and module numbers – the number on your pump label decides which one fits: 62J1 / 06210908123, 57KD / 06210952013.
Fitting and adaptation
- after fitting, always bleed the brake system,
- coding or adaptation with a tester – depending on the car and the pump type; not every pump needs it.
Label – pump and control unit numbers
| Marking | Number (different formats) |
| Pump code | 73K1 / 73K1BE2WD |
| Hydraulic block / pump – manufacturer number | 06.2102-1039.4 / 06210210394 |

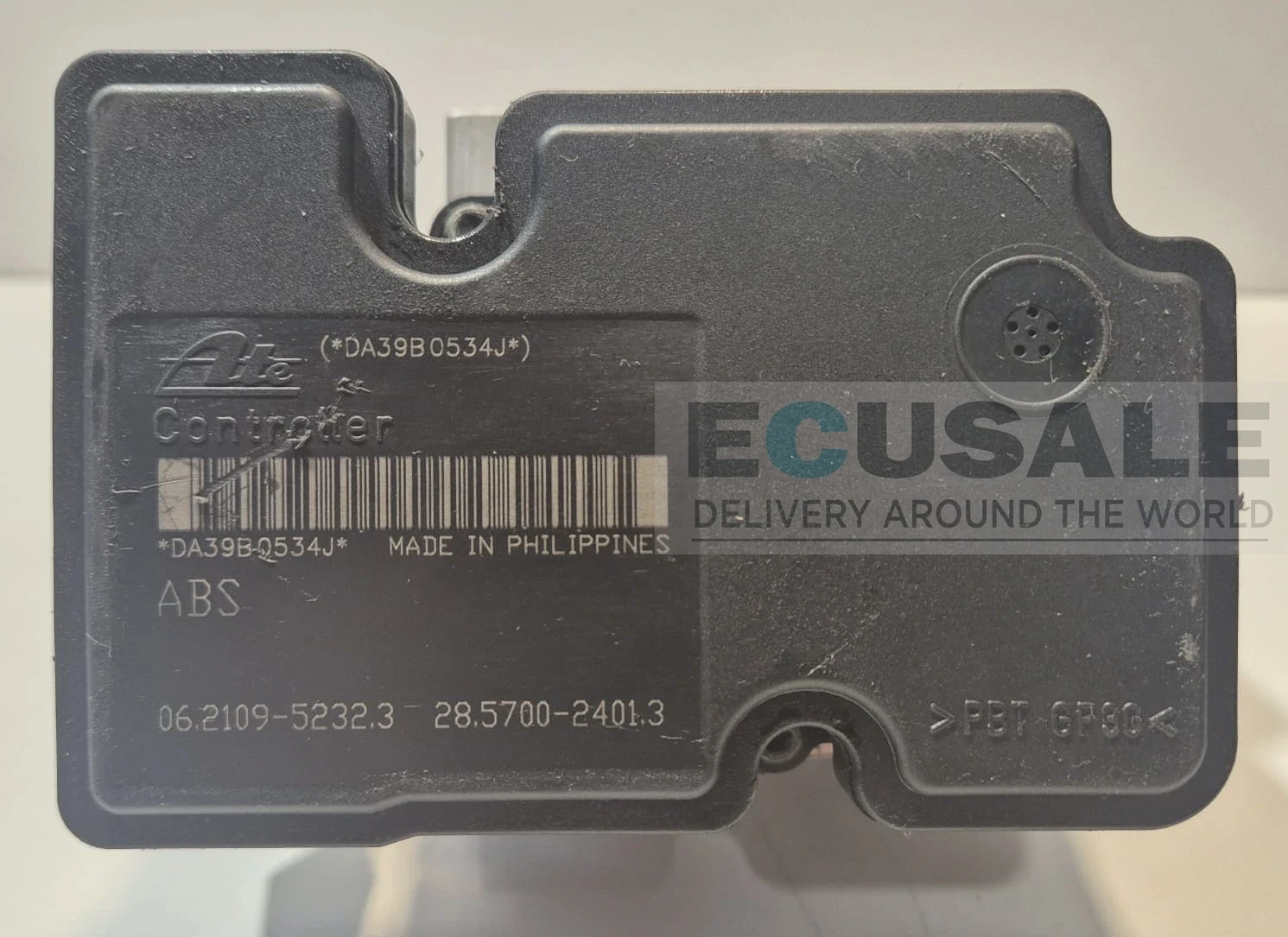

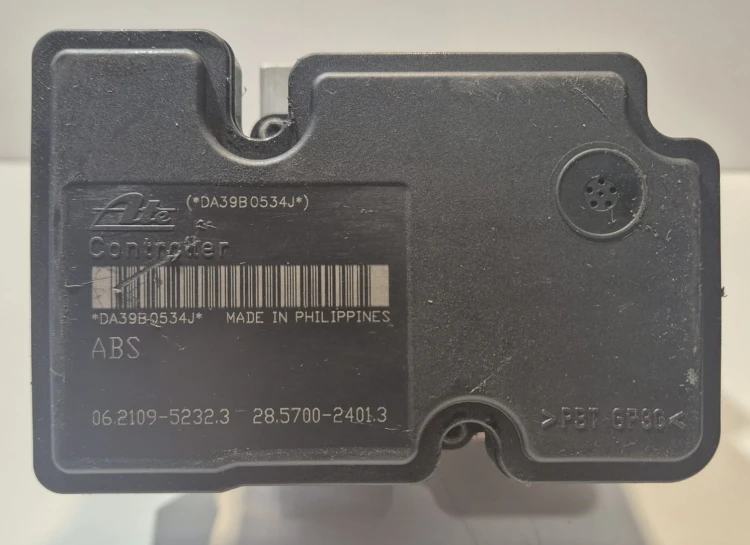

| ABS control unit – manufacturer number | 06.2109-5232.3 / 06210952323 |
Symptoms of a faulty ABS pump
- ABS and/or ESP warning light on,
- pump motor, valve or ABS control unit supply faults,
- no communication with the ABS control unit in diagnostics,
- one wheel brakes less or locks when braking.
The ABS light is often caused by a wheel speed sensor, the ABS ring or the wiring – run diagnostics before buying. More in our guide ABS pump failure – symptoms and refurbishment.
Warranty
Warranty on the pump: 6 months. Not sure it fits? Send a photo of the label and we will check the numbers. More ABS pumps: Suzuki ABS Pumps.
73K1 / 06210952323 – common questions
| Question |
Answer |
| How do you check the pump before dispatch? |
We test the electronics and hydraulics on a test machine, including a pressure test. |
| Does the pump need coding after fitting? |
It depends on the car and the pump version – not every pump needs coding. The brake system must always be bled. |
| How can I check that 73K1 fits my car? |
The numbers on the label of your module must match: pump 73K1, control unit 06210952323. Application: Suzuki Swift. |
| Is the ABS control unit 06210952323 included? |
Yes. This is a complete pump: hydraulic block and ABS control unit 06210952323 – hydraulics and electronics. |
| The ABS light is on – is it definitely the pump? |
Not necessarily. A wheel speed sensor, the ABS ring or the wiring is often to blame, so run diagnostics before buying. |
