How to choose an ECU engine controller or ABS pump by manufacturer and part number?
In automotive electronics, you will often see manufacturer names such as Bosch, Delphi, Continental, Magneti Marelli, Siemens, FoMoCo, Visteon, ATE and FPT. These brands are responsible for many engine ECU controllers, ABS pumps, body control modules, gearbox controllers and other electronic units used in passenger cars and commercial vehicles.
For the customer, however, the brand name printed on the module housing is not the only important detail. The most important information includes the part number, manufacturer number, OEM number, hardware version, software version and vehicle configuration. The same manufacturer may produce many similar-looking control units, but this does not always mean they are interchangeable.
In this article, we explain which automotive electronic modules are most often found under specific manufacturer brands and what you should check before buying an engine ECU controller, ABS pump, BCM, BSI, BSM, gearbox controller or another vehicle electronic module.
Why is the manufacturer of the control unit important?
The manufacturer of an automotive electronic module helps identify the type of unit, its electronic family and the possible methods of repair, programming or preparation for installation. A Bosch ECU, Delphi ECU, Continental ECU, Magneti Marelli ECU, Siemens ECU or Visteon ECU may require a different technical approach.
In practice, the manufacturer helps determine:
- the type of engine ECU controller,
- the memory and processor type,
- whether cloning is possible,
- whether a Virgin version can be prepared,
- whether IMMO OFF can be performed,
- compatibility with the vehicle by part number,
- typical faults of a specific module family,
- the coding or adaptation process after installation.
Even so, the most important rule remains the same: an ECU, ABS pump or electronic module should be selected mainly by part number, not only by manufacturer brand. This is especially important when buying an engine ECU controller, ABS pump, BCM, BSI, BSM or gearbox controller and you want to avoid problems after installation.
Bosch – engine ECU controllers, ABS pumps and automotive electronics
Bosch is one of the most common manufacturers of automotive electronics. Bosch control units are used in many car brands, including Audi, Volkswagen, BMW, Mercedes-Benz, Opel, Fiat, Peugeot, Citroën, Renault, Jeep and Iveco.
The most common Bosch modules include:
- engine ECU controllers,
- ABS pumps,
- ESP modules,
- EDC diesel engine controllers,
- ME / MED petrol engine controllers,
- fuel injection system electronics.
Bosch ECU part numbers often start with 0 281..., 0 261... or appear together with the vehicle manufacturer’s OEM number. When buying a Bosch ECU, it is always worth comparing both numbers: the Bosch manufacturer number and the original OEM number from the car manufacturer.
Typical Bosch ECU problems include no communication with the ECU, water damage, immobiliser faults, power supply faults, damage after a short circuit in the vehicle wiring or inability to read data from the original control unit.
Delphi – engine ECU controllers, BSM modules and injection electronics
Delphi is a manufacturer often found in European vehicles, especially in engine management systems, fuel injection systems and electrical modules.
Delphi modules are commonly used as:
- engine ECU controllers,
- BSM modules / fuse box modules,
- fuel injection control units,
- diesel and petrol engine management modules.
With Delphi ECU controllers, it is very important to match the manufacturer number and the OEM number. Even a small difference in the reference may indicate a different software version, different vehicle equipment or a different immobiliser configuration.
At ECUSale, Delphi control units can be prepared, depending on the module type, as Virgin, Plug & Play, IMMO OFF or by full cloning of data from the original ECU.
Continental – modern ECU controllers, control modules and vehicle electronics
Continental is a manufacturer of modern engine ECU controllers, body modules and vehicle electronics used in many passenger cars and commercial vehicles.
Continental control units can be found in vehicles from PSA, Renault, Ford, Opel, Fiat, Mercedes-Benz and Volkswagen. They are used in both petrol and diesel vehicles.
The most common Continental modules include:
- engine ECU controllers,
- body control modules,
- safety system control modules,
- vehicle communication modules,
- engine management electronics.
When choosing a Continental ECU, the part number is not the only important factor. The hardware version and software variant are also very important. Before purchase, it is best to send a photo of the label from the original module and compare all references carefully.
Magneti Marelli – Opel 1.3 CDTI engine ECU controllers, Fiat ECU units and BCM modules
Magneti Marelli is a brand often found in engine ECU controllers for Fiat, Opel, Alfa Romeo, Lancia, Peugeot, Citroën and Iveco vehicles.
Very popular Magneti Marelli ECU controllers are used in 1.3 CDTI / 1.3 JTD / 1.3 MultiJet engines. These units can be found in models such as Opel Corsa D, Opel Astra, Fiat Doblo, Fiat Grande Punto, Fiat Panda, Lancia Ypsilon and other vehicles equipped with 1.3 diesel engines.
The most common Magneti Marelli modules include:
- MJD engine ECU controllers,
- Body Computer / BCM modules,
- comfort control modules,
- IAW petrol engine controllers,
- diesel ECU controllers for 1.3 CDTI / JTD / MultiJet engines.
With Magneti Marelli ECU controllers, it is often possible to prepare a Virgin Plug & Play version, which can adapt to the vehicle after installation. In many cases, full cloning from the original ECU is also possible.
If you are looking for an ECU for Opel 1.3 CDTI, check the collection: Opel Corsa D 1.3 CDTI HW03A engine ECU controllers. In this group of parts, selection by ECU number is especially important because similar MJD modules may differ in hardware version, software version or immobiliser configuration.
Magneti Marelli is also used in body control modules for commercial vehicles. One example is the Iveco BCM Body Computer modules, which should also be selected by part number, hardware version and vehicle equipment.
Siemens – engine ECU controllers often used in Ford vehicles
Siemens is an automotive electronics manufacturer whose ECU controllers are often found in Ford vehicles and selected European models from other brands.
Siemens control units are mainly used as:
- engine ECU controllers,
- fuel injection control modules,
- diesel engine controllers,
- petrol engine controllers,
- engine management modules.
When choosing a Siemens ECU, it is very important to compare the references from the label and check compatibility with the engine, gearbox and vehicle equipment. Not every Siemens ECU from a similar Ford model will work without preparation.
Gearbox control modules are also an important part of automotive electronics. If the problem concerns an automatic gearbox in a Mercedes vehicle, check the category: Mercedes ISM, EGS and TCM gearbox controllers. These modules should also be selected by part number, vehicle version and gearbox type.
FoMoCo – original Ford Motor Company electronics
FoMoCo is a marking related to original Ford Motor Company parts. This reference is very often found on engine ECU controllers, body modules, ABS pumps and other electronic units used in Ford vehicles.
FoMoCo modules are commonly found in models such as:
- Ford Focus,
- Ford Mondeo,
- Ford Fiesta,
- Ford Transit,
- Ford C-Max,
- Ford S-Max,
- Ford Kuga.
FoMoCo parts often have several references at the same time: the Ford part number, the module manufacturer number and the software version code. For correct selection, it is best to compare the full label of the original module.
Visteon – engine ECU controllers for Peugeot Boxer, Citroën Jumper and Fiat Ducato 2.2 HDi
Visteon is an automotive electronics manufacturer often found in engine ECU controllers used in PSA and Fiat commercial vehicles.
Visteon ECU controllers are especially common in:
- Peugeot Boxer 2.2 HDi,
- Citroën Jumper 2.2 HDi,
- Fiat Ducato 2.2 JTD / HDi,
- commercial vehicles with 2.2 diesel engines.
Typical Visteon ECU problems include no communication, injector circuit faults, power supply issues, immobiliser faults and damage caused by short circuits or moisture. With these modules, matching the exact part number and vehicle configuration is very important.
In the case of a damaged Visteon ECU, the module can often be prepared as Plug & Play, IMMO OFF or cloned, provided that data can be read from the original ECU.
ATE – ABS pumps, ABS controllers and ESP modules
ATE is a manufacturer mainly associated with brake systems, ABS pumps and ESP control modules. ATE modules are used in many passenger car brands, including Volkswagen, Audi, Skoda, Seat, Opel, Ford, Peugeot, Citroën, Renault, Fiat and Mercedes-Benz.
The most common ATE parts include:
- ABS pumps,
- ABS controllers,
- ESP modules,
- hydraulic ABS units,
- brake system electronics.
When selecting an ABS pump, it is very important to compare the pump number, controller number, body type, engine version, gearbox type and vehicle equipment. In many vehicles, visual similarity of the ABS pump is not enough.
After installing an ABS pump, coding, steering angle sensor adaptation, brake system bleeding or transfer of settings from the original ABS controller may be required.
If you are looking for an ABS pump for VAG group vehicles, check the category: Volkswagen VW ABS pump.

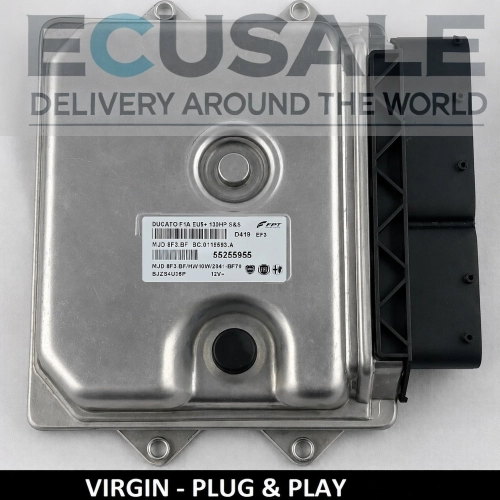

FPT – engine ECU controllers for Fiat, Iveco and commercial vehicles
FPT is a marking often found on electronics related to Fiat Powertrain engines. FPT modules are used in Fiat, Fiat Professional, Iveco and commercial vehicles.
FPT engine ECU controllers are often connected with diesel engines used in utility vehicles such as Fiat Ducato, Iveco Daily, Fiat Doblo and other commercial models.
The most common FPT modules include:
- engine ECU controllers,
- diesel engine management modules,
- commercial vehicle electronics,
- control units used in Fiat / Iveco engines.
When buying an FPT ECU, you should check the part number, engine type, power output, emission standard and vehicle version. In commercial vehicles, differences in software can be very important.
How to choose the correct engine ECU controller, ABS pump or electronic module?
The safest way to choose automotive electronics is to compare the full label from the original module. The manufacturer brand alone is not enough because Bosch, Delphi, Continental, Magneti Marelli, Siemens, FoMoCo, Visteon, ATE and FPT produce many similar-looking parts.
Before buying, you should check:
- the module manufacturer number,
- the vehicle manufacturer OEM number,
- the hardware version, marked as HW,
- the software version, marked as SW,
- vehicle model,
- year of production,
- engine type and engine code,
- engine power output,
- gearbox type,
- vehicle equipment, for example air conditioning, ESP, cruise control, DPF or AdBlue.
If you are not sure which ECU, ABS pump or module is correct, the best solution is to send a photo of the label from the original unit. Based on the references, it is possible to select the correct ECU, ABS, BCM, BSI, BSM or another electronic module.
This helps avoid buying an incompatible part. It is important not only for engine ECU controllers, but also for ABS pumps, BCM, BSI, BSM modules and gearbox controllers.
Most common mistakes when choosing automotive electronics
The most common mistake is buying a module only because it looks the same or comes from a similar vehicle. In automotive electronics, the same housing does not automatically mean compatibility.
Typical mistakes when buying an ECU, ABS pump or electronic module include:
- choosing the part only by car brand,
- choosing the part only by vehicle model,
- ignoring the manufacturer number,
- ignoring the OEM number,
- buying a control unit with different software,
- buying an ABS pump with different coding,
- not checking the immobiliser configuration,
- not checking gearbox type or vehicle equipment,
- installing the module without proper preparation.
For this reason, many ECUSale control units are prepared individually as Virgin, Plug & Play, IMMO OFF or by full cloning of data from the original module.
ECUSale – Bosch, Delphi, Continental, Magneti Marelli, Siemens, FoMoCo, Visteon, ATE and FPT control units
At ECUSale, you can find engine ECU controllers, ABS pumps, BCM, BSI, BSM modules, gearbox controllers and other automotive electronic units from many manufacturers.
Check available parts by manufacturer:
- Bosch – engine ECU controllers, ABS pumps and automotive electronics
- Delphi – engine ECU controllers and automotive modules
- Continental – ECU controllers and vehicle electronics
- Magneti Marelli – engine ECU controllers for Opel, Fiat, Alfa Romeo and Iveco
- Siemens – engine ECU controllers, often used in Ford vehicles
- FoMoCo – original Ford electronics
- Visteon – engine ECU controllers for Jumper, Boxer and Ducato 2.2 HDi
- ATE – ABS pumps and ESP controllers
- FPT – engine ECU controllers for Fiat, Iveco and commercial vehicles
You can also check selected categories and collections:
- Volkswagen VW ABS pump
- Mercedes ISM, EGS and TCM gearbox controllers
- Iveco BCM Body Computer modules
- Opel Corsa D 1.3 CDTI HW03A ECU controllers
Every module is checked before dispatch and, depending on the type of part, can be prepared for installation as Plug & Play, Virgin, IMMO OFF or cloned from the customer’s original control unit.
FAQ – ECU and ABS pump manufacturers
Does the manufacturer of an engine ECU matter when buying a replacement ECU?
Yes. The manufacturer helps identify the module type, electronic family and possible programming method. However, the most important details are the exact part number, OEM number and compatibility with the vehicle.
Can a Bosch ECU be replaced with a Delphi or Continental ECU?
Usually not. Control units from different manufacturers have different hardware, software and communication with the vehicle. A replacement ECU should be selected by part number, not only by car brand or model.
How can I check if my ECU is Bosch, Delphi, Magneti Marelli, Siemens or Visteon?
The manufacturer name is usually printed on the ECU label. The label also shows the part number, OEM number, hardware version and sometimes the software version.
Can a Magneti Marelli ECU for Opel Corsa D 1.3 CDTI be Plug & Play?
In many cases, Magneti Marelli MJD ECU controllers for 1.3 CDTI / JTD / MultiJet engines can be prepared as Virgin Plug & Play or cloned from the original ECU. It depends on the exact part number and ECU type.
Does an ATE Volkswagen VW ABS pump require coding after installation?
Very often, yes. After installing an ATE ABS pump in Volkswagen, Audi, Skoda or Seat vehicles, coding, steering angle sensor adaptation, brake bleeding or transfer of settings from the original ABS controller may be required.
Are Visteon ECU controllers used in Peugeot Boxer, Citroën Jumper and Fiat Ducato 2.2 HDi?
Yes. Visteon ECU controllers are often used in commercial vehicles such as Peugeot Boxer, Citroën Jumper and Fiat Ducato with 2.2 HDi / JTD engines. The exact ECU part number should always be compared before purchase.
Does FoMoCo mean the part is for Ford?
FoMoCo stands for Ford Motor Company and is often found on original Ford electronic modules. It may refer to engine ECU controllers, ABS pumps, body modules and other electronic parts.
How to choose an engine ECU controller by part number?
The best method is to compare the full label from the original ECU: manufacturer number, OEM number, HW version, SW version and vehicle details. If the numbers are not identical, the ECU may require cloning, Virgin preparation, IMMO OFF or additional coding.
What is more important: the manufacturer brand or the part number?
The part number is the most important detail. The manufacturer brand helps identify the module family, but compatibility is mainly determined by the manufacturer number, OEM number, hardware version, software version and vehicle configuration.
