Check compatibility with Alfa Romeo 159 / Brera

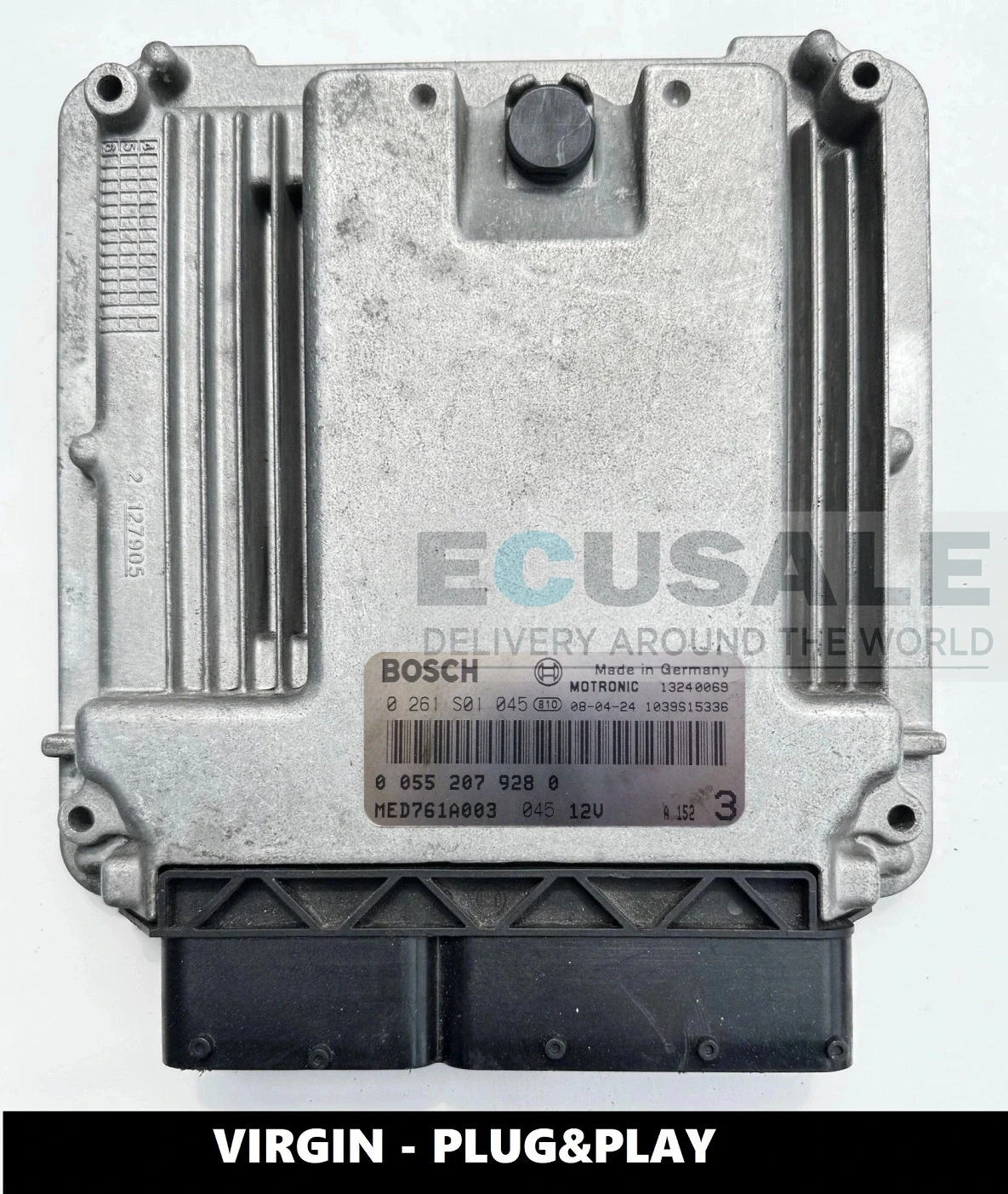

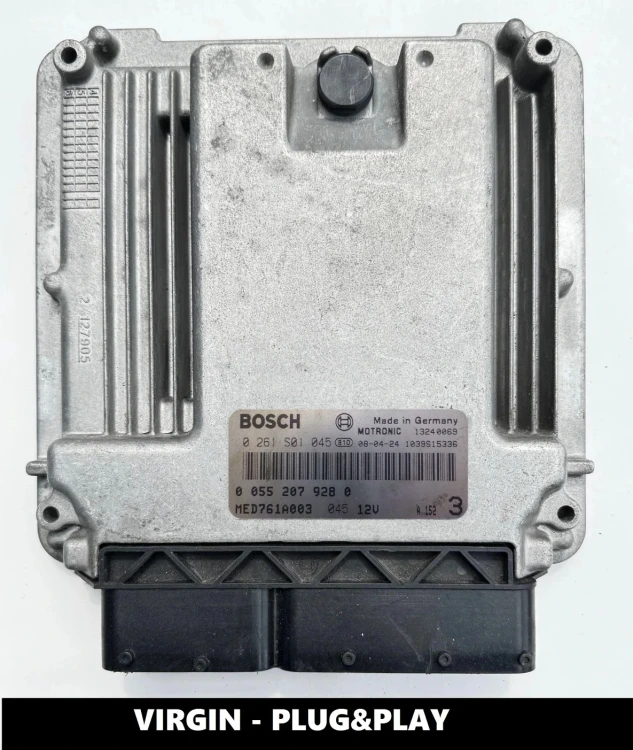

The offered Bosch engine control unit with part numbers 0261S01045 and 00552079280 is supplied in VIRGIN Plug&Play condition. This means the module is reset like new and after installation it automatically matches the vehicle and the immobilizer, provided that the immo system in the car is working correctly and does not store any faults.
Application
- Alfa Romeo 159
- engine 1.9 JTD / JTDM
- typical years: approx. 2005–2011 (depending on equipment version)
Important programming information
The VIRGIN version does not require a diagnostic computer when the vehicle is healthy. After installation, automatic synchronization with the immobilizer takes place. However, if there are wiring problems, body computer errors, issues with the immo ring, the key or CAN communication – adaptation may not be possible. In such cases, the root cause in the vehicle must be repaired first.
Typical symptoms of a faulty ECU
- engine will not start
- no communication via OBD
- cooling fans running at maximum speed
- immobilizer / CODE warning
- random sensor faults despite good wiring
- engine stalling or no throttle response
FAQ – frequently asked questions
Does 0261S01045 need programming?
No. This is a VIRGIN Plug&Play unit – with a healthy immobilizer system it will program itself.
Will 00552079280 work without a Car Pass?
Yes, as long as the vehicle is fault-free and there were no previous immo issues.
What if adaptation of 0261S01045 fails?
Usually it means there is a problem in the car: defective immo module, body computer, wiring or CAN communication.
Can I install a used 00552079280 without resetting it?
No – a used unit will remain locked. The VIRGIN version is specially prepared for first pairing in a new vehicle.
Are the ECUs tested?
Yes, each unit is checked for power supply and communication before shipping.
