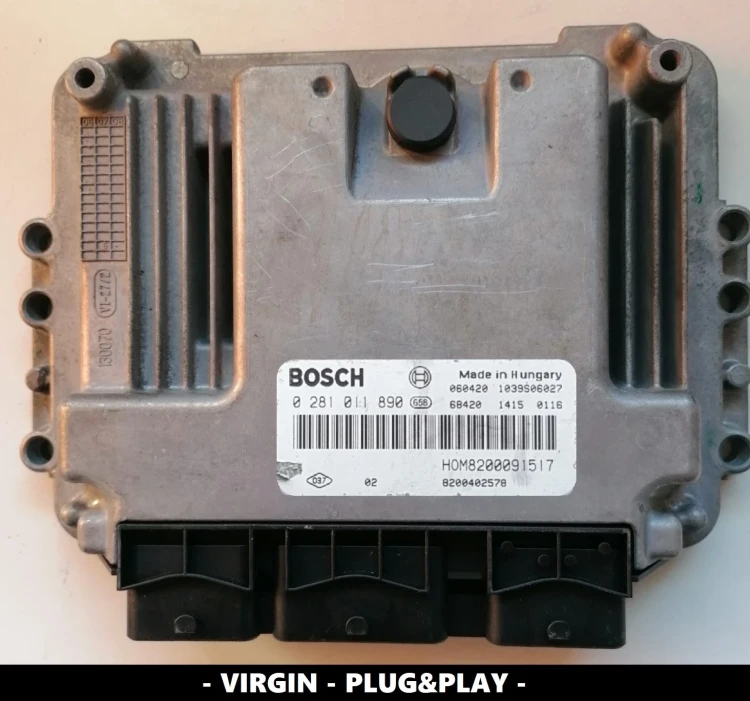

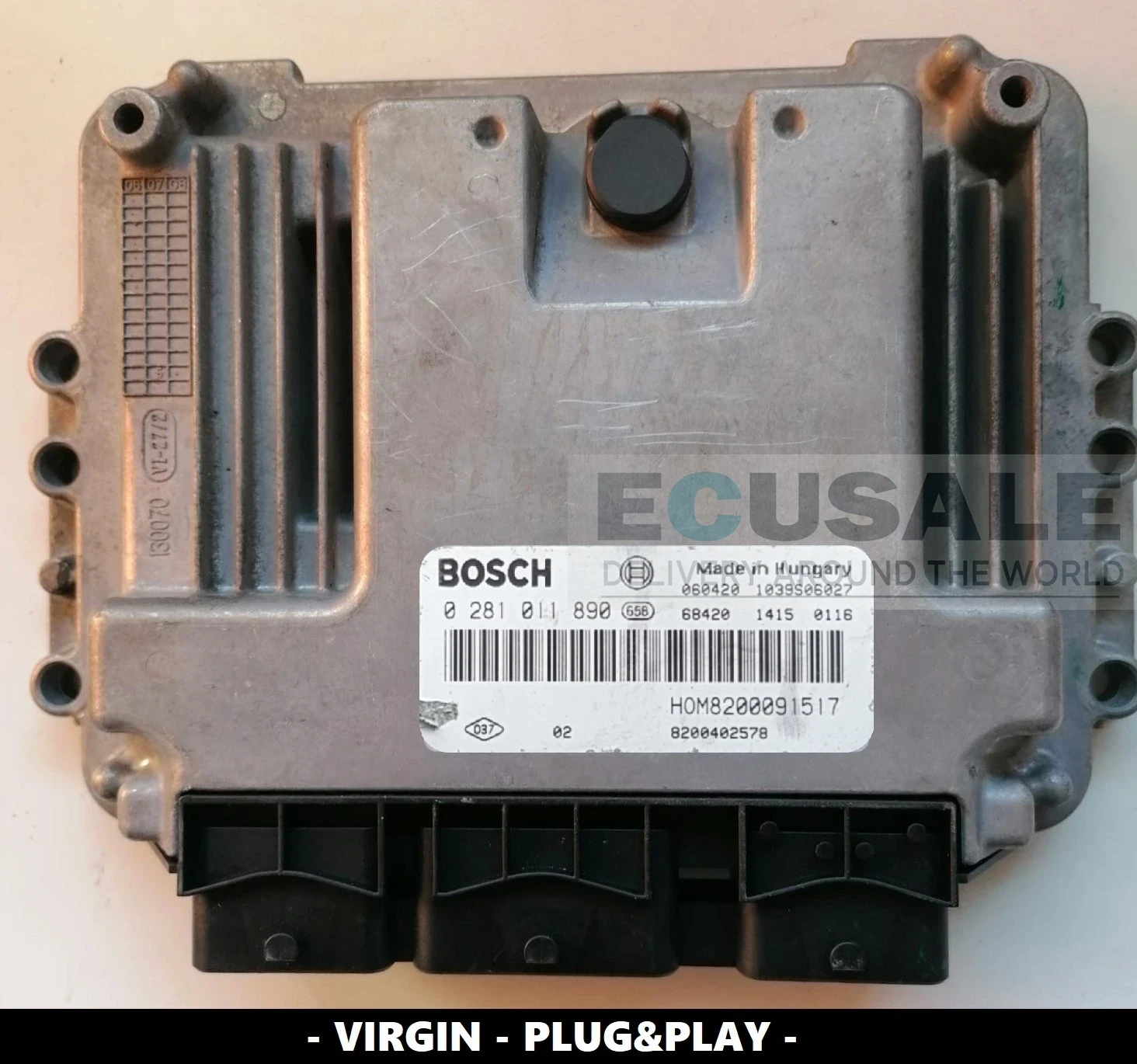

Bosch 0281011890 Virgin Engine ECU
Original Bosch engine control unit with part numbers 0281011890, HOM8200091517 and 8200402578, used in selected Renault, Opel and Nissan commercial vehicles equipped with 2.5 dCi/DTI engines. The module has been tested and prepared in a Virgin – Plug & Play configuration.
Applications for ECU 0281011890
- Renault Trafic II (X83) – selected commercial and passenger 2.5 dCi versions, approximately 2004–2006,
- Opel Vivaro A (X83) – selected 2.5 DTI/CDTI versions, approximately 2004–2006,
- Nissan Primastar (X83) – selected van and passenger 2.5 dCi versions, approximately 2004–2006,
- confirmed application in selected vehicles with G9U family engines, including G9U 730.

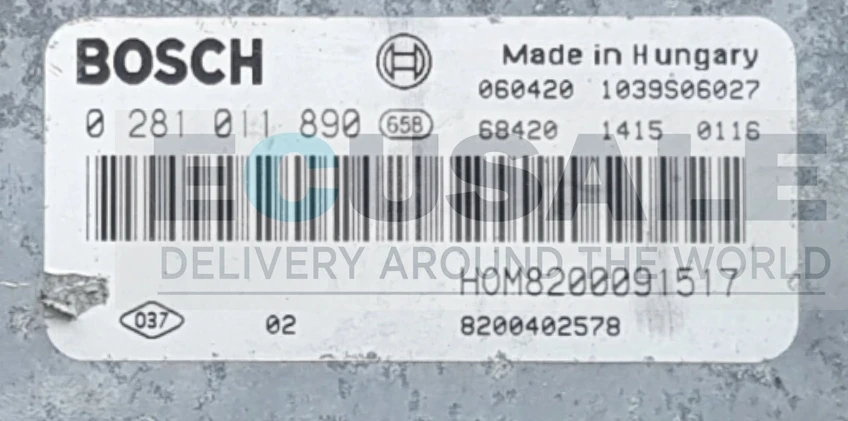

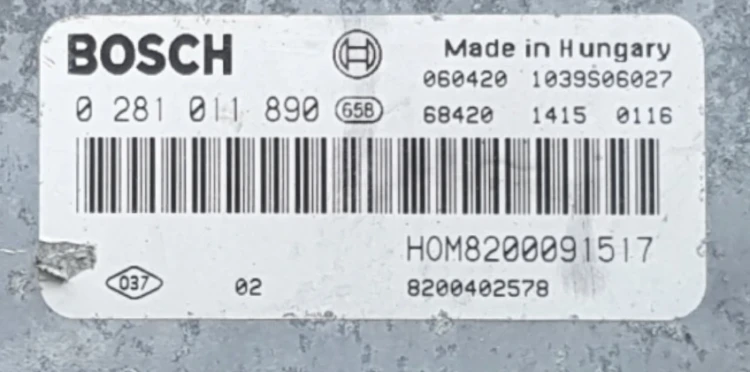

The same vehicle model may use ECUs with different software and equipment configurations. Before purchasing, compare numbers 0 281 011 890, 8200091517 and 8200402578 with the markings on the original module.
Common symptoms of a faulty engine ECU
- engine does not start despite the starter motor operating correctly,
- no diagnostic communication with the ECU,
- intermittent operation or engine stalling,
- problems controlling the injection system,
- irregular engine operation and recurring communication faults,
- no control of selected sensors or actuators.
Similar symptoms can also be caused by faults in the wiring, power supply, grounds, relays or other components. A complete vehicle diagnosis is recommended before replacing the ECU.
Virgin version, programming and module preparation
The ECU is prepared in a Virgin configuration. This means that the immobiliser data from the previous vehicle has been removed and the module is prepared for synchronisation with the vehicle security system during first installation.
In supported Renault Trafic, Opel Vivaro and Nissan Primastar versions, the module retrieves the required data from the vehicle after correct installation and the first start procedure. Depending on the equipment, it may be necessary to check the configuration, enter injector codes or perform an additional diagnostic procedure.
Cloning is not required when a correctly prepared Virgin ECU is used. However, if the vehicle has an unusual configuration or the module numbers do not match, a 1:1 clone can be performed using data from the original ECU. Cloning requires a valid memory read or the original ECU.
Frequently Asked Questions
Is ECU 0281011890 compatible with the Renault Trafic 2.5 dCi?
Yes, this module is used in selected Renault Trafic II X83 versions with the 2.5 dCi engine. Before purchasing, all part numbers should be compared with the label on the original ECU.
|
Will ECU 8200402578 work in an Opel Vivaro 2.5 DTI?
The ECU was used in selected Opel Vivaro A 2.5 DTI/CDTI versions. Compatibility should be confirmed primarily using the Bosch and OEM part numbers, not only the vehicle model.
|
What does the Virgin version of ECU HOM8200091517 mean?
Virgin means that the immobiliser data from the previous vehicle has been removed. The ECU is prepared for pairing or automatic synchronisation with the vehicle immobiliser system.
|
Does Bosch ECU 0 281 011 890 require cloning?
No, cloning is not normally required in the Virgin configuration. A 1:1 clone can be performed additionally if the complete configuration needs to be transferred from the original ECU.
|
Is ECU 0281011890 compatible with the Nissan Primastar 2.5 dCi?
Yes, number 0281011890 is used in selected Nissan Primastar X83 2.5 dCi versions, including vehicles with the G9U 730 engine. Final confirmation requires comparison with the markings on the original ECU.
|
