Compatibility of 0281013570 with Kia Ceed (ED)

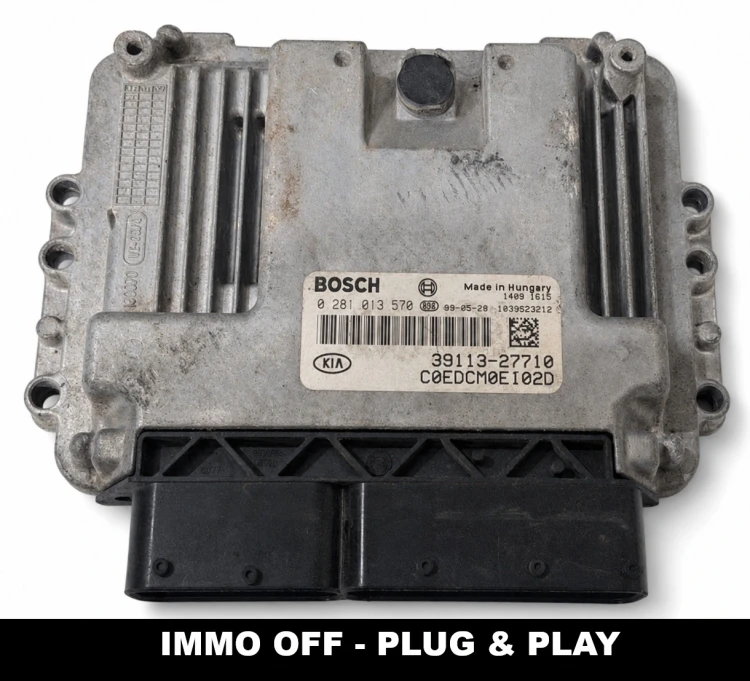

Original Bosch engine ECU used in selected versions of the first-generation Kia Ceed. The unit with part numbers 0281013570 and 39113-27710 is supplied as an IMMO OFF Plug & Play solution, allowing the vehicle to start without the standard procedure of pairing the ECU with the immobiliser.
Applications of the 39113-27710 ECU
- Kia Ceed I (ED);
- selected versions with CRDi diesel engines;
- hatchback body style;
- approximate production years: 2007–2008.
The same ECU part number can be found in listings for different engine versions of the Kia Ceed. For this reason, engine capacity or power output alone should not be used to determine compatibility.
Before ordering, compare the complete Bosch number 0 281 013 570 and Kia part number 39113-27710 with the label on your original ECU. Matching both numbers significantly reduces the risk of ordering an incompatible version.
Common symptoms of a faulty engine ECU
A faulty engine control unit may cause symptoms such as:
- engine failing to start;
- intermittent engine stalling while driving;
- no communication with the ECU during diagnostics;
- immobiliser recognition problems;
- rough engine operation or loss of control over certain components;
- ECU-related faults appearing once the module has warmed up.
Similar symptoms can also be caused by faults in the wiring, power supply, ground connections or CAN bus. A complete vehicle diagnostic check is recommended before replacing the ECU.
Programming and ECU preparation
The offered unit is prepared as an IMMO OFF Plug & Play version. The immobiliser function within the ECU is disabled, so standard ECU-to-immobiliser pairing should not be required.
Before dispatch, we verify the module identification and prepare the ECU according to the selected option. Depending on the vehicle's equipment and configuration, it may still be necessary to clear fault codes, verify the configuration or carry out diagnostic procedures after installation.
If the exact data and settings from the original ECU need to be retained, cloning can be carried out after you send us the original module. ECU cloning involves transferring the relevant data from the original unit to a fully functional replacement ECU and is offered as a separate service.
Frequently Asked Questions
Does the 0281013570 ECU fit every Kia Ceed CRDi?
No. This ECU was used only in selected versions of the Kia Ceed ED. Before ordering, compare part numbers 0281013570 and 39113-27710 with the numbers on your original module.
|
Is the 39113-27710 ECU for the 1.6 or 2.0 CRDi engine?
This combination of part numbers can be associated with different CRDi engine versions, so engine capacity alone should not be considered confirmation of compatibility. The complete part numbers on the original ECU are the most important reference.
|
Does the Bosch 0 281 013 570 ECU require immobiliser coding?
The unit offered here is prepared as IMMO OFF Plug & Play, so standard pairing of the ECU with the vehicle's immobiliser should not be required.
|
Can the Kia Ceed 3911327710 engine ECU be cloned?
Yes, provided that the required data can be read from the original ECU. Your vehicle's original module must be supplied for cloning. This service must be arranged in advance.
|
What should I check before buying an engine ECU for a Kia Ceed ED?
Compare the Bosch manufacturer number, Kia OEM number, connector layout and ECU housing. If there are any differences, compatibility should be additionally confirmed using the VIN and vehicle specifications.
|
