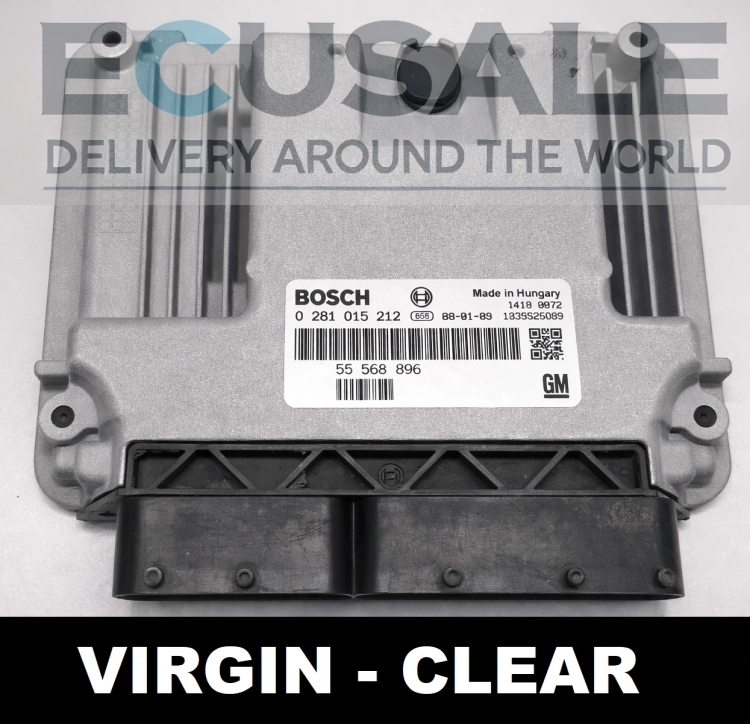

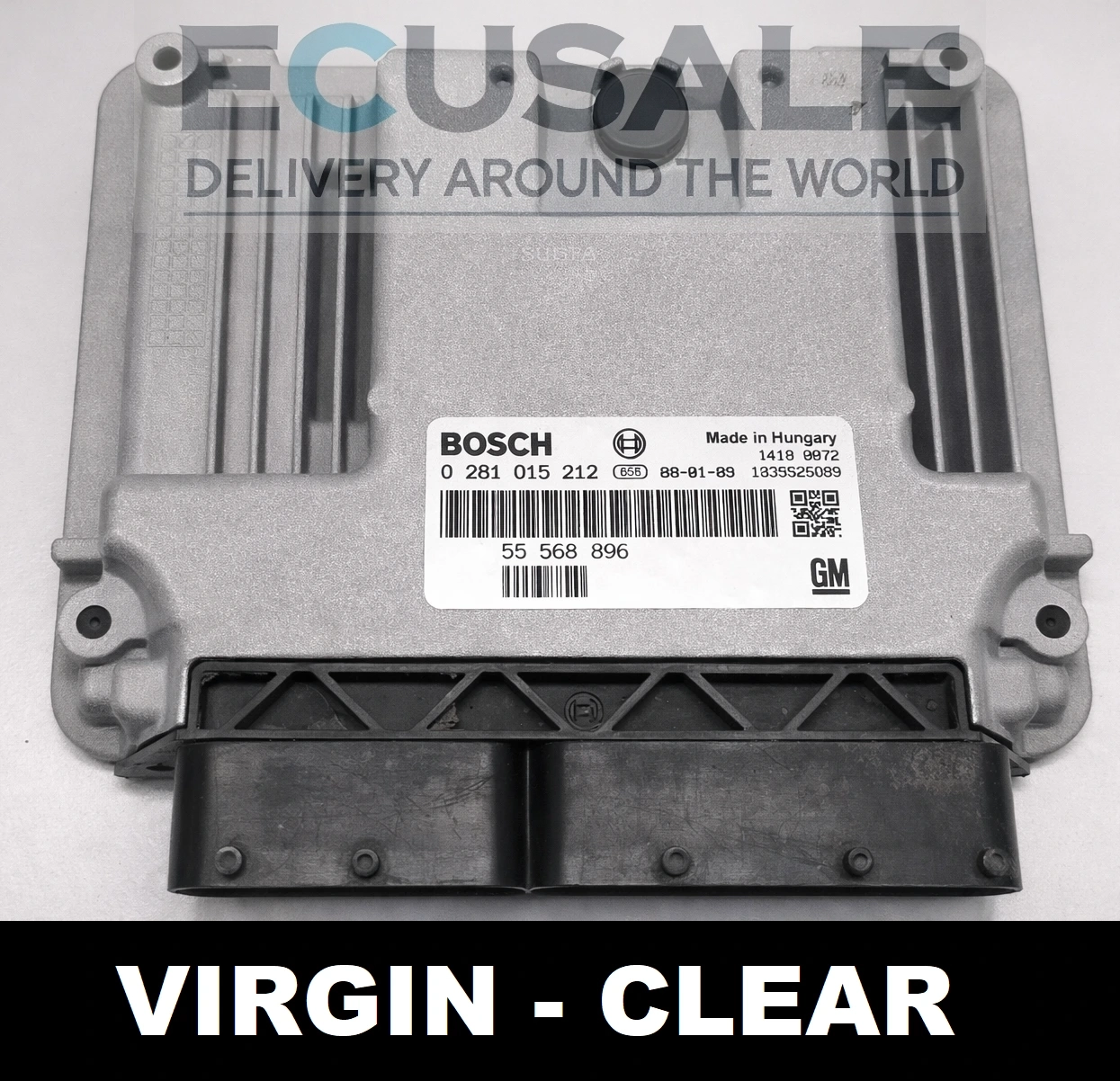

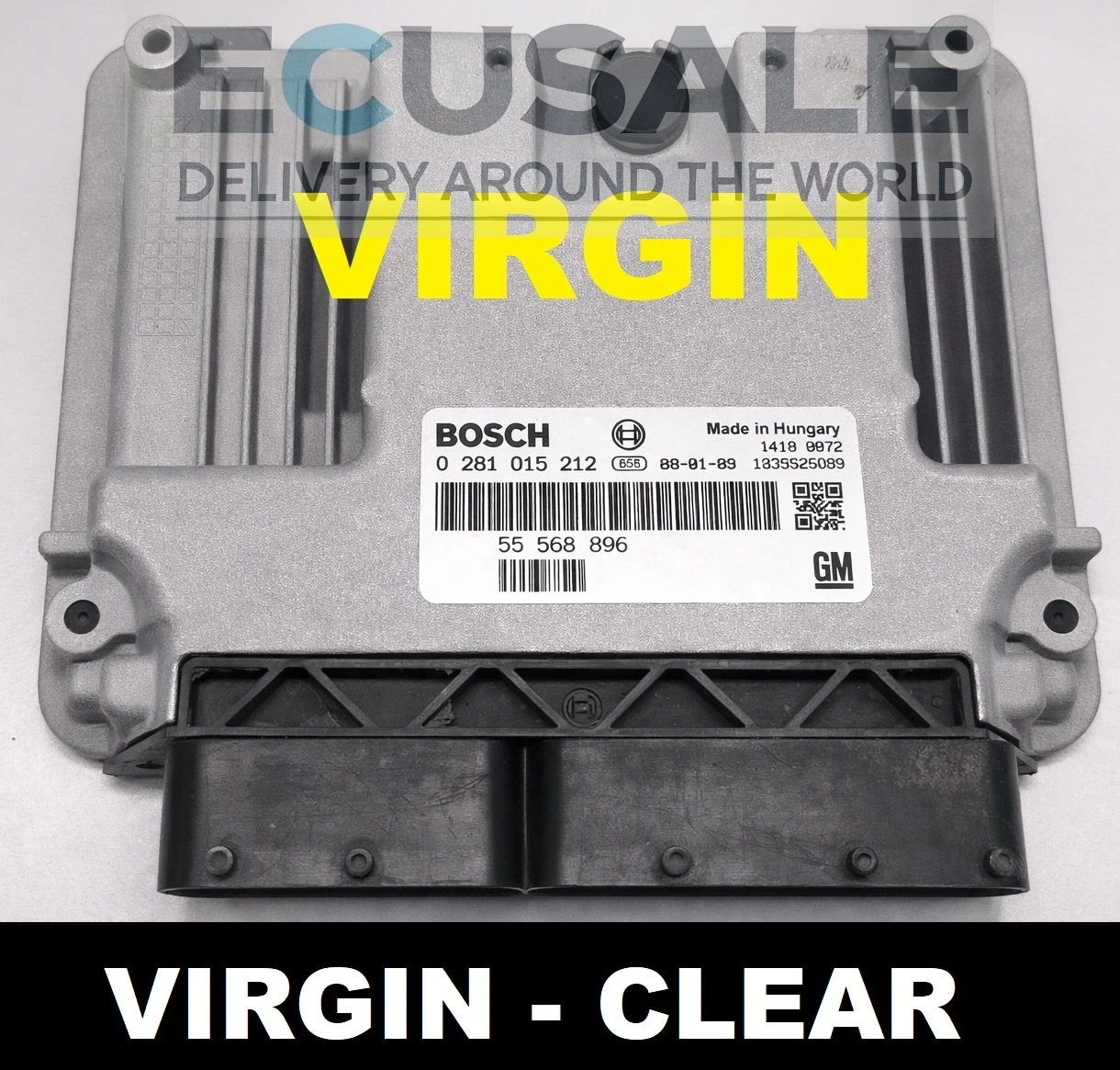

Engine Control Unit Bosch 0281015212 55568896 Saab 9-3 1.9 TTiD
Original Bosch engine control unit with part number 0281015212 and OEM 55568896 used in Saab 9-3 II generation (facelift – Ver2) equipped with the 1.9 TTiD diesel engine with twin turbocharging (2 turbos). The unit was installed between 2007–2011.
Application:
Saab 9-3 1.9 TTiD Twin Turbo
Engine code: Z19DTR
Displacement: 1910 cc diesel
Power: 180 HP (132 kW)
Injection system: Common Rail
Control system: Bosch EDC16C39
The offered engine control unit is supplied in VIRGIN version – cleared of immobilizer data and previous vehicle configuration. The module is ready to be programmed to VIN and adapted to the vehicle.
Programming
The VIRGIN version requires adaptation using professional diagnostic equipment such as Tech2 with Saab / Opel SPS software, or alternatively bench/boot programmer for EEPROM and FLASH writing. After proper programming, the unit operates like the original factory-installed module.
Q&A – Frequently Asked Questions
Does 0281015212 fit every Saab 9-3 1.9 diesel?
Part number 0281015212 is dedicated to the 1.9 TTiD 180 HP version with engine code Z19DTR. The old ECU number must be verified before purchase.
Does engine control unit 55568896 require coding?
Yes, the VIRGIN version requires programming and adaptation to the vehicle using proper diagnostic equipment.
What is the difference between 0281015212 and other 1.9 TiD units?
Model 0281015212 supports the Twin Turbo (TTiD) 180 HP version, while lower-powered 1.9 TiD 120/150 HP variants use different software and Bosch numbers.
Can 55568896 be installed as plug & play?
No, a VIRGIN unit requires prior VIN programming and immobilizer synchronization.
