28646150 / 9831983280 – condition, matching and programming

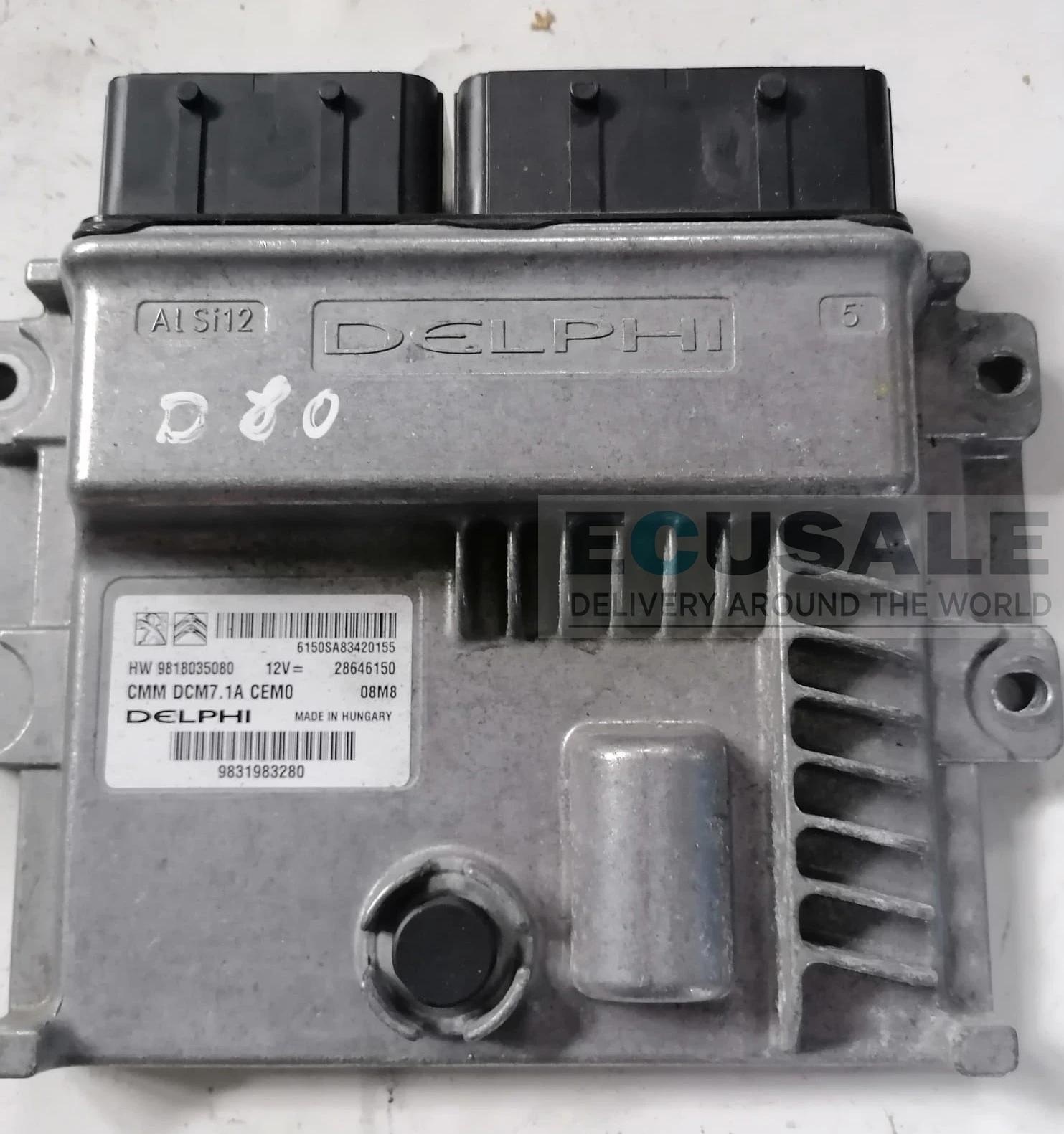

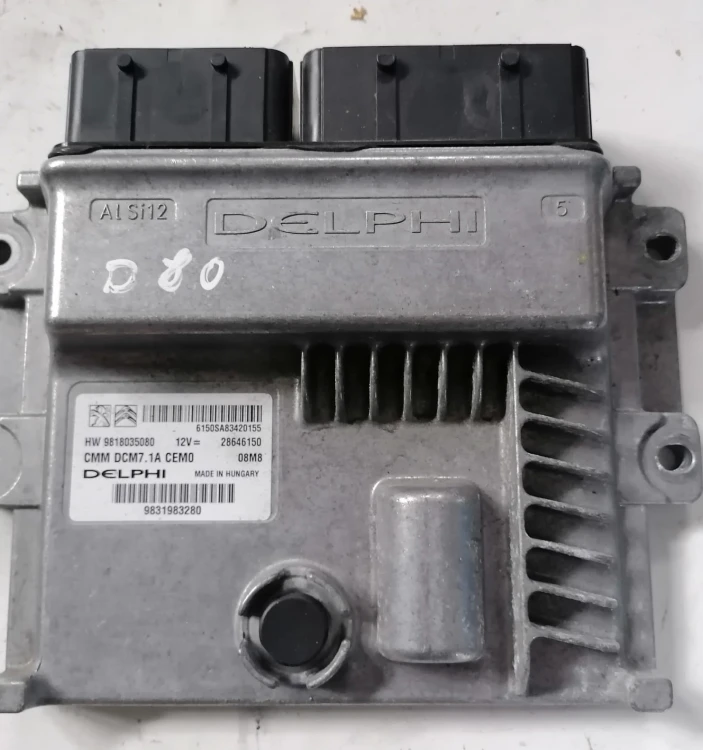

Numbers on the label
On the label of your old ECU find the Delphi number and the PSA number – both must match:
- Delphi number: 28646150
- PSA number: 9831983280
- ECU type: Delphi DCM7.1A
Other Delphi numbers for these vehicles: 28555221 / 9692366180, 28632401 / 9693085580, 42003306 / 9836164980, 28667344 / 9831731680.
Possible symptoms of a faulty ECU
- the engine does not start, no injector control,
- no communication with the ECU during diagnostics,
- no power supply to the ECU although the fuses are fine,
- failure after water ingress or a short circuit in the wiring.
These symptoms can also have other causes – wiring, power supply or sensors. Run a diagnosis before buying.
How to get the ECU running in the vehicle
ECU 28646150 is not Plug & Play. After fitting it must be programmed online in the vehicle via the manufacturer server (in Fiat vehicles – witech 2.0). We do not offer it as Virgin or IMMO OFF.
Checked before shipping
- condition: used,
- type: Delphi DCM7.1A,
- checked before shipping.
Warranty and services
Warranty: 6 months. Instead of online programming we can – at extra cost – clone the data from your ECU on the bench with KESS3 or Flex; just send it to us.
The full range for these vehicles is in the Fiat, Peugeot and Citroën categories, and all ECUs of this brand are on the Delphi page.
FAQ: Delphi DCM7.1A 28646150
Does ECU 28646150 fit my Ducato, Boxer or Jumper?
Check the label: Delphi number 28646150 and PSA number 9831983280. If they match, the ECU fits.
|
Is ECU 28646150 Plug & Play?
No. After fitting it requires online programming via the manufacturer server, in Fiat vehicles via witech 2.0. We do not offer it as Virgin or IMMO OFF.
|
What type of ECU is it?
Delphi DCM7.1A. When choosing, compare the Delphi and PSA numbers on the label.
|
