476600047R / 000403166D1 – what the set includes
We sell the whole ATE ABS module for Renault Laguna III, not just the pump: the hydraulic block and the ABS control unit form one unit. The label numbers are 476600047R (pump) and 000403166D1 (control unit).
Used, after a workshop test: electronics and hydraulics checked on a test machine, together with a pressure test.
Where this number was used
Confirmed application: Renault Laguna III. Before buying, compare the pump and control unit numbers with the label of your module, because the number decides the match.
See also
Same car model, different pump and module numbers – the number on your pump label decides which one fits: 476602071R / 28561078023.
Is coding needed?
That depends on the car and the pump type – not every pump needs coding or adaptation with a tester. Bleeding the brake system after fitting, however, is always necessary.
Failure symptoms
- ABS and/or ESP light is on,
- pump motor, valve or control unit supply faults,
- no communication with the ABS control unit,
- one wheel brakes less or locks.
The same symptoms can come from a faulty wheel speed sensor, ABS ring or wiring, so run diagnostics before buying. More information: ABS pump failure – symptoms and refurbishment.

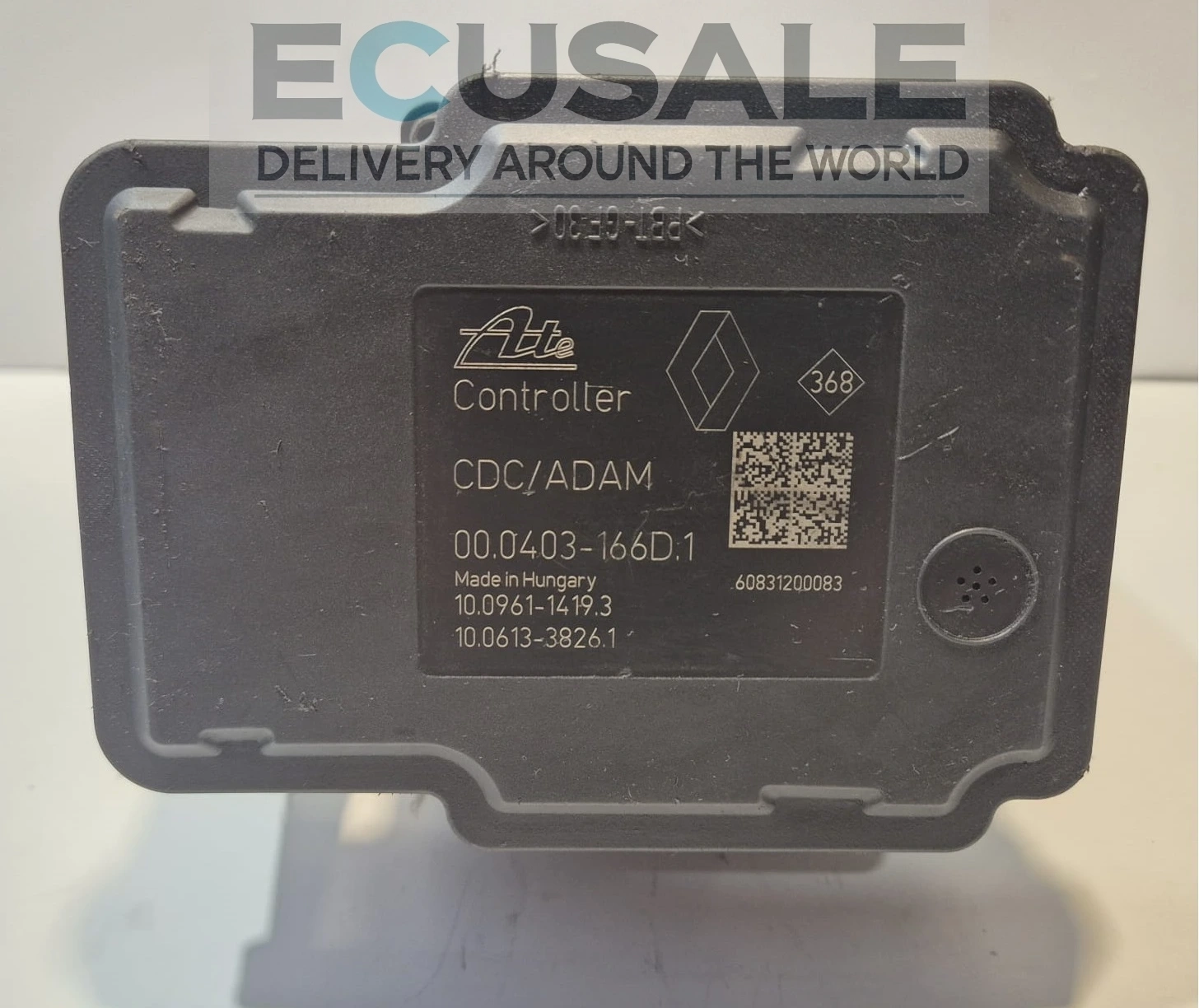

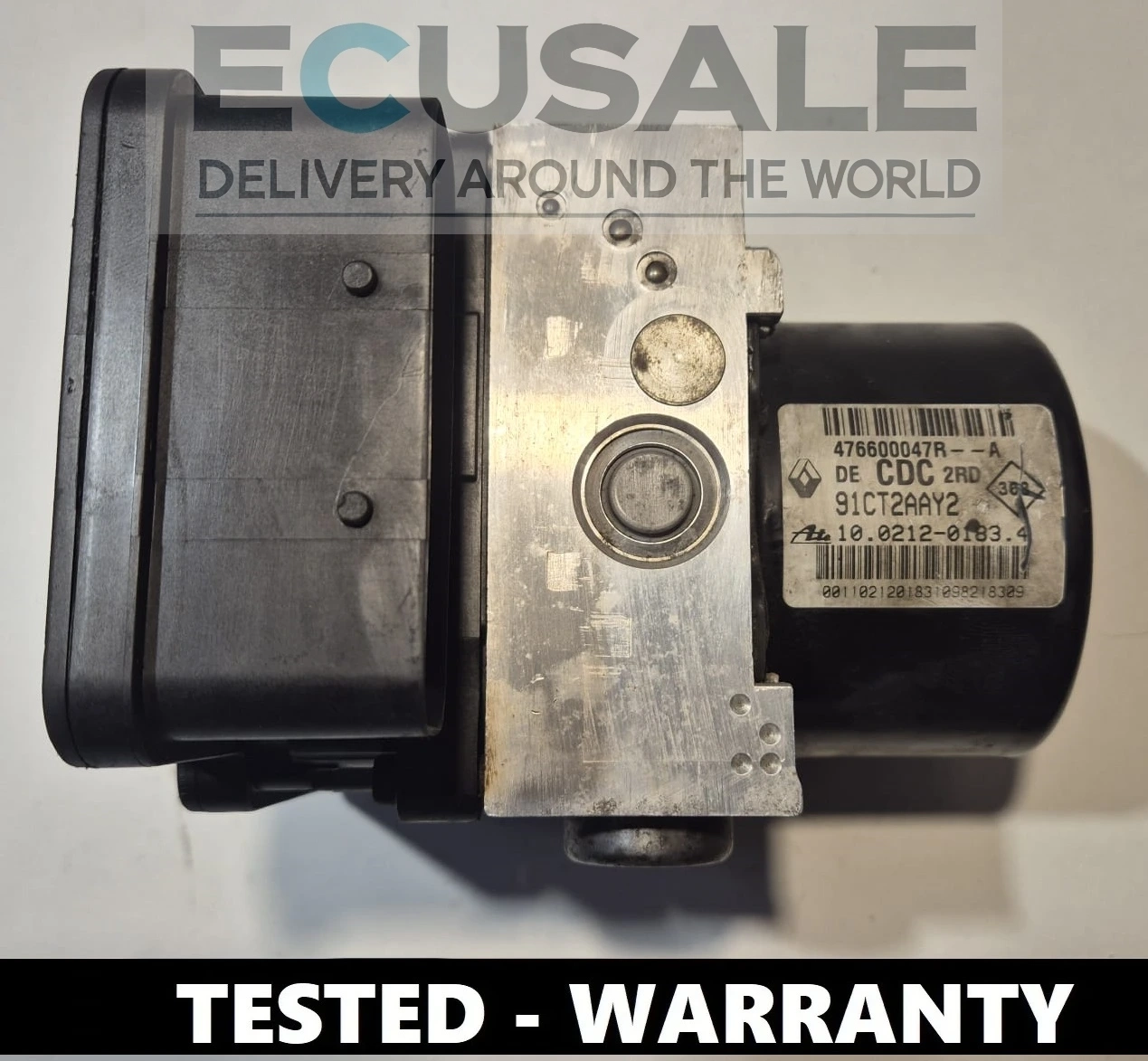

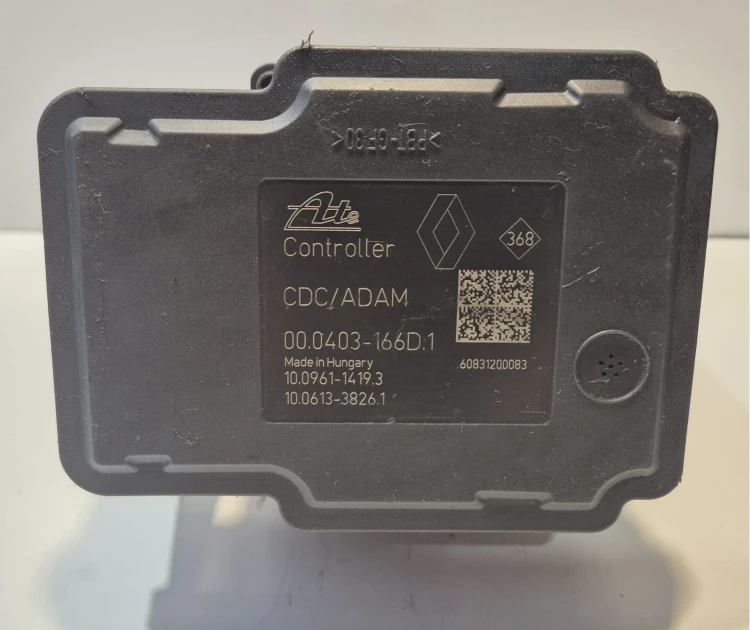

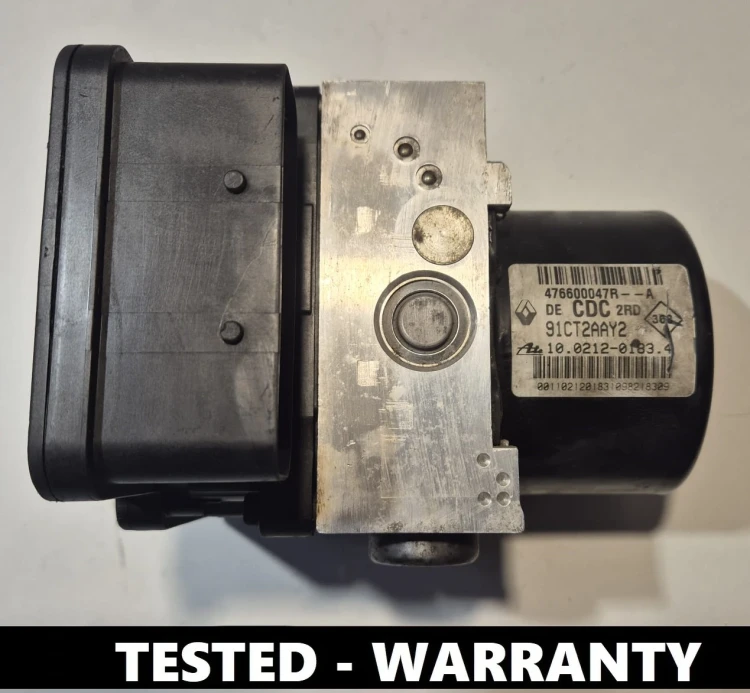

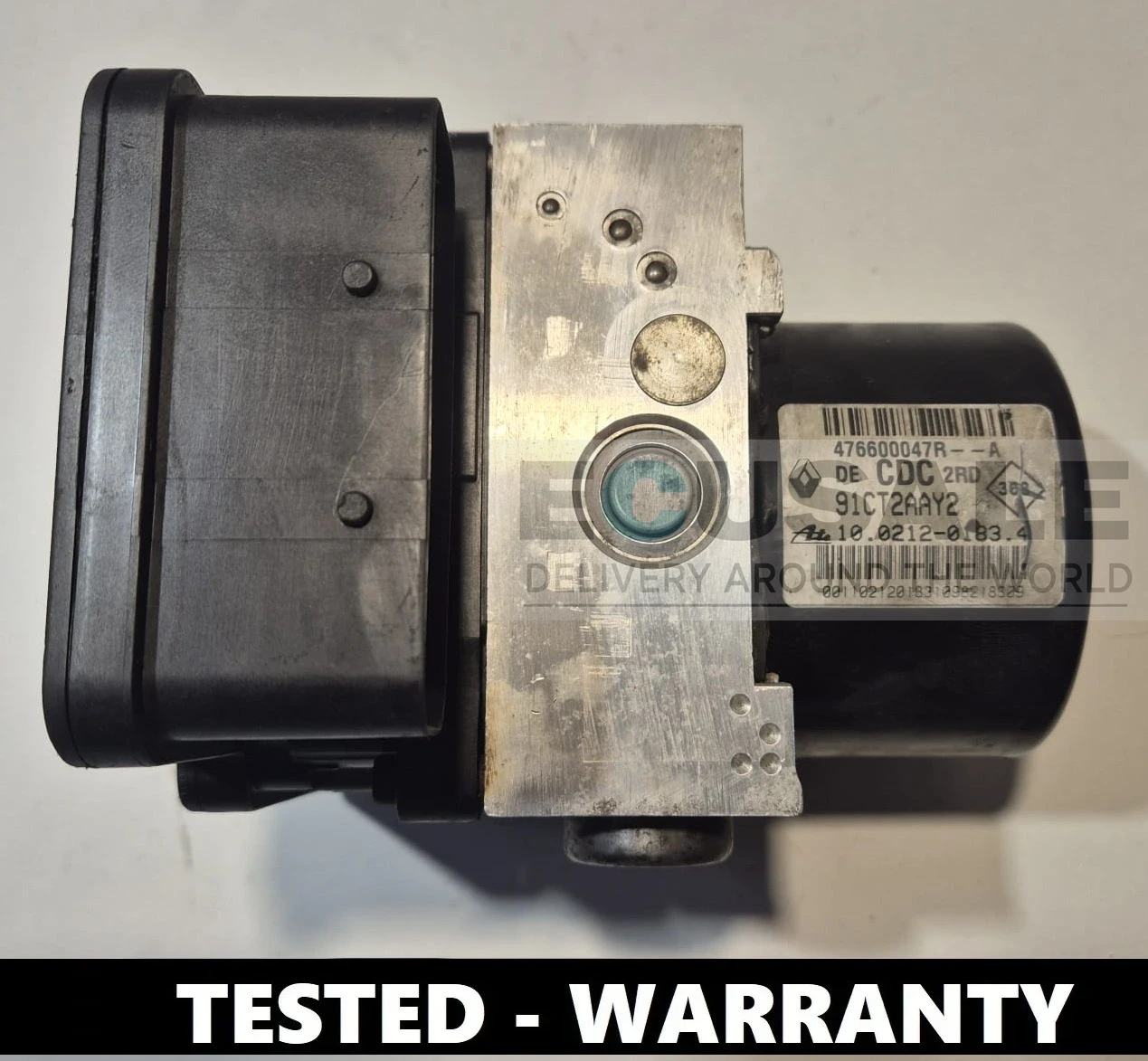

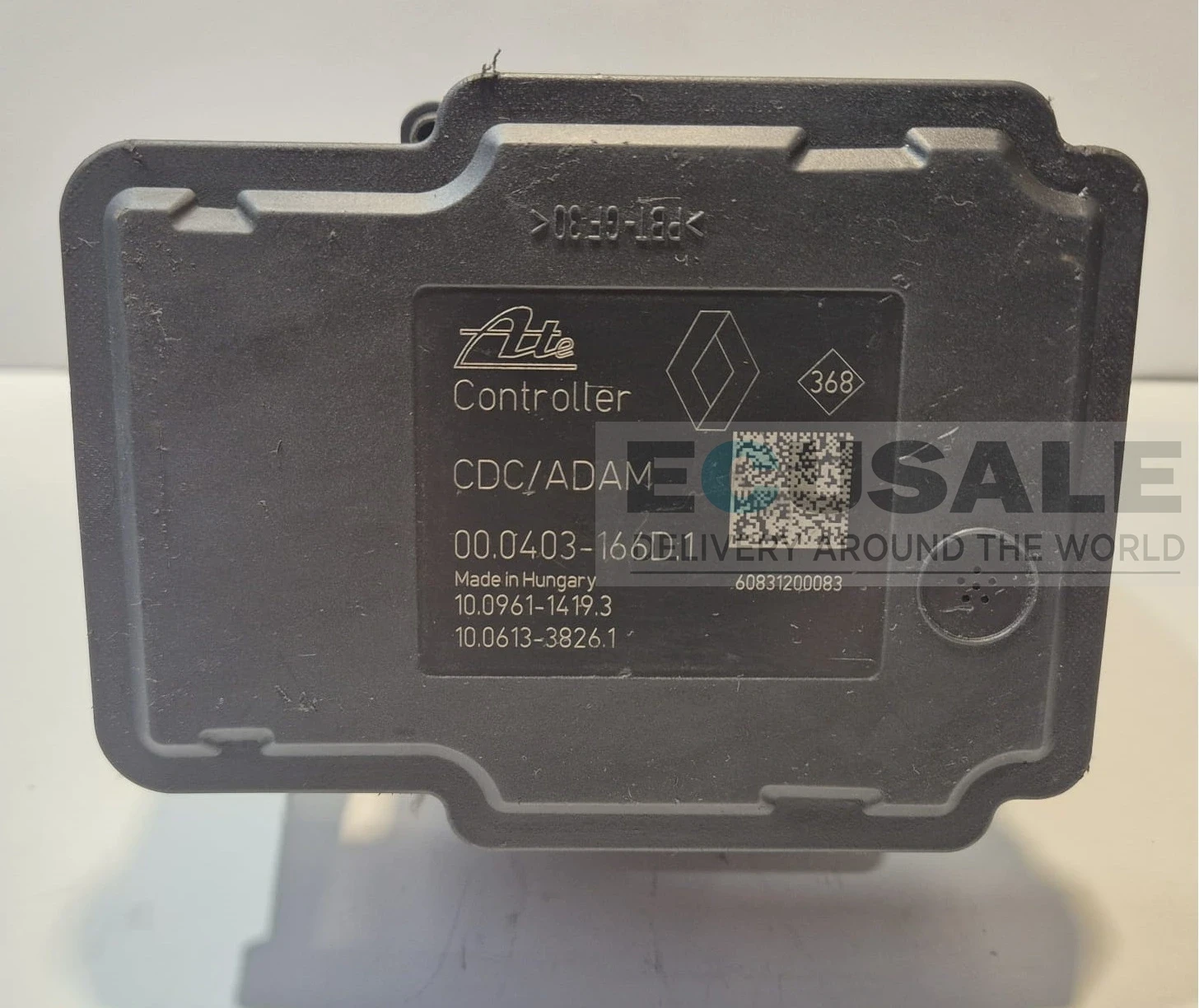

Label – pump and control unit numbers
| Marking | Number (different formats) |
|---|
| Pump number (OEM) | 476600047R / 91CT2AAY2 |
| Hydraulic block / pump – manufacturer number | 10.0212-0183.4 / 10021201834 |
| ABS control unit – manufacturer number | 00.0403-166D.1 / 000403166D1 |
Warranty and other pumps
The warranty is 6 months. Other ABS pumps are in the Renault ABS Pumps category. If you are unsure about compatibility, send a photo of the label – we will compare the numbers.
Frequently asked questions: pump 476600047R
| Question |
Answer |
| How can I check that 476600047R fits my car? |
The numbers on the label of your module must match: pump 476600047R, control unit 000403166D1. Application: Renault Laguna III. |
| Does pump 476600047R need adaptation with a tester? |
Not always – it depends on the car and the pump version. Bleeding the brake system is necessary in every case. |
| Does ABS pump 476600047R have a warranty? |
Yes – 6 months. |
| How do you check the pump before dispatch? |
We test the electronics and hydraulics on a test machine, including a pressure test. |
