ABS pump 476606264R with control unit 000405104E0

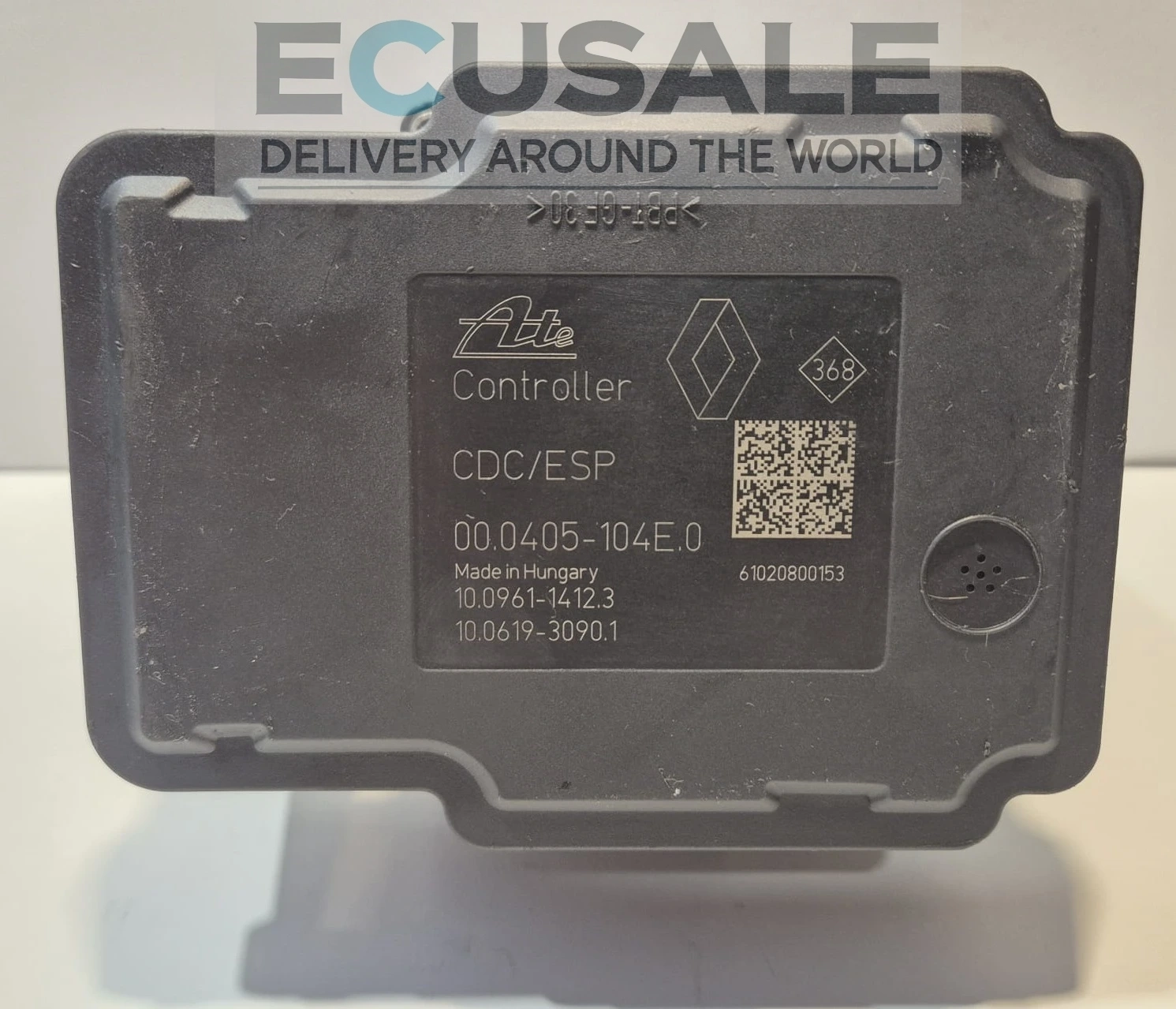

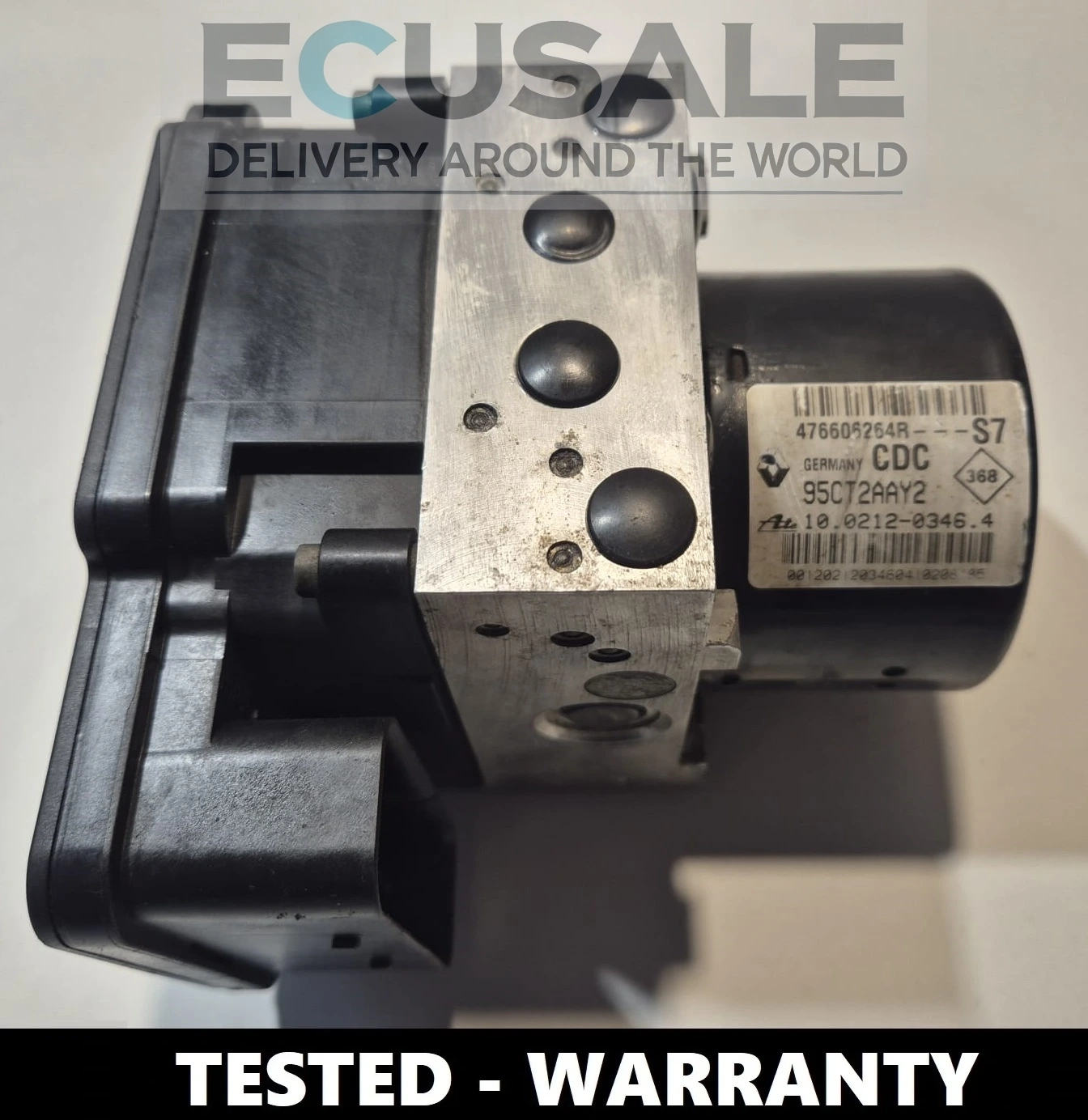

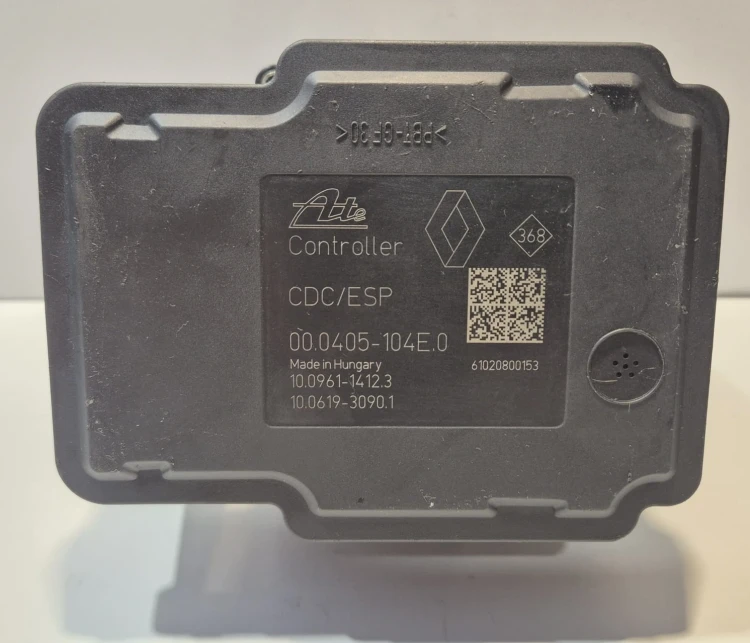

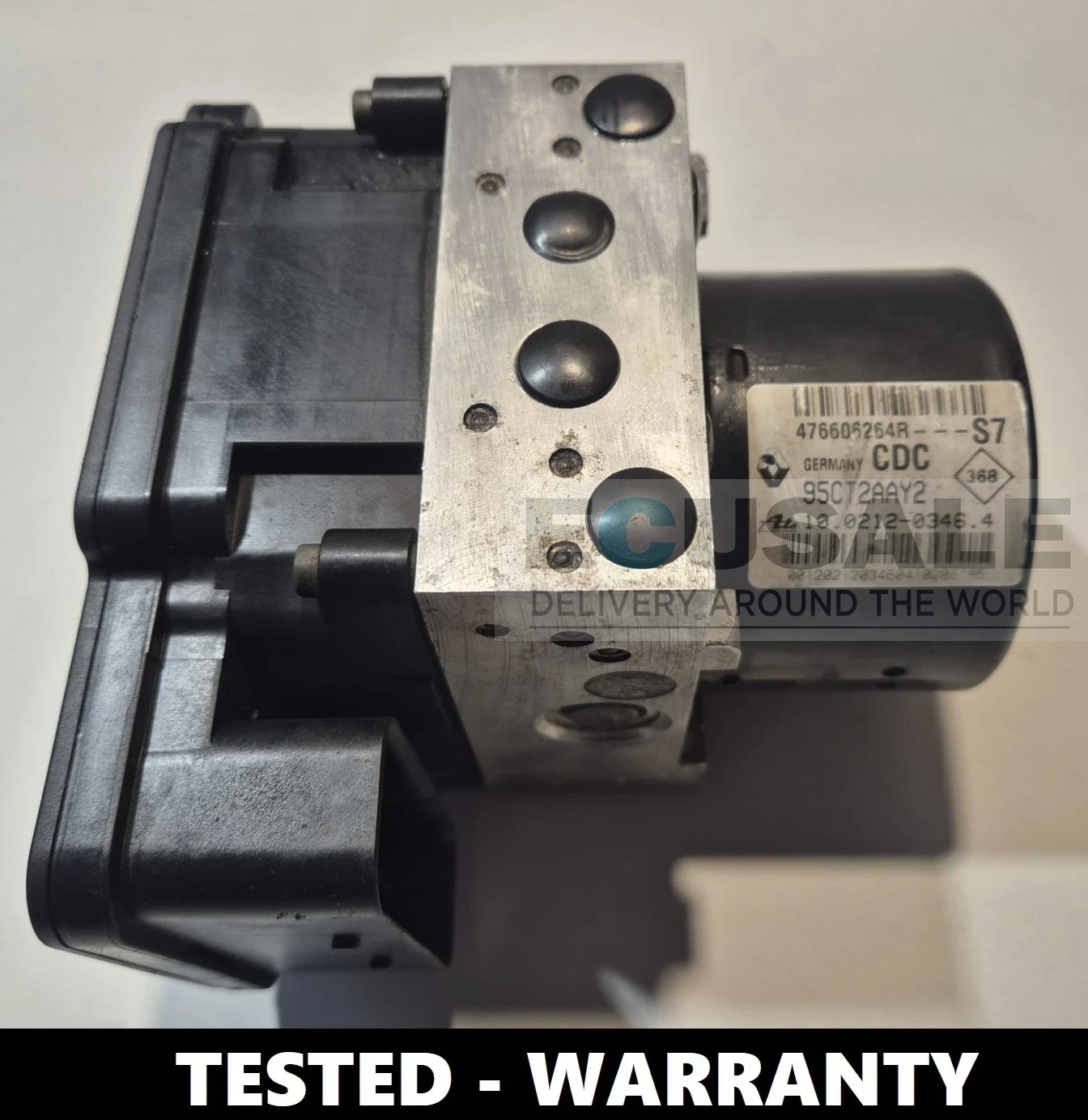

Complete ATE ABS pump for Renault Mégane III: the set includes the hydraulic block (pump) and the ABS control unit – hydraulics and electronics in one module. The label shows the numbers 476606264R and 000405104E0.
This is a used unit. In our workshop we test it on a machine: electronics, hydraulics and pressure.
Fitting and coding
After fitting, the brake system must be bled. Whether coding or adaptation with a diagnostic tool is needed depends on the car and the pump type – not every pump requires it.
When ABS pump 476606264R may be faulty
- the ABS or ESP light (or both) is on,
- pump motor, valve or ABS control unit supply faults are stored,
- the tester cannot connect to the ABS control unit,
- one of the wheels brakes less or locks.
Before buying a pump, run diagnostics – the ABS light often comes on because of a wheel speed sensor, the ABS ring or the wiring. Details: ABS pump failure – symptoms and refurbishment.
Application
Confirmed application: Renault Mégane III. The pump is always matched by the number – compare the pump and control unit numbers with the label of your module.
Other pump numbers
Same car model, different pump and module numbers – the number on your pump label decides which one fits: 476602272R / 28561258023.
Numbers to compare
| Marking | Number (different formats) |
|---|
| Pump number (OEM) | 476606264R / 95CT2AAY2 |
| Hydraulic block / pump – manufacturer number | 10.0212-0346.4 / 10021203464 |
| ABS control unit – manufacturer number | 00.0405-104E.0 / 000405104E0 |
Warranty
Warranty on the pump: 6 months. Not sure it fits? Send a photo of the label and we will check the numbers. More ABS pumps: Renault ABS Pumps.
476606264R / 000405104E0 – common questions
| Question |
Answer |
| The ABS light is on – is it definitely the pump? |
Not necessarily. A wheel speed sensor, the ABS ring or the wiring is often to blame, so run diagnostics before buying. |
| Does pump 476606264R need adaptation with a tester? |
Not always – it depends on the car and the pump version. Bleeding the brake system is necessary in every case. |
| How can I check that 476606264R fits my car? |
The numbers on the label of your module must match: pump 476606264R, control unit 000405104E0. Application: Renault Mégane III. |
| How do you check the pump before dispatch? |
We test the electronics and hydraulics on a test machine, including a pressure test. |
| Does ABS pump 476606264R have a warranty? |
Yes – 6 months. |
