How to choose ECU 51854481 MJD 6F3.PL

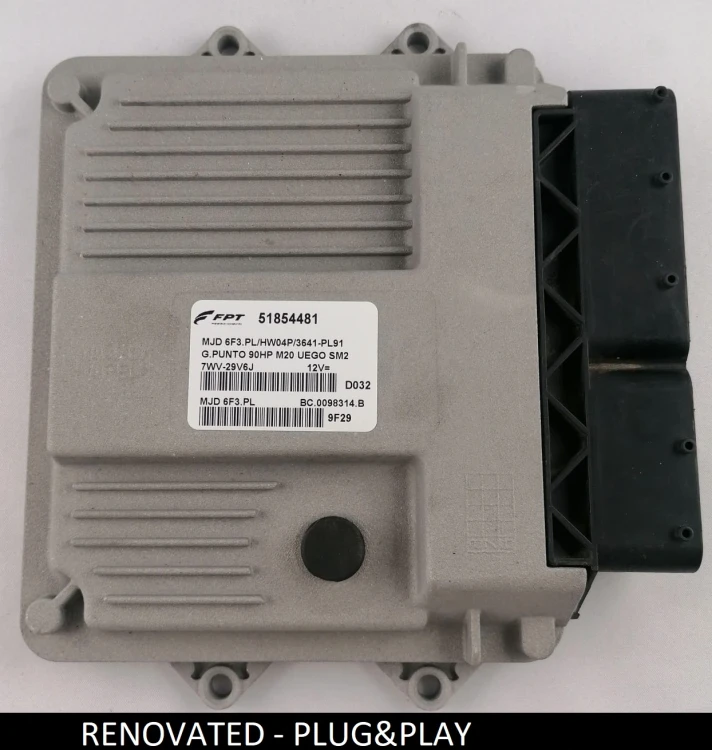

This is a working Magneti Marelli MJD 6F3.PL engine control unit with part number 51854481, for the Fiat 1.3 Multijet. The unit is tested before dispatch. The housing has been refurbished – the electronics have not been repaired.
What we check before dispatch
We first test ECU 51854481 on the bench and then fit it to our test car. Only a working unit is shipped. For an extra charge we carry out EGR OFF and DPF OFF. The warranty is 6 months.
Numbers to compare with your label

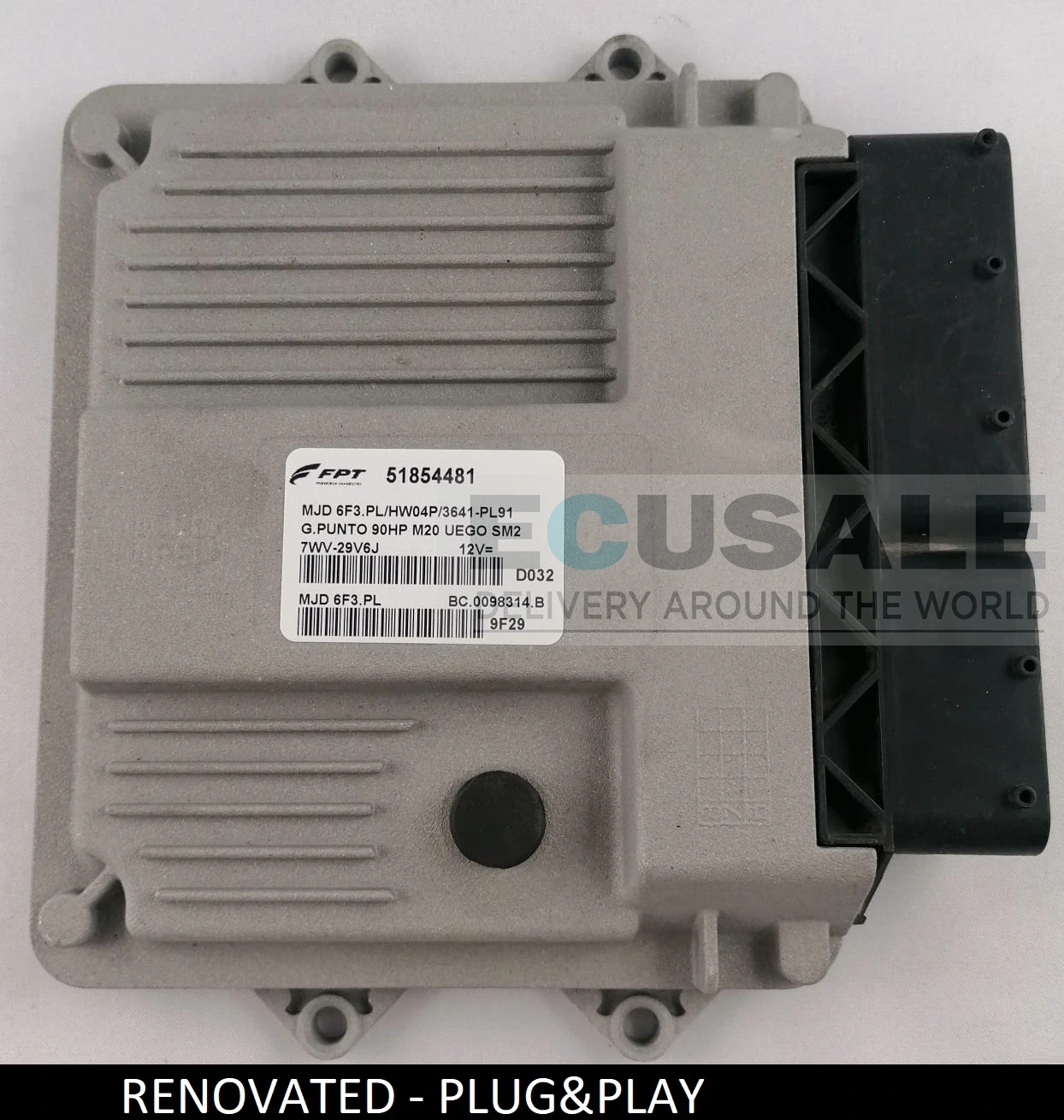

The housing of the original ECU carries a sticker with its numbers. On this unit they are:
- Part number: 51854481
- ECU type: Magneti Marelli MJD 6F3.PL / MJD6F3.PL
- Hardware version: HW04P
Typical symptoms of a faulty MJD 6F3.PL ECU
A damaged ECU can stop the engine from starting because the injectors receive no signal. The tester then cannot connect to the unit, and a measurement may show no power at the ECU despite good fuses. The failure can follow water ingress or a short circuit in the wiring.
The same symptoms can, however, come from a fault in the harness, power supply or sensors, so run a diagnosis before buying.
Coding to the immobiliser
- Virgin: the ECU codes itself after fitting – no programming, with a matching part number and a working immobiliser.
- IMMO OFF (on request): the car drives, but a red immobiliser warning is shown on the dashboard and a fault stays in diagnostics that cannot be cleared without pairing with the immobiliser.
- We recommend Virgin, as it leaves no fault.
Does this ECU fit your car?
MJD 6F3.PL units went into Fiat vehicles with the 1.3 Multijet engine. The model and year alone are not enough. Look at the label of your ECU: if it shows number 51854481 and type MJD 6F3.PL, it is the same version. A different part number is a different ECU.
If your ECU has a different part number, check 51832295 MJD 6F3.H7, 51839149 MJD 6F3.H3, 51843363 MJD 6F3.PN, 51847818 MJD 6F3.H2 or the whole Fiat engine ECU category. About the manufacturer: FPT.
Common questions about ECU 51854481 MJD6F3.PL
How do I know that 51854481 will fit?
Check the sticker on your ECU. If it shows number 51854481 and type MJD 6F3.PL and hardware version HW04P, it is the same version. The car model and year alone are not enough.
|
Should I choose Virgin or IMMO OFF?
We recommend Virgin. IMMO OFF lets you drive, but leaves a red immobiliser warning on the dashboard and a fault in diagnostics that you cannot clear without pairing with the immobiliser.
|
Can I order extra services for ECU 51854481?
Yes, for an extra charge we carry out EGR OFF and DPF OFF. These options are done on request before dispatch.
|
What is the warranty on ECU 51854481?
The warranty is 6 months. Before dispatch, the ECU passes a bench test and a test in our test car.
|
