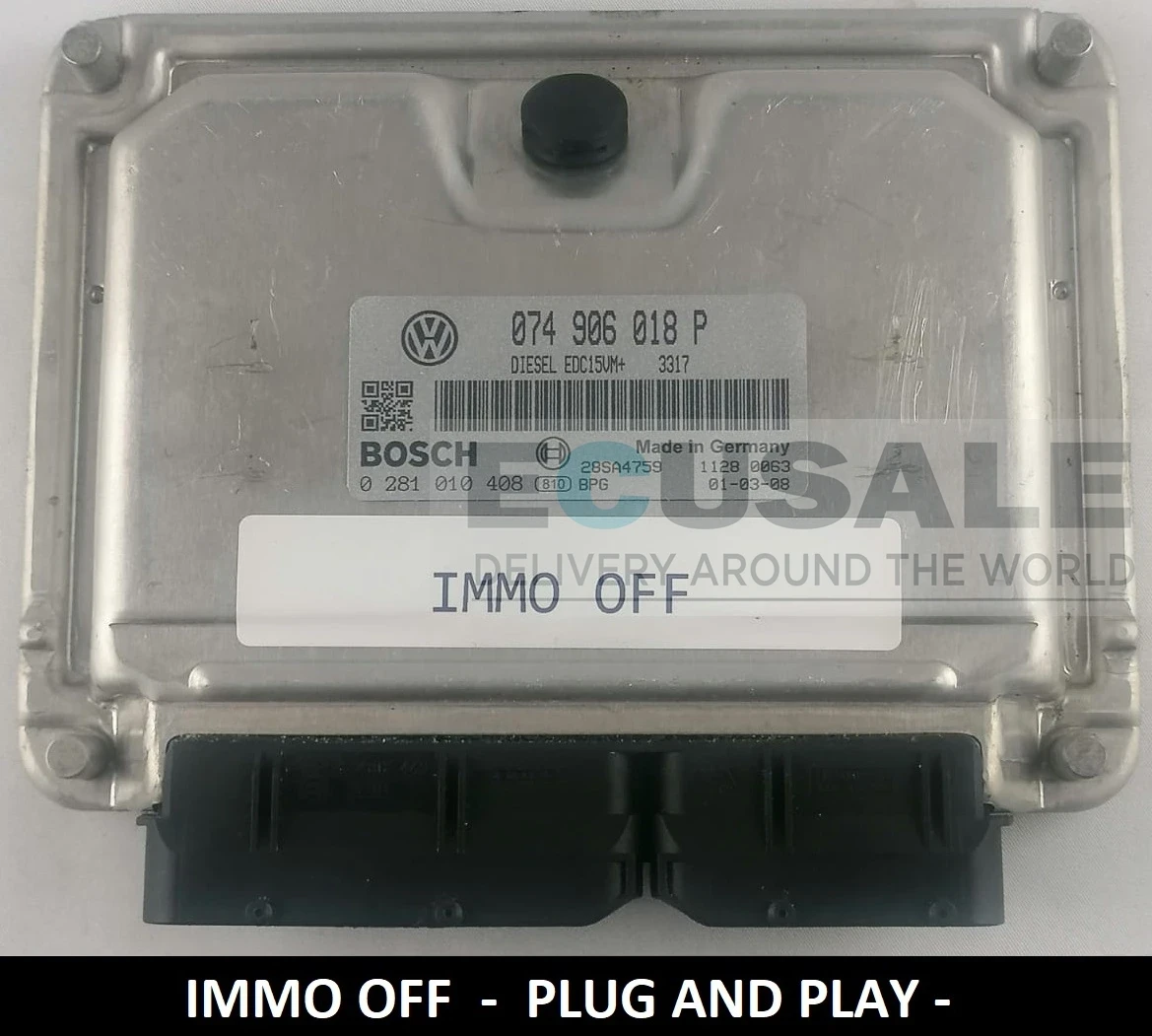

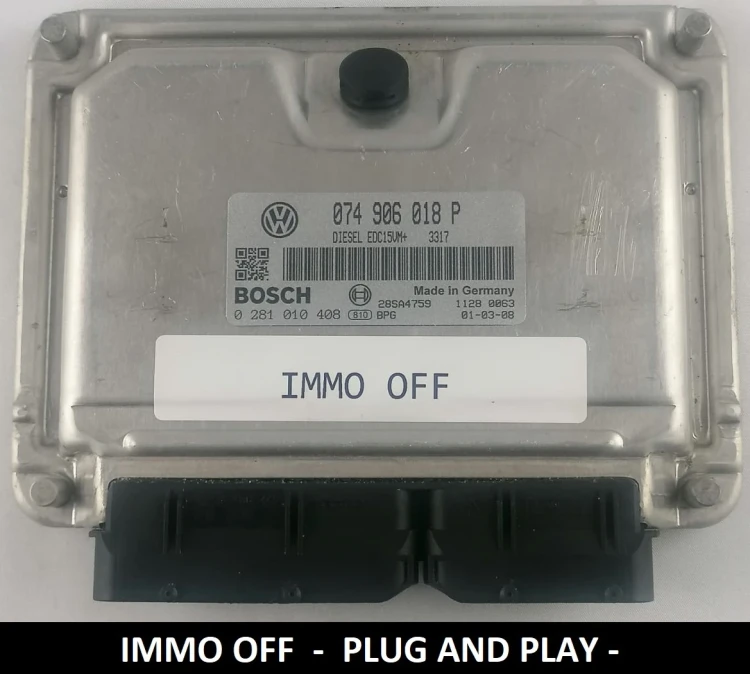

0281010408 / 074906018P – IMMO OFF PLUG&PLAY | ECU ENGINE CONTROLLER VW T4 / VW LT 2.5 TDI
ECU ENGINE CONTROLLER 0281010408 with manufacturer number 074906018P is a fully prepared unit intended for vehicles with the 2.5 TDI engine. The offered unit has been professionally checked and configured in IMMO OFF mode, which means that it works in the PLUG&PLAY system – without programming and without immobilizer adaptation.
The unit is ready for immediate installation. After connecting it to the vehicle wiring, the engine starts without the need to code keys, synchronize with the instrument cluster or use a diagnostic tester. A solution particularly recommended in the case of a damaged immobilizer, lack of communication with the ECU or adaptation problems.
Technical specification
- Bosch number: 0281010408
- VW OE number: 074906018P
- Injection system: Bosch EDC15VM+
- Engine: 2.5 TDI (R5)
- Condition: fully checked and tested
- Configuration: IMMO OFF – PLUG&PLAY
- Warranty: written
Compatibility – which models does 0281010408 / 074906018P fit?
The engine controller was used in Volkswagen Group vehicles with a 5-cylinder 2.5 TDI diesel engine.
Vehicle models:
- Volkswagen Transporter T4 2.5 TDI (approximately 1998–2003)
- Volkswagen LT 2.5 TDI (approximately 1999–2006)
Typical 2.5 TDI R5 engine codes:
The 074906018P version was used in power variants from approximately 88 HP to 151 HP depending on vehicle configuration. Full compatibility should be confirmed by the part number from the ECU housing – 0281010408 or 074906018P.
Typical symptoms of damage to controller 0281010408
- Unable to start the engine
- Immobilizer light flashes or stays on constantly
- No diagnostic communication with the ECU
- Engine stalls after 1–2 seconds
- Internal controller errors
- Problems after flooding or wiring short circuit
What does IMMO OFF mean in 074906018P?
The IMMO OFF version means that the immobilizer function has been deactivated in the engine controller by software. Thanks to this:
- Key coding is not required
- There is no need to synchronize the ECU with the instrument cluster
- PIN or online coding is not needed
- Installation is carried out in PLUG&PLAY mode
This solution is particularly effective in vehicles where the immobilizer system is damaged or unstable.
FAQ – Most frequently asked questions about 0281010408 / 074906018P
Does controller 0281010408 fit VW T4 2.5 TDI ACV from 2001?
Yes, if the ECU number in your vehicle is 0281010408 or 074906018P. Compatibility should always be confirmed by the part number.
Volkswagen LT 2.5 TDI 2004 – does 074906018P require programming?
No. The offered IMMO OFF version works without adaptation and without coding – installation is PLUG&PLAY type.
Will 0281010408 work in T4 2.5 TDI AXG 151HP?
Yes, provided that the controller number matches. AXG is one of the typical engines supported by this ECU version.
I have a VW Transporter T4 2.5 TDI 102HP – is number 074906018P suitable?
If your original controller has the number 074906018P, the unit will be fully compatible.
Will the ECU ENGINE CONTROLLER 0281010408 IMMO OFF start the car without immobilizer?
Yes. The immobilizer function has been deactivated, so the engine starts without synchronization with the immobilizer system.
Does 074906018P fit VW LT 35 2.5 TDI with AUF engine?
Yes, AUF is one of the supported engine codes – the key point is to confirm the ECU number.
0281010408 in Volkswagen T4 2.5 – what if I have no communication?
Lack of communication most often means electronic damage. Replacement with a tested IMMO OFF controller solves the problem without the need for adaptation.
0281010408 / 074906018P is a proven solution for Volkswagen T4 and Volkswagen LT 2.5 TDI in the case of immobilizer problems or a damaged original ECU. Install it – start it – drive.
