Control unit 55252680 / CFC328F.13 – description
We sell a used, original Magneti Marelli control unit for an automated manual gearbox. Before we ship it, we check it on a test bench. When choosing, compare numbers 55252680 and CFC328F.13 first.
Similar numbers
We also stock: 55271242 / CFC328F.13, 51840322 / CFC328F.02, 51900169 / CFC328F.16, 55250921 / CFC328F.02, 51864449 / CFC328F.05. Choose the one whose number matches the label of your unit.
Vehicle compatibility
This unit is selected by numbers only: 55252680 and CFC328F.13 must be the same as on your original unit, because a different ending of the number means a different version. Intended for Fiat group cars (Fiat numbering); we do not list models, as they have not been confirmed.
When to suspect the gearbox control unit?
A faulty gearbox control unit can cause these symptoms:
- no communication with the gearbox control unit in diagnostics,
- the gearbox goes into limp mode,
- jerking when pulling away or changing gear.
The same symptoms can come from the clutch or gear-shift actuator – run a gearbox diagnosis before you buy the control unit.

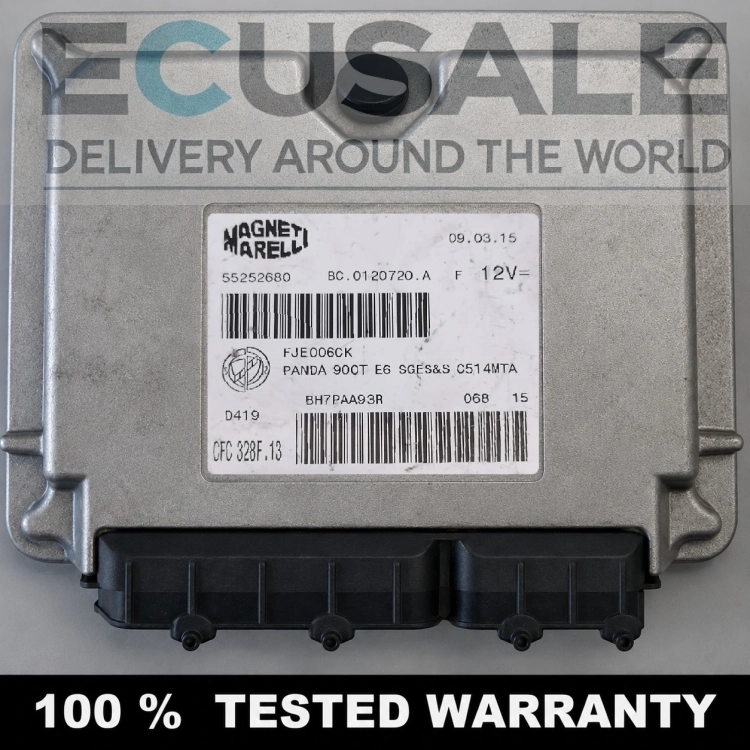

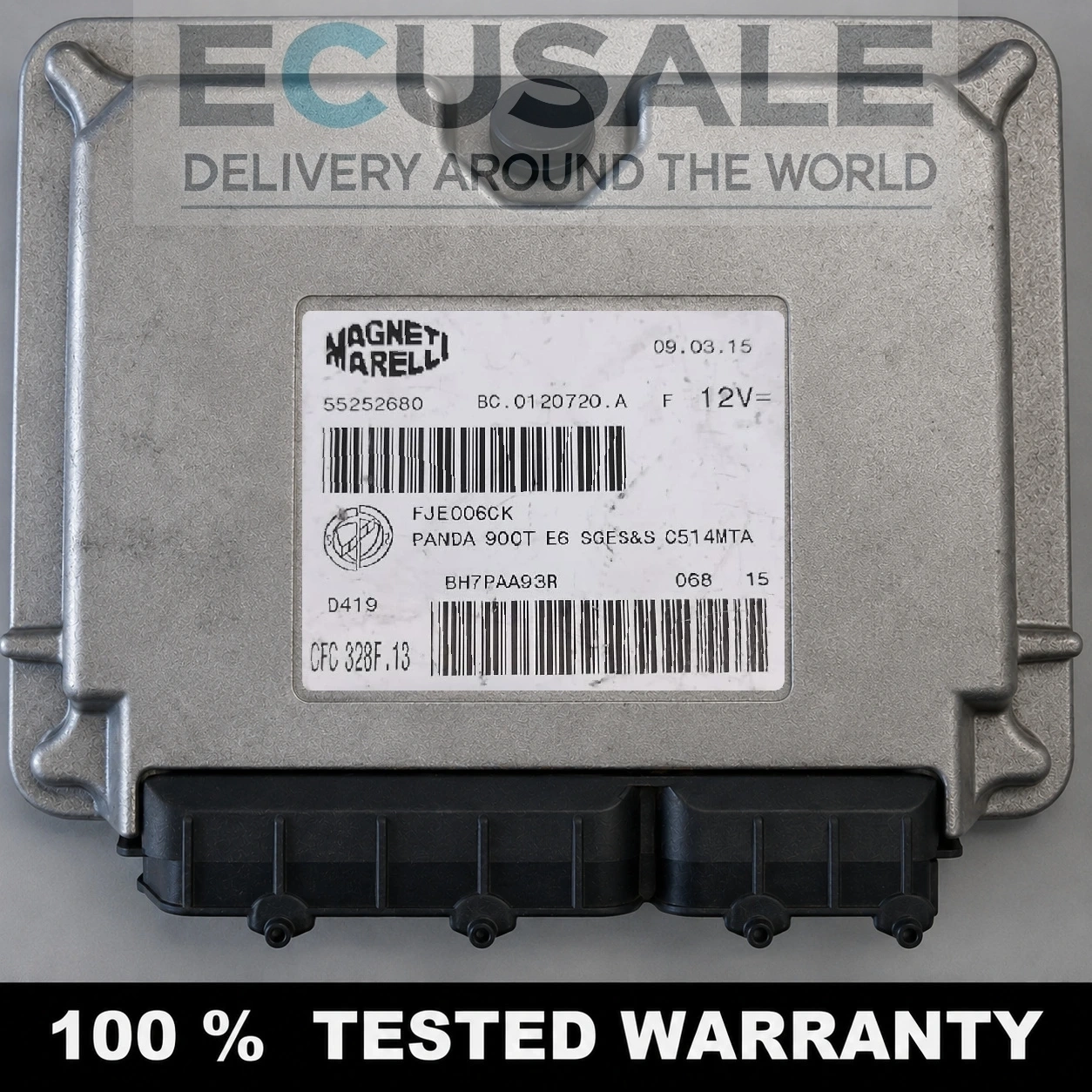

Label – numbers and formats
| Label | Number (different formats) |
| Fiat number | 55252680 |
| BC code | BC.0120720.A / BC0120720A |
| Control unit type | CFC328F.13 / CFC328F13 |
| Label code | FJE006CK |
We list the numbers in several formats – the way they are printed on labels and typed into search engines.
Does it need programming?
No – control unit 55252680 does not need programming. The numbers on the label just have to match your unit.
Warranty and contact
The control unit comes with a warranty: 6 months. More control units: Fiat Transmission Control Units (TCU). Question about a number? Contact us.
55252680 – frequently asked questions
| Question |
Answer |
| Does 55252680 need coding or programming? |
No programming is needed. |
| How does an automated manual gearbox differ from an automatic? |
It is a conventional gearbox with a clutch – gear changes and the clutch are operated by electronically controlled actuators. It has no torque converter like an automatic. |
| Why do you not list models for 55252680? |
Because they have not been confirmed for this number. It is a control unit for Fiat group cars (Fiat numbering) – choose it by the label numbers. |
| How do I know that 55252680 will fit? |
The label of your unit must show the same numbers: 55252680 and CFC328F.13, including the ending. |
