Automatic Transmission Control Module – Common Symptoms, Diagnostics and Repair Without Replacing the Entire Gearbox
The automatic transmission control module is one of the key electronic components responsible for the correct operation of an automatic gearbox. Depending on the vehicle manufacturer, it may be referred to as a TCM, TCU, EGS, VGS, ISM, transmission module or automatic gearbox controller.
A faulty transmission control unit can often mimic the symptoms of a serious mechanical gearbox failure. Before considering an expensive transmission rebuild, it is essential to check the electronic side of the system, including module communication and diagnostic data. In many cases, the issue is caused by the TCM or EGS module itself rather than the gearbox hardware.
At ECUSALE, we offer tested automatic transmission control modules for Mercedes, Fiat, Peugeot and Citroën vehicles.
What Are the Symptoms of a Faulty Automatic Transmission Control Module?
A failing gearbox controller can cause a wide range of issues depending on the vehicle and transmission type. In some cars, the problem appears as a complete loss of diagnostic communication, while in others the gearbox may stay stuck in one gear or even prevent the engine from starting.
Most Common Symptoms of a Faulty Transmission Control Module
- gearbox stuck in limp mode,
- unable to engage gears,
- no response in P, R, N or D positions,
- vehicle will not start or release the transmission lock,
- harsh or jerky gear changes,
- delayed shifting,
- transmission stuck in a single gear,
- flashing transmission warning light,
- “Transmission Fault” warning message,
- “Gearbox Malfunction” warning message,
- no communication with the transmission module,
- CAN communication faults between engine ECU and TCM,
- water or oil damage inside the module,
- start authorization or immobilizer issues.
In practice, the gearbox itself is often mechanically healthy, while the real issue is caused by a faulty TCM module or CAN communication failure.
Q&A – Faulty Transmission Control Module Symptoms
How can you tell if the automatic transmission control module is faulty?
The most common signs include limp mode, shifting problems, CAN communication errors, no communication with the module and engine start authorization issues.
Can a faulty transmission control module prevent the car from starting?
Yes. In many vehicles, the transmission controller is involved in the engine start authorization process. If the module loses communication, the vehicle may not start at all.
Can a faulty gearbox controller cause jerking during driving?
Yes. A damaged TCM or EGS module may cause incorrect gear changes, harsh shifting, delayed engagement or the gearbox remaining stuck in one gear.
Automatic Transmission Module Diagnostics – Most Common Fault Codes
A faulty automatic transmission controller often stores communication-related or gearbox operation fault codes. In many cases, the problem is electronic rather than mechanical.
Most Common TCM / EGS Fault Codes
A failing automatic transmission module frequently triggers communication and transmission operation errors.
- P0700 – transmission control system fault,
- U0101 – lost communication with TCM,
- U0121 – CAN communication fault,
- Transmission Fault,
- Gearbox Malfunction,
- limp mode activated,
- no communication with EGS or VGS module,
- gear selector related faults,
- engine start authorization errors.
Before replacing the entire transmission, it is important to check:
- module power supply,
- ground connections,
- CAN wiring,
- oil or water contamination inside the module,
- TCM diagnostic communication.
Which Automatic Gearboxes Commonly Suffer from TCM Failures?
Transmission controller failures can affect traditional automatic gearboxes, dual-clutch transmissions and semi-automatic systems alike.
Most Common Gearboxes with TCM Problems
- Mercedes 722.9 and 7G-Tronic,
- Fiat Dualogic,
- Opel Easytronic,
- Volkswagen DSG,
- Audi S-Tronic,
- Ford Powershift,
- Peugeot and Citroën MCP / BMP,
- ZF 6HP and 8HP,
- Renault DP0 and AL4,
- CVT and Multitronic transmissions.
Regardless of transmission type, the symptoms are often similar and may include shifting problems, limp mode, harsh gear changes or complete loss of drive.
Mercedes Transmission Control Modules – EGS, VGS, ISM and 7G-Tronic
One of the most popular categories includes Mercedes transmission control modules including ISM, EGS and TCM units. Mercedes vehicles use advanced electronic gearbox controllers responsible for communication between the transmission, engine ECU, immobilizer and safety systems.
Most Common Mercedes Transmission Modules
- EGS,
- VGS,
- ISM,
- 7G-Tronic,
- Continental transmission modules,
- Mercedes 722.9 controllers.
We frequently see failures in Mercedes 722.9 and 7G-Tronic modules caused by water damage, wiring faults or CAN communication issues.
Mercedes Models up to Around 2013 – VIRGIN / CLEAR Transmission Modules
In older Mercedes models produced up to approximately 2013, transmission modules can often be prepared in VIRGIN / CLEAR mode. This means the controller is reset and cleared from the previous vehicle data, allowing it to be adapted again using Star Diagnosis or Xentry.
This solution is significantly more cost-effective than purchasing a brand-new module from the dealership.
Mercedes Models After 2013 – Coding or Cloning Required
On newer Mercedes vehicles, simply resetting the controller is usually not enough. Most modules require online coding, SCN adaptation or cloning data from the original unit.
Cloning transfers immobilizer data and configuration from the old module to the replacement controller, allowing the vehicle to recognize it as the original unit.
Q&A – Mercedes Transmission Controllers
Can every Mercedes transmission module be prepared as VIRGIN?
No. VIRGIN versions mainly apply to older Mercedes models produced before around 2013. Newer modules typically require coding or cloning.
Does a Mercedes transmission module after 2013 work Plug & Play?
Usually not. Most newer systems require online coding or transferring data from the original controller.
What does a Mercedes VIRGIN transmission controller mean?
It is a reset and cleared module with no data from the previous vehicle, ready for adaptation to another car.

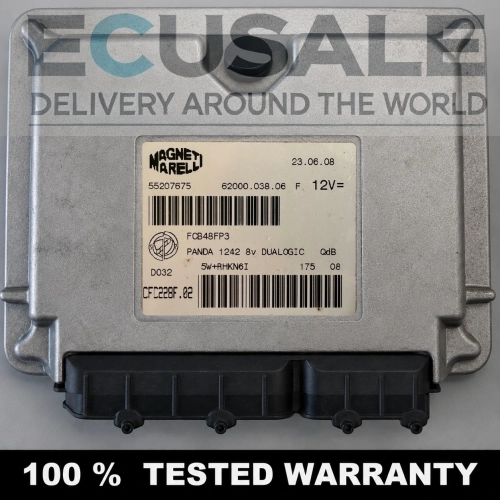

Fiat Transmission Controllers – Fiat 500, Panda and Dualogic
Another highly popular category includes Fiat automatic transmission control modules, especially for Fiat 500, Panda, Punto and Grande Punto models equipped with the Dualogic transmission.
Most Common Fiat Transmission Modules
- Magneti Marelli CFC300,
- CFC328,
- Dualogic transmission controllers,
- Fiat semi-automatic gearbox modules.
Common Symptoms of Fiat Transmission Module Failure
- Fiat 500 unable to engage gears,
- Fiat Panda stuck in neutral,
- flashing transmission warning light,
- loss of communication with the controller,
- gear selector issues,
- vehicle will not start.
Does a Fiat Transmission Controller Require Programming?
In many cases, Fiat transmission modules can be matched by part number and installed without complex programming. Correct part number compatibility is the key factor.
Q&A – Fiat 500 and Panda Gearbox Controllers
How do I choose the correct Fiat 500 transmission module?
The most important detail is the part number on the original module label. The same vehicle model may use several different controller versions.
Does Fiat Dualogic require adaptation after replacing the controller?
It depends on the module and gearbox version. In many cases, a matching part number is enough.
Which Fiat transmission controllers are most common?
The most popular units are CFC300 and CFC328 modules used in Fiat 500, Panda and Grande Punto models.
Peugeot and Citroën Transmission Modules – Compatible Replacement Controllers
PSA vehicles often use compatible Peugeot transmission modules and Citroën transmission modules.
In many cases, Peugeot and Citroën controllers are technically identical and can be installed without additional programming when the part number and software version match..
Most Common PSA Transmission Controllers
- Magneti Marelli MCP,
- BMP,
- CFC300,
- PSA semi-automatic gearbox controllers.
When Does a Peugeot or Citroën Transmission Controller Not Require Programming?
In many cases, a properly matched controller can be installed without additional coding. Matching part numbers and software versions are essential.
Common Symptoms of Peugeot and Citroën Transmission Module Failure
- gear shifting problems,
- gearbox stuck in limp mode,
- jerking during driving,
- CAN communication faults,
- loss of communication with the transmission module,
- transmission adaptation issues.
Q&A – Peugeot and Citroën Transmission Controllers
Can a Peugeot transmission module fit a Citroën?
In many cases, yes. Peugeot and Citroën often use identical modules, but the part number must always be verified.
Does a Peugeot transmission controller require programming?
Often no. If the part numbers match, the module may work as Plug & Play.
What are the symptoms of a faulty MCP or BMP controller?
The most common symptoms include shifting problems, limp mode, communication faults and gear selector issues.
Is It Worth Repairing an Automatic Transmission Controller?
In many situations, repairing or replacing only the transmission controller is significantly cheaper than rebuilding the entire gearbox. Very often, the problem is related to the TCM, EGS or ISM electronics while the transmission itself remains mechanically functional.
Most Common Services
- transmission controller cloning,
- TCM / EGS electronic repair,
- VIRGIN / CLEAR preparation,
- Plug & Play module replacement,
- transmission module programming and adaptation.
Many Mercedes models require online coding or SCN adaptation. In Fiat, Peugeot and Citroën vehicles, a matching part number is often sufficient.
How to Choose the Correct Automatic Transmission Controller
The most important details when selecting a transmission module are:
- full part number,
- manufacturer reference,
- gearbox model,
- vehicle year,
- engine type,
- photo of the original module,
- diagnostic fault codes.
The best approach is to send a photo of the original module label together with diagnostic fault codes. This helps ensure correct compatibility and avoids installation issues.
Q&A – Choosing a Transmission Control Module
Can I select a transmission controller based only on the car model?
No. The same vehicle model may use several different gearbox controllers. The part number is the most important detail.
Can two identical-looking transmission modules be different?
Yes. They may use different software versions, configurations or stored immobilizer data.
What information should I provide before buying a transmission controller?
Ideally, send a photo of the original module, VIN number, vehicle model and diagnostic fault codes.
Summary
A faulty automatic transmission controller does not always mean the entire gearbox needs an expensive rebuild. In many cases, the issue can be solved by replacing the module, preparing a VIRGIN version for older Mercedes models or cloning the original data.
For Fiat 500 and Panda models, matching the correct Dualogic part number is essential. In Peugeot and Citroën vehicles, many modules work without additional programming as Plug & Play solutions.
At ECUSALE, we offer tested TCM, EGS, VGS, ISM, Dualogic, MCP and BMP modules for Mercedes, Fiat, Peugeot and Citroën vehicles. We help customers select the correct controller based on part numbers, module photos and diagnostic data.
