ECU 55261325 – what to know

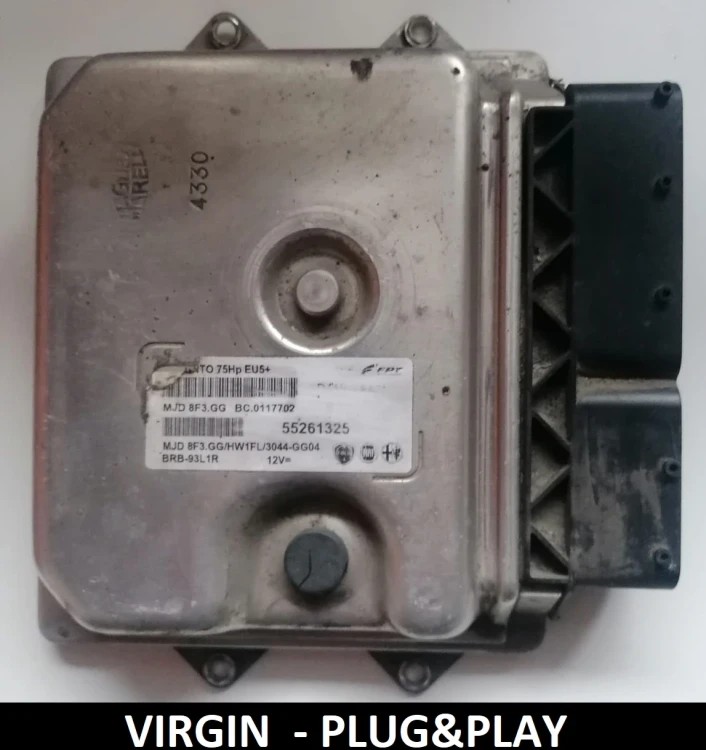

We offer a working MJD 8F3.GG unit (Magneti Marelli) with part number 55261325. It controls the engine of the Fiat Punto 1.3 Multijet. We test every unit before dispatch.
Numbers on the label
- Part number: 55261325
- ECU type: Magneti Marelli MJD 8F3.GG / MJD8F3.GG
Possible symptoms of a faulty ECU
- the engine does not start, no injector control,
- no communication with the ECU during diagnostics,
- no power supply to the ECU although the fuses are fine,
- failure after water ingress or a short circuit in the wiring.
These symptoms can also have other causes – wiring, power supply or sensors. Run a diagnosis before buying.
Choose by part number
This ECU was removed from a Fiat Punto 1.3 Multijet. We match these ECUs by part number only, because the version is decided by the number, not by the MJD 8F3.GG type alone. Number 55261325 on your label must match the number of this unit.
Preparation before dispatch
- Bench test.
- Fitting and check in our test car.
- On request, for an extra charge: chip tuning, EGR OFF and DPF OFF.
Instead of the Virgin version, we can also clone your old ECU at no extra cost – we then need the data from your current unit. Warranty on the ECU: 6 months.
Coding to the immobiliser
- Virgin: the ECU codes itself after fitting – no programming, with a matching part number and a working immobiliser.
- IMMO OFF (on request): the car drives, but a red immobiliser warning is shown on the dashboard and a fault stays in diagnostics that cannot be cleared without pairing with the immobiliser.
- We recommend Virgin, as it leaves no fault.
If your ECU has a different part number, check 55250632 MJD 8F3.Q1, 55246587 MJD 8F3.F6, 55260725 MJD 8F3.D4, 51908938 MJD 8F3.S2 or the whole Fiat engine ECU category. About the manufacturer: FPT.
Common questions about ECU 55261325 MJD8F3.GG
Is it enough to just fit ECU 55261325?
Yes, if the part number matches and the immobiliser works. After fitting, the Virgin version codes itself to the car and immobiliser, with no programming.
|
Should I choose Virgin or IMMO OFF?
We recommend Virgin. IMMO OFF lets you drive, but leaves a red immobiliser warning on the dashboard and a fault in diagnostics that you cannot clear without pairing with the immobiliser.
|
Do you offer chip tuning, EGR OFF and DPF OFF for this ECU?
Yes, these are paid extra options that we carry out on request before the ECU is shipped.
|
Can I clone my old ECU instead of the Virgin version?
Yes, cloning is included in the price of ECU 55261325. We need the data from your current unit.
|
