ECU 55260725 – what to know

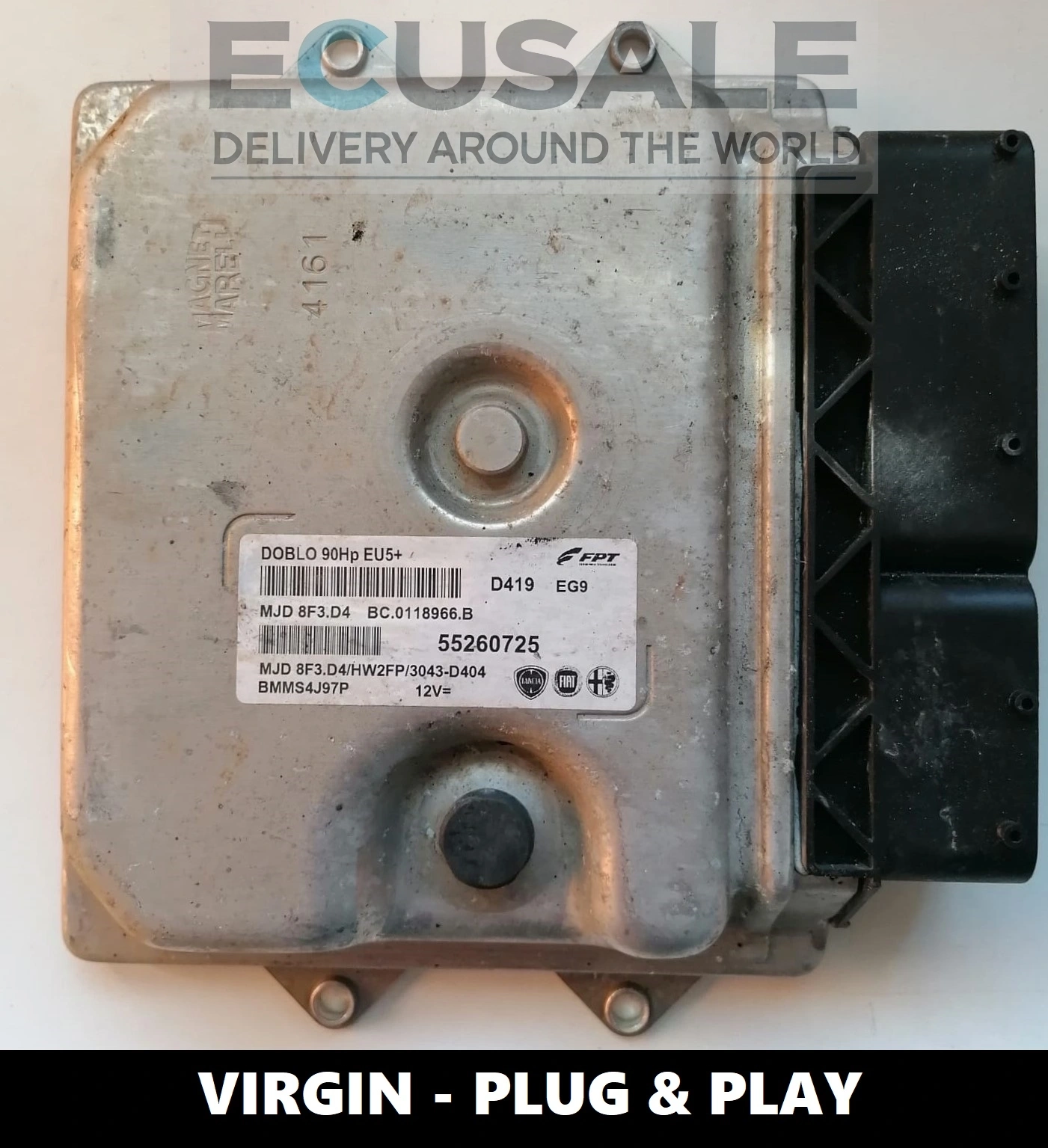

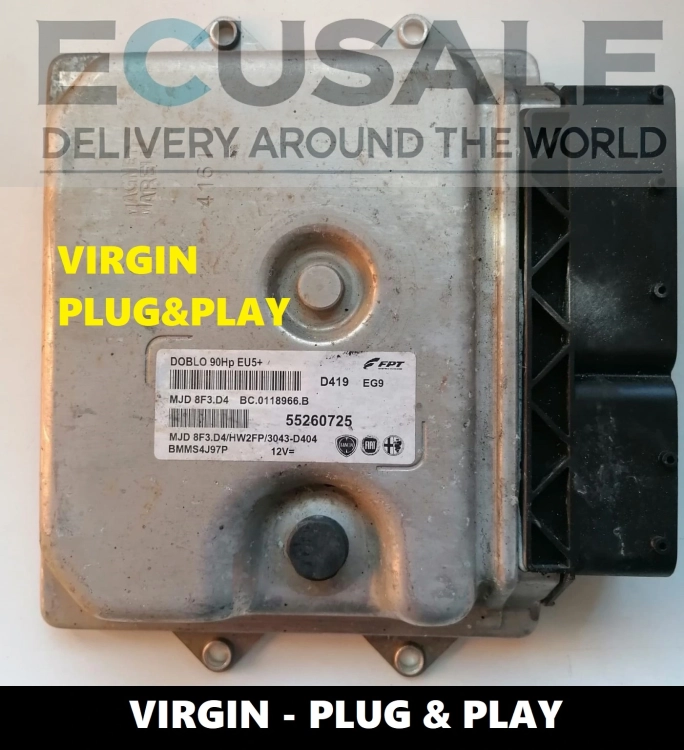

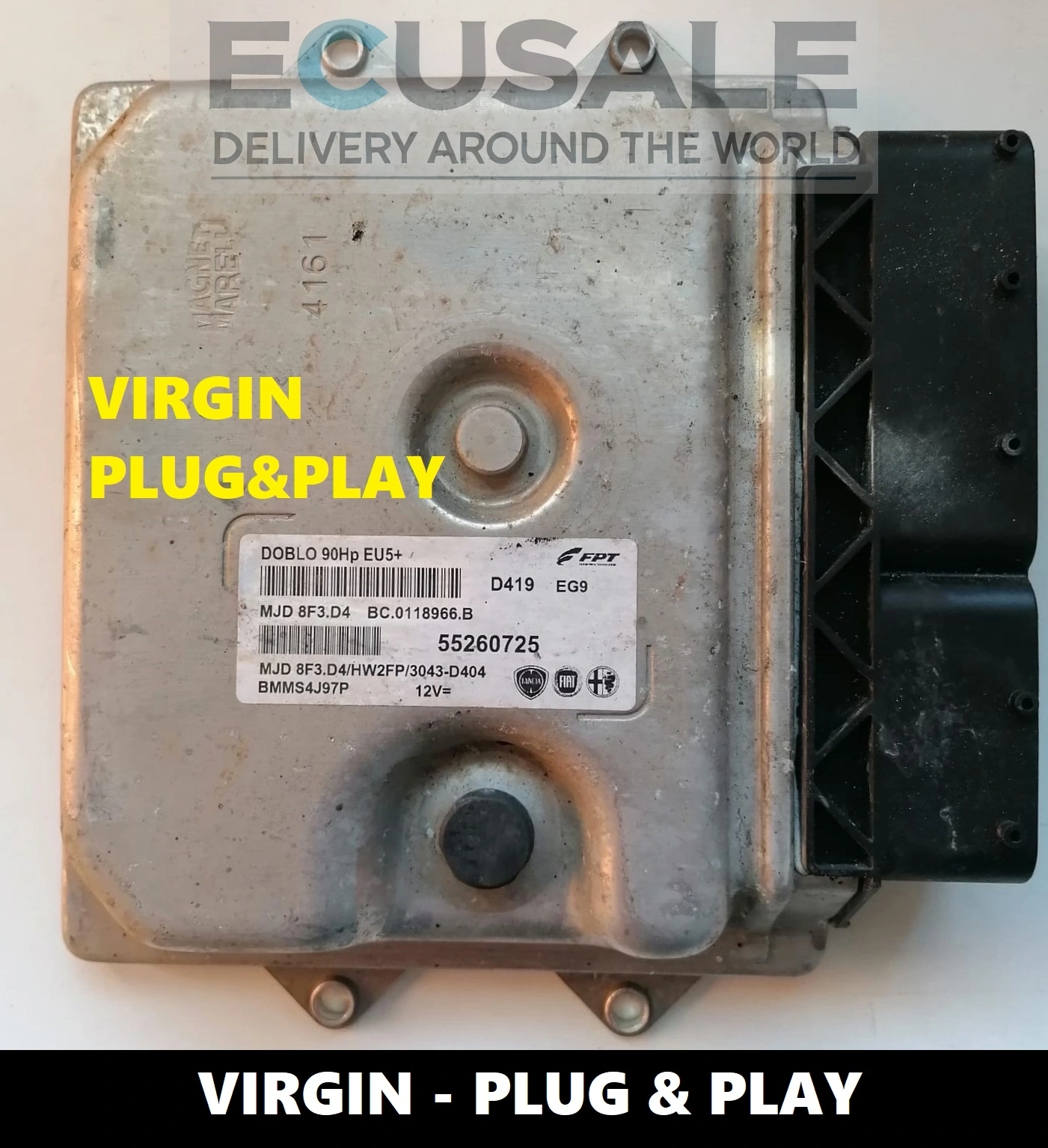

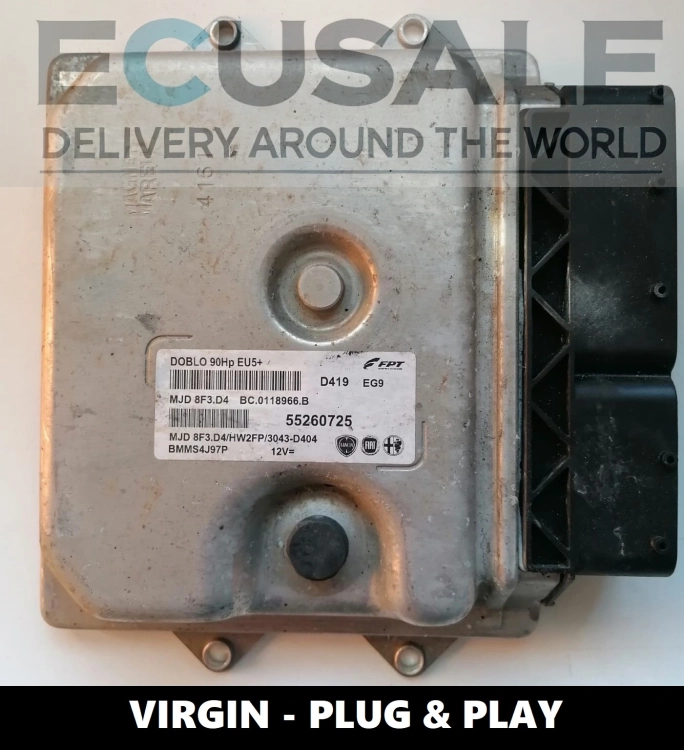

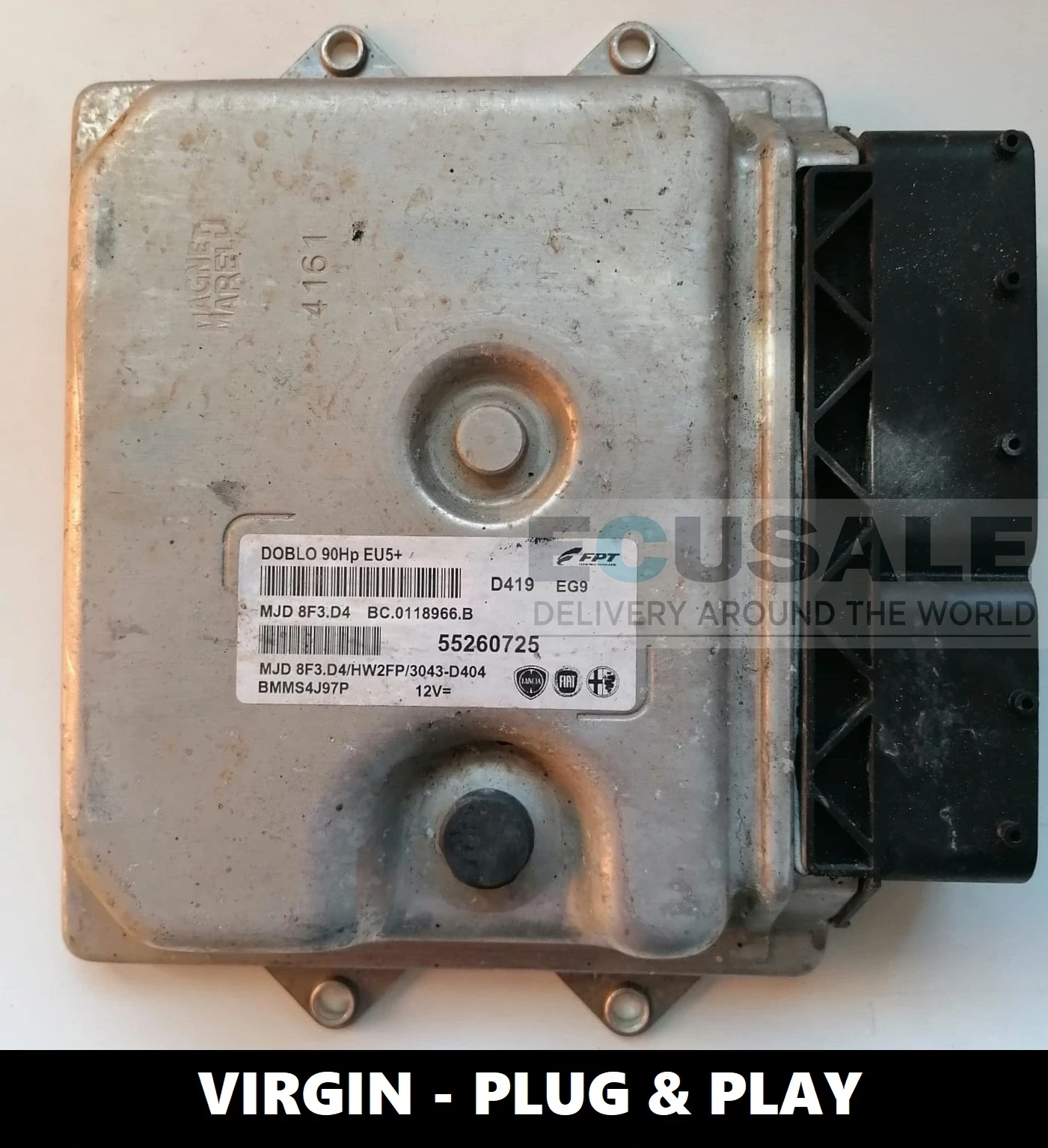

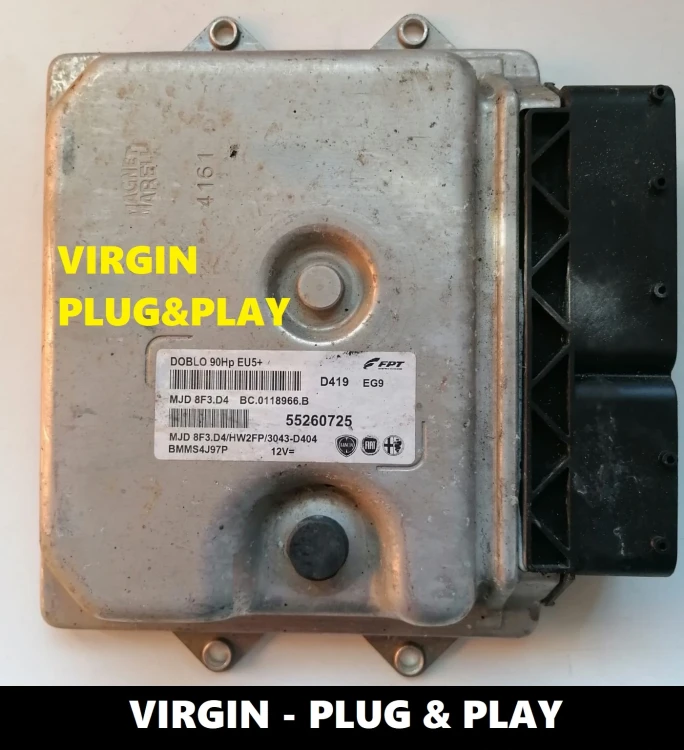

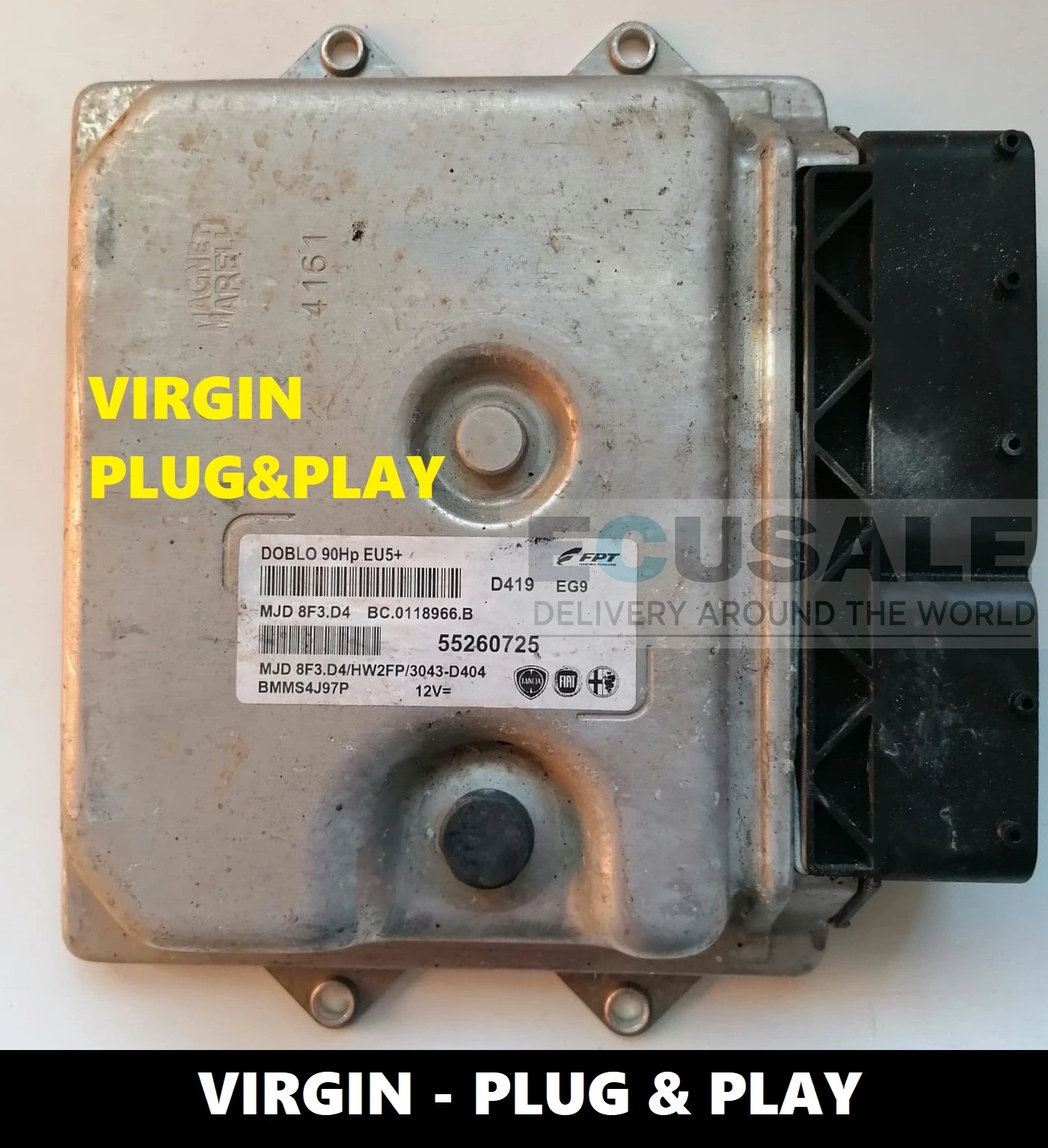

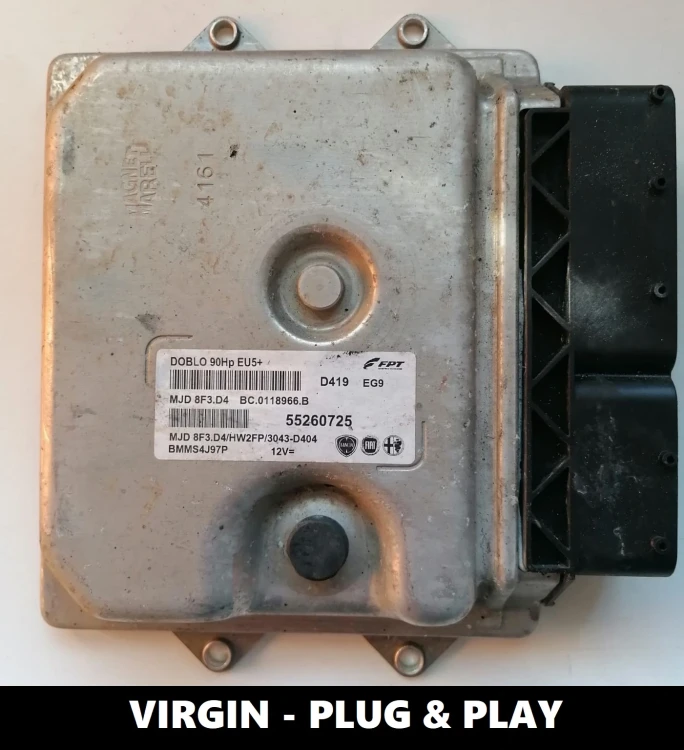

We offer a working MJD 8F3.D4 unit (Magneti Marelli) with part number 55260725. It controls the engine of the Fiat 1.3 Multijet. We test every unit before dispatch.
Does this ECU fit your car?
MJD 8F3.D4 ECUs were fitted to Fiat cars with the 1.3 Multijet engine. The model and year alone are not enough. Look at the label of your ECU: if it shows number 55260725 and type MJD 8F3.D4, it is the same version. A different part number is a different ECU.
Warranty and extra services
The ECU comes with a warranty of 6 months. Every unit passes a bench test and a test in our test car.
- Cloning included: instead of the Virgin version we can transfer the data from your old ECU – the data from your current unit is required.
- Paid options on request: chip tuning, EGR OFF and DPF OFF.
Numbers on the label
- Part number: 55260725
- ECU type: Magneti Marelli MJD 8F3.D4 / MJD8F3.D4
Fitting without programming
Virgin Plug & Play means that once connected, the ECU adapts itself to the car and immobiliser. Two things are needed: the same part number (55260725) and a working immobiliser.
The IMMO OFF version is available on request, but it leaves a red immobiliser warning on the dashboard and a fault in diagnostics that cannot be removed without pairing with the immobiliser. Virgin has no such fault.
Typical symptoms of a faulty MJD 8F3.D4 ECU
A damaged ECU can stop the engine from starting because the injectors receive no signal. The tester then cannot connect to the unit, and a measurement may show no power at the ECU despite good fuses. The failure can follow water ingress or a short circuit in the wiring.
The same symptoms can, however, come from a fault in the harness, power supply or sensors, so run a diagnosis before buying.
More units in the Fiat engine ECU category and on the FPT manufacturer page.
Similar numbers from this family: 51908938 MJD 8F3.S2, 55255943 MJD 8F3.X3, 51908941 MJD 8F3.Q3, 55261314 MJD 8F3.X3.
Questions and answers – ECU 55260725
Is it enough to just fit ECU 55260725?
Yes, if the part number matches and the immobiliser works. After fitting, the Virgin version codes itself to the car and immobiliser, with no programming.
|
What is the difference between IMMO OFF and Virgin?
With IMMO OFF the car runs, but a red immobiliser warning stays on the dashboard and a fault remains in diagnostics that cannot be cleared. The Virgin version does not have this fault, which is why we recommend it.
|
What is the warranty on ECU 55260725?
The warranty is 6 months. Before dispatch, the ECU passes a bench test and a test in our test car.
|
Can I clone my old ECU instead of the Virgin version?
Yes, cloning is included in the price of ECU 55260725. We need the data from your current unit.
|
