Manufacturer code: 1K0614517DE
Product code: 1K0907379BJ
Shipping costs are not included in the price.
Shipping costs are not included in the price.
express delivery 5-7 days
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Hydraulic block together with the ABS control unit, tested under pressure – fast 2–3 day shipping and 6 months’ warranty.
Not sure? Send a photo of the label to sale@ecusale.com. Match it by the label: check that your unit shows 1K0614517DE / 1K0907379BJ.
Stripe, PayPal or bank transfer.
EU: 99% of parcels are delivered within 2–3 working days.
Courier: UPS or FedEx.
Outside the EU: 99% of parcels are delivered within 5–7 working days.
Courier: UPS or FedEx.
Continental Teves AG & Co. oHG
Guerickestraße 7
60488 Frankfurt am Main, Germany
AUTO-ELEKTRONIKA DAMIAN SOSNOWSKI
Lelowska 20
42-235 Biała Wielka, Poland
AUTO-ELEKTRONIKA DAMIAN SOSNOWSKI
20 Lelowska
42-235 Biała Wielka, Poland

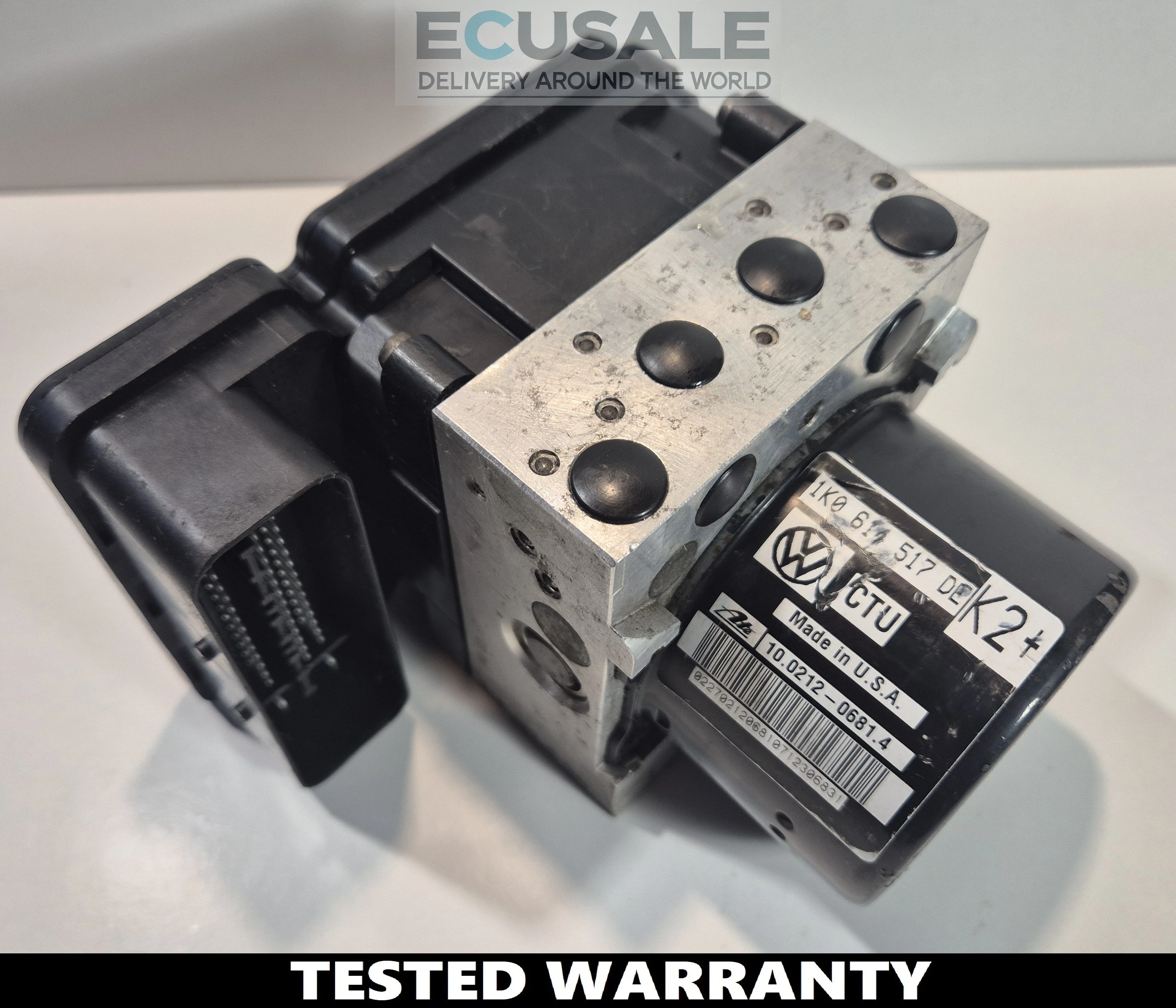

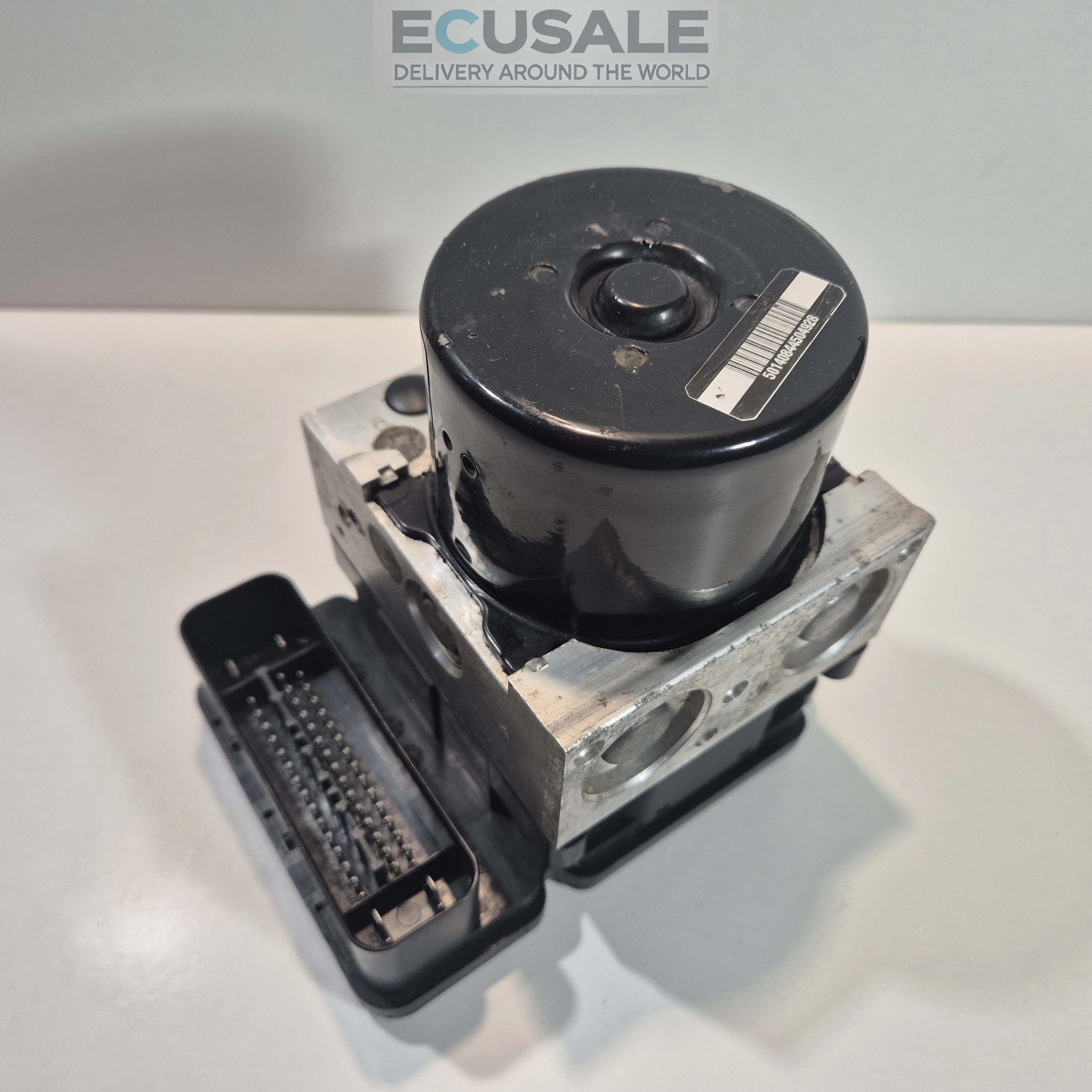

We sell the whole ATE ABS module for VW / Audi / Seat / Škoda, not just the pump: the hydraulic block and the ABS control unit form one unit. The label numbers are 1K0614517DE (pump) and 1K0907379BJ (control unit).
Used, after a workshop test: electronics and hydraulics checked on a test machine, together with a pressure test.
A faulty pump or control unit can show up as:
However, the ABS light is often caused by a wheel speed sensor, the ABS ring or the wiring rather than the pump itself. Run diagnostics before buying and see our guide ABS pump failure – symptoms and refurbishment.
Number 1K0614517DE is used in VAG group cars – confirmed applications: VW Golf VI, VW Touran (1T3), Audi A3 8P, Seat Leon II, Seat Altea, Škoda Octavia II, Škoda Superb II. The pump is always matched by the number – compare the pump and control unit numbers with the label of your module.
Other VAG pumps numbered 1K0 614 517 – different versions, the full number on your pump label decides: 1K0614517ED / 1K0907379BM, 1K0614517AS / 1K0907379AH, 1K0614517BD / 1K0907379AD, 1K0614517BK / 1K0907379AP.
| Marking | Number (different formats) |
|---|---|

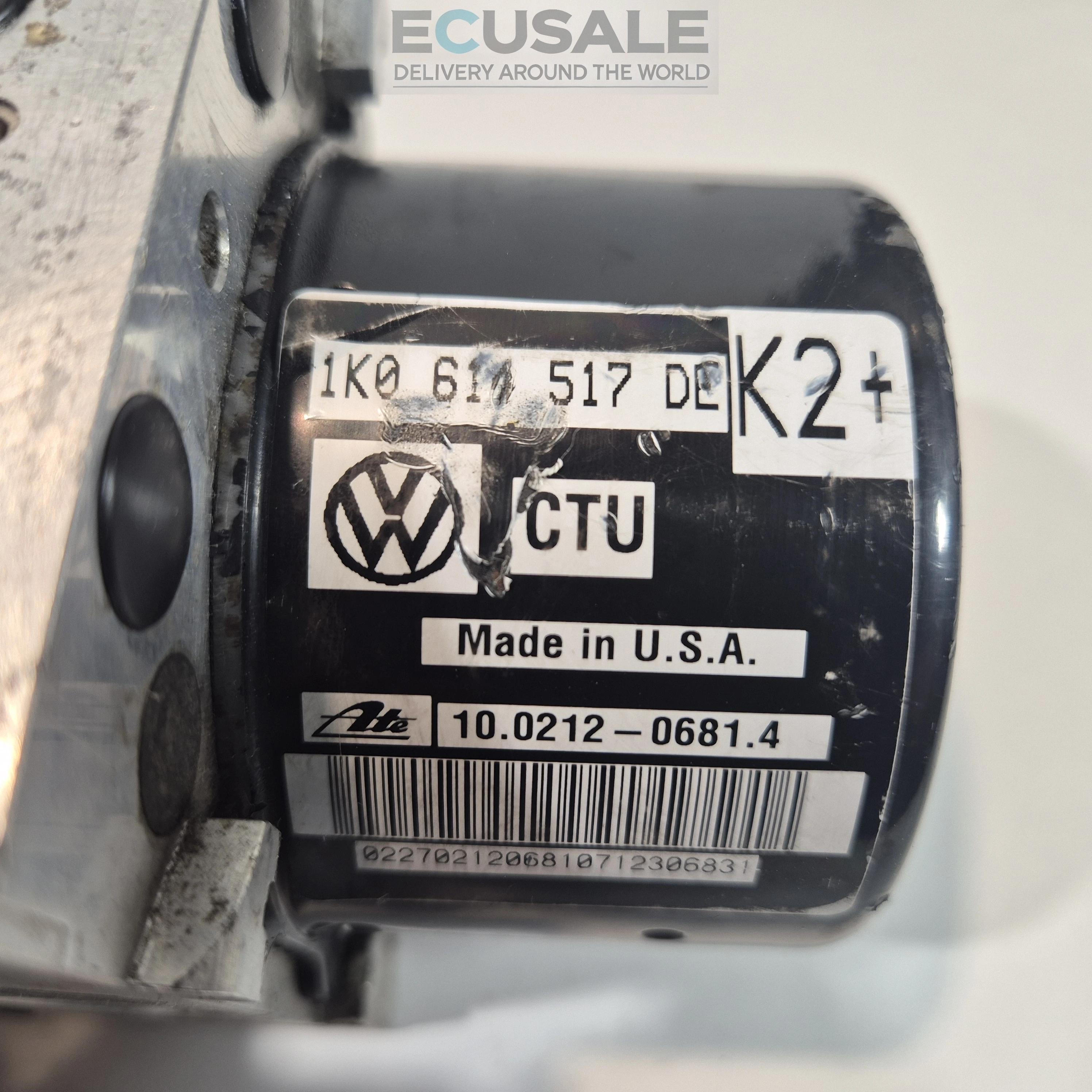

| Pump number (OEM) | 1K0614517DE / 1K0 614 517 DE |

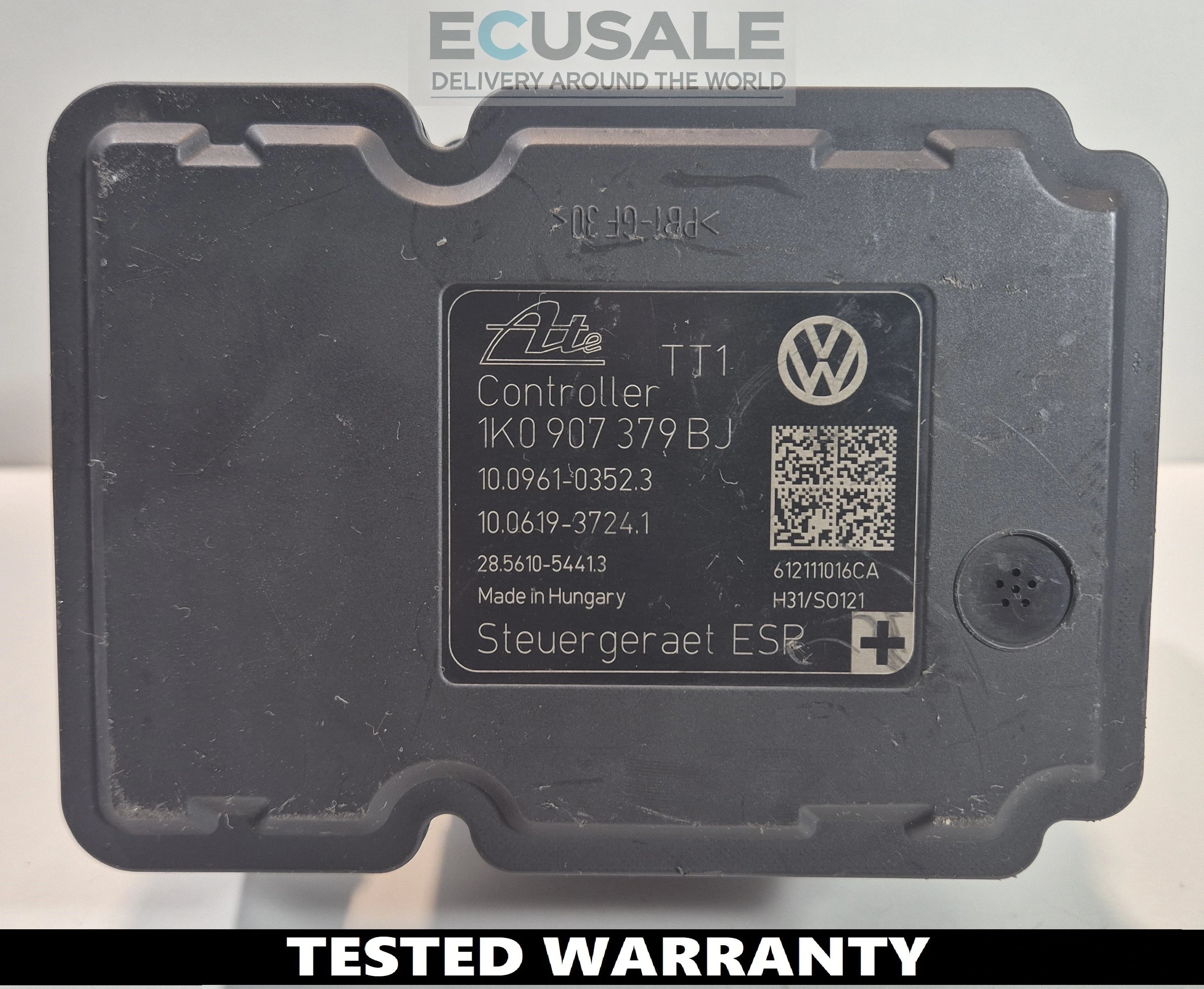

| ABS control unit (OEM) | 1K0907379BJ / 1K0 907 379 BJ |
| Hydraulic block / pump – manufacturer number | 10.0212-0681.4 / 10021206814 |
| ABS control unit – manufacturer number | 10.0961-0352.3 / 10096103523 |
We give different formats of the same numbers – the ones you will see on the label and in search engines.
After fitting, the brake system must be bled. On VW, Audi, Seat and Škoda the module is coded with VCDS after replacement: short and long coding, adding the sensors (e.g. the steering angle sensor), and finally short coding again, which saves the whole configuration.
| Question | Answer |
|---|---|
| How do you check the pump before dispatch? | We test the electronics and hydraulics on a test machine, including a pressure test. |
| I am not sure the pump fits – what should I do? | Send us a photo of your module label and we will check the numbers. |
| What is the warranty on pump 1K0614517DE? | The warranty is 6 months. |
| How do I code pump 1K0614517DE after replacement? | With VCDS: short and long coding, adding the sensors and short coding again. Bleed the brake system beforehand. |
| How can I check that 1K0614517DE fits my car? | The numbers on the label of your module must match: pump 1K0614517DE, control unit 1K0907379BJ. Application: VAG PQ35 (VW, Audi, Seat, Škoda). |
