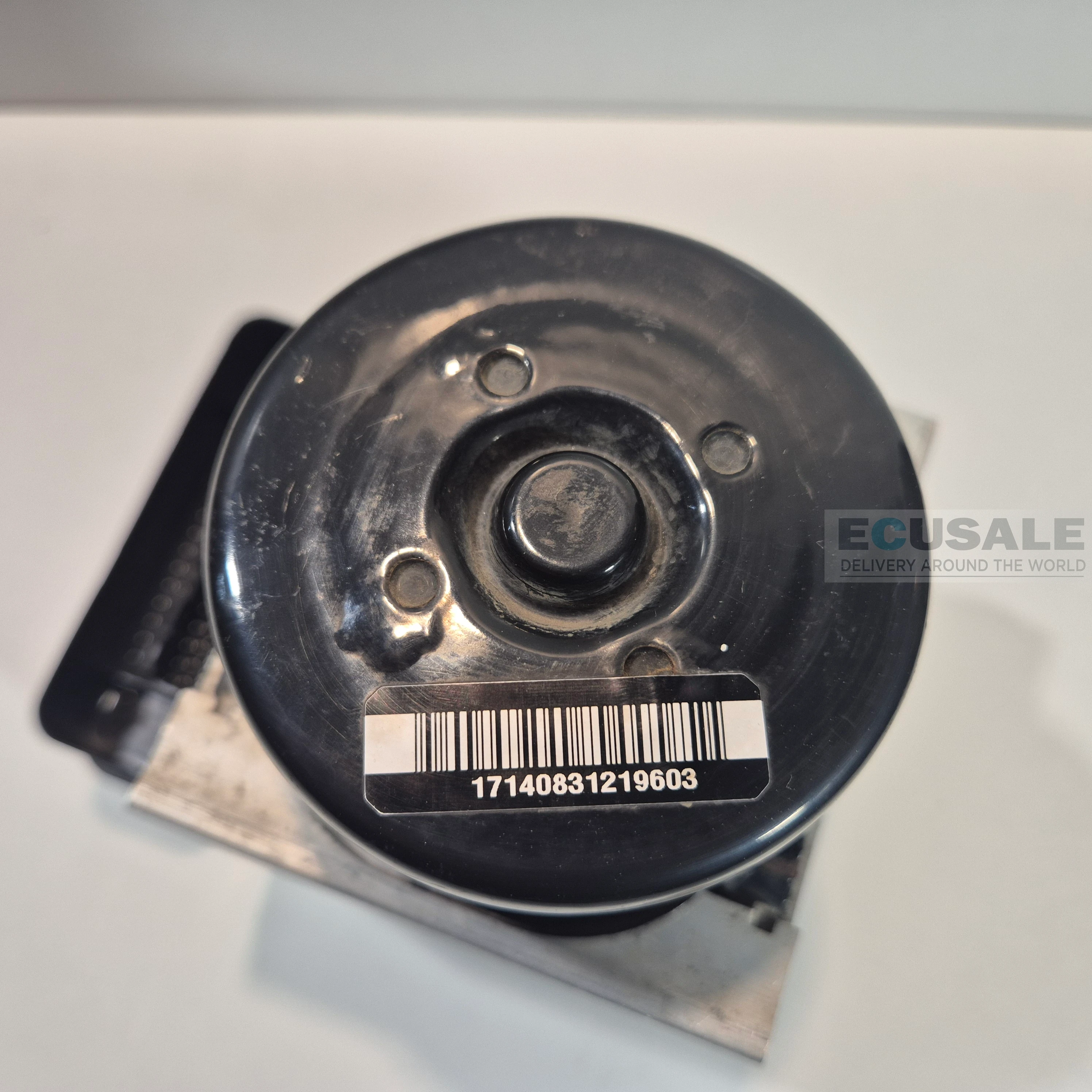

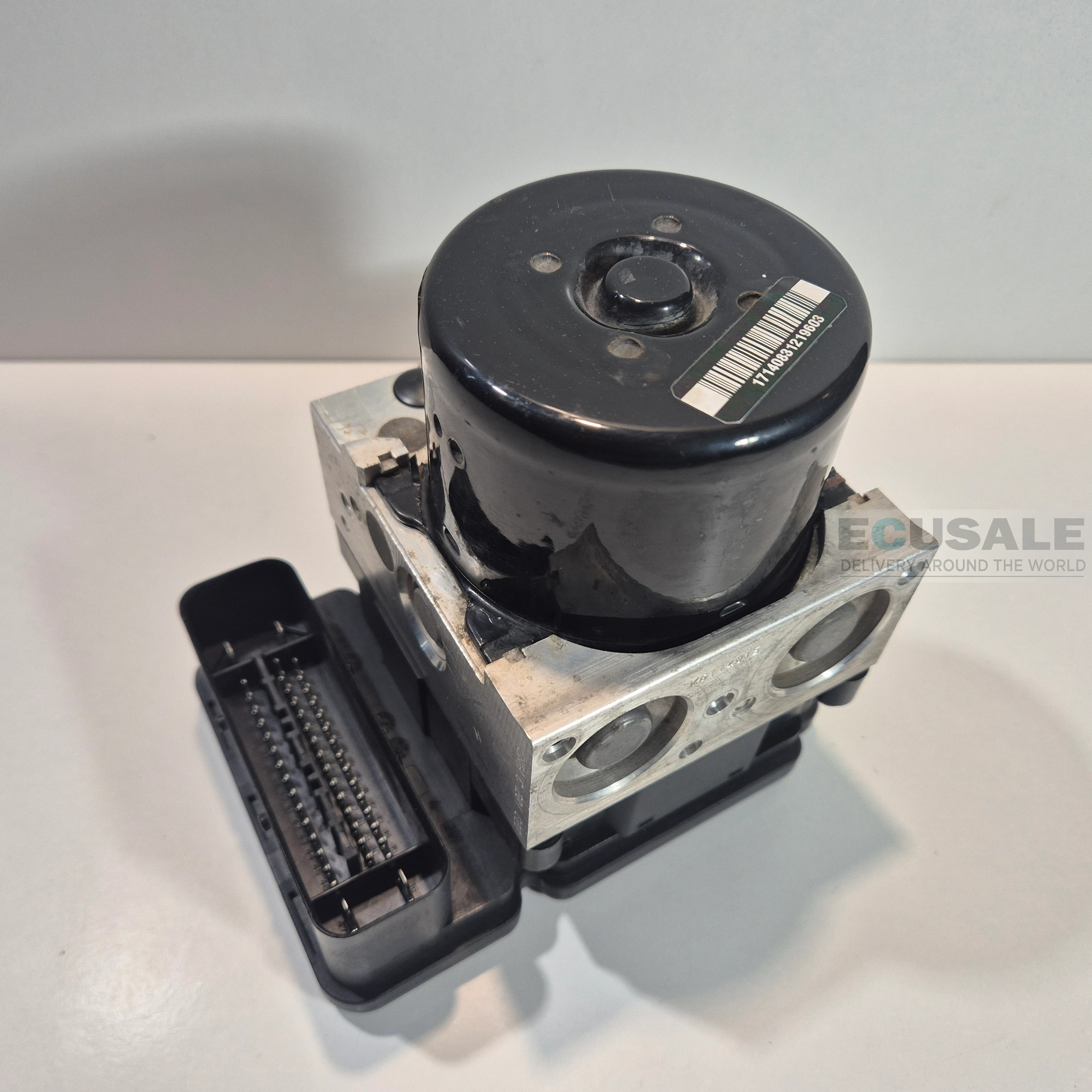

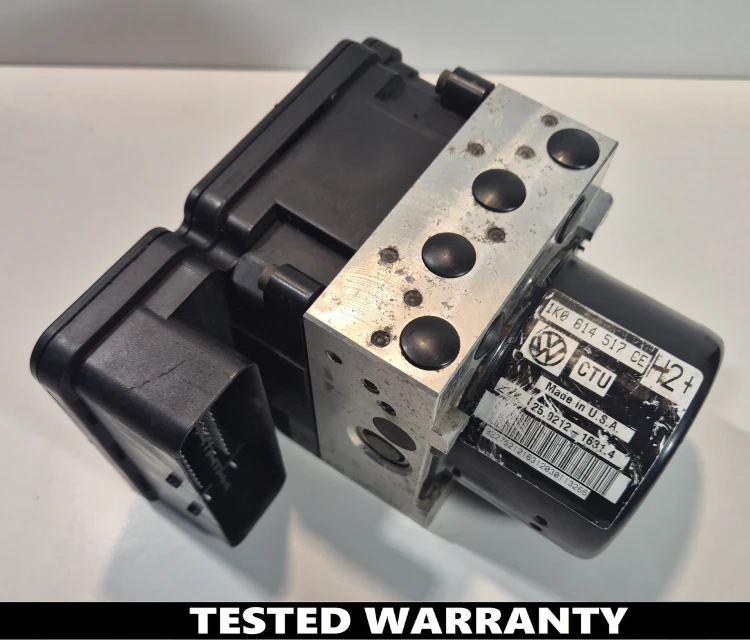

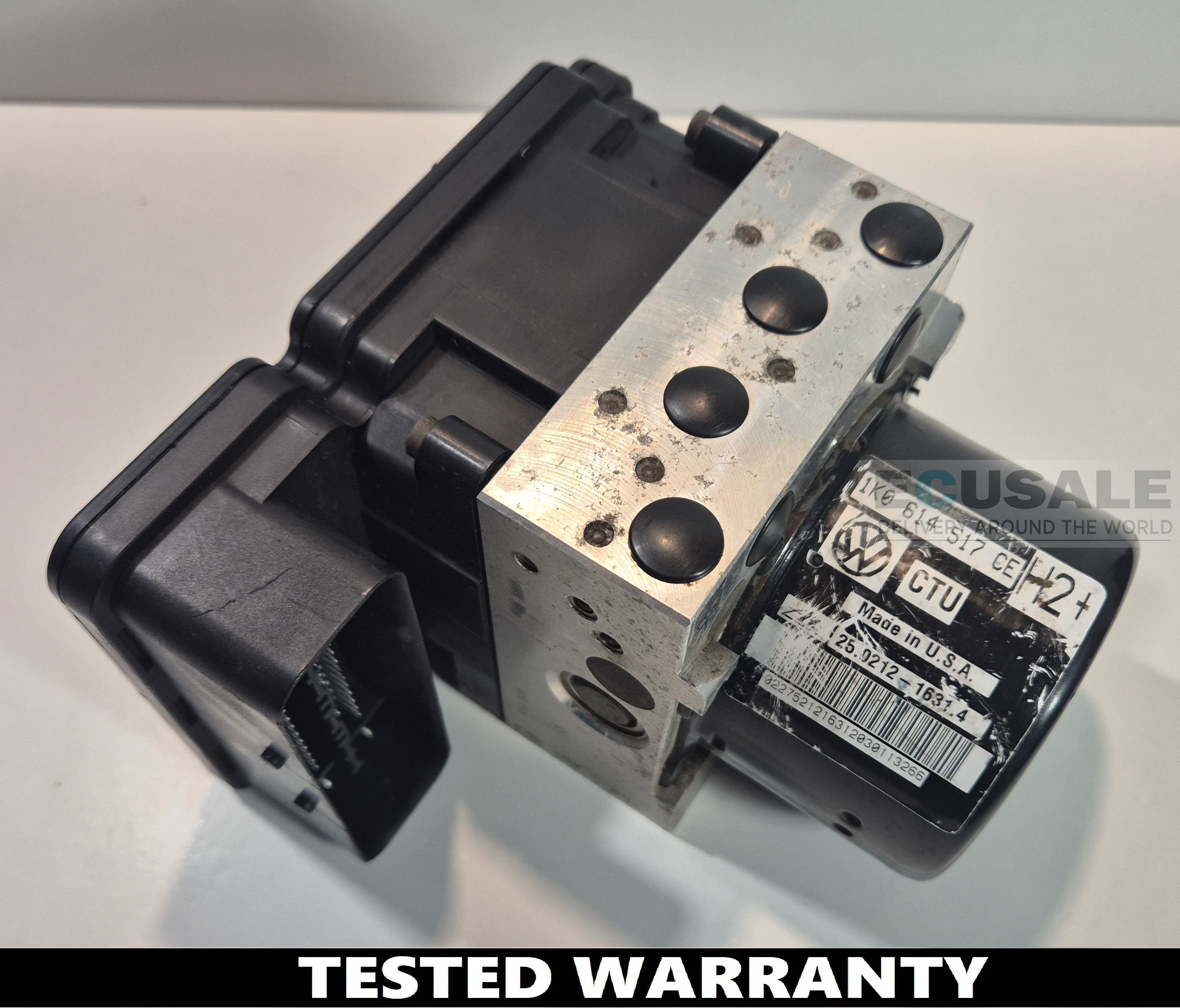

ABS pump 1K0614517CE with control unit 1K0907379AT
Complete ATE ABS pump for VW / Audi / Seat / Škoda: the set includes the hydraulic block (pump) and the ABS control unit – hydraulics and electronics in one module. The label shows the numbers 1K0614517CE and 1K0907379AT.
This is a used unit. In our workshop we test it on a machine: electronics, hydraulics and pressure.
Application
Number 1K0614517CE is used in VAG group cars – confirmed applications: VW Golf VI, VW Touran (1T3). The car model alone is not enough – compare the pump and control unit numbers with the label on your module.
See also

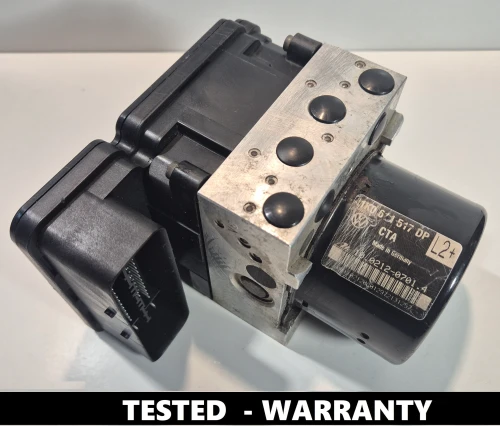

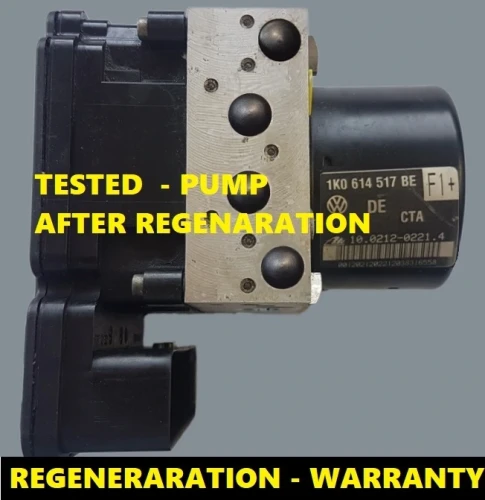

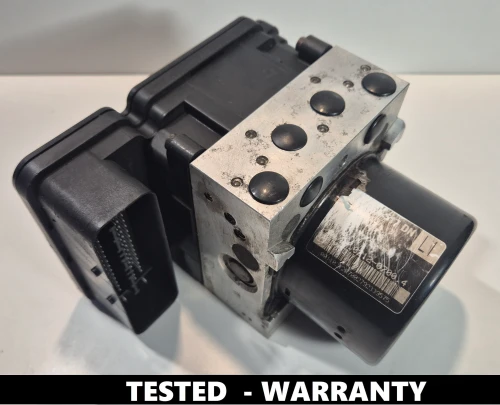

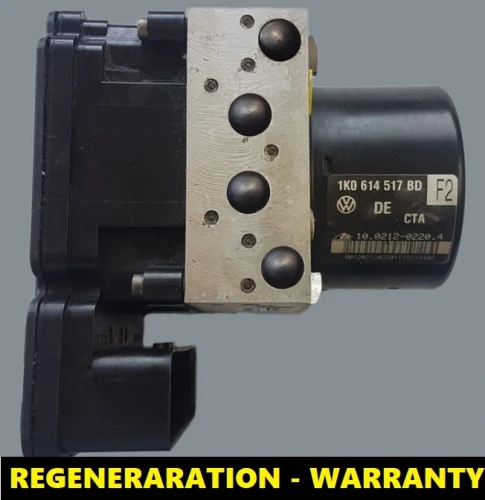

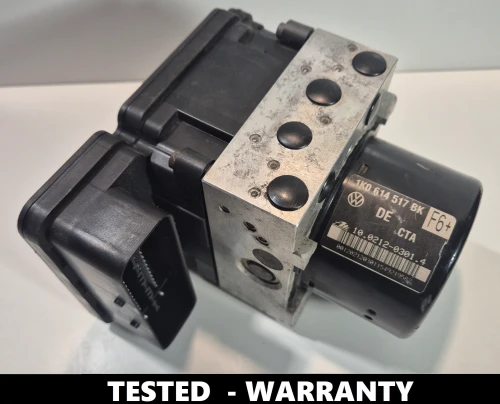

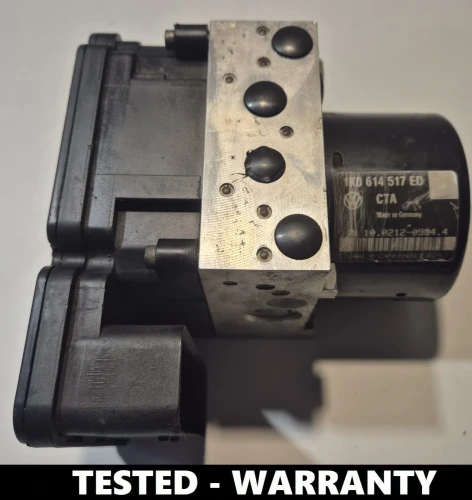

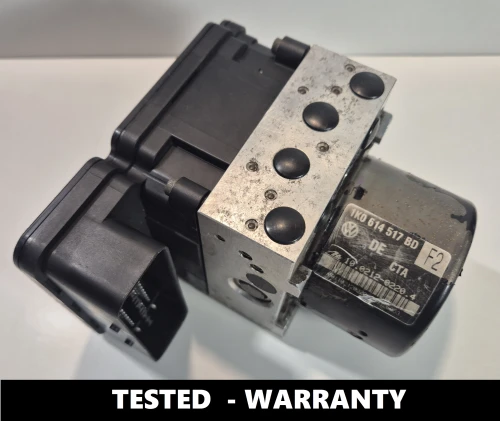

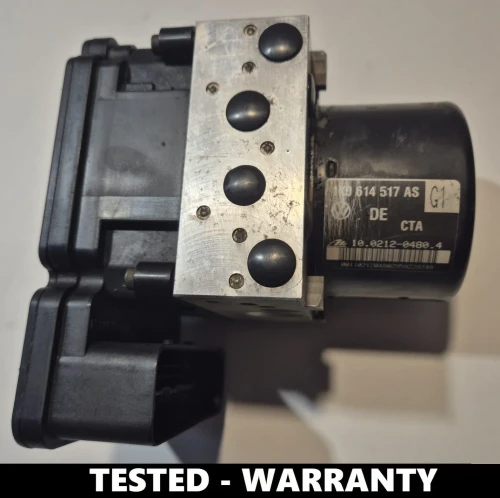

Other VAG pumps numbered 1K0 614 517 – different versions, the full number on your pump label decides: 1K0614517ED / 1K0907379BM, 1K0614517AS / 1K0907379AH, 1K0614517BD / 1K0907379AD, 1K0614517BK / 1K0907379AP.
When ABS pump 1K0614517CE may be faulty
- the ABS or ESP light (or both) is on,
- pump motor, valve or ABS control unit supply faults are stored,
- the tester cannot connect to the ABS control unit,
- one of the wheels brakes less or locks.
Before buying a pump, run diagnostics – the ABS light often comes on because of a wheel speed sensor, the ABS ring or the wiring. Details: ABS pump failure – symptoms and refurbishment.
Numbers on the label
| Marking | Number (different formats) |
|---|

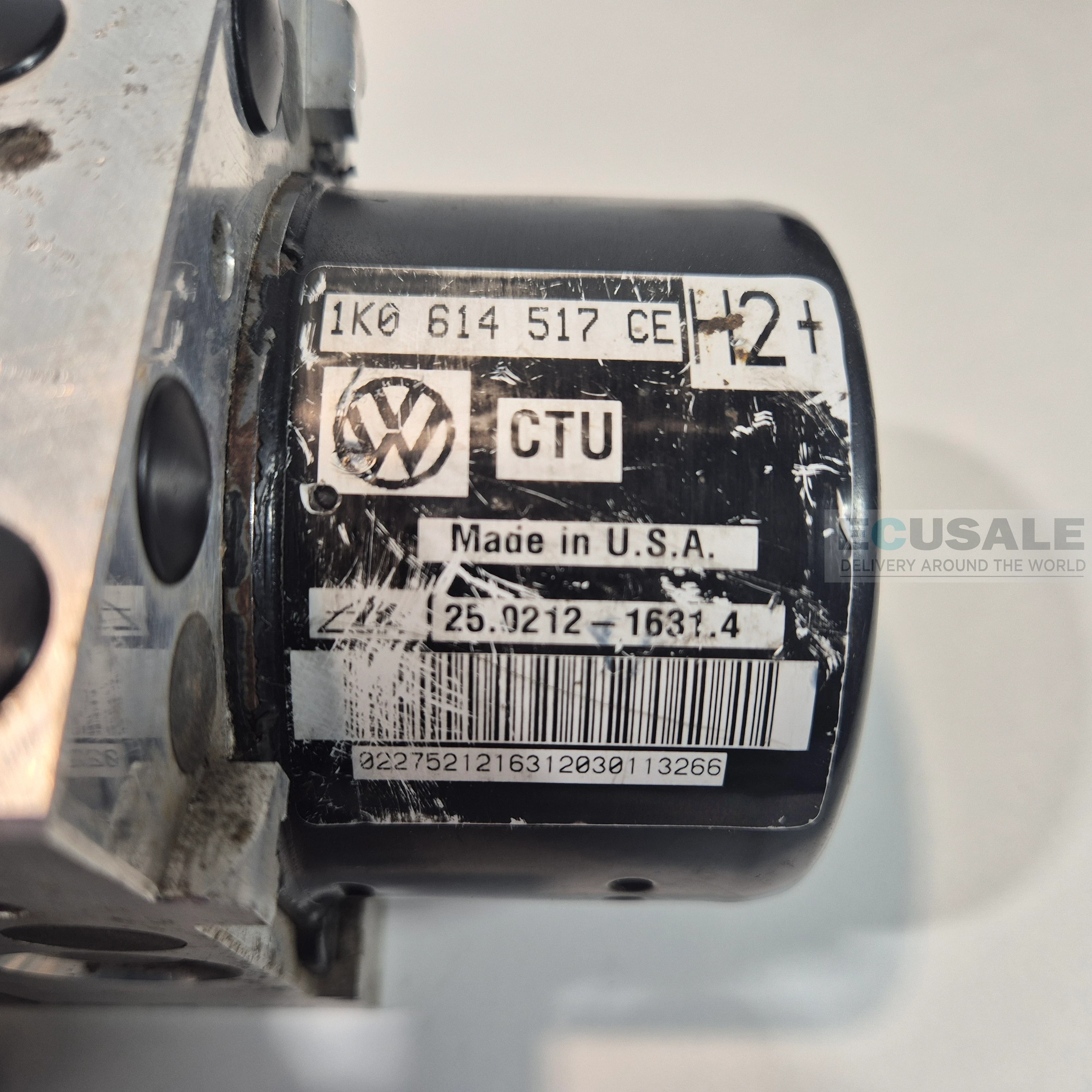

| Pump number (OEM) | 1K0614517CE / 1K0 614 517 CE |

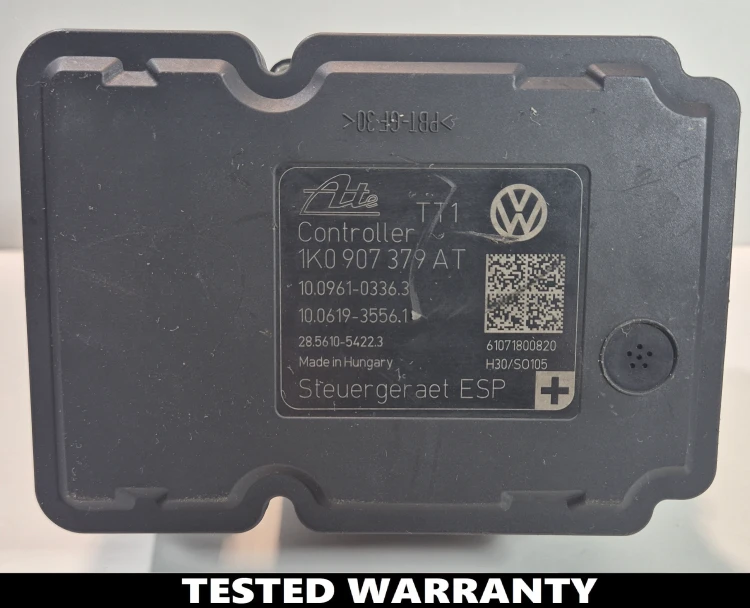

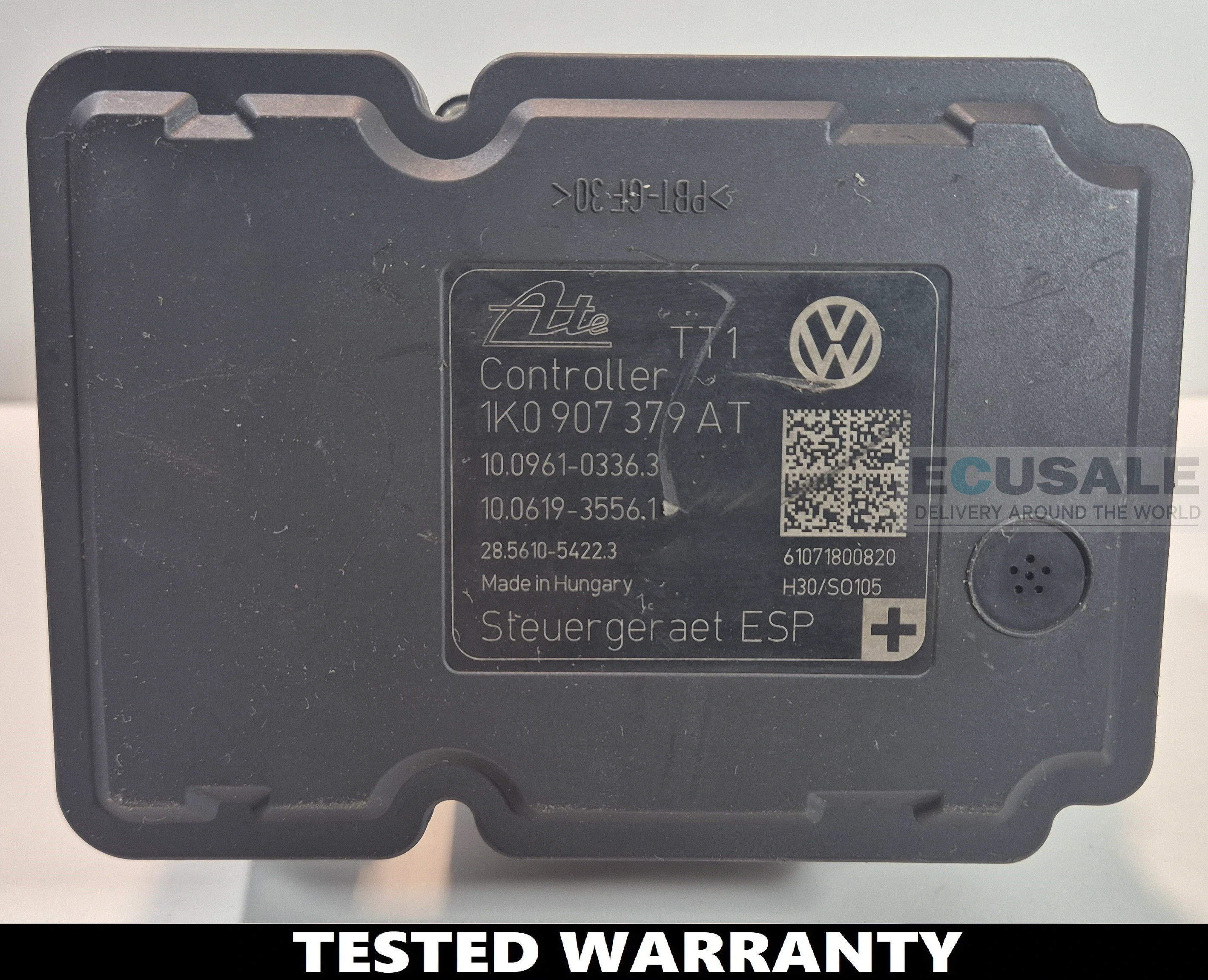

| ABS control unit (OEM) | 1K0907379AT / 1K0 907 379 AT |
| Hydraulic block / pump – manufacturer number | 25.0212-1631.4 / 25021216314 |
| ABS control unit – manufacturer number | 10.0961-0336.3 / 10096103363 |
Fitting in a VAG group car
After replacing the pump, bleed the brakes and code the module with VCDS. The order: short and long coding, adding the sensors (e.g. steering angle), and short coding again to save the whole configuration.
Warranty and delivery
Warranty: 6 months. More pumps in the Volkswagen VW ABS Pumps / Škoda ABS Pumps category. Not sure it fits? Send us a photo of the label and we will check the numbers.
FAQ – 1K0614517CE
| Question |
Answer |
| Does the pump need coding after fitting? |
Yes, with VCDS: short and long coding, adding the sensors, then short coding again. Bleed the brake system first. |
| Does ABS pump 1K0614517CE have a warranty? |
Yes – 6 months. |
| The ABS light is on – is it definitely the pump? |
Not necessarily. A wheel speed sensor, the ABS ring or the wiring is often to blame, so run diagnostics before buying. |
| How do you check the pump before dispatch? |
We test the electronics and hydraulics on a test machine, including a pressure test. |
| Will pump 1K0614517CE fit my car? |
Compare the numbers on the label: pump 1K0614517CE and control unit 1K0907379AT. Application: VAG PQ35 (VW, Audi, Seat, Škoda). Matching numbers are decisive. |
