ABS pump 6R0614117T with control unit 6R0907379AB

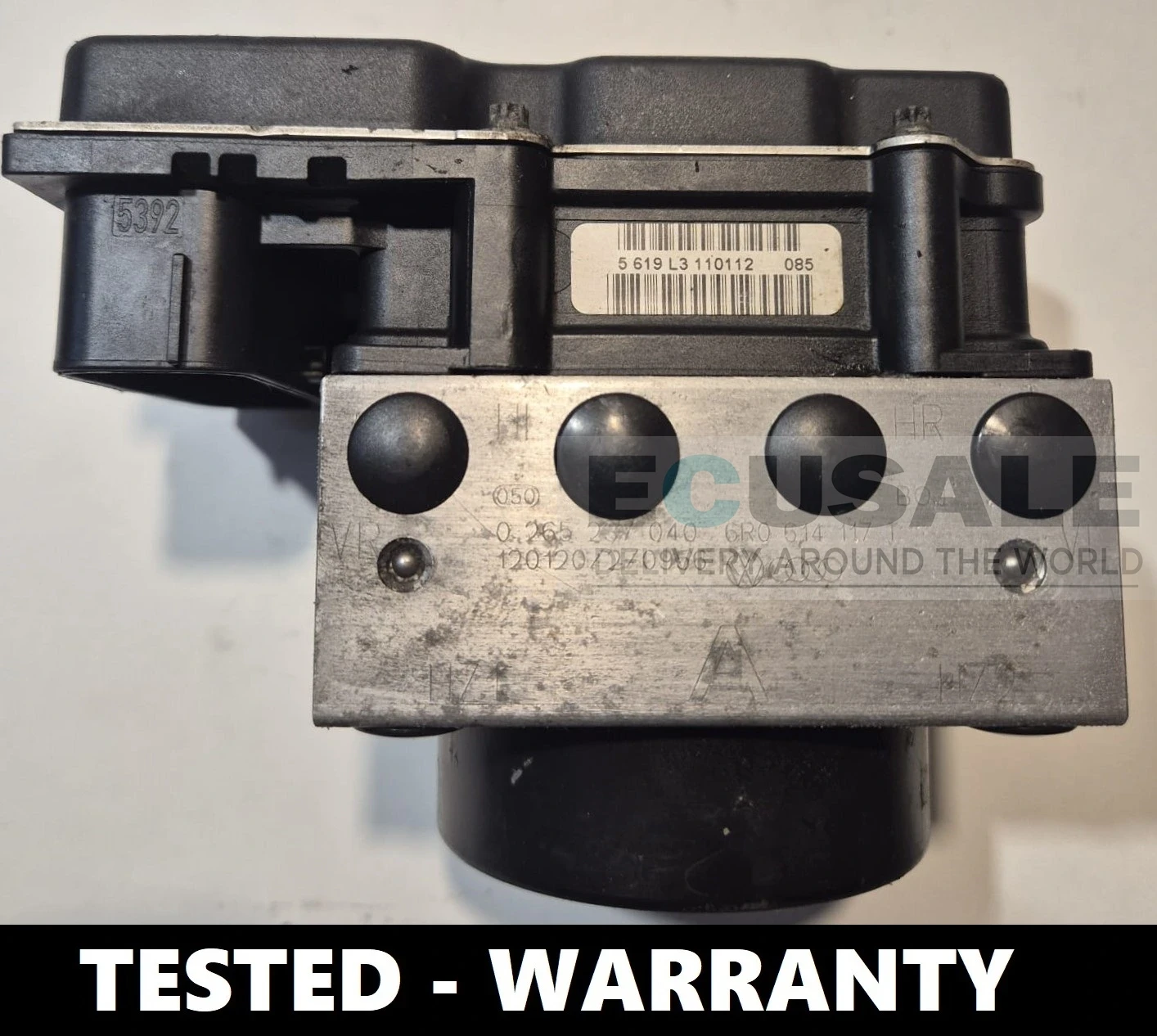

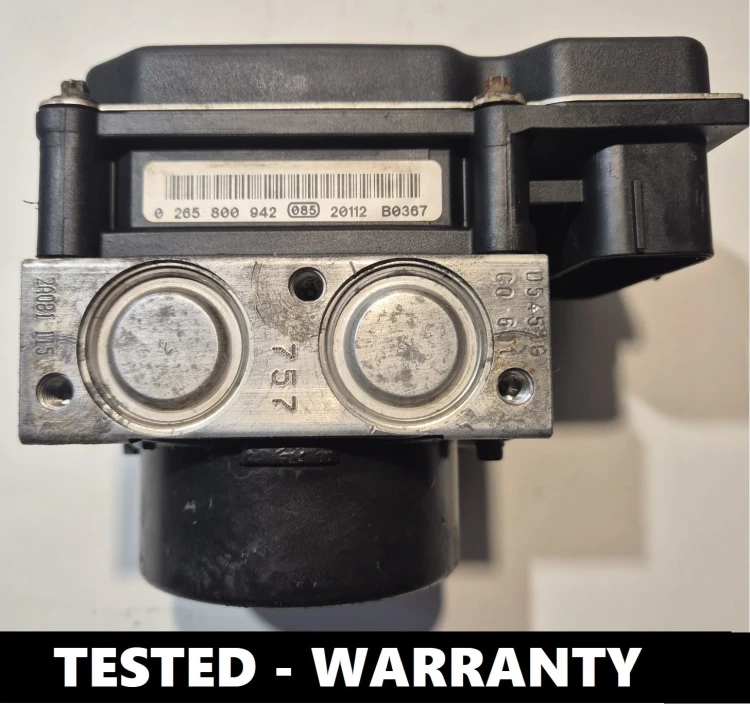

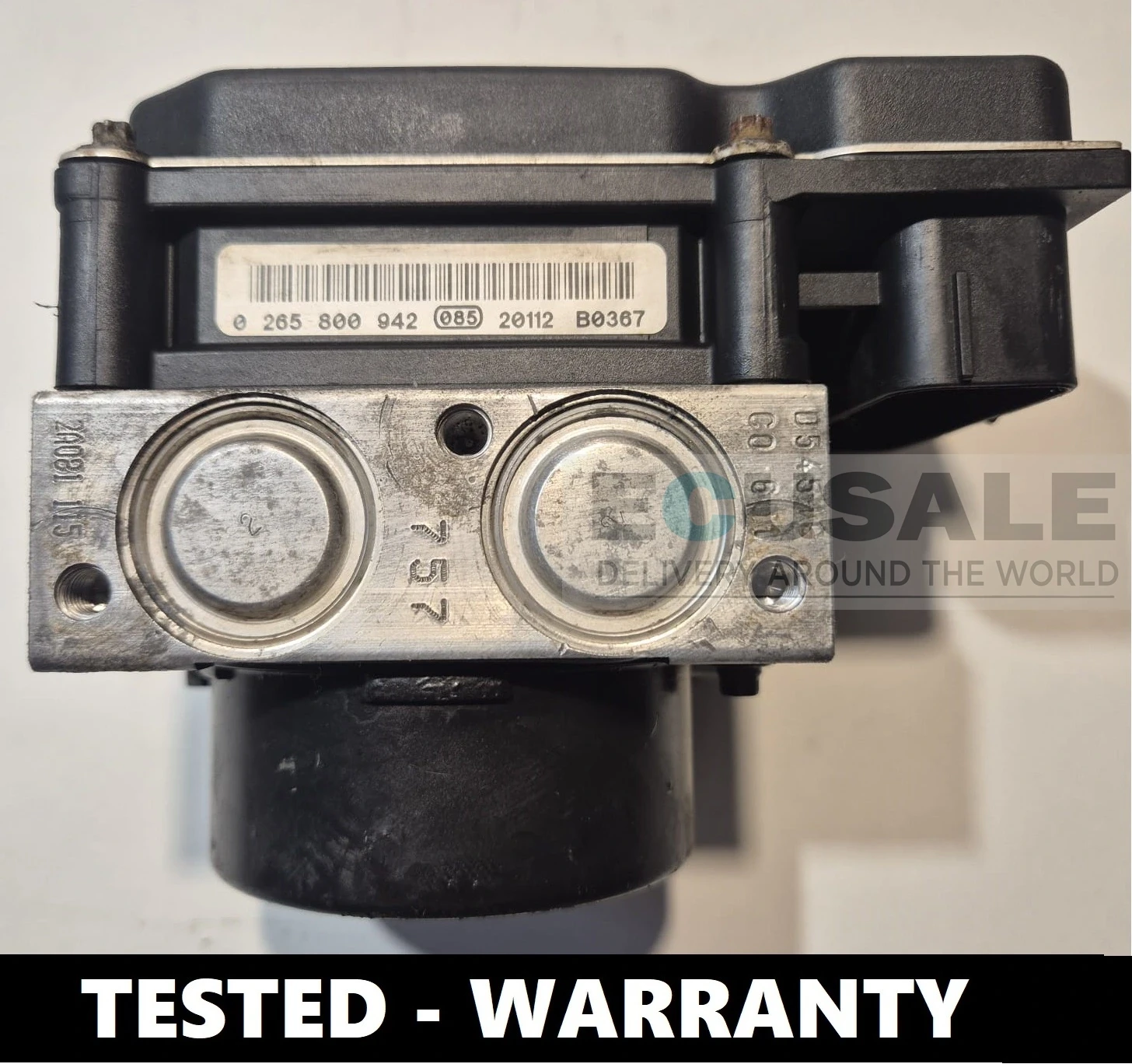

Complete Bosch ABS pump for VW / Seat Polo V (6R) / Ibiza IV (6J): the set includes the hydraulic block (pump) and the ABS control unit – hydraulics and electronics in one module. The label shows the numbers 6R0614117T and 6R0907379AB.
This is a used unit. In our workshop we test it on a machine: electronics, hydraulics and pressure.
Pump 6R0614117T markings
| Marking | Number (different formats) |
|---|
| Pump number (OEM) | 6R0614117T / 6R0 614 117 T |

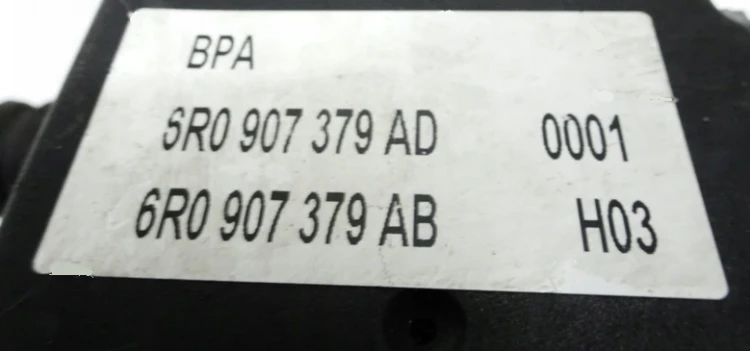

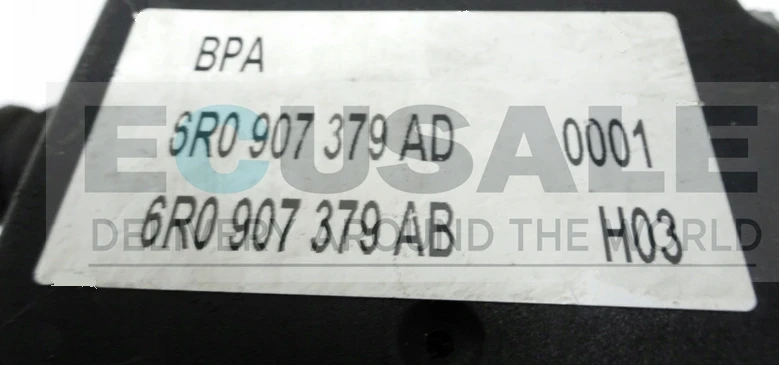

| ABS control unit (OEM) | 6R0907379AB / 6R0 907 379 AB / 6R0907379AD / 6R0 907 379 AD |
| Hydraulic block / pump – manufacturer number | 0265231040 / 0 265 231 040 |
| ABS control unit – manufacturer number | 0265800942 / 0 265 800 942 |
Fitting and coding
After fitting, the brake system must be bled. On VW, Audi, Seat and Škoda the module is coded with VCDS after replacement: short and long coding, adding the sensors (e.g. the steering angle sensor), and finally short coding again, which saves the whole configuration.
When ABS pump 6R0614117T may be faulty
- the ABS or ESP light (or both) is on,
- pump motor, valve or ABS control unit supply faults are stored,
- the tester cannot connect to the ABS control unit,
- one of the wheels brakes less or locks.
Before buying a pump, run diagnostics – the ABS light often comes on because of a wheel speed sensor, the ABS ring or the wiring. Details: ABS pump failure – symptoms and refurbishment.
Which cars pump 6R0614117T fits
Confirmed application: VW / Seat Polo V (6R) / Ibiza IV (6J). The number is what decides: check that the pump and control unit numbers match the label of your module.
Warranty and help with matching
6R0614117T / 6R0907379AB – common questions
| Question |
Answer |
| Is pump 6R0614117T tested? |
Yes. It is a used unit tested on a machine – electronics, hydraulics and a pressure test. |
| Will pump 6R0614117T fit my car? |
Compare the numbers on the label: pump 6R0614117T and control unit 6R0907379AB. Application: VW / Seat Polo V (6R) / Ibiza IV (6J). Matching numbers are decisive. |
| What is the warranty on pump 6R0614117T? |
The warranty is 6 months. |
| How do I code pump 6R0614117T after replacement? |
With VCDS: short and long coding, adding the sensors and short coding again. Bleed the brake system beforehand. |
