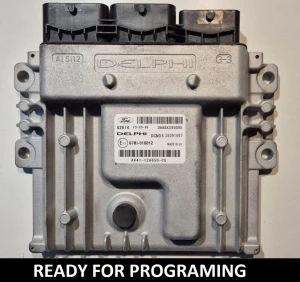

Ford engine ECU AV4112A650CG – description
On this page you can buy ECU AV41-12A650-CG with number 28291697, a Delphi DCM3.5 unit for Fords with the 2.0 TDCi engine. It goes through a function check before dispatch.

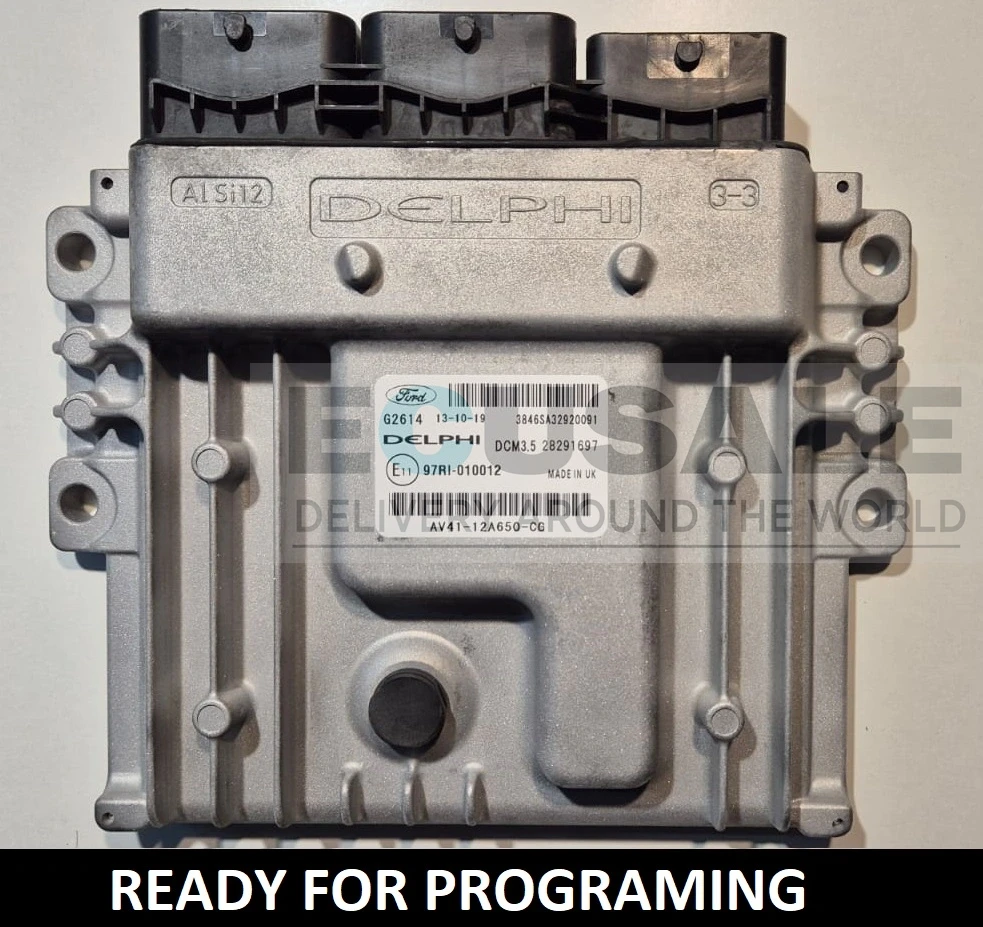

Ford number and Delphi number
Both numbers on the label matter when you order:
- Ford number: AV41-12A650-CG / AV4112A650CG
- Delphi number: 28291697
- ECU type: Delphi DCM3.5
Typical symptoms of a faulty DCM3.5 ECU
A damaged ECU can stop the engine from starting because the injectors receive no signal. The tester then cannot connect to the unit, and a measurement may show no power at the ECU despite good fuses. The failure can follow water ingress or a short circuit in the wiring.
The same symptoms can, however, come from a fault in the harness, power supply or sensors, so run a diagnosis before you buy an ECU.
Does this ECU fit your car?
Model and year are not enough, because the same number AV41-12A650-CG may have been fitted to several Ford models. Look at the label of your ECU and check that it shows AV41-12A650-CG and 28291697. Not sure? Send us a photo of the sticker and we will check it before you buy.
Preparation and fitting
- After purchase, send us your VIN – we prepare the ECU with data from the Ford server and the latest software. This service is included in the price.
- The ECU is not plug & play: after fitting it requires PATS programming (keys and VIN) with FORScan or Ford IDS.
- Warranty: 6 months.
Before fitting, it is worth reading our guide Ford DCM3.5 ECU replacement and VIN programming. If your ECU has a different number, check AV41-12A650-DG (28291700), AV41-12A650-DF (28284365), AV41-12A650-DH (28298199), AV41-12A650-DM (28330764) or the whole Ford DCM3.5 ECU collection. About the manufacturer: Delphi.
You will find other numbers in the Ford Engine Control Units (ECUs) category.
Frequently asked questions about ECU AV41-12A650-CG 28291697
Is ECU AV41-12A650-CG plug & play?
No. After fitting, PATS programming is required – the keys and VIN are assigned with FORScan or Ford IDS.
|
How much does matching the ECU to my VIN cost?
Nothing – the service is included in the price. Give us your VIN after purchase and we prepare the ECU with data from the Ford server and load the latest software.
|
Can I program ECU AV41-12A650-CG myself?
Yes, if you have FORScan with a suitable interface or access to Ford IDS. Otherwise, PATS programming can be done by a workshop that services Ford vehicles.
|
Why give the VIN after ordering?
The VIN lets us prepare the ECU for your car with data from the Ford server and the latest software. The service is included in the price.
|
