Audi Q7 3.0 TDI – Water Damaged Engine ECU | 0281015868 & 0281014174 IMMO OFF Plug & Play

The Audi Q7 3.0 TDI is one of the VAG models well known for engine ECU failures caused by water ingress. The issue most commonly affects Bosch EDC17CP04 engine control units mounted beneath the windscreen scuttle panel, where blocked drainage channels can allow moisture and standing water to collect around the ECU housing over time.

The most frequently affected ECUs in the Audi Q7 3.0 TDI are Bosch 0281015868 / Audi 4L1910401D and Bosch 0281014174 / Audi 4L0910401G / 4L0907401A. In many cases, the original ECU becomes completely damaged, making data cloning impossible. When this happens, the best solution is often an IMMO OFF Plug & Play ECU, allowing the vehicle to start without immobilizer adaptation.

Water damaged Bosch EDC17CP04 ECUs such as 0281015868 and 0281014174 can suddenly stop communicating, causing a no-start condition, immobilizer faults, CAN communication errors and complete loss of diagnostic access.

One of the first warning signs is often a vehicle that refuses to start after heavy rain or after moisture enters the scuttle area beneath the windscreen.

Why does the Audi Q7 engine ECU suffer from water damage?

In the Audi Q7, the engine ECU is located in an area highly exposed to moisture and poor drainage. When the water drains become blocked by leaves, dirt or debris, rainwater starts accumulating around the ECU housing.

• corroded ECU pins,
• oxidized PCB tracks,
• internal short circuits,
• power supply failures,
• CAN bus communication issues.

Most failures appear after heavy rainfall, vehicle washing or long periods of moisture exposure.

Common symptoms of a failed Audi Q7 3.0 TDI ECU

A damaged Bosch EDC17CP04 ECU can create a wide range of seemingly unrelated electrical faults, which is why the issue is often mistaken for a BCM, ABS, battery or wiring problem.

• engine will not start,
• no communication with the ECU during diagnostics,
• cooling fans running continuously,
• CAN communication faults,
• ABS / ESP warning lights,
• immobilizer warning message,
• engine cutting out while driving,
• loss of injector control,
• multiple random module faults at the same time.

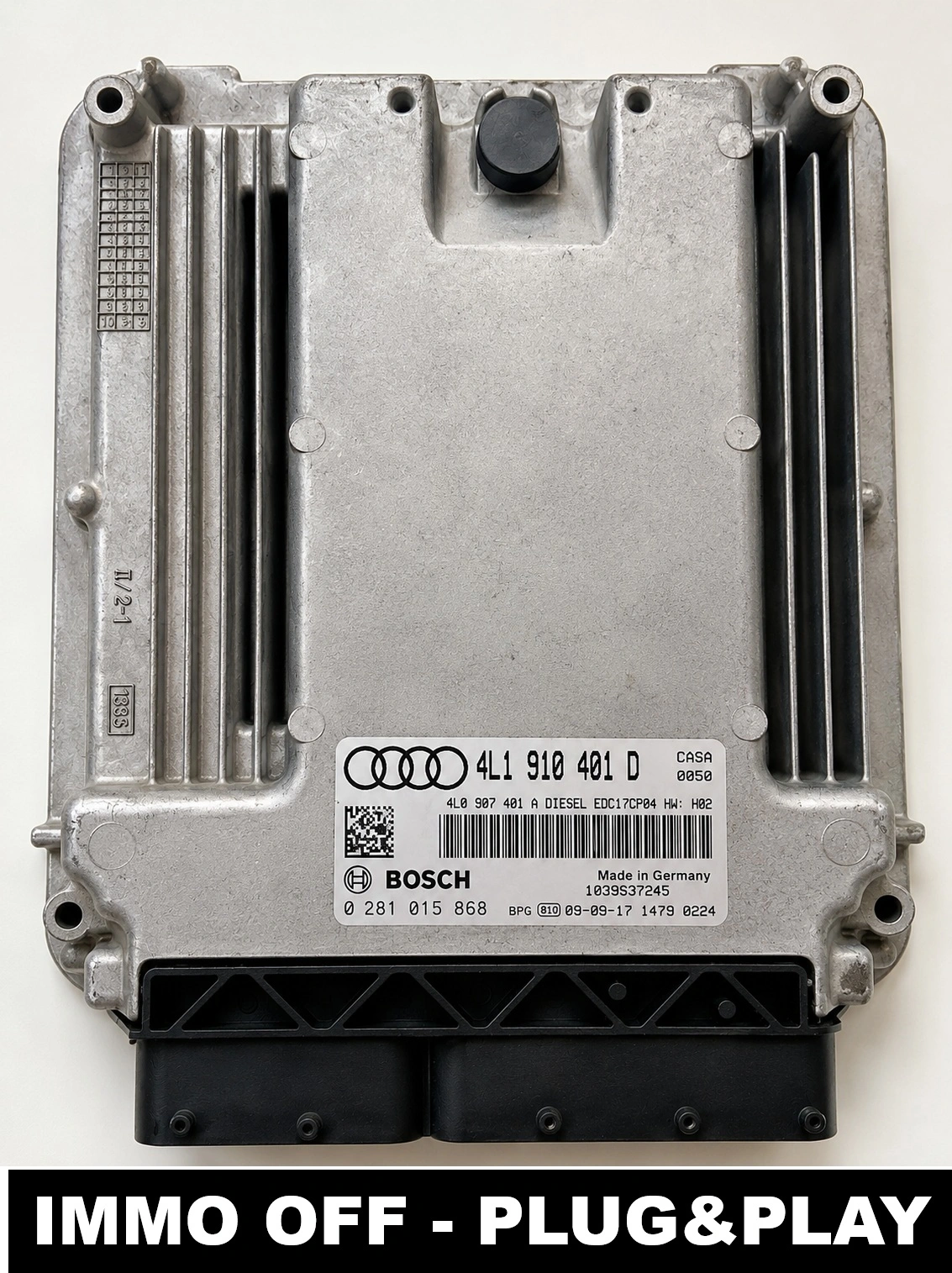

Bosch 0281015868 – Audi 4L1910401D

The Bosch 0281015868 / Audi 4L1910401D ECU is one of the most common versions used in the Audi Q7 3.0 TDI. This Bosch EDC17CP04 engine controller is particularly vulnerable to water and moisture damage.

• corrosion beneath the processor,
• loss of CAN communication,
• power supply short circuit,
• unable to read FLASH / EEPROM data,
• completely dead ECU.

When cloning data from the original ECU is no longer possible, a professionally prepared IMMO OFF Plug & Play replacement becomes the most effective solution.

View product: 0281015868 4L1910401D – Audi Q7 3.0 TDI Engine ECU IMMO OFF

Typical fault codes caused by a damaged Audi Q7 ECU

• no communication with ECU,
• Engine Control Module – No Communication,
• Immobilizer Active,
• U0100 Lost Communication With ECM/PCM,
• CAN bus communication faults,
• engine ECU not responding.

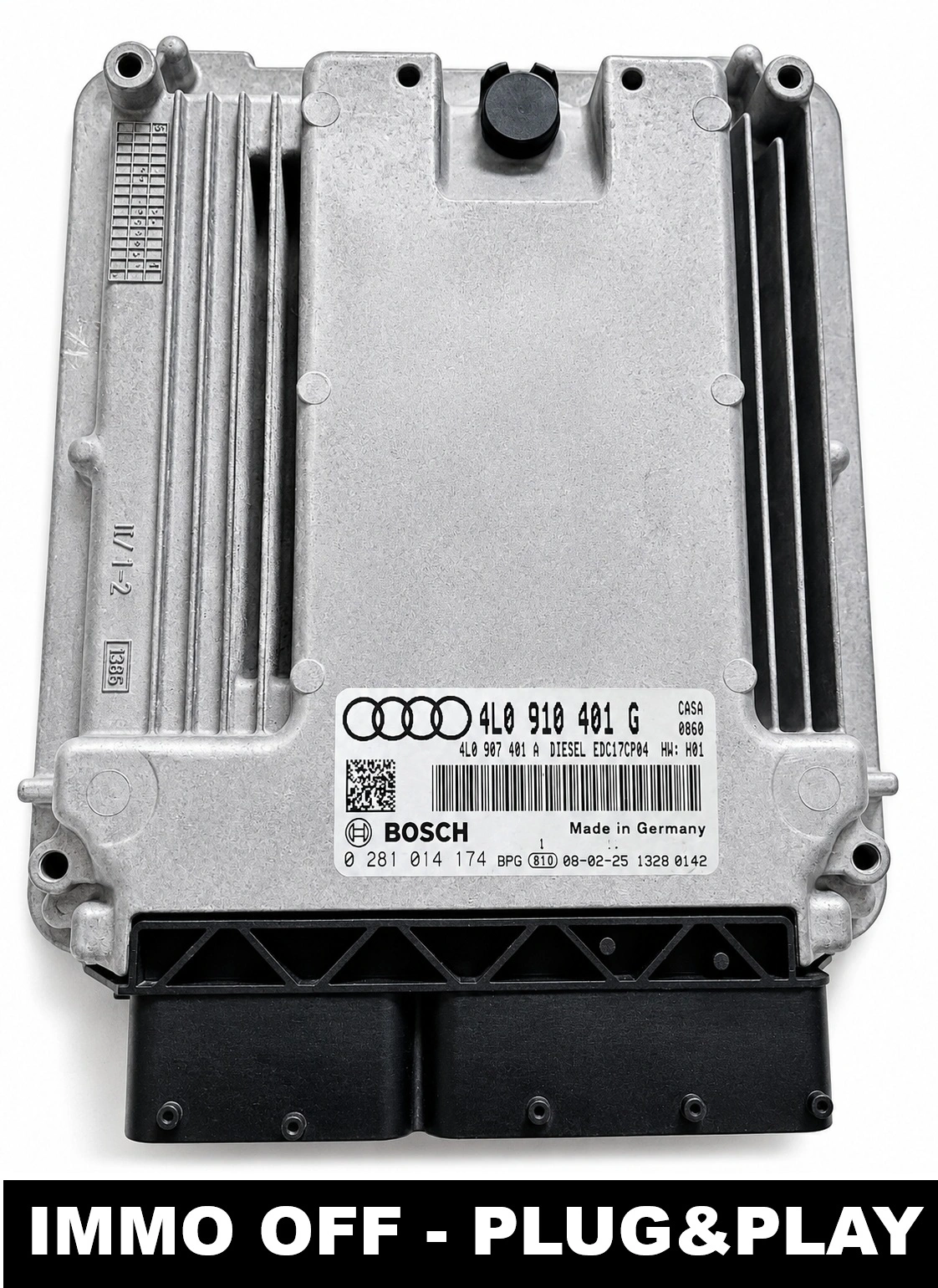

Bosch 0281014174 – Audi 4L0910401G

Another very common ECU affected by water damage is the Bosch 0281014174 / Audi 4L0910401G / 4L0907401A. This is also a Bosch EDC17CP04 unit used in the Audi Q7 3.0 TDI.

• engine cranks but will not start,
• no diagnostic communication,
• active immobilizer faults,
• engine control module errors,
• water ingress inside the ECU housing.

In many cases, the original ECU is already completely non-functional, leaving an IMMO OFF Plug & Play replacement as the only practical solution.

View product: 0281014174 4L0910401G 4L0907401A – Audi Q7 IMMO OFF Engine ECU

Which Audi Q7 models use 0281015868 and 0281014174 ECUs?

• Audi Q7 3.0 TDI
• Audi Q7 4L
• 3.0 V6 TDI CASA
• 3.0 TDI BUG
• 3.0 TDI CCMA
• 2006 – 2015

What is an IMMO OFF Plug & Play ECU?

An IMMO OFF ECU has the immobilizer system disabled internally. This allows the vehicle to start without online immobilizer adaptation or transferring immobilizer data from the original ECU.

• no immobilizer coding required,
• quick installation,
• ideal solution for completely dead ECUs,
• vehicle can start even without original ECU data,
• true Plug & Play setup.

This solution is especially popular for water damaged ECUs where recovering data from the original unit is no longer possible.

Audi Q7 3.0 TDI – no communication with engine ECU

One of the most common symptoms of a failed Bosch EDC17CP04 ECU in the Audi Q7 is complete loss of diagnostic communication. In many cases, the root cause is internal corrosion caused by moisture entering the ECU housing.

Why do many customers choose IMMO OFF?

When the original Audi Q7 3.0 TDI ECU is severely damaged, cloning the data may no longer be possible. An IMMO OFF Plug & Play ECU allows the vehicle to be started quickly without expensive online coding procedures or recovering immobilizer data from the old controller.

When is ECU cloning impossible?

ECU cloning requires reading data directly from the original engine controller. If the ECU is heavily corroded, burnt internally or completely dead on the bench, full cloning may no longer be achievable.

• burnt ECU electronics,
• processor not responding,
• short circuit on the PCB,
• damaged FLASH memory,
• long-term water exposure inside the ECU.

In these situations, preparing a replacement ECU in IMMO OFF Plug & Play configuration is often the most reliable repair option.

Audi Q7 3.0 TDI – compatible ECU part numbers

The most common Bosch EDC17CP04 engine ECU references used in the Audi Q7 3.0 TDI include:

• 0281015868
• 0281014174
• 4L1910401D
• 4L0910401G
• 4L0907401A
• Bosch EDC17CP04

View full range: Audi Q7 Plug & Play Engine ECUs

Browse category: Audi Engine ECUs

Shipping and delivery

All ECUs are shipped from Poland across Europe using express courier services such as UPS Express, DHL Express and FedEx International.

Check delivery times and shipping costs

FAQ – Audi Q7 3.0 TDI Water Damaged ECU

Can ECU 0281015868 be installed Plug & Play?

Yes. The 0281015868 / 4L1910401D ECU can be prepared in IMMO OFF Plug & Play configuration. This means no immobilizer adaptation is required after installation, and the vehicle can start without transferring data from the original ECU.

Can a water damaged Bosch 0281014174 ECU still be cloned?

It depends on the level of damage. If the 0281014174 / 4L0910401G ECU still responds and data can be read successfully, cloning is usually possible. If the ECU is completely dead, an IMMO OFF Plug & Play solution is typically required.

What symptoms does a faulty 4L1910401D ECU cause?

A failed 4L1910401D ECU may cause a no-start condition, diagnostic communication failure, CAN bus errors, constantly running cooling fans and immobilizer issues. In many cases, these problems appear after heavy rain or water ingress beneath the windscreen scuttle panel.

Is the EDC17CP04 ECU in the Audi Q7 prone to water damage?

Yes. Bosch EDC17CP04 engine ECUs in the Audi Q7 3.0 TDI are well known for moisture-related failures due to their location beneath the scuttle panel. Blocked water drains can eventually lead to corrosion and permanent ECU damage.

Does IMMO OFF work without coding?

Yes. An ECU prepared in IMMO OFF Plug & Play configuration does not require standard immobilizer adaptation. This is especially useful when the original ECU is completely damaged and its data can no longer be recovered.

Can a corroded Audi Q7 ECU be repaired?

In some cases repair is possible, but when severe corrosion, processor damage or complete communication failure is present, replacing the ECU with a professionally prepared IMMO OFF Plug & Play unit is often the safer and more reliable solution.
