How to match the 0281015868 / 4L1910401D ECU to your Audi Q7 3.0 TDI
Bosch 0281015868 is an EDC17CP04 unit – the newer generation of electronics used in the Audi Q7 3.0 TDI (4L); its housing carries the Audi number 4L1910401D. We supply it as IMMO OFF Plug & Play, tested in a car; the warranty is 6 months.

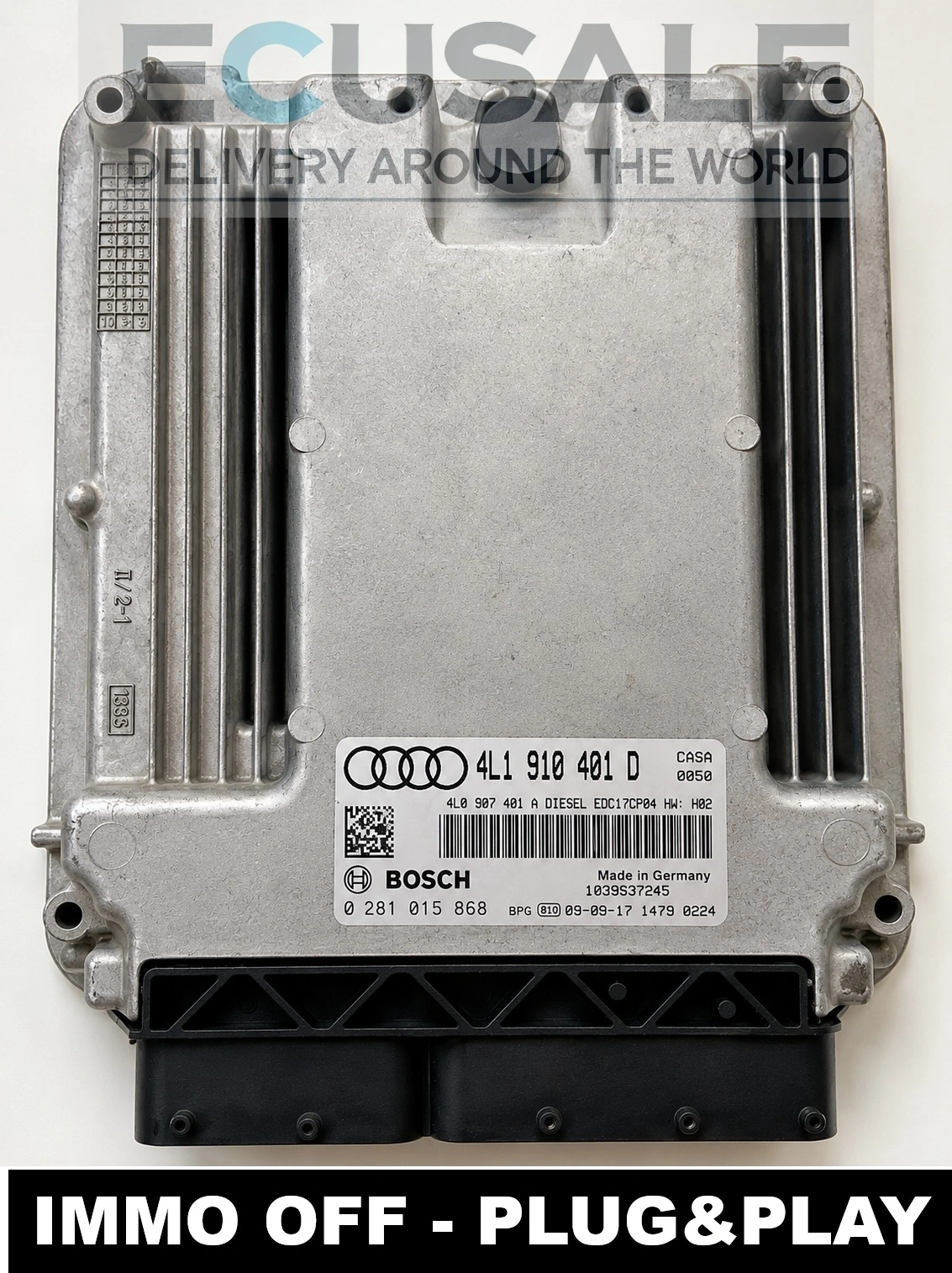

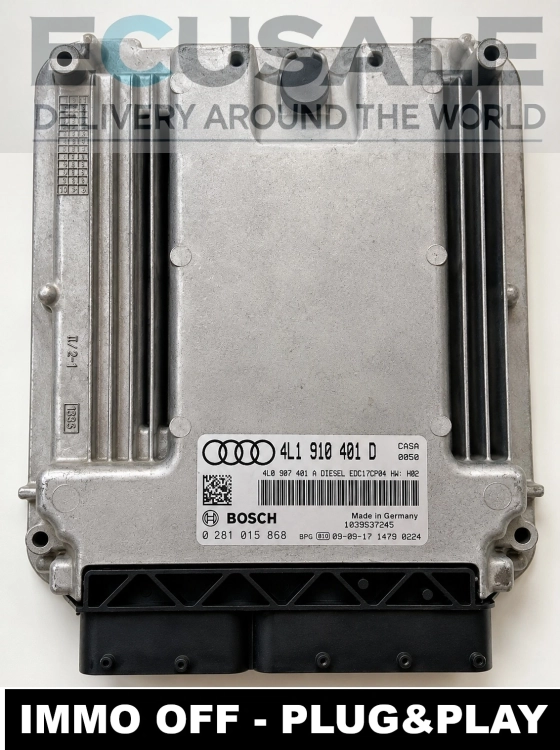

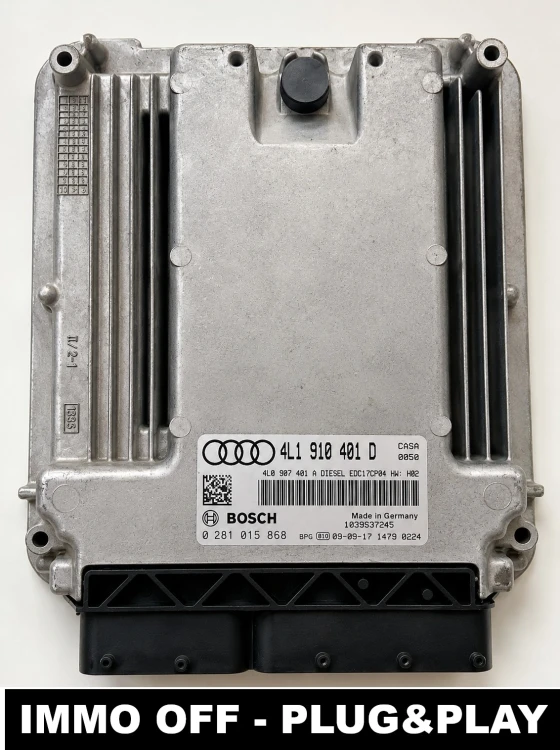

Label markings
- Bosch number: 0281015868 (0 281 015 868)
- Audi number: 4L1910401D (4L1 910 401 D)
- ECU type: Bosch EDC17CP04
Vehicle compatibility
The unit comes from an Audi Q7 4L 3.0 TDI. The model list does not limit the match either way – what matters is that the Bosch number 0281015868 and the Audi number 4L1910401D match the label on your ECU. The neighbouring number 0281014174 (4L0910401G) is also an EDC17 but with different software, so it cannot replace this unit. Earlier Q7 3.0 TDI models with EDC16CP34 (e.g. 0281013691) use a different ECU type.
Preparation and installation
The engine will start straight after installation, because the unit is IMMO OFF. On EDC17, though, an immobiliser fault stays in memory and cannot be cleared; a cluster with the large display then shows SAFE, the smaller one shows nothing. Want the car without this fault? Have the immobiliser adapted at a workshop or order data cloning from your old ECU from us, included in the price. For an extra charge: DPF OFF, EGR OFF, FLAPS OFF or chip tuning.
Symptoms of a failed ECU in the Q7
A typical cause of failure in the Q7 is water from the scuttle area where the ECU is mounted. Signs of damage include:
- the engine cranks but does not start
- the radiator fans run constantly with the ignition on
- corrosion on the pins or the circuit board
These symptoms can also have another source (power supply, wiring, battery) – start with diagnostics. Details in the article: water-damaged EDC17 ECU in the Audi Q7 3.0 TDI.
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281015868 / 4L1910401D ECU
How can I get rid of the SAFE message?
A workshop can carry out an immobiliser adaptation, or you can order data cloning from your old ECU – included in the price, after you send us the unit or its files.
|
Does the 0281015868 need programming?
No – the IMMO OFF version starts the engine without programming; only the immobiliser fault described above remains.
|
What extra options can I order with the 0281015868?
Paid options: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
|
