How to match the 0281014409 / 4L1910401 ECU to your Audi Q7 3.0 TDI

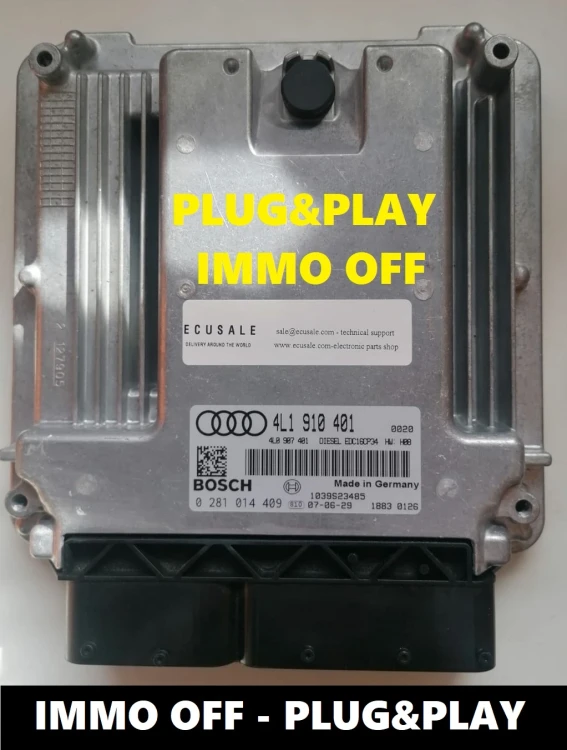

0281014409 (Audi 4L1910401) is a Bosch EDC16CP34 engine control unit from the first-generation Audi Q7 (4L) with the 3.0 TDI V6 engine. We ship it as IMMO OFF Plug & Play, after fitting it to our test car and checking how the engine runs. Warranty: 6 months.
Label markings
- Bosch number: 0281014409 (0 281 014 409)
- Audi number: 4L1910401 (4L1 910 401)
- ECU type: Bosch EDC16CP34
Vehicle compatibility
The label decides, not the model year: the Bosch number 0281014409 and the Audi number 4L1910401 must be the same as on your ECU. If your Q7 version is not mentioned in the description, the unit may still fit. Watch out for similar numbers – 0281014408 (4L0910401T) has different software and is not a replacement, and Q7s with EDC17 (e.g. 0281015868) use a different ECU type.
Preparation and installation
The 0281014409 unit is prepared as IMMO OFF – once connected, the engine starts without immobiliser programming or key coding, and no fault remains stored. Cloning the data from your old ECU is included in the price (send us the unit or the files). Paid options: DPF OFF, EGR OFF, FLAPS OFF, chip tuning.
Symptoms of a failed ECU in the Q7
In the Q7 3.0 TDI the ECU sits under the scuttle panel; when the drains block, water collects there. The most common symptoms:
- the engine cranks but does not start
- no communication with the ECU during diagnostics
- the radiator fans run constantly with the ignition on
These symptoms can also have another source (power supply, wiring, battery) – start with diagnostics. Details in the article: water damage to the Audi Q7 3.0 TDI ECU (EDC16CP34).
Other Audi Q7 3.0 TDI ECUs in stock
Full range: Audi engine ECUs · Bosch ECUs
Frequently asked questions about the 0281014409 / 4L1910401 ECU
Does the 0281014409 need programming after installation?
No. The unit is IMMO OFF Plug & Play – once connected, the engine starts without immobiliser or key programming.
|
Will the 0281014409 fit a Q7 with an EDC17 ECU?
No. This unit is a Bosch EDC16CP34. Q7 3.0 TDI models with EDC17 (e.g. 0281015868) use different ECUs – choose by the number on the label.
|
What extra options can I order with the 0281014409?
Paid options: DPF OFF, EGR OFF, FLAPS OFF and chip tuning.
|
